UFC 4 .mcd - variation of zstd compression?

[shak-otay]

Hello, I tried to decompress an UFC 4 .mcd file which has "chunzstd" signature.  After removing the 48 bytes header (so the file to start with 28B52FFD) I used quickbms with comtype zstd, at no avail (comtype LZO1Z didn't work, too).

Maybe someone can lend a helping hand?

comtype zstd
set NAME string ""
string NAME + "zstd-decompressed.bin"
clog NAME 0 0xCB540 0x100000

The 4th parameter for clog is the uncompressed size, where I tried different values (3rd param = compressed size, 2nd: offset into file).

(I see, using 48 here instead of 0 I could have spared removing the header...)

head_conor_mcgregor_model_CB540-withoutHeader.zip

[DKDave]

1 hour ago, shak-otay said:

Hello, I tried to decompress an UFC 4 .mcd file which has "chunzstd" signature.  After removing the 48 bytes header (so the file to start with 28B52FFD) I used quickbms with comtype zstd, at no avail (comtype LZO1Z didn't work, too).

Maybe someone can lend a helping hand?

comtype zstd
set NAME string ""
string NAME + "zstd-decompressed.bin"
clog NAME 0 0xCB540 0x100000

The 4th parameter for clog is the uncompressed size, where I tried different values (3rd param = compressed size, 2nd: offset into file).

(I see, using 48 here instead of 0 I could have spared removing the header...)

head_conor_mcgregor_model_CB540-withoutHeader.zip 811.59 kB · 2 downloads

It's not just 1 block of data, there are multiple compressed ZSTD blocks in your sample file that have to be joined together - e.g. at 0, 0x129b0, 0x31dd0, etc..  It looks as though each file is preceded by the compressed size and anotherr value, except the first block, which looks to be a compressed size of 0x129a0.  You might have cut that bit off in your sample.  Each block seems to decompress to 0x40000 bytes except for the last one, which is shorter.  I guess the header might have some useful info.





[Rabatini]

1 hour ago, shak-otay said:

Hello, I tried to decompress an UFC 4 .mcd file which has "chunzstd" signature.  After removing the 48 bytes header (so the file to start with 28B52FFD) I used quickbms with comtype zstd, at no avail (comtype LZO1Z didn't work, too).

Maybe someone can lend a helping hand?

comtype zstd
set NAME string ""
string NAME + "zstd-decompressed.bin"
clog NAME 0 0xCB540 0x100000

The 4th parameter for clog is the uncompressed size, where I tried different values (3rd param = compressed size, 2nd: offset into file).

(I see, using 48 here instead of 0 I could have spared removing the header...)

head_conor_mcgregor_model_CB540-withoutHeader.zip 811.59 kB · 0 downloads

Actually your file is a container with a bunch os zstd files.

attached the first file decompressed.

I did a tool, long time ago, i will search here.

head_conor_mcgregor_model_CB540.mcd.zip

[shak-otay]

Thanks to both of you. Yeah, I should have looked for more 28B52FFD in the file, how naive I am, sometimes...

Works with the first block:

comtype zstd
set NAME string ""
string NAME + "zstd-decompressed.bin"
clog NAME 0 76192 0x100000

edit: for the 2nd block I used

clog NAME 0 128017 262144

Decompressed file looks ok...

For 3rd and 4th block, too, ...

Edited 19 hours ago by shak-otay

[Rabatini]

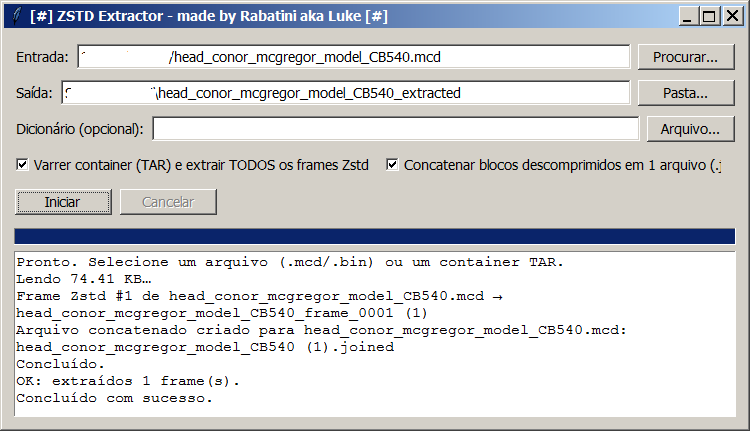

Try this tool, made some adjust to read your file.

zstd decompressor.zip

[shak-otay]

Haha, too late, I just finished it manually...

But thanks, really appreciated.

(Oh, well, 7 scanners of virustotal flag the exe. (I know, might be false positives, but more than 5 are a lot...)

I'll test it later in a VM.

Edited 18 hours ago by shak-otay

[Rabatini]

1 minute ago, shak-otay said:

Haha, too late I just finished it manually...

But thanks, really appreciated.

(Oh, well, 7 scanners of virustotal flag the exe. (I know, might be false positives, but more than 5 are a lot...)

False positive, i did not put my trojans to take your credit card in this one!!! hahahaha

[shak-otay]

23 minutes ago, Rabatini said:

False positive, i did not put my trojans to take your credit card in this one!!! hahahaha

Yeah, I guess so. Some dev chains seem to produce suspicious code.

edit: used your exe sandboxed, but it extracts the first frame only from head_conor_mcgregor_model_CB540.mcd?

.joined contains first frame only.

Edited 18 hours ago by shak-otay

[Rabatini]

23 minutes ago, shak-otay said:

Yeah, I guess so. Some dev chains seem to produce suspicious code.

edit: used your exe sandboxed, but it extracts the first frame only from head_conor_mcgregor_model_CB540.mcd?

.joined contains first frame only.

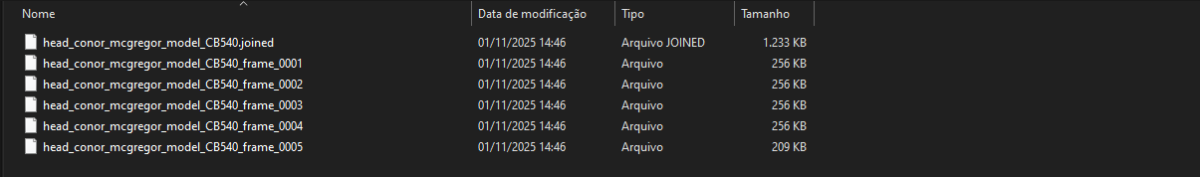

No!

it should be like that



[shak-otay]

Ok, 5 frames. (Maybe the sandbox forces closing?)

(Anyways. As I wrote I've already concatenated all 12 manually extracted blocks and working with it.)

[Rabatini]

Well, use my old c++ tool, it should work now, tried to rewrote in python for training python syntax, and maybe i did something wrong.

ZstdMagicExtractor.zip

ZstdMagicExtractor-release version.zip

Edited 14 hours ago by Rabatini

[shak-otay]

Haha, should have looked 1 hour ago but I was too busy extracting head_conor_mcgregor_diffuse.gnf manually...

The good news: tried ZstdMagicExtractor and the .joind file is identical to the manually decompressed/concatenated .gnf.

Thanks again!
