the Punisher 2005 xbox version XEG TGA

[smith1395]

Hello! I want to localize comic book covers in punisher game 2005 for the platform xbox original.  I need help with images that are stored in xeg format. I know there is specialized software to work with ceg for the PC version. I also know peg (ps2) scripts. But neither is compatible with this xeg format... I know that tga files are stored inside. Can someone tell you how to be with this format or there is universal software for such files???
Would appreciate

[ikskoks]

Please share some sample files. And please send links to tools/scripts you are talking about. We are not fortune tellers...

[smith1395]

https://github.com/unclehunk/punishermoddingtoolgui



comic1.zip

Edited September 14, 2025 by smith1395

[ikskoks]

For extracting raw data from archives you can use the same script you linked (punisher_ps2_peg.bms)
as archive file format is the same across all platforms https://rewiki.miraheze.org/wiki/The_Punisher_CEG_PEG_XEG

The difference is in the image encoding, PC version uses standard DXT5 or RGBA8888, while encoding seems to be different on PS2 and XBOX.
I was not able to find correct setting with ImageHeat.

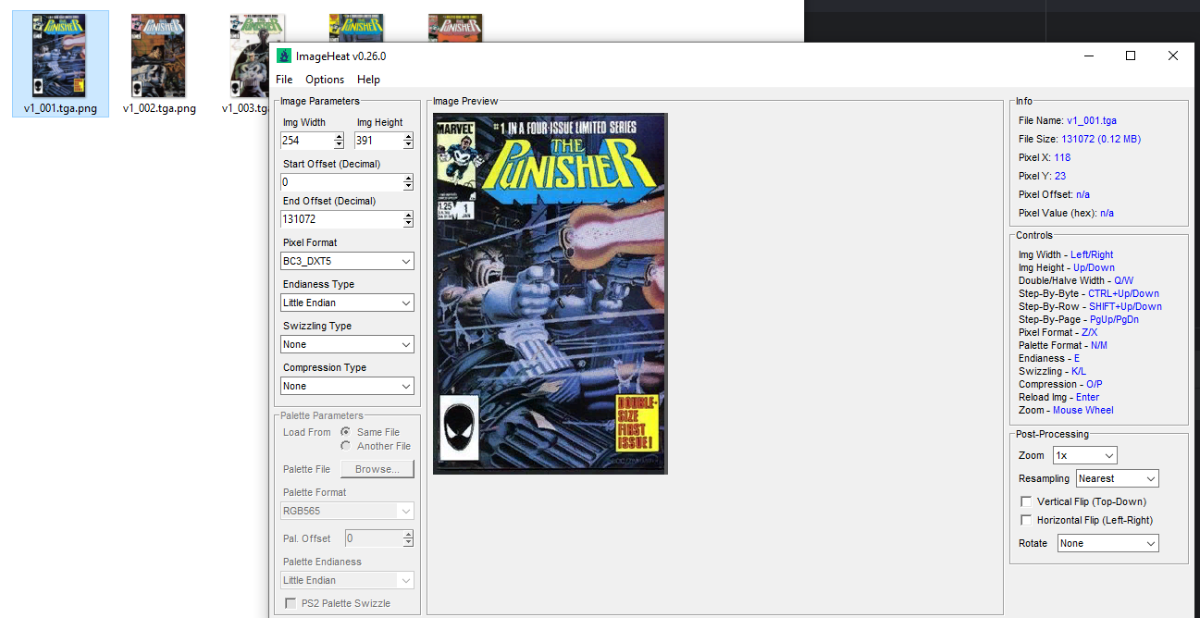

Here's how it looks for PC sample:

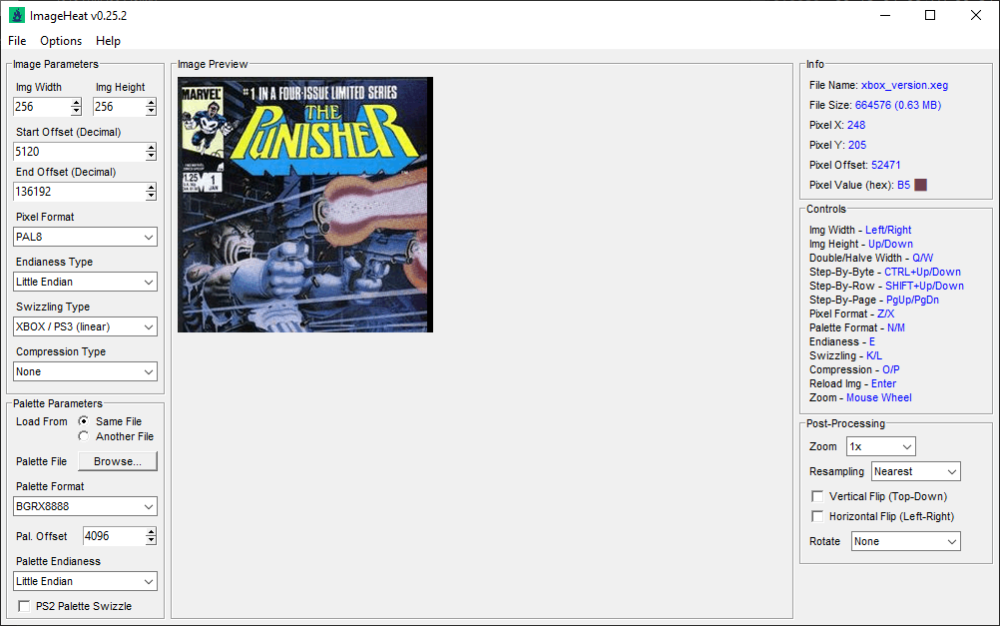

[h3x3r]

But can't produce right width/height. It's 250 x 391 px.

[smith1395]

Texture param:
res: 512x256
start offset: 1024
Pixel Format PAL8
Swizzling type Xbox\ps3 liner
Palette format BGRA8888

This script for insert to raw.

Spoiler

from inc_noesis import *

def registerNoesisTypes():
    handle = noesis.register("The Punisher xbox font raw", ".raw")
    noesis.setHandlerTypeCheck(handle, noepyCheckType)
    noesis.setHandlerLoadRGBA(handle, noepyLoadRGBA)
    noesis.setHandlerWriteRGBA(handle, texWriteRGBA)
    return 1

def noepyCheckType(data):
    return 1
def noepyLoadRGBA(data, texList):
    bs = NoeBitStream(data)
    width = 256
    height = 512
    palette = bs.readBytes(1024)
    pixel = bs.readBytes(width*height)
    pixel = rapi.imageFromMortonOrder(pixel,width,height,1)
    textureData = rapi.imageDecodeRawPal(pixel,palette,width,height,8,"b8g8r8p8") #BGRX888X 24bit

    #Im not test in game, if is BGRA8888 32bit just Remove "#"
    #textureData = rapi.imageDecodeRawPal(pixel,palette,width,height,8,"b8g8r8a8") #BGRA8888 32bit

    texList.append(NoeTexture("font", width, height, textureData, noesis.NOESISTEX_RGBA32))

    return 1

def texWriteRGBA(data, width, height, bs):
    if width != 256 and height != 512:
        print("Can't export. width and height not equal 256")
        return 0
    imgPal = rapi.imageGetPalette(data, width, height, 256, 0, 1)
    idxPix = rapi.imageApplyPalette(data, width, height, imgPal, 256)
    for i in range(0,256):
        bs.writeUByte(imgPal[i*4+2])
        bs.writeUByte(imgPal[i*4+1])
        bs.writeUByte(imgPal[i*4+0])
        bs.writeUByte(imgPal[i*4+3])
    idxPix = rapi.imageToMortonOrder(idxPix,width,height,1)
    bs.writeBytes(idxPix)
    print("Export done!")
    return 1

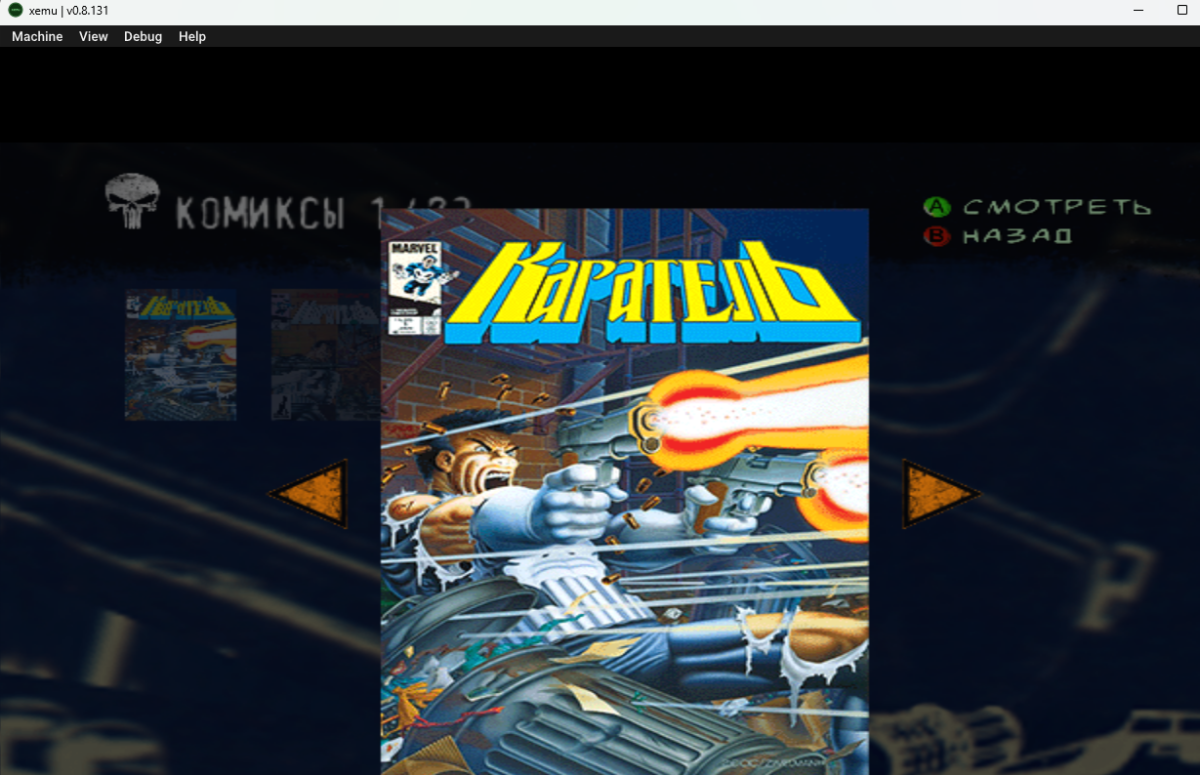

Thank you for help h3x3r ikskoks !

Edited January 14 by smith1395
