Been interested at modding this game ever since I discovered the JAM unpacker file in this site. Now i'm wondering if anyone could make a tool to extract the .WKA file which from what I learned are the animation file for the game.

Before we don't have a skeleton nothing will happen.

17 hours ago, shak-otay said:

Before we don't have a skeleton nothing will happen.

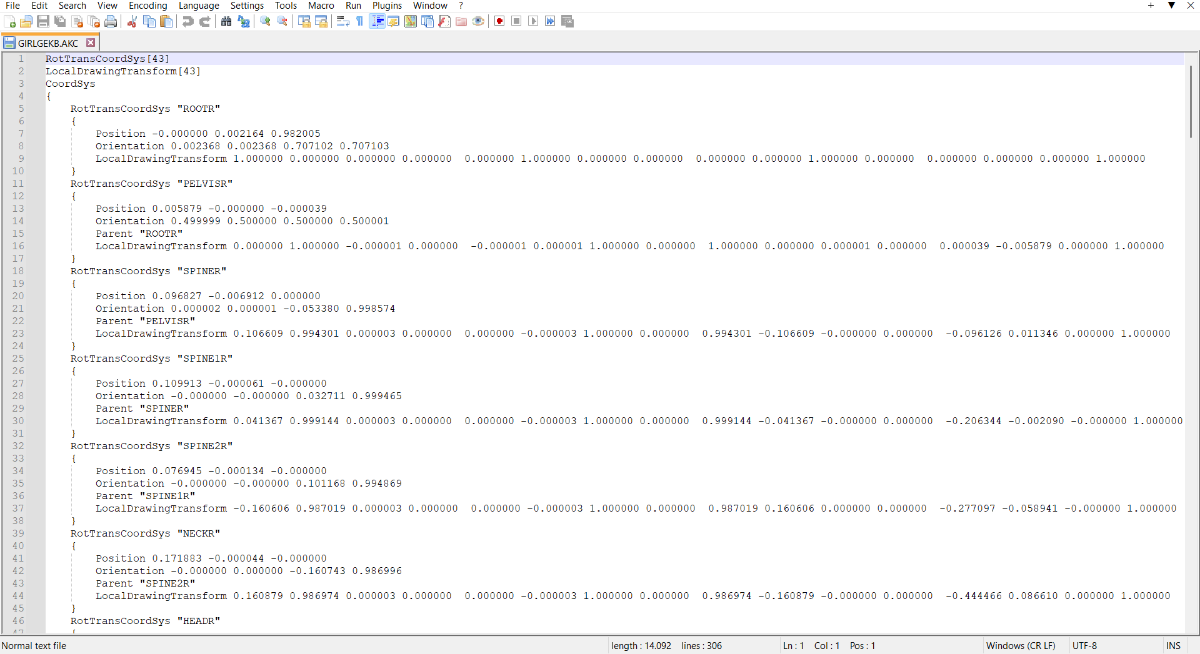

There is a file called .akc which is i think where the model's skeleton are stored if that is what you're talking about.

It's in a plain text so idk if there's a way to turn it into an armature in Blender

34 minutes ago, Yortfield said:

It's in a plain text so idk if there's a way to turn it into an armature in Blender

Should be possible - but not from a screenshot.

10 minutes ago, shak-otay said:

Should be possible - but not from a screenshot.

Here's the akc file. Let me know if you found a way convert it to an armature

akc sample.7z

Thanks! Will take some time. (Reminds me of my forgotten or unwritten ASCII parser code snippets.)

Orientation values are a quat, afaics, but what is this matrix? Hopefully it can be applied without a hassle.

LocalDrawingTransform -0.000000 0.999048 -0.043618 0.000000  0.000000 -0.043618 -0.999048 0.000000  -1.000000 -0.000000 0.000000 0.000000  -0.883083 0.052678 -0.130029 1.000000



edit: the parser is working so far, the easy part:

Quote

"ROOTR"
Position -0.000000 0.002164 0.982005
Orientation 0.002368 0.002368 0.707102 0.707103
LocalDrawingTransform 1.000000 0.000000 0.000000 0.000000  0.000000 1.000000 0.000000 0.000000  0.000000 0.000000 1.000000 0.000000  0.000000 0.000000 0.000000 1.000000

"PELVISR"
Position 0.005879 -0.000000 -0.000039
Orientation 0.499999 0.500000 0.500000 0.500001
par "ROOTR"
LocalDrawingTransform 0.000000 1.000000 -0.000001 0.000000  -0.000001 0.000001 1.000000 0.000000  1.000000 0.000000 0.000001 0.000000  0.000039 -0.005879 0.000000 1.000000

"SPINER"
Position 0.096827 -0.006912 0.000000
Orientation 0.000002 0.000001 -0.053380 0.998574
par "PELVISR"
LocalDrawingTransform 0.106609 0.994301 0.000003 0.000000  0.000000 -0.000003 1.000000 0.000000  0.994301 -0.106609 -0.000000 0.000000  -0.096126 0.011346 0.000000 1.000000

"SPINE1R"
Position 0.109913 -0.000061 -0.000000
Orientation -0.000000 -0.000000 0.032711 0.999465
par "SPINER"
LocalDrawingTransform 0.041367 0.999144 0.000003 0.000000  0.000000 -0.000003 1.000000 0.000000  0.999144 -0.041367 -0.000000 0.000000  -0.206344 -0.002090 -0.000000 1.000000

"SPINE2R"
Position 0.076945 -0.000134 -0.000000
Orientation -0.000000 -0.000000 0.101168 0.994869
par "SPINE1R"
LocalDrawingTransform -0.160606 0.987019 0.000003 0.000000  0.000000 -0.000003 1.000000 0.000000  0.987019 0.160606 0.000000 0.000000  -0.277097 -0.058941 -0.000000 1.000000

"NECKR"
Position 0.171883 -0.000044 -0.000000
Orientation -0.000000 0.000000 -0.160743 0.986996
par "SPINE2R"
LocalDrawingTransform 0.160879 0.986974 0.000003 0.000000  0.000000 -0.000003 1.000000 0.000000  0.986974 -0.160879 -0.000000 0.000000  -0.444466 0.086610 0.000000 1.000000

...

...

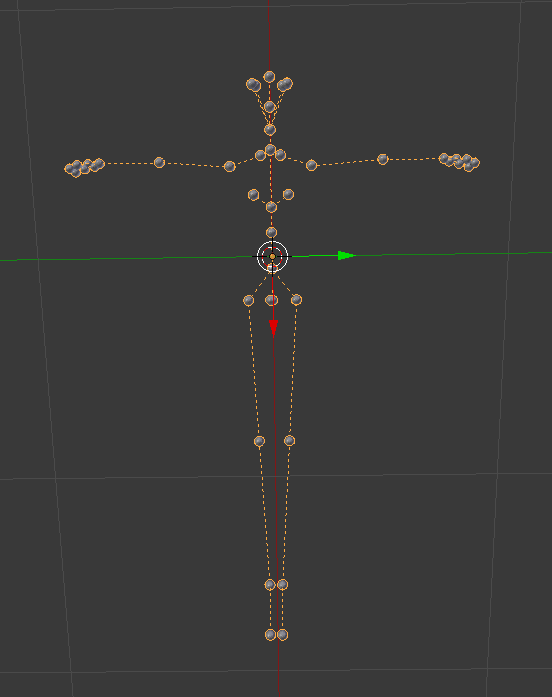

edit: done. (Copy the following lines into a .smd text file: )

version 1
nodes
0 "ROOTR" -1
1 "PELVISR" 0
2 "SPINER" 1
3 "SPINE1R" 2
4 "SPINE2R" 3
5 "NECKR" 4
6 "HEADR" 5
7 "JAWR" 6
8 "EYEBROWR" 6
9 "LEYELIDR" 6
10 "REYELIDR" 6
11 "REYER" 6
12 "LEYER" 6
13 "LCLAVICR" 5
14 "LUPARMR" 13
15 "L4ARMR" 14
16 "LHANDR" 15
17 "LFING0R" 16
18 "LFING01R" 17
19 "LFING1R" 16
20 "LFING11R" 19
21 "LFING2R" 16
22 "LFING21R" 21
23 "RCLAVICR" 5
24 "RUPARMR" 23
25 "R4ARMR" 24
26 "RHANDR" 25
27 "RFING0R" 26
28 "RFING01R" 27
29 "RFING1R" 26
30 "RFING11R" 29
31 "RFING2R" 26
32 "RFING21R" 31
33 "RBREASTR" 4
34 "LBREASTR" 4
35 "LTHIGHR" 2
36 "LCALFR" 35
37 "LFOOTR" 36
38 "LTOE0R" 37
39 "RTHIGHR" 2
40 "RCALFR" 39
41 "RFOOTR" 40
42 "RTOE0R" 41
end
skeleton
time 0
0 -0.000000 0.002164 0.982005 0.006698 0.000000 1.570795
1 0.005879 -0.000000 -0.000039 1.570794 0.000002 1.570796
2 0.096827 -0.006912 0.000000 0.000004 0.000002 -0.106811
3 0.109913 -0.000061 -0.000000 -0.000000 -0.000000 0.065434
4 0.076945 -0.000134 -0.000000 -0.000000 -0.000000 0.202683
5 0.171883 -0.000044 -0.000000 -0.000000 -0.000000 -0.322887
6 0.058620 -0.000000 0.000000 0.000000 -0.000000 0.065590
7 0.061718 0.031405 0.000000 -0.000003 0.000002 -1.963160
8 0.147274 0.023521 0.000412 -0.008382 -0.000278 -1.526826
9 0.118328 0.078315 0.049960 -0.266198 0.000000 0.977407
10 0.118328 0.078316 -0.048369 -0.000000 -0.000000 0.052510
11 0.114542 0.070875 -0.039256 0.000000 -0.000000 0.000000
12 0.114542 0.070875 0.039256 0.000000 -0.000000 0.000000
13 -0.013340 -0.016466 0.029466 -0.922879 -1.145993 -2.264650
14 0.103251 0.000000 -0.000000 -0.200820 -0.377249 0.044269
15 0.243783 -0.000000 -0.000000 0.000000 0.000000 0.207764
16 0.261753 0.000000 -0.000000 1.569996 0.095995 -0.000077
17 0.057600 0.007142 -0.034670 -1.219516 -0.262946 0.310644
18 0.027926 -0.000000 -0.000000 0.000000 0.000000 -0.130899
19 0.085561 -0.003678 -0.018531 0.057441 -0.125088 -0.238755
20 0.038983 -0.000000 -0.000000 0.000000 -0.000000 -0.287980
21 0.090451 0.000232 0.012349 0.122084 0.023461 -0.225919
22 0.035924 0.000000 0.000000 -0.000000 -0.000000 -0.200713
23 -0.013340 -0.016466 -0.029466 0.922873 1.145993 -2.264648
24 0.103251 0.000000 0.000000 0.200820 0.377249 0.044269
25 0.243783 -0.000000 -0.000000 0.000000 -0.000000 0.207764
26 0.261753 0.000000 0.000000 -1.569996 -0.095995 -0.000077
27 0.057600 0.007142 0.034670 1.219516 0.262946 0.310644
28 0.027926 0.000000 0.000000 0.000000 0.000000 -0.130899
29 0.085561 -0.003678 0.018531 -0.057441 0.125088 -0.238755
30 0.038983 -0.000000 0.000000 0.000000 -0.000000 -0.287980
31 0.090451 0.000232 -0.012349 -0.122084 -0.023461 -0.225919
32 0.035924 0.000000 -0.000000 0.000000 -0.000000 -0.200713
33 0.045332 0.029823 -0.051874 0.242222 0.032927 -1.716442
34 0.045332 0.029823 0.051661 -0.241249 -0.039041 -1.714933
35 -0.095539 0.017195 0.073208 3.125194 0.060834 3.084762
36 0.436832 -0.000000 0.000000 0.000000 -0.000000 0.042613
37 0.450412 -0.000000 0.000000 0.027975 0.065070 -0.090825
38 0.098754 0.126638 0.000000 -0.000000 -0.000000 -1.570796
39 -0.095539 0.017195 -0.073208 -3.125200 -0.060834 3.084763
40 0.436832 0.000000 0.000000 0.000000 -0.000000 0.042613
41 0.450412 0.000000 -0.000000 -0.027975 -0.065070 -0.090825
42 0.098754 0.126638 -0.000000 0.000000 -0.000000 -1.570796



Edited March 3Mar 3 by shak-otay

On 3/2/2026 at 5:47 PM, shak-otay said:

Thanks! Will take some time. (Reminds me of my forgotten or unwritten ASCII parser code snippets.)

Orientation values are a quat, afaics, but what is this matrix? Hopefully it can be applied without a hassle.

LocalDrawingTransform -0.000000 0.999048 -0.043618 0.000000  0.000000 -0.043618 -0.999048 0.000000  -1.000000 -0.000000 0.000000 0.000000  -0.883083 0.052678 -0.130029 1.000000



edit: the parser is working so far, the easy part:

edit: done. (Copy the following lines into a .smd text file: )

version 1
nodes
0 "ROOTR" -1
1 "PELVISR" 0
2 "SPINER" 1
3 "SPINE1R" 2
4 "SPINE2R" 3
5 "NECKR" 4
6 "HEADR" 5
7 "JAWR" 6
8 "EYEBROWR" 6
9 "LEYELIDR" 6
10 "REYELIDR" 6
11 "REYER" 6
12 "LEYER" 6
13 "LCLAVICR" 5
14 "LUPARMR" 13
15 "L4ARMR" 14
16 "LHANDR" 15
17 "LFING0R" 16
18 "LFING01R" 17
19 "LFING1R" 16
20 "LFING11R" 19
21 "LFING2R" 16
22 "LFING21R" 21
23 "RCLAVICR" 5
24 "RUPARMR" 23
25 "R4ARMR" 24
26 "RHANDR" 25
27 "RFING0R" 26
28 "RFING01R" 27
29 "RFING1R" 26
30 "RFING11R" 29
31 "RFING2R" 26
32 "RFING21R" 31
33 "RBREASTR" 4
34 "LBREASTR" 4
35 "LTHIGHR" 2
36 "LCALFR" 35
37 "LFOOTR" 36
38 "LTOE0R" 37
39 "RTHIGHR" 2
40 "RCALFR" 39
41 "RFOOTR" 40
42 "RTOE0R" 41
end
skeleton
time 0
0 -0.000000 0.002164 0.982005 0.006698 0.000000 1.570795
1 0.005879 -0.000000 -0.000039 1.570794 0.000002 1.570796
2 0.096827 -0.006912 0.000000 0.000004 0.000002 -0.106811
3 0.109913 -0.000061 -0.000000 -0.000000 -0.000000 0.065434
4 0.076945 -0.000134 -0.000000 -0.000000 -0.000000 0.202683
5 0.171883 -0.000044 -0.000000 -0.000000 -0.000000 -0.322887
6 0.058620 -0.000000 0.000000 0.000000 -0.000000 0.065590
7 0.061718 0.031405 0.000000 -0.000003 0.000002 -1.963160
8 0.147274 0.023521 0.000412 -0.008382 -0.000278 -1.526826
9 0.118328 0.078315 0.049960 -0.266198 0.000000 0.977407
10 0.118328 0.078316 -0.048369 -0.000000 -0.000000 0.052510
11 0.114542 0.070875 -0.039256 0.000000 -0.000000 0.000000
12 0.114542 0.070875 0.039256 0.000000 -0.000000 0.000000
13 -0.013340 -0.016466 0.029466 -0.922879 -1.145993 -2.264650
14 0.103251 0.000000 -0.000000 -0.200820 -0.377249 0.044269
15 0.243783 -0.000000 -0.000000 0.000000 0.000000 0.207764
16 0.261753 0.000000 -0.000000 1.569996 0.095995 -0.000077
17 0.057600 0.007142 -0.034670 -1.219516 -0.262946 0.310644
18 0.027926 -0.000000 -0.000000 0.000000 0.000000 -0.130899
19 0.085561 -0.003678 -0.018531 0.057441 -0.125088 -0.238755
20 0.038983 -0.000000 -0.000000 0.000000 -0.000000 -0.287980
21 0.090451 0.000232 0.012349 0.122084 0.023461 -0.225919
22 0.035924 0.000000 0.000000 -0.000000 -0.000000 -0.200713
23 -0.013340 -0.016466 -0.029466 0.922873 1.145993 -2.264648
24 0.103251 0.000000 0.000000 0.200820 0.377249 0.044269
25 0.243783 -0.000000 -0.000000 0.000000 -0.000000 0.207764
26 0.261753 0.000000 0.000000 -1.569996 -0.095995 -0.000077
27 0.057600 0.007142 0.034670 1.219516 0.262946 0.310644
28 0.027926 0.000000 0.000000 0.000000 0.000000 -0.130899
29 0.085561 -0.003678 0.018531 -0.057441 0.125088 -0.238755
30 0.038983 -0.000000 0.000000 0.000000 -0.000000 -0.287980
31 0.090451 0.000232 -0.012349 -0.122084 -0.023461 -0.225919
32 0.035924 0.000000 -0.000000 0.000000 -0.000000 -0.200713
33 0.045332 0.029823 -0.051874 0.242222 0.032927 -1.716442
34 0.045332 0.029823 0.051661 -0.241249 -0.039041 -1.714933
35 -0.095539 0.017195 0.073208 3.125194 0.060834 3.084762
36 0.436832 -0.000000 0.000000 0.000000 -0.000000 0.042613
37 0.450412 -0.000000 0.000000 0.027975 0.065070 -0.090825
38 0.098754 0.126638 0.000000 -0.000000 -0.000000 -1.570796
39 -0.095539 0.017195 -0.073208 -3.125200 -0.060834 3.084763
40 0.436832 0.000000 0.000000 0.000000 -0.000000 0.042613
41 0.450412 0.000000 -0.000000 -0.027975 -0.065070 -0.090825
42 0.098754 0.126638 -0.000000 0.000000 -0.000000 -1.570796



Nice. Could you make a script to automatically convert akc to smd?

I don't write scripts, usually. It's a tool. But it's not user friendly.

This smd example should do to tackle *.WKA files.

56 minutes ago, shak-otay said:

I don't write scripts, usually. It's a tool. But it's not user friendly.

This smd example should do to tackle *.WKA files.

If you want to work with WKA file first then here. Hopefully someone else made a script so other WKA file could be tested on

wka sample.7z

26 minutes ago, Yortfield said:

If you want to work with WKA file first then here.

Not really, but thanks!

Quote

Hopefully someone else made a script so other WKA file could be tested on

I hope so, too. But sadly the WKA format is not clear to me. Don't see a relation to the skeleton's bones.

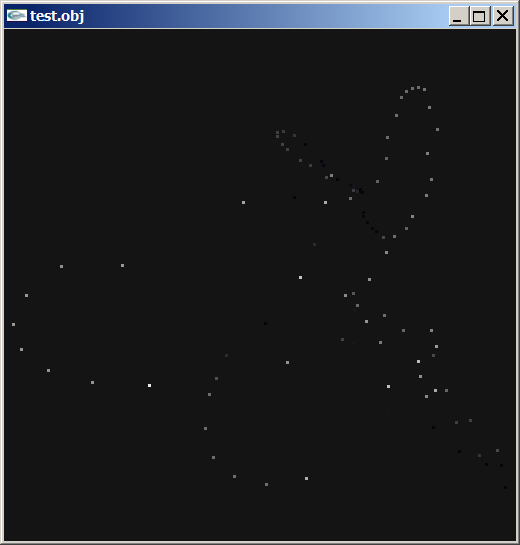

All we have is curves:

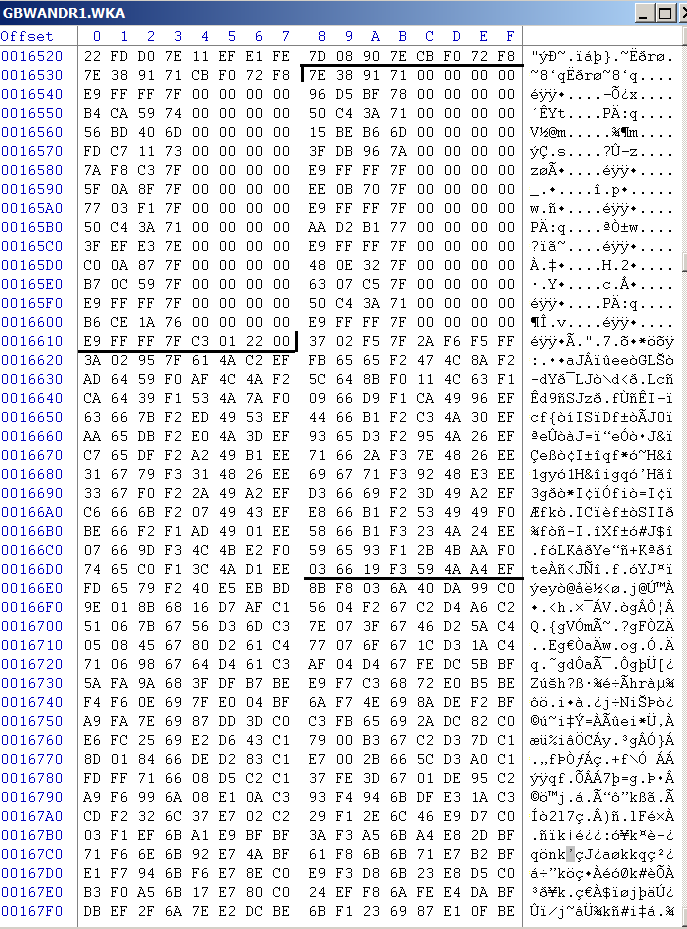

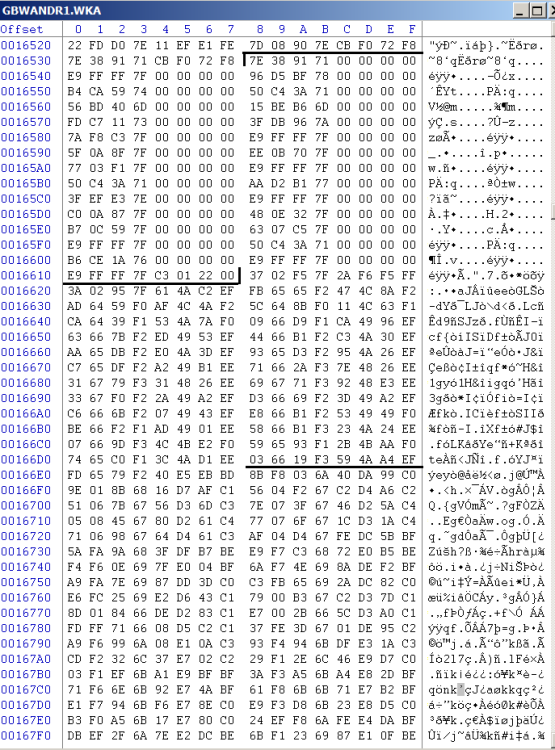

edit: and some (compressed?) blocks, maybe scale/trans/rot?

Edited March 4Mar 4 by shak-otay

Any updates?

On 3/4/2026 at 5:05 PM, shak-otay said:

edit: and some (compressed?) blocks, maybe scale/trans/rot?

You still looking into it?

Guess it needs to be debugged and I don't have the time for that. Plus I can't see any reference to the bones in the wka file.
