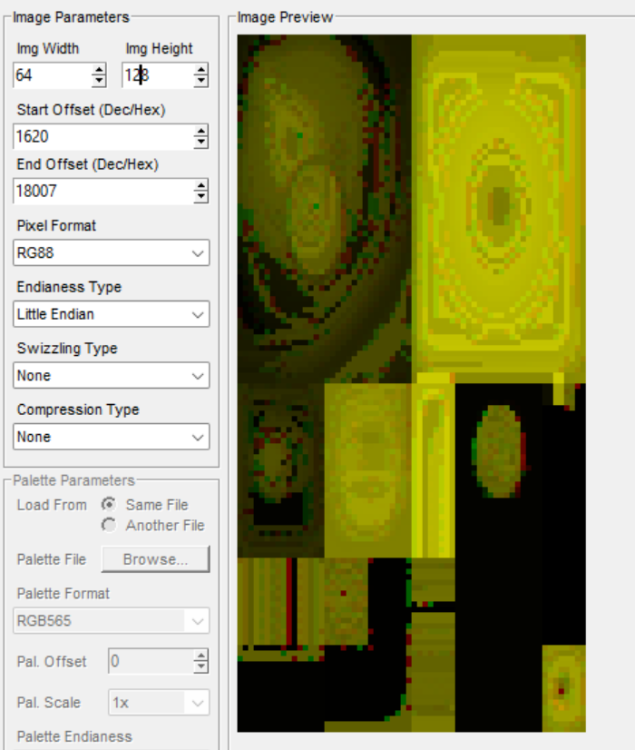

in the ps2 version of this game there 2 formats used .psd and .ps2 according to a script that i dont remember where i got it from .PSD is a 3d mesh format while .PS2 seems to be an archive/texture format thing opening it up in imageheat i see textures for example this is tom

note the script doesnt import all of the polygons i dont know why however whats important is the textures

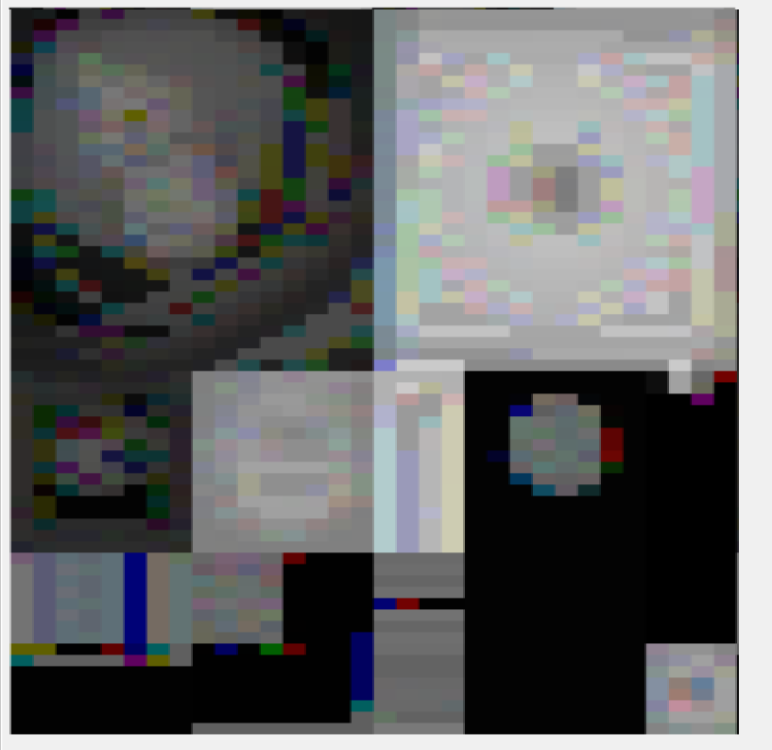

importing TO_BE_AC.PS2 into imageheat i get this however when i extract tom's textures using modified version pcsx2 with 3d screenshoting i get 3 images

and in TO_BE_AC.PS2 references to 3 images are mentioned

i think a bms script could extract this here is an exampleTO_BE_AC.rar

Edited September 29Sep 29 by wedjklwkerfjgfkewgfh43ertg

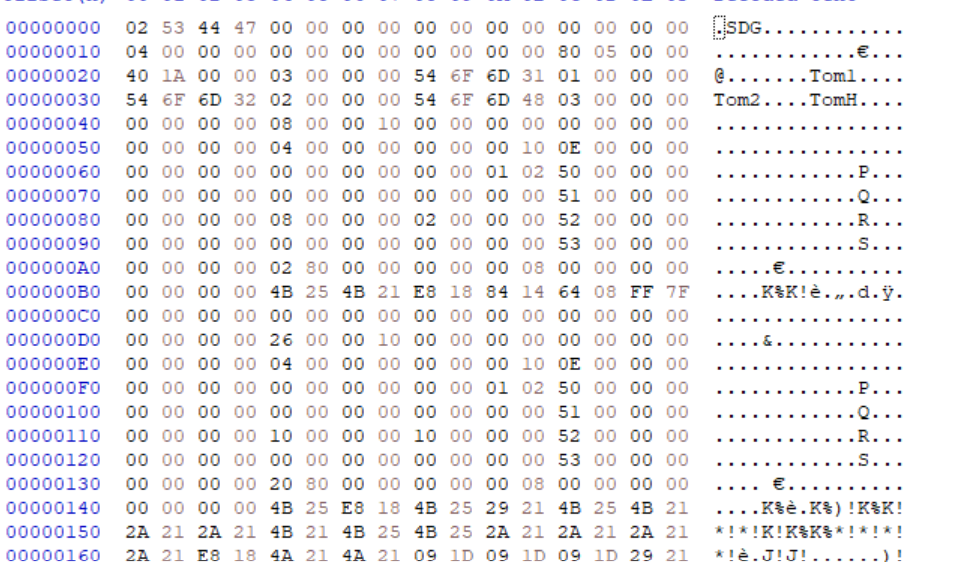

looking at it it seems to be some kind of uncompressed archive whatever ps2 is i dont know what the texture

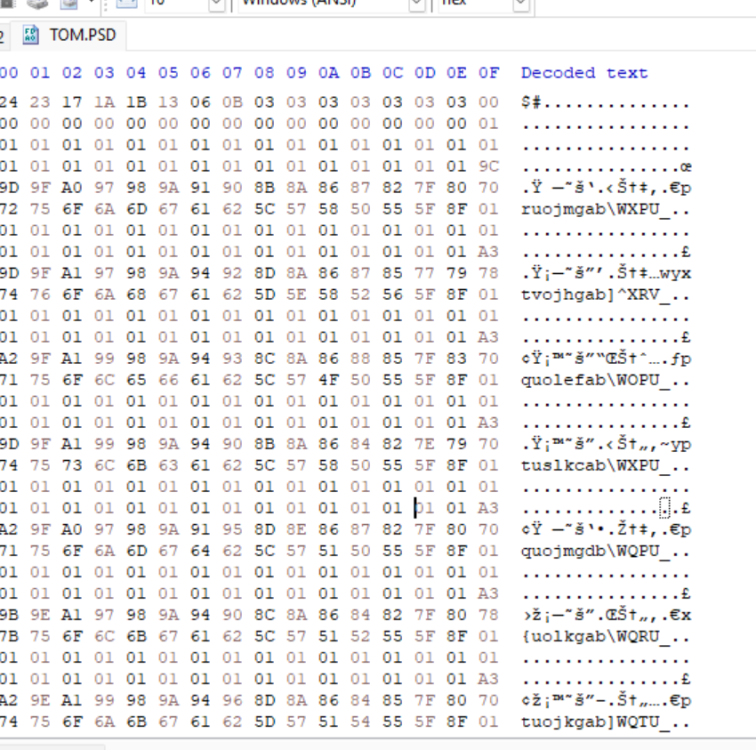

and also found in the psd for tom is this are they bone data?

PS2 example.rar

forgot that if i want this format to be decrypted i need examples

The .PS2 files are "SDG" containers. The models are stored as VIF1 DMA packets and the textures as raw GS upload packets.

Usage

• Needs Python 3 and Pillow (pip install pillow).

• Put sdg_extract.py next to the .PS2 files and run it. Output goes to an "extracted" folder next to the .PS2 files

python sdg_extract.py                  every .PS2 in the script's folder
python sdg_extract.py KITCHEN.PS2      one file
python sdg_extract.py D:\game\*.PS2    several files

sdg_extract.py

the way the post is formated makes me think its chatgpt i would like proof that you actually coded it

also it does extract it but the colors are off and 001_Tom1.png is wrong it should be TomH.png but without the gradients

looking at it it seems to be some kind of uncompressed archive

Yep, the data is uncompressed and not encrypted:

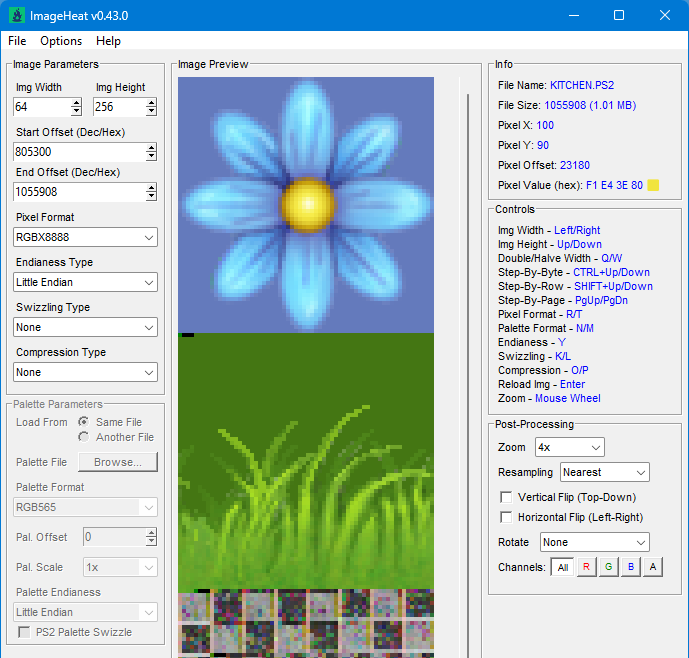

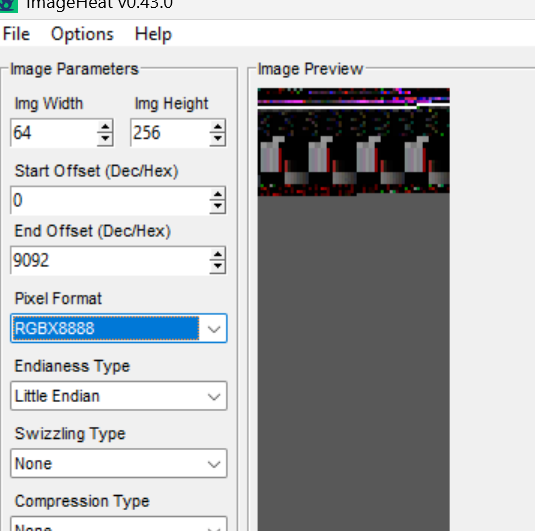

cool but i realized RGBX8888 works for one texture but doesnt for the other like how the floor texture and TO_BE_DC.PS2 look off i assume its like lego island's JUKEBOX.SI where there are 2 formats

how would i get the texture to look like this

works but too long

but doesnt for the other like how the floor texture and TO_BE_DC.PS2 ... how would i get the texture to look like this

I'm not seeing TO_BE_DC.PS2 in the sample file?

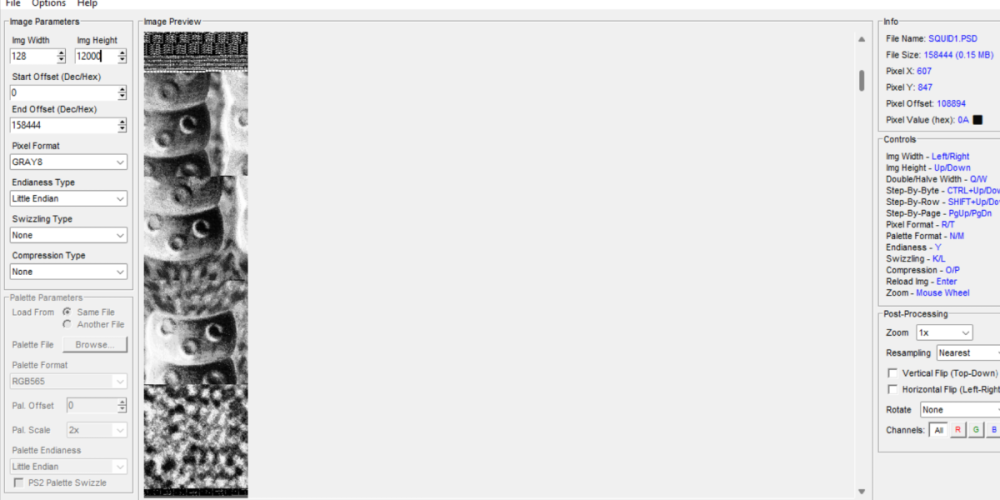

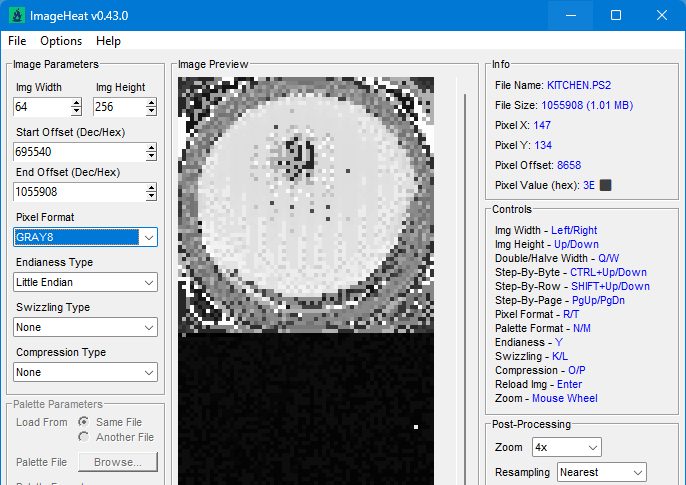

Is that texture 8-bit palettized? Try gray8 first just to vet whether the wrap width is right, and then look for 4-byte palette entries likely near/before/after the image data (often with 80h's in the alpha channel, which actually represents full opacity).

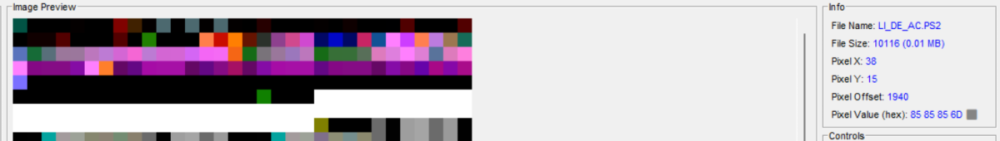

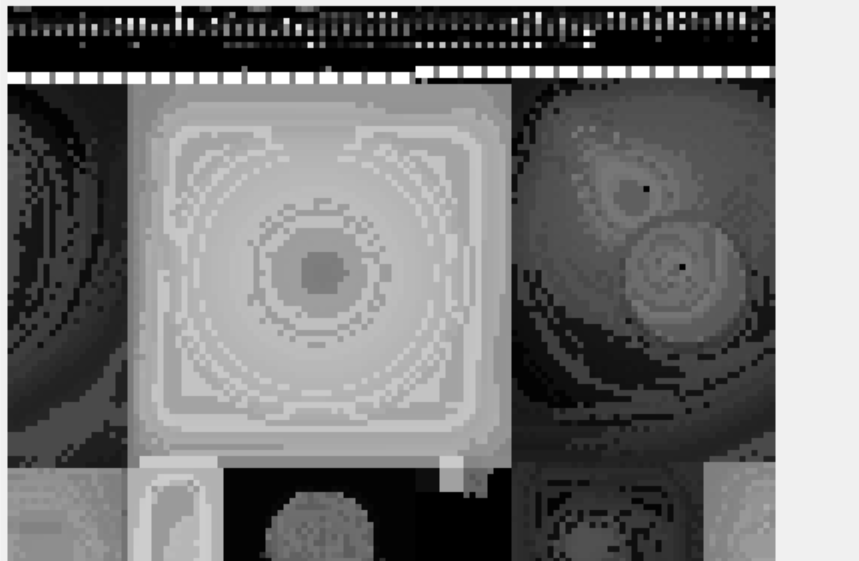

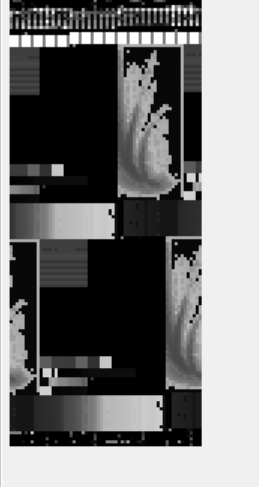

i wonder if the white teeth like pattern at the top is the palette?

there are 9 bytes before image data and 7 bytes after

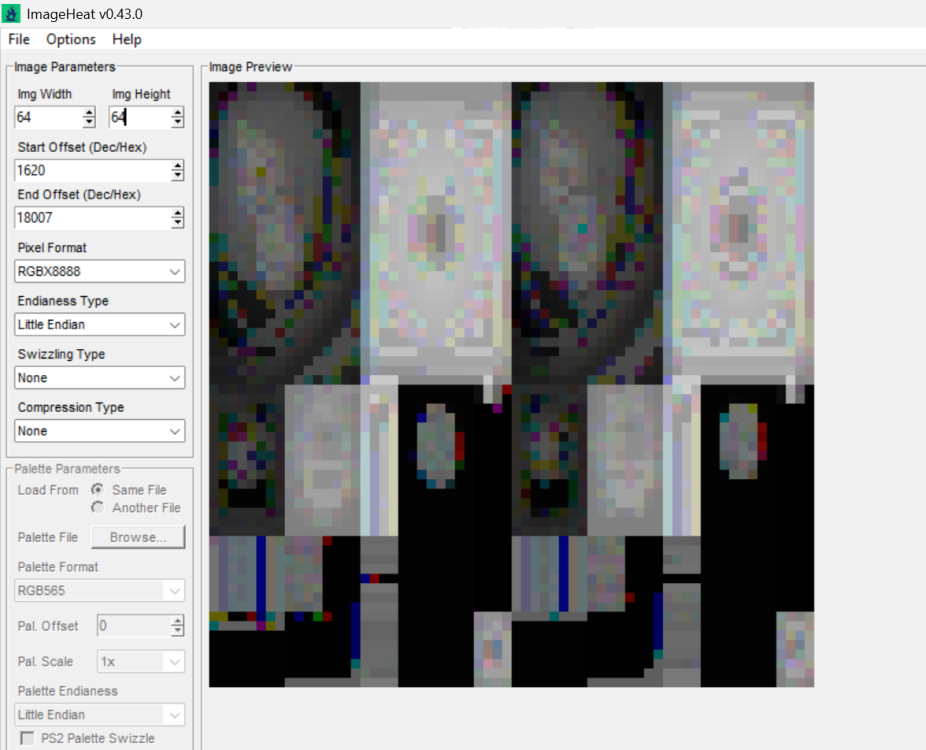

and the image is duplicated hmmmmm

the data after looks like palette data

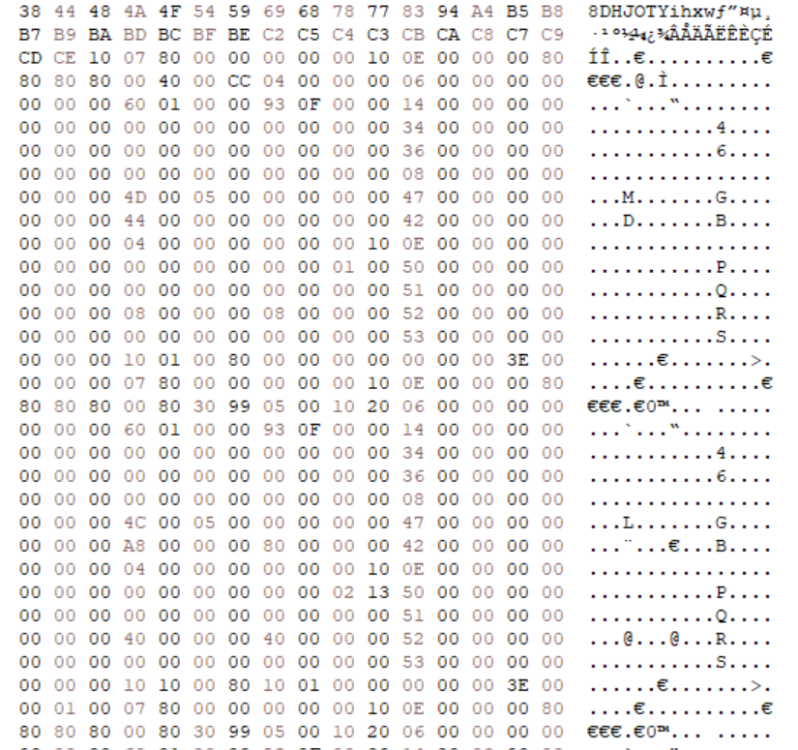

what is this? similar unknown strings were found in the PSD fies

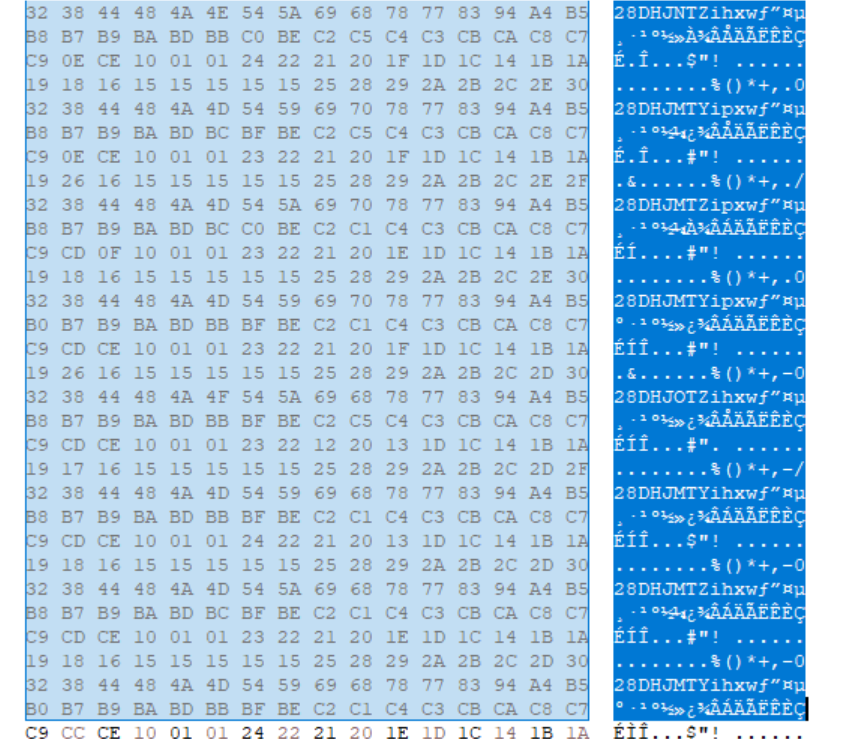

found some interesting data after the image data

yup ender

wonder if the white teeth like pattern at the top is the palette?

That's a likely candidate based on the grouping of 4 bytes and dimmer 4th byte. Though, the whites appear saturated 🤔. I can also look if you include TO_BE_DC.PS2.

13 minutes ago, piken said:

That's a likely candidate based on the grouping of 4 bytes and dimmer 4th byte. Though, the whites appear saturated 🤔. I can also look if you include TO_BE_DC.PS2.

https://reshax.com/applications/core/interface/file/attachment.php?id=14070&key=54245c2954ff00690d81d419f87b16fb

at the start

this looks like palette data

yup they do contain image data
