I need help reverse engineering and mapping out .bin model files from Banjo Kazooie I also have some documentation (I'm not 100% that this applies for these files specifically but I am like 85% sure) https://hack64.net/wiki/doku.php?id=banjo_kazooie:model_data ANY help is appreciated! (my end goal is to make a Noesis plugin for these files)

test files.zip

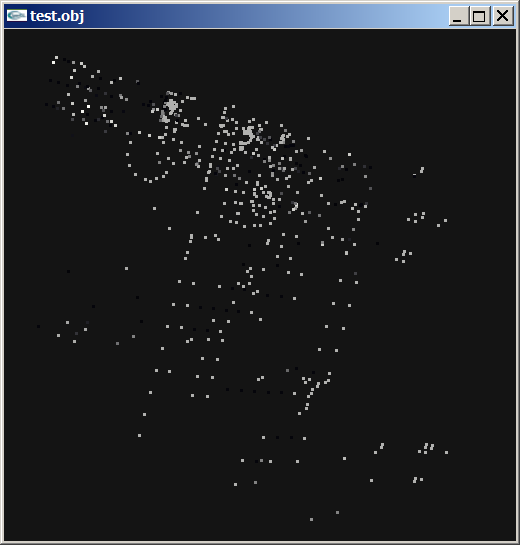

On a quick glance, 1495-model, big endian shorts,

edit: indices don't make much sense to me. Maybe take the odd ones only?

But then there will be sequences like 82 82 82, 114 114 144 etc.

address 0x8020:
    7     2     6    48   288   300  2451     0
    0     1     1    11    12    13    25    13
   38    11    49     1    50     0    50     8
   58     8    66     8    74     8    82     0
   82     0    82     8    90     8    98     8
  106     8   114     0   114     0   114     8
  122     8   130     8   138     8   146     0
  146     0   146    10   156    12   168    11


edit: wrong start of indices?

Correct one looks like so:

address 0x84b0:
   18    16    19     0     0   256    14    15
   16     0     0   256    14    16    18     0
    0   256    18    16    19     0     0   256
   60    61    62     0     0   256    63    61
   60     0     0   256    61    64    62     0
    0   256    62    64    65     0     0   256
  296   295   292     0     0   256   297   295
  296     0     0   256   298   297   296     0
    0   256   299   297   298     0     0   256
   10    11    13     0     0   256    13    15
   14     0     0   256    14    15    16     0
    0   256    14    16    18     0     0   256
   48    49    50     0     0   256    60    61
   62     0     0   256    63    61    60     0
    0   256    88    63    89     0     0   256
   89    63    60     0     0   256   298   297



Edited July 30, 2025Jul 30 by shak-otay

22 minutes ago, shak-otay said:

On a quick glance, 1495-model, big endian shorts,

edit: indices don't make much sense to me. Maybe take the odd ones only?

But then there will be sequences like 82 82 82, 114 114 144 etc.

address 0x8020:
    7     2     6    48   288   300  2451     0
    0     1     1    11    12    13    25    13
   38    11    49     1    50     0    50     8
   58     8    66     8    74     8    82     0
   82     0    82     8    90     8    98     8
  106     8   114     0   114     0   114     8
  122     8   130     8   138     8   146     0
  146     0   146    10   156    12   168    11
  179     8   187     0   187     0   187     0
  187     2   189     1   190     0   190     0
  190     0   190     0   190     0   190     0
  190     0   190     0   190     0   190     0
  190     0   190     0   190     0   190     0
  190    11   201    10   211    10   221    10
  231    10   241    11   252     8   260     4
  264     0   264     0   264     4   268     8



Also here is a reference for what file is what model https://hack64.net/wiki/doku.php?id=banjo_kazooie:rom_map the file ID is the name of the file aka its number so 02DB.model.bin's File ID would be 02DB and its a "RBB Grey Toxic Barrel"

edit: that model you're looking at is a whole level's area you might want to look at a smaller model first maybe?

Edited July 30, 2025Jul 30 by marty

17 minutes ago, marty said:

 you might want to look at a smaller model first maybe?

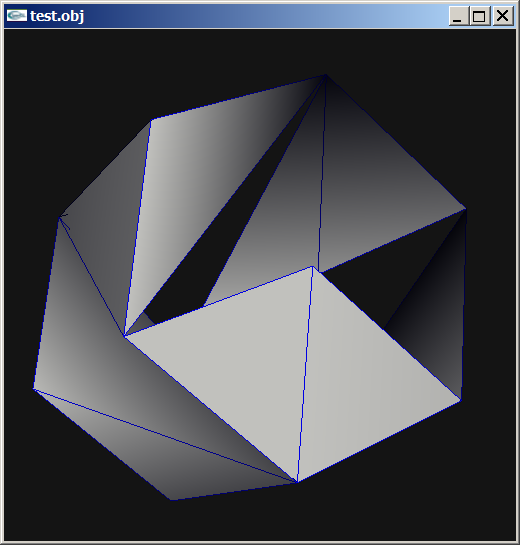

2DB, yay.

9 minutes ago, shak-otay said:

2DB, yay.

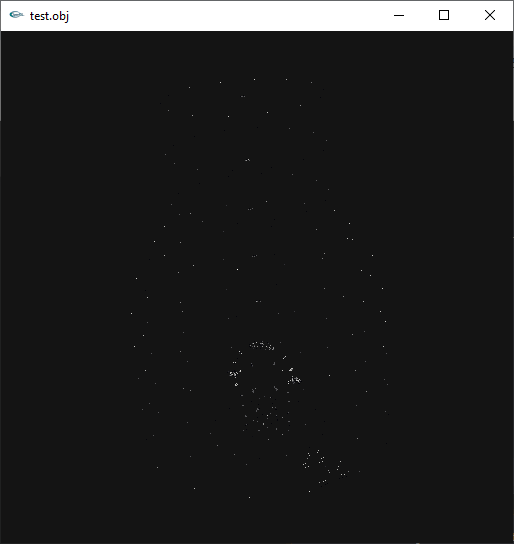

Some nice progress but the model is incomplete still

What did you expect? The indices are weird, as I wrote.Maximum face index is 24, so you could try build the faces from this table:

(where 256 is assumed to be a terminator, maybe just skipping 0 0 256 does the trick?)

address 0x1348:
    0     6     6     7    13    10    23    12
    4     0     3     0     0   256     5     4
    3     0     0   256     6     4     5     0
    0   256     7     6     5     0     0   256
   16    17    18     0     0   256    18    17
   19     0     0   256     0     1     2     0
    0   256     3     0     2     0     0   256
    4     0     3     0     0   256     5     4
    3     0     0   256    16    17    18     0
    0   256    19    17    20     0     0   256
   18    17    19     0     0   256     6     4
    5     0     0   256     7     6     5     0
    0   256     8     9    10     0     0   256
   11     8    10     0     0   256    12     8
   11     0     0   256    13    12    11     0
    0   256    16    17    18     0     0   256
address 0x1448:
   21    17    22     0     0   256    18    17
   19     0     0   256    22    17    16     0
    0   256     0     1     2     0     0   256
    3     0     2     0     0   256    12     8
   11     0     0   256    13    12    11     0
    0   256    14    12    13     0     0   256
   15    12    14     0     0   256    16    17
   18     0     0   256    19    17    20     0
    0   256    21    17    22     0     0   256
   18    17    19     0     0   256    22    17
   16     0     0   256    20    17    21     0
    0   256     0     0     0     3     0     0

edit: yep,

f 5 1 4
f 6 5 4
f 7 5 6
f 8 7 6
f 17 18 19
f 1 2 3
f 4 1 3
f 5 1 4
f 20 18 21
f 19 18 20
f 9 10 11
f 12 9 11
f 13 9 12
f 14 13 12
f 22 18 23
f 15 13 14

...

Edited July 30, 2025Jul 30 by shak-otay

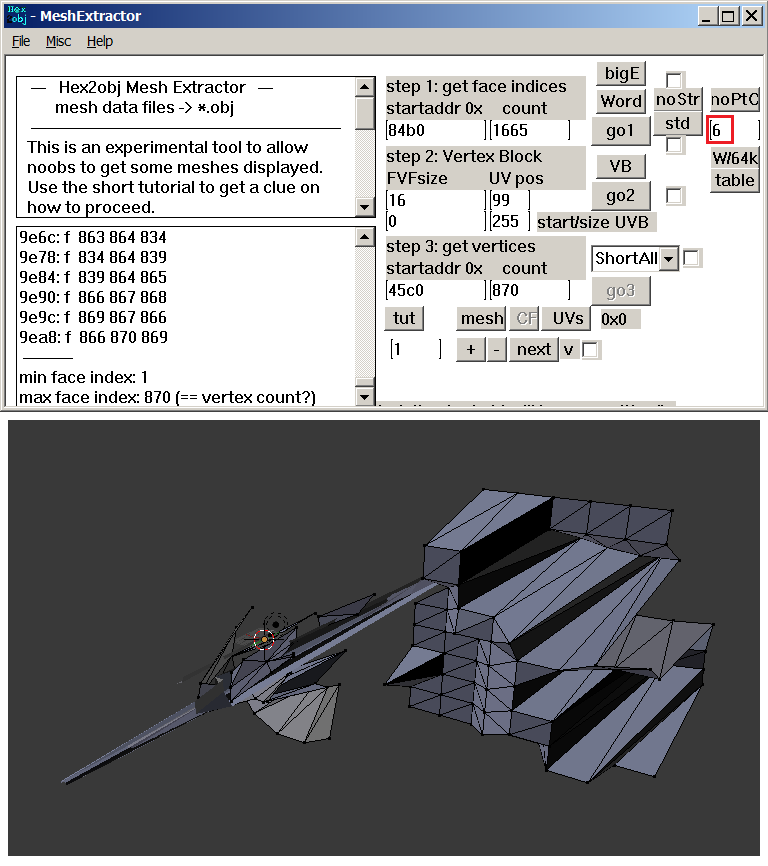

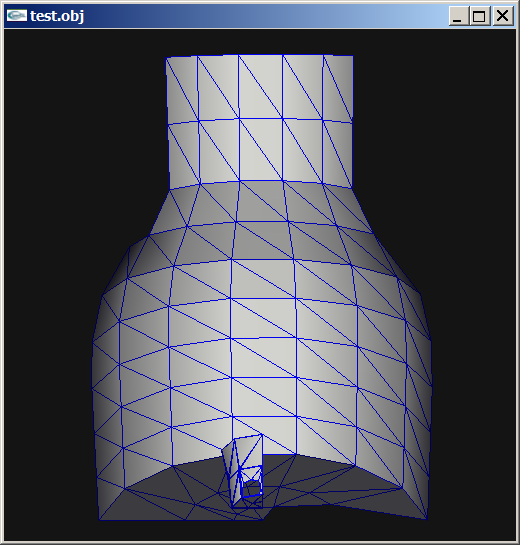

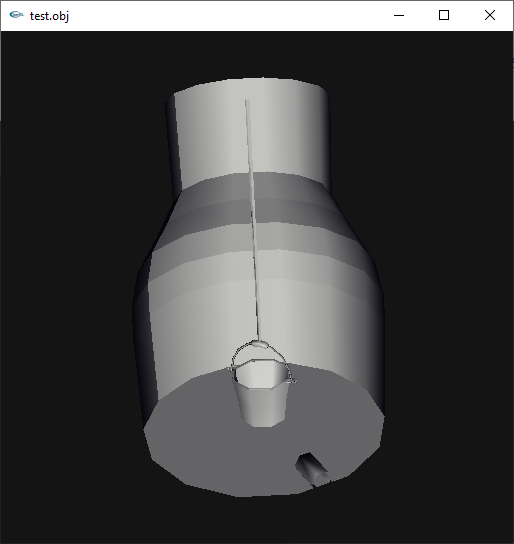

1495 model bin, revised, is stretched, somehow: edit2 damxxed, the correct v start is 0x45b8

old edit: futuristic?

edit: btw, checking the format description was the last I did, as usual.

The 6 extra bytes in FIs' block skipped in hex2obj are described like so:

Quote

[uu uu]     unknown
[ii ii ii ii]     u32 Sound + Collision Flags



edit3: uvs need to be signed shorts







Edited July 31, 2025Jul 31 by shak-otay

5 hours ago, shak-otay said:

1495 model bin, revised, is stretched, somehow:

edit: futuristic?



edit: btw, checking the format description was the last I did, as usual.

The 6 extra bytes in FIs' block skipped in hex2obj are described like so:



Here is what that area is supposed to look like

Too bad - that's not even close

I am close...

But not sure where indices starts. Anyway the documentation match almost everything from what i can see here.

EDiT: Found them... But uv are strange.

Edited July 31, 2025Jul 31 by h3x3r

20 minutes ago, h3x3r said:

I am close...

But not sure where indices starts. Anyway the documentation match almost everything from what i can see here.

YOOOO thats so fire



Edited July 31, 2025Jul 31 by shak-otay

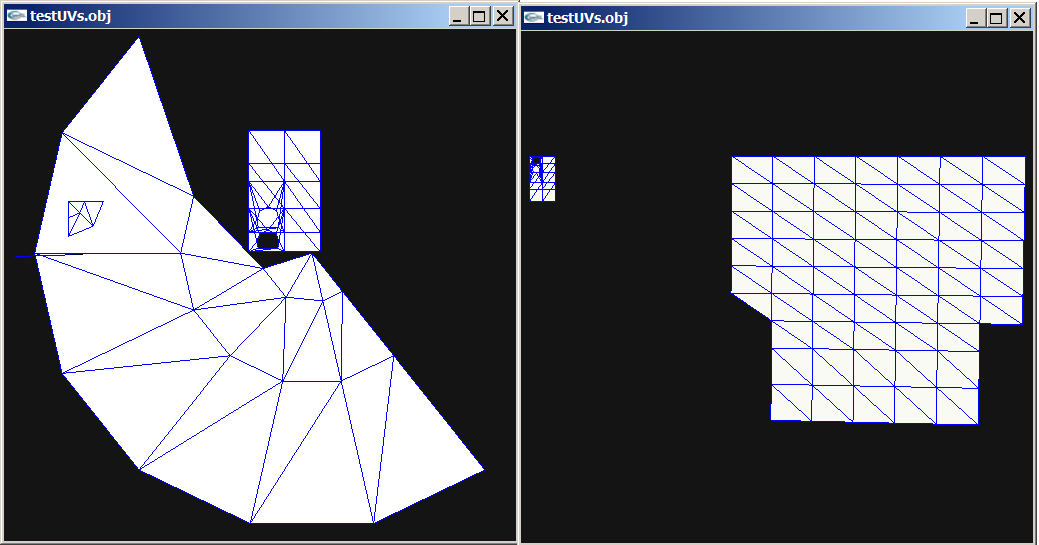

3 hours ago, h3x3r said:

EDiT: Found them... But uv are strange.

No. Need to be signed shorts. See my previous post.

Yeah I know, but scale factor. I think it must be somewhere. Or do you have correct scale + position?

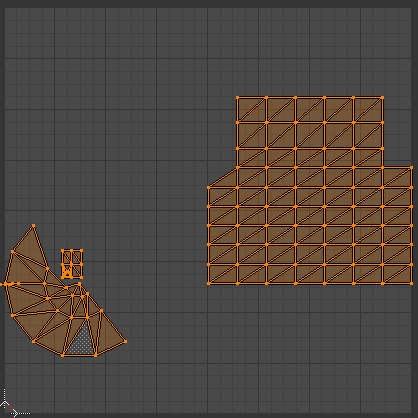

I usually don't care/ correct it in blender. uv x+63/y+100 and scale 2.0 with uv values from (modified) hex2obj.

(But I don't have a texture to test it.)

2 hours ago, shak-otay said:

I usually don't care/ correct it in blender. uv x+63/y+100 and scale 2.0 with uv values from (modified) hex2obj.

(But I don't have a texture to test it.)

Textures should be embedded in the file. Check documentation I think it goes further on about that

I checked them but can't decode them.

What platform is this game?

5 minutes ago, h3x3r said:

I checked them but can't decode them.

What platform is this game?

Nintendo 64
the documentation explains how to find out wether a texture is CI8, CI4, RGBA16 etc... I think and also the documentation shows how to find out the size e.g. 64x64

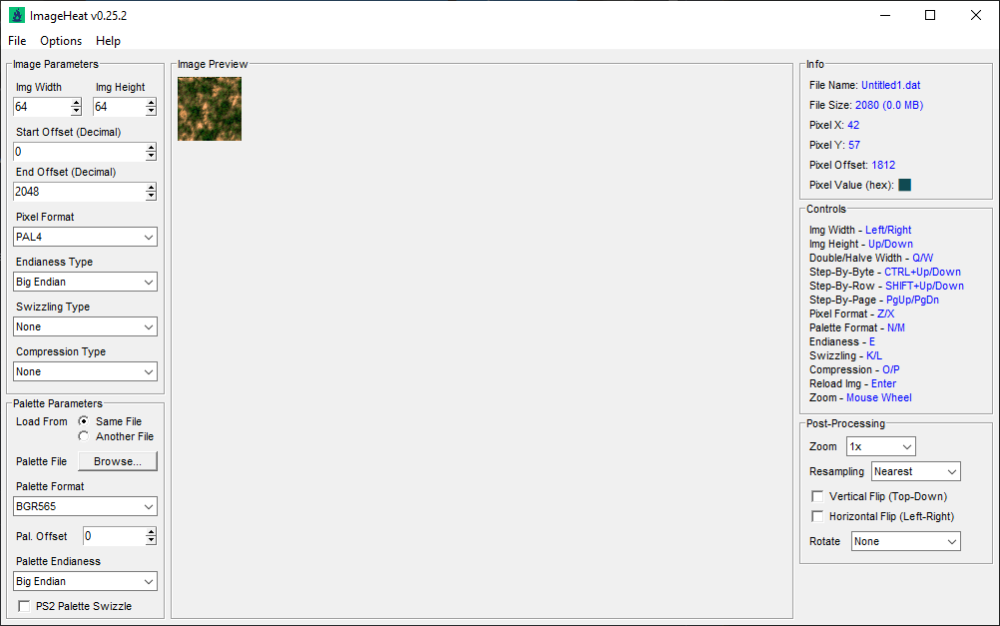

Not sure if is there any tool which supports this pixel formats like CI4/8. Most of them are CI4/8. I tried ImageHeat but result was not pleasing.

Anyway here is one texture from file 1495.model.bin

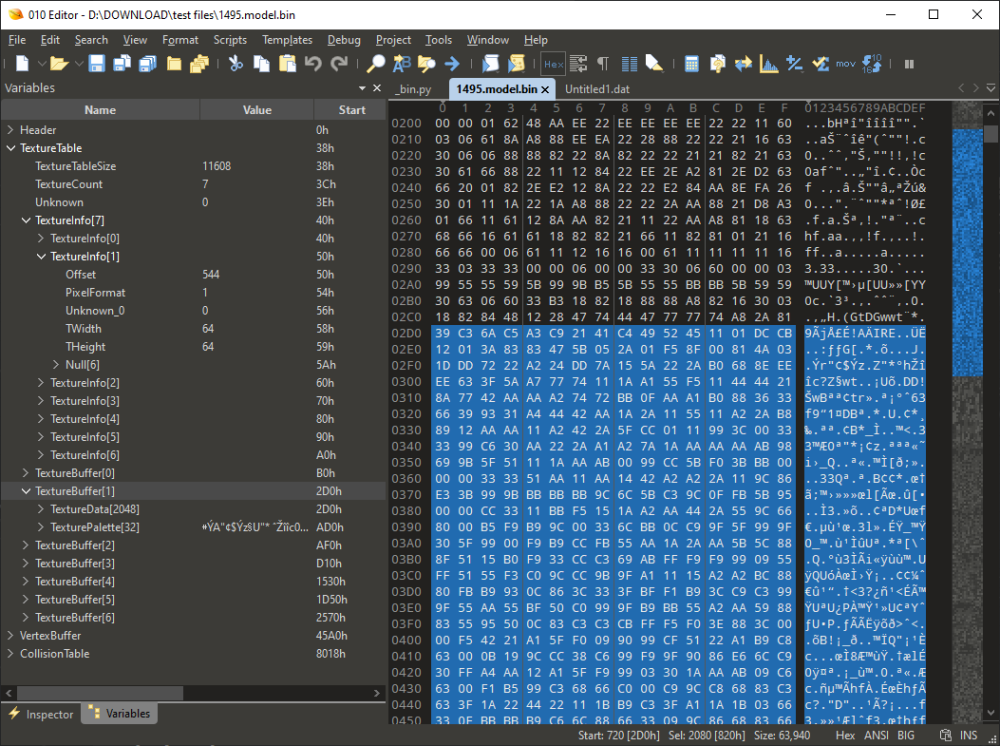

And as you can see I already have made 010 editor template by the documentation. So I know what is what.

Pixel Format > 1 = CI4. Size of buffer is callculated by (width * height / 2) which results in 2048 bytes data. Next is 32 bytes Palette. As described in documentation.

Untitled1.7z

EDiT: Well I think I got something. Not sure if it's supposed to look like this...

Well Palette Format is > xbgr1555. I noticed it on this texture.

Here are textures. You can test it.

1495_textures.7z

Edited August 1, 2025Aug 1 by h3x3r

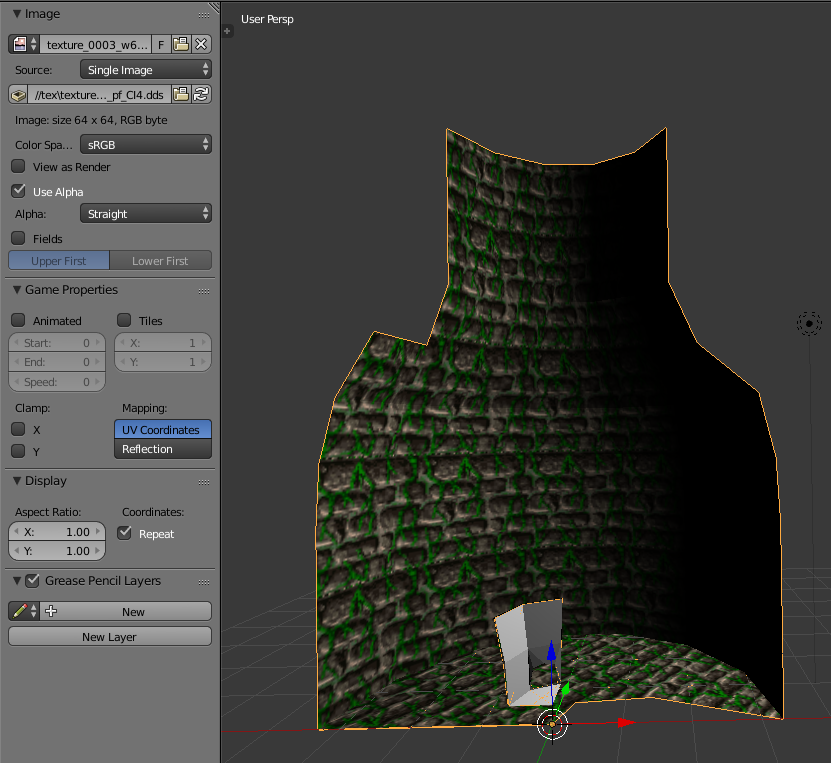

Thanks! But not sure whether I used tiling correctly here (floor should not use the wall texture):

Edited August 1, 2025Aug 1 by shak-otay

6 hours ago, h3x3r said:

Not sure if is there any tool which supports this pixel formats like CI4/8. Most of them are CI4/8. I tried ImageHeat but result was not pleasing.

Anyway here is one texture from file 1495.model.bin

And as you can see I already have made 010 editor template by the documentation. So I know what is what.

Pixel Format > 1 = CI4. Size of buffer is callculated by (width * height / 2) which results in 2048 bytes data. Next is 32 bytes Palette. As described in documentation.

Untitled1.7z 2.16 kB · 0 downloads

EDiT: Well I think I got something. Not sure if it's supposed to look like this...

Well Palette Format is > xbgr1555. I noticed it on this texture.

Here are textures. You can test it.

1495_textures.7z 9.84 kB · 1 download

Sick asf, I was having trouble with the palletes myself

How did you unpack *.n64 file?

3 hours ago, h3x3r said:

How did you unpack *.n64 file?

Firstly the .n64 file is a ROM file. I'm using .bin files from the decompilation which splits the rom for you when you set it up. But I think there are other tools for doing it.

edit: you can use this https://www.romhacking.net/utilities/496/ but remember not all .bin files are model files so you should use this https://hack64.net/wiki/doku.php?id=banjo_kazooie:rom_map to know which .bin files are models and if so what model they are

Edited August 2, 2025Aug 2 by marty

Send me please unpacked n64 file. The tool doesn't seem to unpack it. It doesn't support *.n64 extension. Even if I change it to acceptable one.

5 hours ago, h3x3r said:

Send me please unpacked n64 file. The tool doesn't seem to unpack it. It doesn't support *.n64 extension. Even if I change it to acceptable one.

it shouldnt be a .n64 file it needs to be a .z64 file. if you have a .n64 or .v64 file use this to change it to a .z64 file https://hack64.net/tools/swapper.php
