The Dying Light 2 tool works on the textures (common_textures_0_pc.rpack) just fine, but not the models (common_meshes_pc.rpack) it fails and closes immediately on the first mesh. I don't know if ID-D has interest in an updated version for The Beast, but I'm posting to make it known >_>

The format is not very different. So i expect the tool to be finished today.

2 hours ago, id-daemon said:

The format is not very different. So i expect the tool to be finished today.

I've been trying to reverse engineer the msh format myself, but I haven't gotten anywhere.

I've gotten a pretty good texture extractor, but not much other then that currently.

Do you have a bt for the msh parts or anything that could help?



Attached is a copy of my projects source code, could be useful to someone, I'll upload it on github at some point.

ChromEd_RP6.zip

Edited September 21, 2025Sep 21 by 12brendon34
words no go good

4 hours ago, 12brendon34 said:

I've been trying to reverse engineer the msh format myself, but I haven't gotten anywhere.

Do you have a bt for the msh parts or anything that could help?

No, i dont use bt

Tool posted:



1 hour ago, id-daemon said:

No, i dont use bt

Tool posted:



Thank you daemon. The tool works fine. After extracting the files using your tool, ascii and smd files were created. the problem is, could you tell us how to import these formats like you with blender? I have tried various plug-ins, but the bone and mesh of the model are not imported into a blender like you. can't you tell us the add-on or plug-in you use?

1 hour ago, natsuki said:

could you tell us how to import these formats like you with blender? I have tried various plug-ins, but the bone and mesh of the model are not imported into a blender like you. can't you tell us the add-on or plug-in you use?

john zero plugin, but it only works for blender 3.6 or below. There is some version for new blender, but i dont remember who forked it

There is a fork here up to version 4.5!

https://github.com/Valerie-Bosco/XNALara-io-Tools

I've still been working on my own implementation. I don't necessarily want to dump the MSH into a usable model, I'm more focused on reversing the compilation process of the MSH.
The compiled compact mesh format is split into roughly five parts, indexed 0–4, and I've been looking at them a bit.

Fairly sure of the following:
Part 0 is the main mesh descriptor.
Part 1 is the skin.
Part 2 is mesh fix-ups, for which I did manage to figure out the struct.

Not sure if this is useful, but the more accurate the better in my opinion
RawMSH_2.bt
And a random engine mesh from The Beast I've been using for testing
0003_bsphere_part0-4.zip

Does anyone have the bin editor?

This BMS script works to extract the audio/.aesp files into .wem files

(works on the big ones example SFX.aesp and Streams.aesp. Not on ones like meta_en.aesp and init.asep as these are secondary files like localisation etc)

Use tools like foobar or any .wem audio converter!



# Dying Light: The Beast (.aesp) extractor
# QuickBMS script
# Forces .wem extension on all extracted files

endian little
goto 0x90
get FILES long
goto 0xA0
get TABLE_OFFSET long
goto TABLE_OFFSET

for i = 0 < FILES
    getdstring NAME 0x80
    get CRC long
    get DUMMY long
    get OFFSET longlong
    get SIZE longlong

    if NAME == ""
        string NAME p= "%08d" i
    endif

    string NAME += ".wem"

    log NAME OFFSET SIZE
next i

Edited September 25, 2025Sep 25 by Hazza12555

Some of the models weights are all messed up when importing into Blender, is there a fix for this without having to manually repaint the whole model?

43 minutes ago, Velcro said:

Some of the models weights are all messed up when importing into Blender, is there a fix for this without having to manually repaint the whole model?

Never heard of any issues.

Do you have names of such models?

On 9/30/2025 at 12:57 AM, id-daemon said:

Never heard of any issues.

Do you have names of such models?

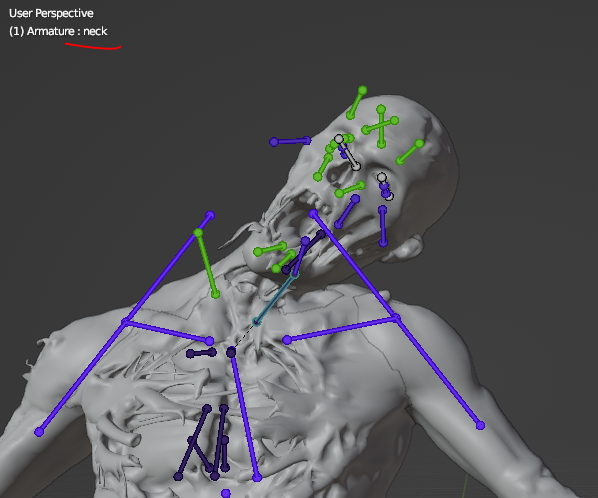

For example dlc_ft_zmb_spitter_body has the issue I am talking about when rotating the neck bone it only moves some of the mesh, but there are other models that also have this issue.

Edited September 30, 2025Sep 30 by Velcro

1 hour ago, Velcro said:

For example dlc_ft_zmb_spitter_body has the issue I am talking about when rotating the neck bone it only moves some of the mesh, but there are other models that also have this issue.

must be you are using some broken plugin or your files are corrupted.
dlc_ft_zmb_spitter_body works fine with neck:

11 hours ago, id-daemon said:

must be you are using some broken plugin or your files are corrupted.
dlc_ft_zmb_spitter_body works fine with neck:

Hm interesting thanks for having a look for me, what plugin do you recommend for importing the files into Blender?

Edited October 1, 2025Oct 1 by Velcro

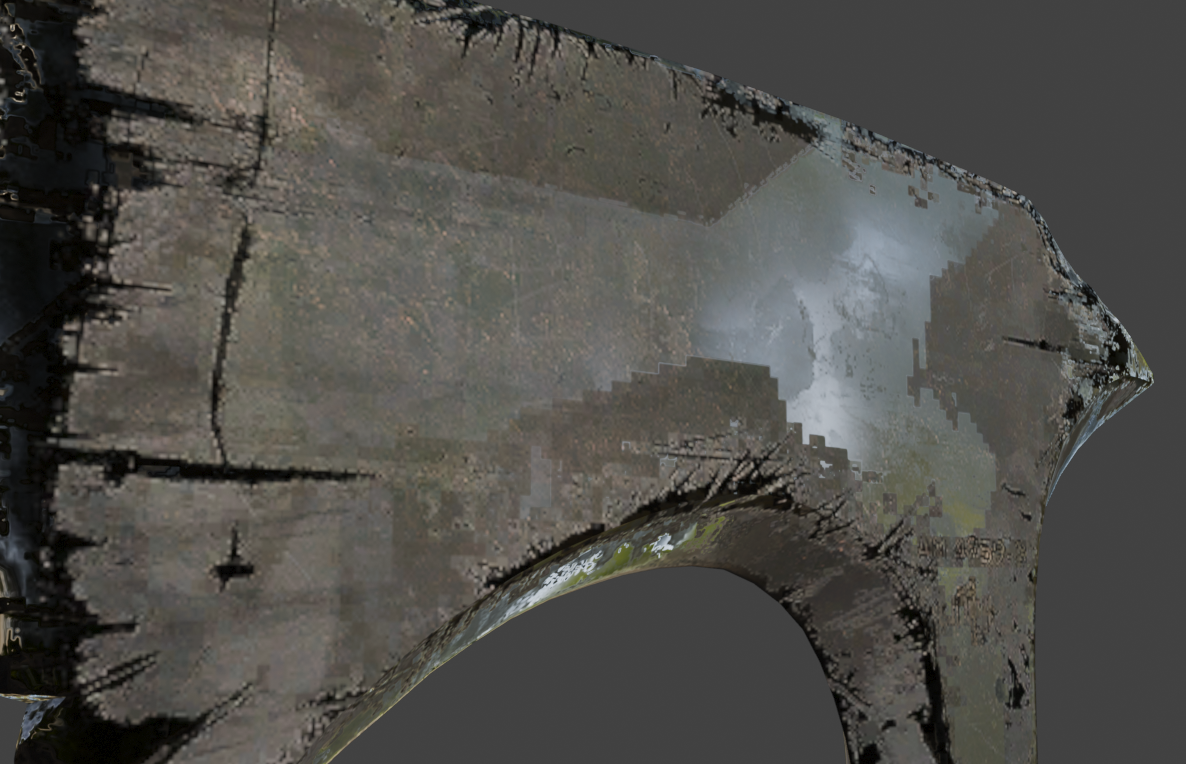

Unless there's something in the process that I'm missing, the program seems to be having some trouble exporting normal maps.  The files don't throw any errors when exporting, but when opened or used, there are a noticeable amount of artifacts around sharper/smaller details.  For example, with this axe (wpn_1hs_axe_02_fpp), you can see the larger pixels around the scratches on the bottom curve.  I have issues with all the non-sRGB textures (nrm, rgh, spc, ocl, etc) and can only use them by manually converting them with gimp (compared to the sRGB ones which can be converted with ImageMagick), but the nrm textures are the only ones with noticeable artifacts like this.  Is that expected, or is there something that needs fixed in the texture exporting code for this?

wpn_1hs_axe_02_fpp_nrm.dds

1 hour ago, DeveloperChipmunk said:

Unless there's something in the process that I'm missing, the program seems to be having some trouble exporting normal maps.  The files don't throw any errors when exporting, but when opened or used, there are a noticeable amount of artifacts around sharper/smaller details.  For example, with this axe (wpn_1hs_axe_02_fpp), you can see the larger pixels around the scratches on the bottom curve.  I have issues with all the non-sRGB textures (nrm, rgh, spc, ocl, etc) and can only use them by manually converting them with gimp (compared to the sRGB ones which can be converted with ImageMagick), but the nrm textures are the only ones with noticeable artifacts like this.  Is that expected, or is there something that needs fixed in the texture exporting code for this?

No, nothing needs to be fixed in code.

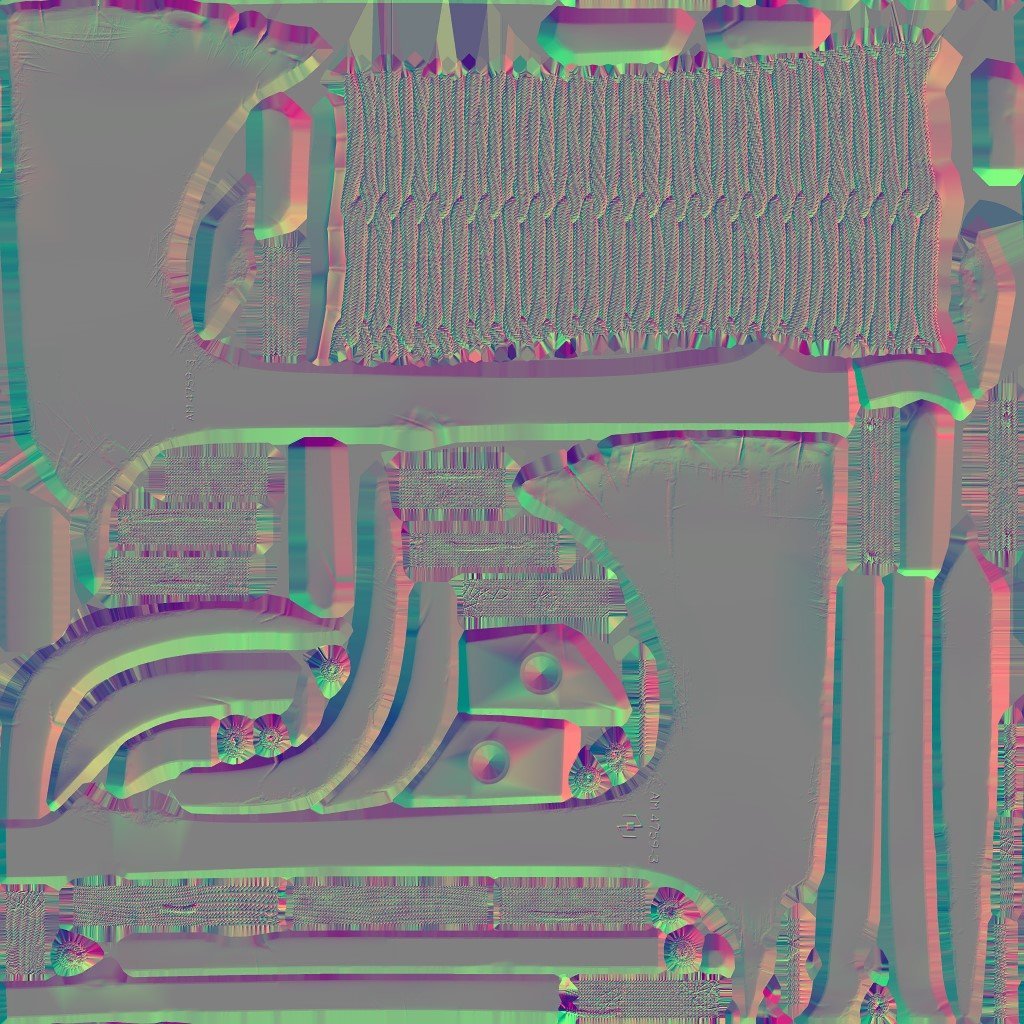

I dont know how did you get that distorted image above, but this texture is fine:



11 hours ago, Velcro said:

Hm interesting thanks for having a look for me, what plugin do you recommend for importing the files into Blender?

I'm using John Zero plugin.

1 hour ago, id-daemon said:

I dont know how did you get that distorted image above, but this texture is fine

Found the issue, GIMP's built in .dds importer doesn't support the compression type (BC5?) that these textures use so it was trying to open them with the wrong format.  Sorry about that!

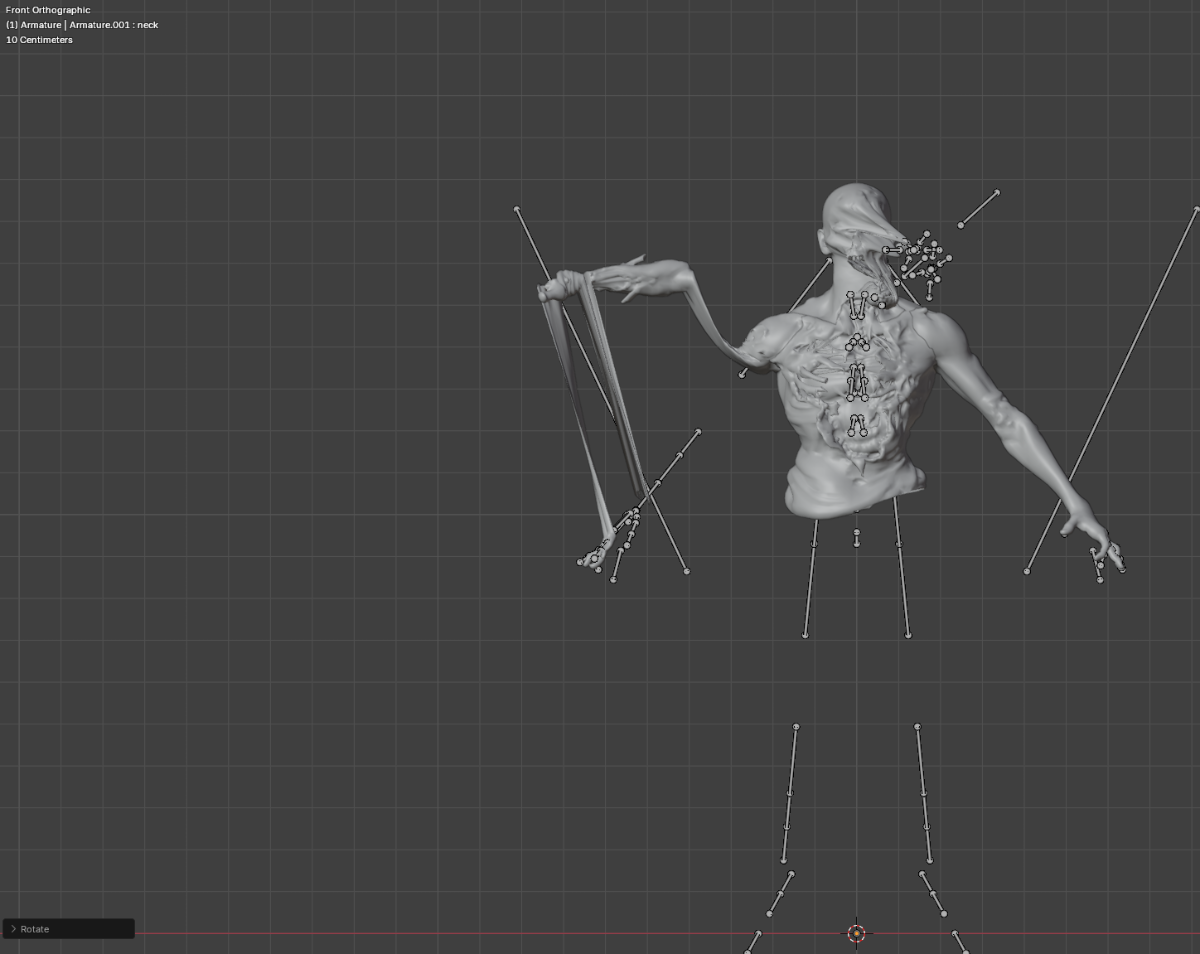

Everytime i merge armatures bones will dissapear. Im also wondering were i can find light maps/AO, Roughness, and specular maps cause i can only find diffuse and normal.

On 9/21/2025 at 10:22 AM, id-daemon said:

No, i dont use bt

Tool posted:



How do I find the textures for zombies and stuff, I put the common textures thing in the .exe but I can't find them. Also I can't find full models of stuff like Kyle Crane or Aiden Caldwell. Why is this?

Edited November 14, 2025Nov 14 by gefx u xsghjxderfyfgh

On 9/21/2025 at 4:22 PM, id-daemon said:

No, i dont use bt

Tool posted:



Hey, I would like to ask, if the source code for the tool is available, because I would like to do convert to gltf and to try to make convertor back to .msh. The code would help reverse engineering the msh format and make the job at least partialy easier, since that tool doesn't really exist. Thank you for answer in advance

Does anyone know whether I can repack my edited mesh and texture files back into an rpack so I can load them into the game? For context, I’m hoping to change the appearance of some player outfits and armour pieces and use them in-game
