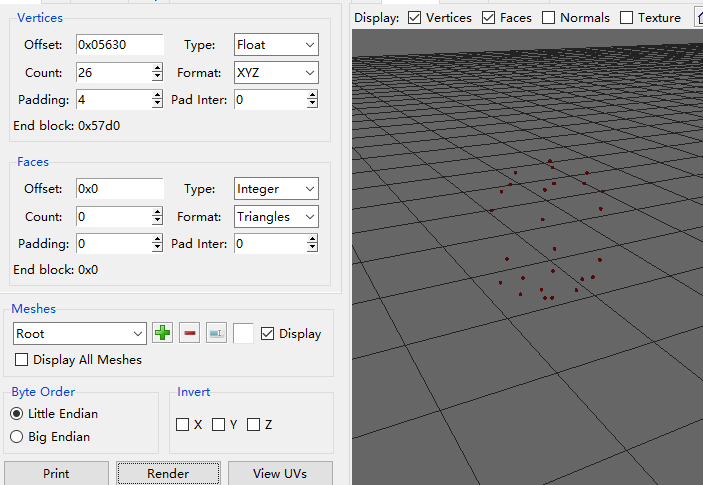

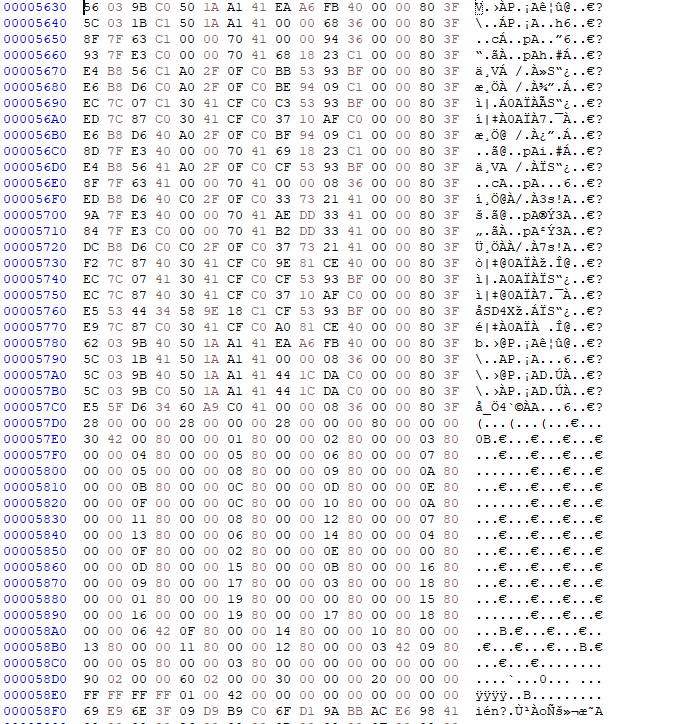

I used Mr to analyze the model, but each vertex block is extremely small, preventing the formation of a complete model. I also cannot locate the face indices. Here is a sample. Requesting assistance.

TSMAN.7z

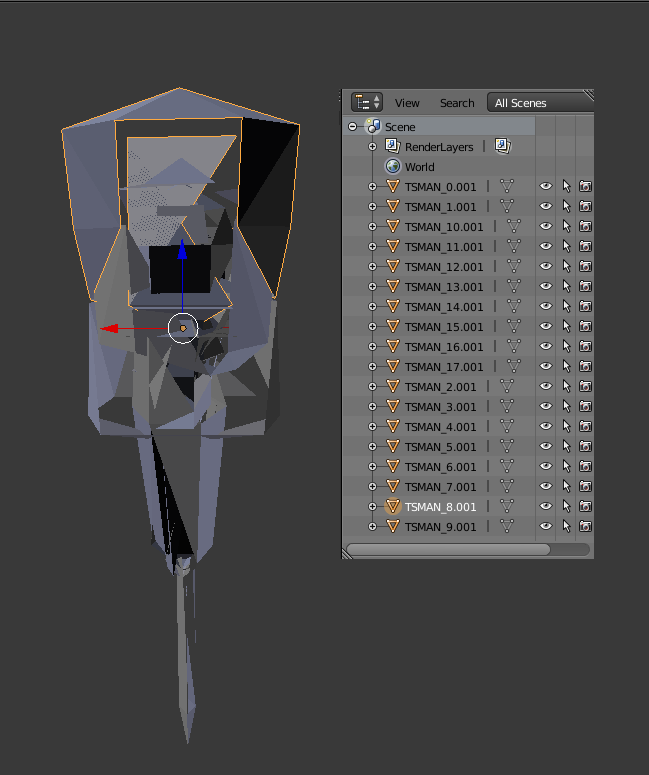

Coding some lines I get this (and 'yes', face indices are weird, so tri strips auto creation used in hex2obj). Added zip with H2O files.

(uv block follows after v block, not used so far.)

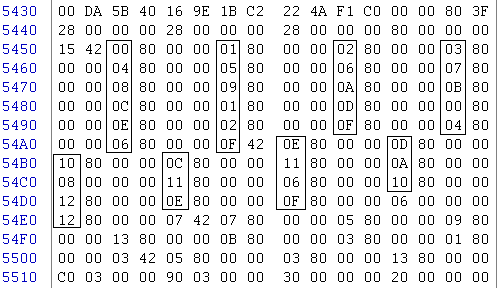

edit: assumed face indices:

TSMAN-LDM-H2Os.zip

Edited September 28, 2025Sep 28 by shak-otay

VertexCount is the byte at 0x2728, btw. 64 bytes after "signature" 01000000 01000000.

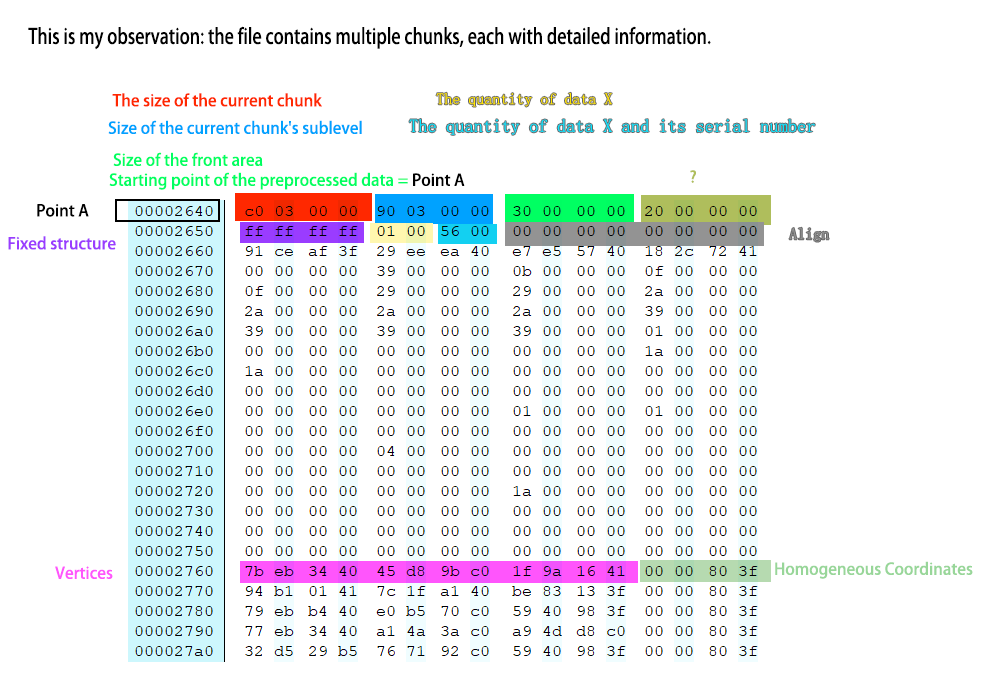

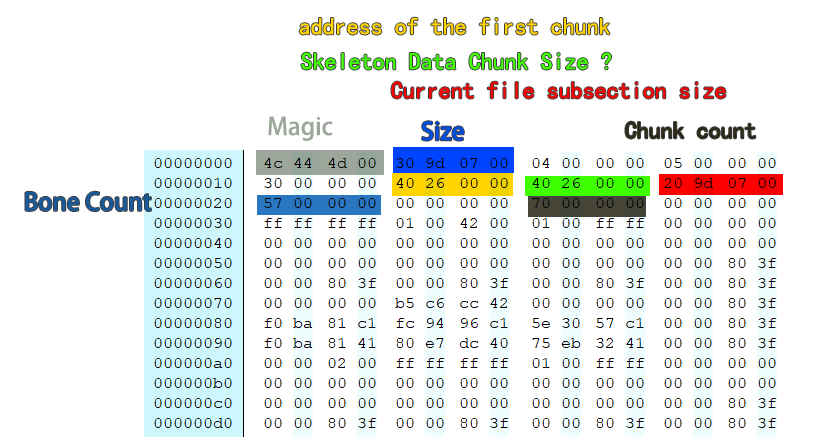

Based on the previous analysis, I have made further deductions.

On 9/29/2025 at 6:15 PM, bobo said:

Based on the previous analysis, I have made further deductions.
基于之前的分析，我做出了进一步的推论。

TY
