Hello!

I'm trying to extract HU2010 (Hunting Unlimited 2010) game models and other related things, with none to low success. I used this as a reference. I have also found some other similar things, but for a little different engine version, this uses SCS's Prisma engine that is different for 18WOS:

https://forum.scssoft.com/viewtopic.php?t=329118

https://forum.scssoft.com/viewtopic.php?t=310390

https://forum.scssoft.com/viewtopic.php?t=184370



main game data file "base.scs" is actually just a regular archive!



Nothing that i have tried really helps... . PMG files are the actual models by the way.





I have uploaded the base.scs archive file for all of you that can help. models (PMG) are in the models subfolders and maps/levels are in the maps subfolders





Virustotal report: https://www.virustotal.com/gui/file/df01a940de3190df6f000bce6c6e87e12d604bec3f7f4ba77bd97a97be764249/detection

I've packed it into highly-compressed .7z archive, you can download here ➡️ https://andrewpozenel.com/public/scs.7z

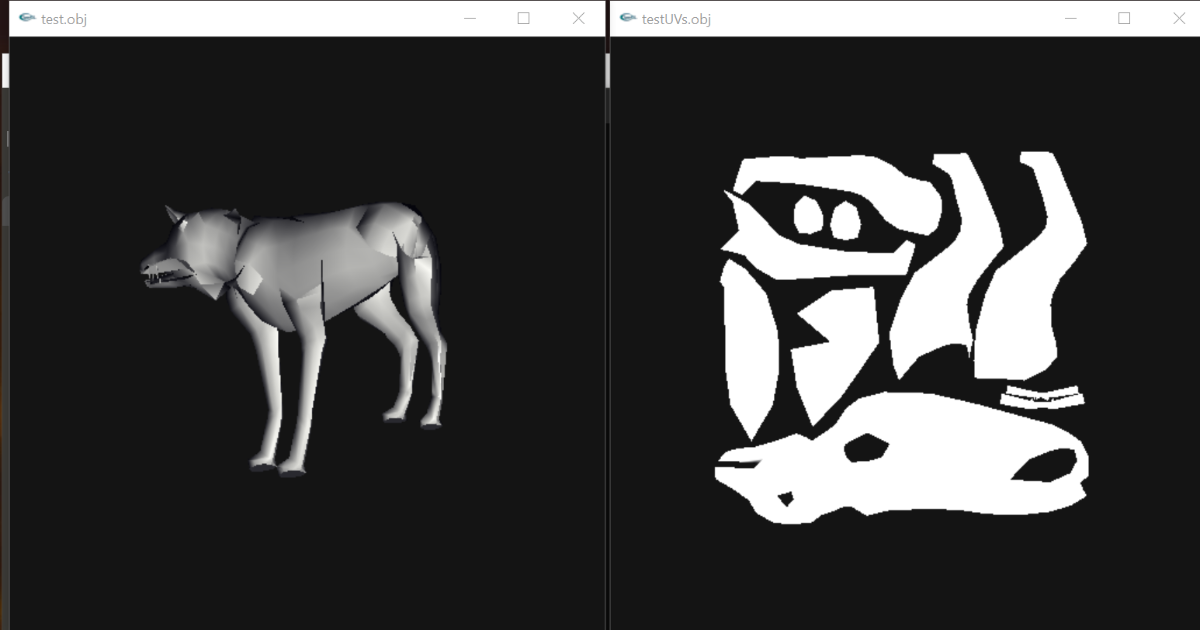

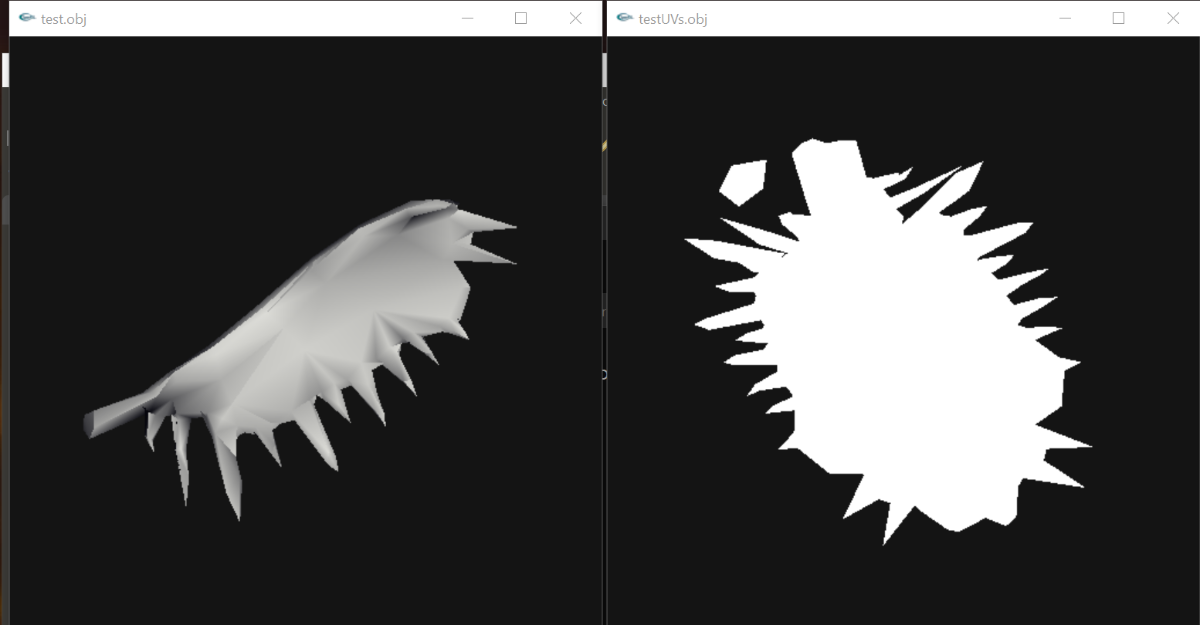

I checked simple pmg and it seems easy...

Edited January 24Jan 24 by h3x3r

39 minutes ago, h3x3r said:

I checked simple pmg and it seems easy...

How the hell... i tried with Python and Noesis custom plugin and failed..  also is that Hex2Obj software?

What settings did you even use? While the tool is good, i am not familiar with it. even when i done reading the tutorial multiple times

Here's struct. I didn't care about skeleton/bones/weights.

Just geo + mat. But still don't know how is mat assigned.

//------------------------------------------------
//--- 010 Editor v14.0 Binary Template
//
//      File:
//   Authors: h3x3r
//   Version:
//   Purpose:
//  Category:
// File Type: *.pmg
//  ID Bytes:
//   History:
//------------------------------------------------
char PmgSign[4];
uint32 MeshIndex;
uint32 MaterialIndex;
uint32 BoneIndex;
uint32 Unknown_0;
float Unknown_1[10];
uint32 BoneTransformBaseOffset;
uint32 MaterialInfoOffset;
uint32 MeshInfoOffset;
uint32 Unknown_2;
uint32 BoneIndexBufferBaseOffset;
uint32 Unknown_4;
uint32 Unknown_5;
uint32 Unknown_6;
uint32 VertexBufferBaseOffset;
uint32 Unknown_8;
uint32 UVBufferBaseOffset;
uint32 Unknown_10;
uint32 TotalIndexBaseOffset;
uint32 TotalIndexBufferSize;

FSeek(MaterialInfoOffset);
struct
{
    uint32 Unknown_0;
    uint32 Unknown_1;
    uint32 Unknown_2;
    uint32 Unknown_3;
    uint32 Unknown_4;
    uint32 Unknown_5;
}MaterialInfo[MaterialIndex];

FSeek(MeshInfoOffset);
struct
{
    uint32 IndexCount;
    uint32 VertexCount;
    uint32 Unknown_0;
    uint32 Unknown_1;
    float Unknown_2[10];
    uint32 VertexBufferOffset;
    uint32 NormalBufferOffset;
    uint32 UVBufferOffset;
    uint32 ColorBufferOffset;
    uint32 Unknown_0_BufferOffset;
    uint32 SkinBufferOffset;
    uint32 IndexBufferOffset;
    uint32 BoneIndexBufferOffset;
    uint32 Unknown_1_BufferOffset;
    uint32 Unknown_2_BufferOffset;
}MeshInfo[MeshIndex];



7 hours ago, anderlli0053 said:

Hello!

I'm trying to extract HU2010 (Hunting Unlimited 2010) game models and other related things, with none to low success. I used this as a reference. I have also found some other similar things, but for a little different engine version, this uses SCS's Prisma engine that is different for 18WOS:

https://forum.scssoft.com/viewtopic.php?t=329118

https://forum.scssoft.com/viewtopic.php?t=310390

https://forum.scssoft.com/viewtopic.php?t=184370

main game data file "base.scs" is actually just a regular archive!

Nothing that i have tried really helps... . PMG files are the actual models by the way.

My programs support the Prism3D Engine PMG/PMD/MAT/TOBJ files since June 12, 2023:

- 3D Object Converter (Windows);

- 3D Object Converter (AmigaOS)

http://3dconverter.synology.me/3doc



- i3DConverter x64 macOS

- i3DConverter amd64|x64 Linux

http://3dconverter.synology.me

@h3x3r Thank you very much for the correct struct. I created a converter based on your values, i was way, way off before, but this could do for now ➡️ https://github.com/anderlli0053/useful-apps/releases/download/1.0.3/pmg_converter.exe





@Karpati Thank you for the software, i did not know that it even existed, it was nowhere advertised or such, but yeah, i tried it and will keep it in mind.

Edited February 6Feb 6 by anderlli0053
Forgot to tag Karpati and mentioned h3x3r's help in the converter tool
