Does anyone have an idea to start a new plugin that imports Street Legal .scx files and convert map models from RPKs into Wavefront OBJs? Here is InvictusExportV3.dle which is used to export custom car models SCXs using 3ds Max. And here is the resource manager that allows authors to compile RPKs.

streetlegal_scx.rar streetlegal_scx_exporter_3dsmax.rar streetlegalresourcemanager.rar

Did you manage to load any rpk file into the resource manager? (It doesn't recognize them.)

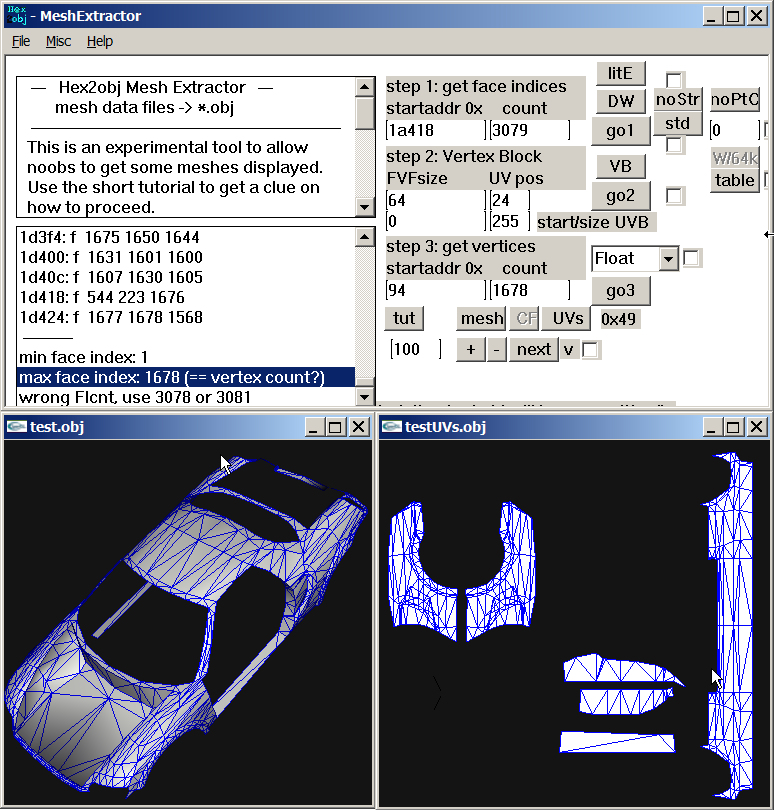

As I wrote I don't write plugins but the scx mesh looks simple enough to be ..., well, no.

-------------------------------------------------------



Edited April 21Apr 21 by shak-otay

this is a blender for slrr scx mesh i  tested is work very nicely

https://github.com/nonamesex/io_invo_scx



2 hours ago, marco1990 said:

this is a blender for slrr scx mesh i  tested is work very nicely

https://github.com/nonamesex/io_invo_scx



Can you analyze test_track.rpk for 3D map models?

test_track.rar

look this topic herer .

the blender scripts not read the rpk files .only  scx/scy sorry

tools for open rpk

https://slstudio.app/news/first-version-has-been-officially-released



Thanks. It's a structure viewer for rpk (where you can make edits):

Quote

    <RES>
        TypeID=0x00000184
        SuperID=0x00000183
        AdditionalType=4
        Alias=left
        IsParentCompatible=1
        TypeOfEntry=5
        <RSD>
            <STR>
                sourcefile cars\racers\Stallion_V7\before use\extra_meshes\left_brake_light_glow.scx
            </STR>
        </RSD>
    </RES>

test_track.rpk causes an exception when you try to scroll:

Quote

System.InvalidOperationException: A highlighting rule matched 0 characters, which would cause an endless loop.
Change the highlighting definition so that the rule matches at least one character.

So first lines here only:

Quote

    <EXTERNAL_REFS>
        system.rpk
        obstacles\common.rpk
        obstacles\test_track.rpk
        maps.rpk
        obstacles.rpk
    </EXTERNAL_REFS>
    <RES>
        TypeID=0x00000001
        SuperID=0x00010004
        AdditionalType=17
        Alias=Test
        IsParentCompatible=1
        TypeOfEntry=1
        <FLOAT_BOUNDS>
            29,37963867
            25,00000000
            -151,50634766
            825,19305420
            45,00000000
            910,51647949
            0,00000000
            0,00000000
            0,00000000
            0,00000000
            0,00000000
            0,00000000
        </FLOAT_BOUNDS>
        <RSD>

edit: btw, there's a "resource converter" here which can convert from "rdb to rpk" and reverse. (resdecode: rpk to rdb converter, fails on test_track.rpk with "RPAK header error")

When resdecode is excuted by "resource decoder" there's some output but unfinished:

Quote

<FILE external_links >
system\
obstacles\common\
obstacles\test_track\
maps\
obstacles\
</FILE>
<FILE 00000001.res >
typeof    1
superid    0x00010004
typeid    0x00000001
alias    Test
isparentcompatible    1.00
</FILE>
<FILE 00000001.rsd >
          r        –    €    ëA  ÈA¢Ã[LND  4B¡cD                           ¢  !  €?«”e Q   sun              PÃG PÃG PÃG                           •  !  €?ü”e Q   skydome              PÃG PÃG PÃG                        RSD |   gametype 0x00010035
params 0x00000002,0,0,0,0,0,0,maps\test_track\meshes\test_track.scm,maps\test_track\ai\test_track.trc
</FILE>
<FILE 00000002.res >
typeof    14
superid    0x00040003
typeid    0x00000002
alias    Test
isparentcompatible    1.00
</FILE>

A correct rdb looks like so (ASCII only contents):

Quote

<FILE external_links >
system\
</FILE>
<FILE 00000001.res >
typeof    5
superid    0x00010007
typeid    0x00000001
alias    cars
isparentcompatible    1.00
</FILE>

...

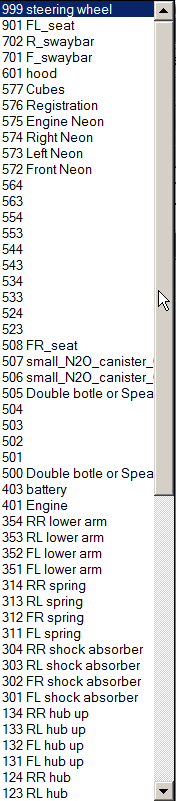

The SLRR editor allows to edit Pos and rot of slots (example Duhen):

edit2: finally, "Stallion furrano" rpk to rdb conversion (with resdecode "Stallion furrano") :

stallion furrano.zip



Edited April 19Apr 19 by shak-otay

On 4/19/2026 at 9:12 AM, shak-otay said:

Thanks. It's a structure viewer for rpk (where you can make edits):

test_track.rpk causes an exception when you try to scroll:

So first lines here only:

edit: btw, there's a "resource converter" here which can convert from "rdb to rpk" and reverse. (resdecode: rpk to rdb converter, fails on test_track.rpk with "RPAK header error")

When resdecode is excuted by "resource decoder" there's some output but unfinished:

A correct rdb looks like so (ASCII only contents):

The SLRR editor allows to edit Pos and rot of slots (example Duhen):

edit2: finally, "Stallion furrano" rpk to rdb conversion (with resdecode "Stallion furrano") :

stallion furrano.zip 5.74 kB · 0 downloads



Is there any fixed alternative to resdecode and SLStudio for RPK-embedded map models with POLY and PHYS chunks that work for test_track.rpk? You got an error for test_track.rpk because resdecode and SLStudio doesn't support RPKs with embedded map models.

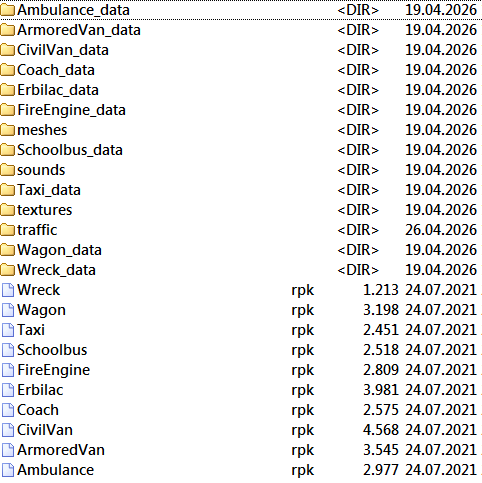

So the key will be to split up test_track.rpk like it was done with traffic.rpk:

Edited April 26Apr 26 by shak-otay

I tried patching la_street_racing.bms from, Aluigi, which usually works perfectly with some RPK files, Fantasy_Quaddro for example, but failes with test_track.rpk, like other tools, too.

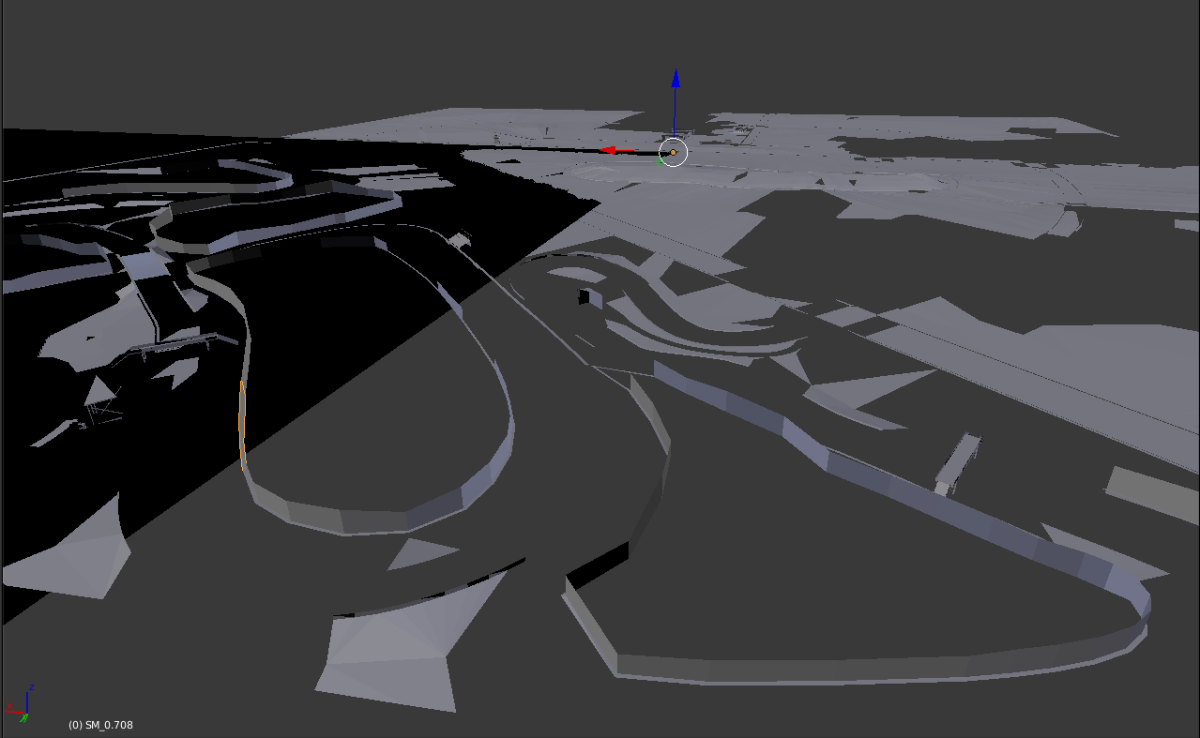

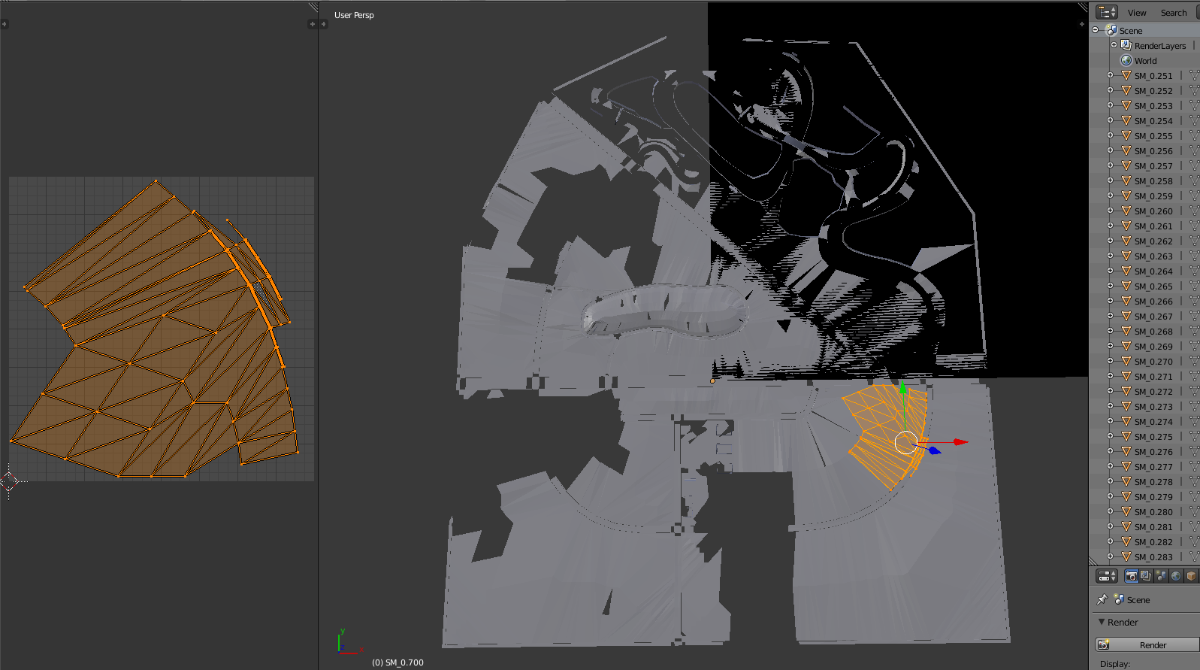

It's probably very easy to patch, there's no compression, but I got tired with it and finally extracted the meshes directly (combined POLY and the following mesh in one part each, 620 meshes in sum), not to interesting, imho:





On 4/27/2026 at 3:55 PM, shak-otay said:

I tried patching la_street_racing.bms from, Aluigi, which usually works perfectly with some RPK files, Fantasy_Quaddro for example, but failes with test_track.rpk, like other tools, too.

It's probably very easy to patch, there's no compression, but I got tired with it and finally extracted the meshes directly (combined POLY and the following mesh in one part each, 620 meshes in sum), not to interesting, imho:





Here is the file format binary template for Street Legal RPKs.

streetlegal_rpk.bt



streetlegal_rpk_mapmodels.bt

Edited May 28May 28 by mrmaller1905

There's no offset or size...

2 hours ago, h3x3r said:

There's no offset or size...

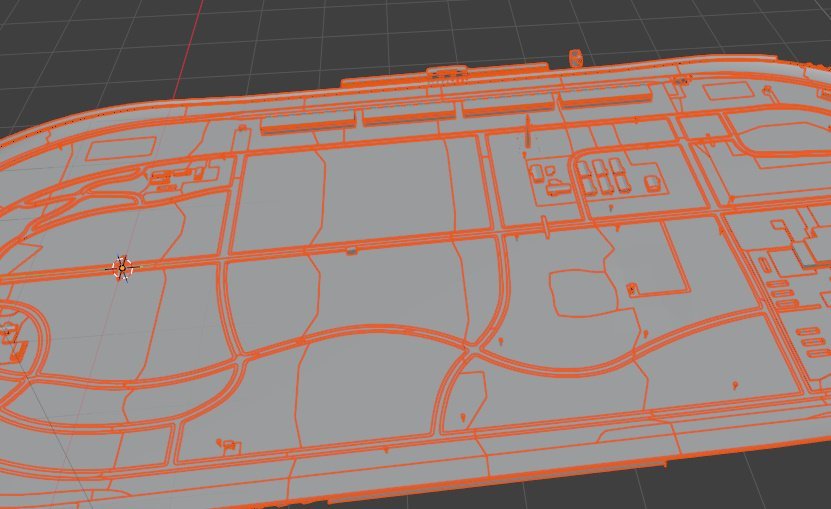

In addition to resdecode, I've made a Python scripts that imports map models from Street Legal/Street Legal Racing: Redline into Blender or converts into Wavefront OBJ.

rpk2obj.py importstreetlegalmapsblender.py test_track_slrr.rar

1 hour ago, mrmaller1905 said:

In addition to resdecode, I've made a Python scripts that imports map models from Street Legal/Street Legal Racing: Redline into Blender or converts into Wavefront OBJ.

rpk2obj.py 4.26 kB · 2 downloads importstreetlegalmapsblender.py 3.67 kB · 2 downloads test_track_slrr.rar 2.16 MB · 1 download

Check the rules: #17 - Scripts appear to be AI-generated
