The file size is quite small, so I reckon its format can be identified quickly. I haven’t got home yet though; I’ll examine the structure thoroughly once I’m back. Fingers someone can work out the parsing in the meantime 😏

bli.7z

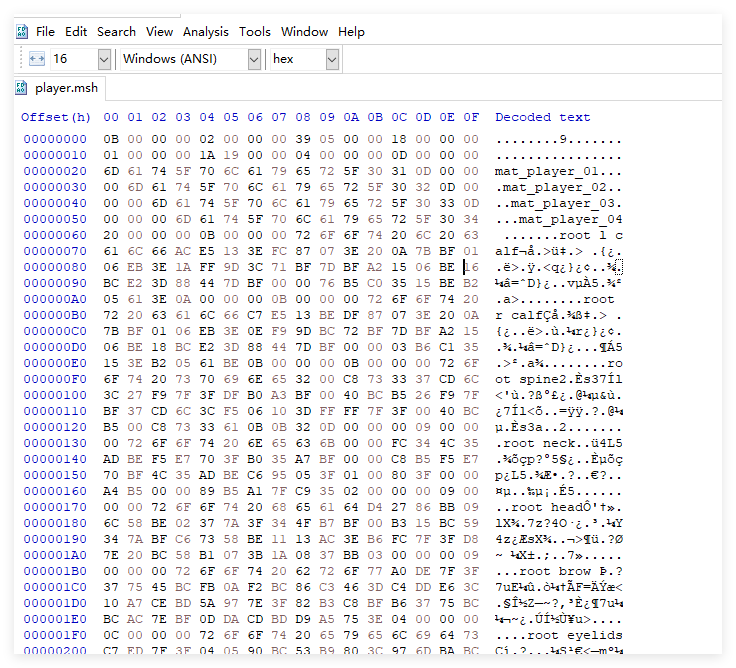

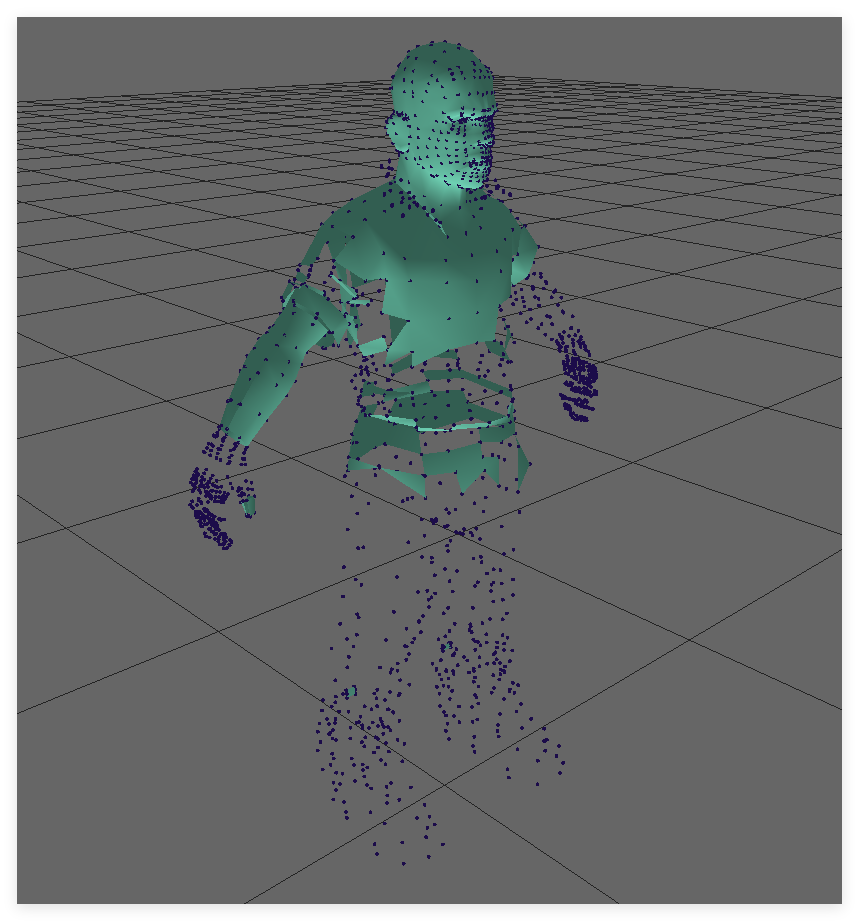

Okay, it looks far simpler than I’d anticipated; I overcomplicated things. I can search for standard face indices just like usual, and vertex coordinates are located nearby as well.

After examining multiple samples, I’ve reached a final conclusion: the TEX container holds multiple textures, predominantly DDS files with a smaller portion being other common formats such as TGA.

Here's struct of *.tex.

//------------------------------------------------
//--- 010 Editor v14.0 Binary Template
//
//      File:
//   Authors:
//   Version:
//   Purpose:
//  Category:
// File Mask:
//  ID Bytes:
//   History:
//------------------------------------------------
LittleEndian();OutputPaneClear();

local uint32 i;

uint32 Version;
uint32 ResourceCount;
struct
{
    uint32 ResourceType;
    uint32 ResourceOffset;
}Resource[ResourceCount];

struct
{
    for (i=0; i < ResourceCount; i++)
    {
        FSeek(Resource[i].ResourceOffset);
        if (Resource[i].ResourceType == 110)
        {
            struct
            {
                uint32 DescSize;
                char DescText[DescSize];
            }Description;
        }
        else if (Resource[i].ResourceType == 5 | Resource[i].ResourceType == 9)
        {
            struct
            {
                enum <uint32>
                {
                    PF_DXT1 = 5,
                    PF_PVRTCI_4BPP = 9,
                }PixelFormat;
                uint32 TextureWidth;
                uint32 TextureHeight;
                uint32 MipMaps;
                uint32 RawDataSize;
                byte RawData[RawDataSize];
            }Texture;
        }
    }
}Resources;

There may be more pixel formats, but can't tell from one sample.

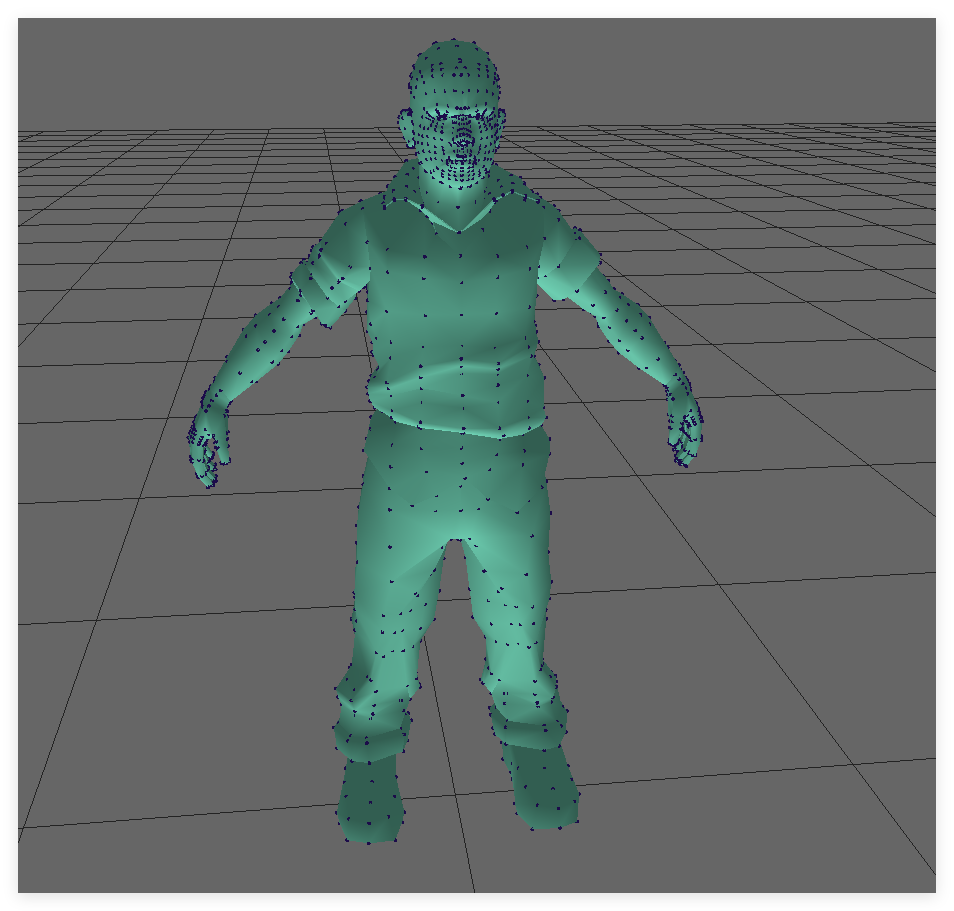

And here is guess-work for mesh.

//------------------------------------------------
//--- 010 Editor v14.0 Binary Template
//
//      File:
//   Authors:
//   Version:
//   Purpose:
//  Category:
// File Mask:
//  ID Bytes:
//   History:
//------------------------------------------------
LittleEndian();OutputPaneClear();

local uint32 i;

uint32 Version;
uint32 Unknown_0;
uint32 Unknown_1;
uint32 MaterialOffset;
uint32 Unknown_2;
uint32 ModelOffset;

FSeek(MaterialOffset);
struct
{
    uint32 MaterialIndex;
    struct
    {
        uint32 StrLen;
        char MaterialName[StrLen];
    }Material[MaterialIndex]<optimize=false>;
}Materials;


struct
{
    uint32 BoneIndex;
    struct
    {
        uint32 StrLen;
        char BoneName[StrLen];
        float Matrix4x3[12];
        uint32 ParentBoneId;
    }Bone[BoneIndex]<optimize=false>;
    //Preserved
}Skeleton;


FSeek(ModelOffset);
struct
{
    uint32 ModelIndex;
    uint32 StrLen;
    char ModelName[StrLen];
    byte Align[StrLen];
    uint32 ElementCount;
    uint32 IndexCount;
    uint16 IndexBuffer[IndexCount];

    byte Unknown_0[74];

    struct
    {
        float VPosX,VPosY,VPosZ;
        byte Unknown_0[12];
        byte VNPosX,VNPosY,VNPosZ,Null;
        byte Unknown_1[4];
        int16 UVPosX,UVPosY;
    }ElementBuffer[ElementCount]<optimize=false>;

    uint32 ShapeIndex;
    struct
    {
        uint32 IndexOffset;
        uint32 IndexCount;
        uint32 MaterialId;
        uint32 Null;
    }ShapeInfo[ShapeIndex]<optimize=false>;

    FSeek(startof(IndexBuffer));
    struct
    {
        for (i=0; i < ShapeIndex; i++)
        {
            FSeek(startof(IndexBuffer) + ShapeInfo[i].IndexOffset * 2);
            struct
            {
                uint16 F1,F2,F3;
            }Indices[ShapeInfo[i].IndexCount / 3]<optimize=false>;
        }
    }Shapes;
}Model;

Small note. UV's are divided by 2048.0. But normals doesn't work well when i divide them with 255.0. Maybe these are not normals at all.

Edited June 8Jun 8 by h3x3r
