Deadly Premonition PC .XMD

August 3Aug 3

Localization

Hello I am trying to see models from Deadly Premonition From PC any way how to rip them? thanks!
Here are some Xmds of some models from 01_PL
Some rough ideas judging from XPCs
CPL011- Agent
CPL0112- Workaholic
Okay Figured out how to send the folder
https://drive.google.com/file/d/1Gyx_pUYpQC-w-0PWVtkX2hw6L10T9A3D/view?usp=sharing

CPL013A.zip

Edited August 3Aug 3 by Sirduckdude

August 4Aug 4

Supporter

//------------------------------------------------
//--- 010 Editor v14.0 Binary Template
//
//      File:
//   Authors:
//   Version:
//   Purpose:
//  Category:
// File Mask:
//  ID Bytes:
//   History:
//------------------------------------------------
char Sign[4];
uint32 TotalFileSize;

if (Sign == "XPC2")
{
    uint16 ResourceCount;
    uint16 Unknown_0;
    uint32 Unknown_1;
    uint32 Unknown_2;
    uint32 Reserved[3];
    uint32 ResourceDefOffset;
    uint32 ResourceDataBaseOffset;

    FSeek(ResourceDefOffset);
    struct
    {
        char ResourceName[16];
        uint32 ResourceOffset;
        uint32 ResourceZSize;
        uint16 WBits;
        uint16 CompFlag;
        ubyte Flags[4];
    }ResourceDefinition[ResourceCount];
}
else if (Sign == "XZP1")
{
    uint32 ResourceZSize;
    uint32 ResourceSize;
    byte ZLibData[ResourceZSize];
}

BMS

##############################
get BaseFileName basename
get FileSize asize
get FileExtension extension

getdstring Sign 0x4
get TotalFileSize uint32

if Sign == "XPC2"
	comtype zlib_noerror
	get ResourceCount ushort
	getdstring Dummy 0x16
	get ResourceDefOffset uint32
	get ResourceDataBaseOffset uint32

	goto ResourceDefOffset

	for i = 0 < ResourceCount
		getdstring ResourceName 0x10
		get ResourceOffset uint32
		get ResourceZSize uint32
		get WBits ushort
		get CompFlag ushort
		getdstring Flags 0x4

		string Name p "%s/%s" BaseFileName ResourceName
		if CompFlag == 0
			log Name ResourceOffset ResourceZSize
		else
			clog Name ResourceOffset ResourceZSize ResourceZSize
		endif
	next i

elif Sign == "XZP1"
	get ResourceZSize uint32
	get ResourceSize uint32
	savepos ResourceOffset
	string Name p "%s/%s.%s" BaseFileName BaseFileName FileExtension
	clog Name ResourceOffset ResourceZSize ResourceSize
endif

Edited August 4Aug 4 by h3x3r

2

August 4Aug 4

Author
Localization

1 hour ago, h3x3r said:

//------------------------------------------------
//--- 010 Editor v14.0 Binary Template
//
//      File:
//   Authors:
//   Version:
//   Purpose:
//  Category:
// File Mask:
//  ID Bytes:
//   History:
//------------------------------------------------
char Sign[4];
uint32 TotalFileSize;

if (Sign == "XPC2")
{
    uint16 ResourceCount;
    uint16 Unknown_0;
    uint32 Unknown_1;
    uint32 Unknown_2;
    uint32 Reserved[3];
    uint32 ResourceDefOffset;
    uint32 ResourceDataBaseOffset;

    FSeek(ResourceDefOffset);
    struct
    {
        char ResourceName[16];
        uint32 ResourceOffset;
        uint32 ResourceZSize;
        uint16 WBits;
        uint16 CompFlag;
        ubyte Flags[4];
    }ResourceDefinition[ResourceCount];
}
else if (Sign == "XZP1")
{
    uint32 ResourceZSize;
    uint32 ResourceSize;
    byte ZLibData[ResourceZSize];
}

BMS

##############################
get BaseFileName basename
get FileSize asize
get FileExtension extension

getdstring Sign 0x4
get TotalFileSize uint32

if Sign == "XPC2"
	comtype zlib_noerror
	get ResourceCount ushort
	getdstring Dummy 0x16
	get ResourceDefOffset uint32
	get ResourceDataBaseOffset uint32

	goto ResourceDefOffset

	for i = 0 < ResourceCount
		getdstring ResourceName 0x10
		get ResourceOffset uint32
		get ResourceZSize uint32
		get WBits ushort
		get CompFlag ushort
		getdstring Flags 0x4

		string Name p "%s/%s" BaseFileName ResourceName
		if CompFlag == 0
			log Name ResourceOffset ResourceZSize
		else
			clog Name ResourceOffset ResourceZSize ResourceZSize
		endif
	next i

elif Sign == "XZP1"
	get ResourceZSize uint32
	get ResourceSize uint32
	savepos ResourceOffset
	string Name p "%s/%s.%s" BaseFileName BaseFileName FileExtension
	clog Name ResourceOffset ResourceZSize ResourceSize
endif

Yea! nice I can get the textures A bit more quicker now! though still don't know how to find the models but thanks!

August 4Aug 4

Supporter
Solution

Working on it...

But struggling with decompression via noesis. You need to use BMS first to decompress *.XMD. Or maybe i'll figure out.

EDiT: Figured out. Now you don't need to decompress model...

Here we go...

# Script by h3x3r

from inc_noesis import *
import noesis
import rapi
import os

def registerNoesisTypes():
   handle = noesis.register("Deadly Premonition - XMD Mesh", ".xmd")
   noesis.setHandlerTypeCheck(handle, noepyCheckType)
   noesis.setHandlerLoadModel(handle, noepyLoadModel)
   noesis.logPopup()
   return 1

def noepyCheckType(data):
	bs = NoeBitStream(data)
	bs.read(8)
	CSize = bs.readUInt()
	Size = bs.readUInt()
	Buffer = bs.read(CSize)
	data = rapi.decompInflate(Buffer,Size)

	bs = NoeBitStream(data)

	if len(data) < 20:
	    return 0
	if bs.readUInt() != 0x33444D58:
	    return 0
	return 1

def noepyLoadModel(data, mdlList):
	bs = NoeBitStream(data)
	bs.read(8)
	CSize = bs.readUInt()
	Size = bs.readUInt()
	Buffer = bs.read(CSize)
	data = rapi.decompInflate(Buffer,Size)

	bs = NoeBitStream(data)
	baseName = rapi.getExtensionlessName(rapi.getLocalFileName(rapi.getInputName()))
	ctx = rapi.rpgCreateContext()
	Underline = "_"

    # Main Info
	Sign = bs.read(4)
	ResourceSize = bs.readUInt()
	TotalIndexCount = bs.readUInt()
	TotalElementCount = bs.readUInt()
	Unknown_2 = bs.readUInt()
	Reserved0 = bs.read(20)
	Unknown_3 = bs.readUShort()
	BoneCount = bs.readUShort()
	ShapeCount = bs.readUInt()
	Unknown_4 = bs.readUInt()
	Unknown_5 = bs.readUByte()
	Unknown_6 = bs.readUByte()
	Unknown_7 = bs.readUByte()
	Unknown_8 = bs.readUByte()
	Unknown_9 = bs.readUByte()
	ElementStride = bs.readUByte()
	NormalSkinStride = bs.readUByte()
	Unknown_12 = bs.readUByte()
	Reserved1 = bs.readUInt()
	BBoxMin = bs.read(12)
	BBoxMax = bs.read(12)
	Unknown_13 = bs.readUShort()
	Unknown_14_Count = bs.readUShort()
	Unknown_15 = bs.readUInt()
	Unknown_16 = bs.readUInt()
	MaterialDefOffset = bs.readUInt()
	BoneDefOffset = bs.readUInt()
	ShapeDefOffset = bs.readUInt()
	Unknown_17 = bs.readUInt()
	Unknown_18 = bs.readUInt()
	UnknownDefOffset = bs.readUInt()
	Reserved2 = bs.read(16)
	IndexBufferBaseOffset = bs.readUInt()
	ElementBufferBaseOffset = bs.readUInt()
	NormalSkinBufferBaseOffset = bs.readUInt()
	Reserved3 = bs.read(16)
	Unknown_14_Offset = bs.readUInt()
	print("Element Stride >",ElementStride,"NormalSkin Stride >",NormalSkinStride)

    # Material Info
	bs.seek(MaterialDefOffset, NOESEEK_ABS)
	MaterialName = bs.readString()
	rapi.rpgSetMaterial(MaterialName)

    # Shape Info
	bs.seek(ShapeDefOffset, NOESEEK_ABS)
	for i in range(0, ShapeCount):
		StrPos = bs.tell()
		ShapeName = bs.readString()
		bs.seek(StrPos, NOESEEK_ABS)
		bs.read(16)
		Unknown_0 = bs.readShort()
		BoneId = bs.readShort()
		Unknown_2 = bs.readUInt()
		Unknown_3 = bs.readUInt()
		BBoxMin = bs.read(12)
		BBoxMax = bs.read(12)
		IndexCount = bs.readUInt()
		ElementCount = bs.readUInt()
		IndexOffset = bs.readUInt() * 2
		ElementOffset = bs.readUInt()
		Unknown_4 = bs.readUInt()
		Reserved = bs.read(8)
		cPos = bs.tell()


		bs.seek(ElementBufferBaseOffset + (ElementOffset * ElementStride), NOESEEK_ABS)
		ElementBuffer = bs.read(ElementCount * ElementStride)

		if ElementStride == 20:
		    rapi.rpgBindPositionBufferOfs(ElementBuffer, noesis.RPGEODATA_HALFFLOAT, 20, 0)
		    rapi.rpgBindUV1BufferOfs(ElementBuffer, noesis.RPGEODATA_HALFFLOAT, 20, 8)
		elif ElementStride == 24:
		    rapi.rpgBindPositionBufferOfs(ElementBuffer, noesis.RPGEODATA_FLOAT, 24, 0)
		    rapi.rpgBindUV1BufferOfs(ElementBuffer, noesis.RPGEODATA_HALFFLOAT, 24, 12)

		bs.seek(NormalSkinBufferBaseOffset + (ElementOffset * NormalSkinStride), NOESEEK_ABS)
		NormalSkinBuffer = bs.read(ElementCount * NormalSkinStride)

		if NormalSkinStride == 12:
		    rapi.rpgBindNormalBufferOfs(NormalSkinBuffer, noesis.RPGEODATA_HALFFLOAT, 12, 0)
		    rapi.rpgBindBoneWeightBufferOfs(NormalSkinBuffer, noesis.RPGEODATA_HALFFLOAT, 12, 6, 3)
		elif NormalSkinStride == 16:
		    rapi.rpgBindNormalBufferOfs(NormalSkinBuffer, noesis.RPGEODATA_HALFFLOAT, 16, 0)
		    rapi.rpgBindBoneWeightBufferOfs(NormalSkinBuffer, noesis.RPGEODATA_HALFFLOAT, 16, 8, 3)

		bs.seek(IndexBufferBaseOffset + IndexOffset, NOESEEK_ABS)
		IndexBuffer = bs.read(IndexCount * 2)
		rapi.rpgSetStripEnder(0xFFFF)
		rapi.rpgSetName(ShapeName)
		rapi.rpgCommitTriangles(IndexBuffer, noesis.RPGEODATA_USHORT, IndexCount, noesis.RPGEO_TRIANGLE_STRIP)

		bs.seek(cPos, NOESEEK_ABS)
	mdl = rapi.rpgConstructModel()
	mdlList.append(mdl)
	return 1

No skin/bones/skeleton. Could be done later...

Edited August 4Aug 4 by h3x3r

2

August 4Aug 4

Author
Localization

2 minutes ago, h3x3r said:
Working on it...

alright thanks so much!

August 4Aug 4

Author
Localization

5 hours ago, h3x3r said:

Working on it...

But struggling with decompression via noesis. You need to use BMS first to decompress *.XMD. Or maybe i'll figure out.

EDiT: Figured out. Now you don't need to decompress model...

Here we go...

# Script by h3x3r

from inc_noesis import *
import noesis
import rapi
import os

def registerNoesisTypes():
   handle = noesis.register("Deadly Premotion - XMD Mesh", ".xmd")
   noesis.setHandlerTypeCheck(handle, noepyCheckType)
   noesis.setHandlerLoadModel(handle, noepyLoadModel)
   noesis.logPopup()
   return 1

def noepyCheckType(data):
	bs = NoeBitStream(data)
	bs.read(8)
	CSize = bs.readUInt()
	Size = bs.readUInt()
	Buffer = bs.read(CSize)
	data = rapi.decompInflate(Buffer,Size)

	bs = NoeBitStream(data)

	if len(data) < 20:
	    return 0
	if bs.readUInt() != 0x33444D58:
	    return 0
	return 1

def noepyLoadModel(data, mdlList):
	bs = NoeBitStream(data)
	bs.read(8)
	CSize = bs.readUInt()
	Size = bs.readUInt()
	Buffer = bs.read(CSize)
	data = rapi.decompInflate(Buffer,Size)

	bs = NoeBitStream(data)
	baseName = rapi.getExtensionlessName(rapi.getLocalFileName(rapi.getInputName()))
	ctx = rapi.rpgCreateContext()
	Underline = "_"

    # Main Info
	Sign = bs.read(4)
	ResourceSize = bs.readUInt()
	TotalIndexCount = bs.readUInt()
	TotalElementCount = bs.readUInt()
	Unknown_2 = bs.readUInt()
	Reserved0 = bs.read(20)
	Unknown_3 = bs.readUShort()
	BoneCount = bs.readUShort()
	ShapeCount = bs.readUInt()
	Unknown_4 = bs.readUInt()
	Unknown_5 = bs.readUByte()
	Unknown_6 = bs.readUByte()
	Unknown_7 = bs.readUByte()
	Unknown_8 = bs.readUByte()
	Unknown_9 = bs.readUByte()
	ElementStride = bs.readUByte()
	Unknown_11 = bs.readUByte()
	Unknown_12 = bs.readUByte()
	Reserved1 = bs.readUInt()
	BBoxMin = bs.read(12)
	BBoxMax = bs.read(12)
	Unknown_13 = bs.readUShort()
	Unknown_14_Count = bs.readUShort()
	Unknown_15 = bs.readUInt()
	Unknown_16 = bs.readUInt()
	MaterialDefOffset = bs.readUInt()
	BoneDefOffset = bs.readUInt()
	ShapeDefOffset = bs.readUInt()
	Unknown_17 = bs.readUInt()
	Unknown_18 = bs.readUInt()
	UnknownDefOffset = bs.readUInt()
	Reserved2 = bs.read(16)
	IndexBufferBaseOffset = bs.readUInt()
	ElementBufferBaseOffset = bs.readUInt()
	NormalSkinBufferBaseOffset = bs.readUInt()
	Reserved3 = bs.read(16)
	Unknown_14_Offset = bs.readUInt()

    # Material Info
	bs.seek(MaterialDefOffset, NOESEEK_ABS)
	MaterialName = bs.readString()
	rapi.rpgSetMaterial(MaterialName)

    # Shape Info
	bs.seek(ShapeDefOffset, NOESEEK_ABS)
	for i in range(0, ShapeCount):
		StrPos = bs.tell()
		ShapeName = bs.readString()
		bs.seek(StrPos, NOESEEK_ABS)
		bs.read(16)
		Unknown_0 = bs.readShort()
		BoneId = bs.readShort()
		Unknown_2 = bs.readUInt()
		Unknown_3 = bs.readUInt()
		BBoxMin = bs.read(12)
		BBoxMax = bs.read(12)
		IndexCount = bs.readUInt()
		ElementCount = bs.readUInt()
		IndexOffset = bs.readUInt() * 2
		ElementOffset = bs.readUInt()
		Unknown_4 = bs.readUInt()
		Reserved = bs.read(8)
		cPos = bs.tell()

		bs.seek(ElementBufferBaseOffset + (ElementOffset * ElementStride), NOESEEK_ABS)
		ElementBuffer = bs.read(ElementCount * ElementStride)
		rapi.rpgBindPositionBufferOfs(ElementBuffer, noesis.RPGEODATA_HALFFLOAT, 20, 0)
		rapi.rpgBindUV1BufferOfs(ElementBuffer, noesis.RPGEODATA_HALFFLOAT, 20, 8)

		bs.seek(NormalSkinBufferBaseOffset + (ElementOffset * 16), NOESEEK_ABS)
		NormalSkinBuffer = bs.read(ElementCount * 16)
		rapi.rpgBindNormalBufferOfs(NormalSkinBuffer, noesis.RPGEODATA_HALFFLOAT, 16, 0)
		rapi.rpgBindBoneWeightBufferOfs(NormalSkinBuffer, noesis.RPGEODATA_HALFFLOAT, 16, 6, 3)

		bs.seek(IndexBufferBaseOffset + IndexOffset, NOESEEK_ABS)
		IndexBuffer = bs.read(IndexCount * 2)
		rapi.rpgSetStripEnder(0xFFFF)
		rapi.rpgSetName(ShapeName)
		rapi.rpgCommitTriangles(IndexBuffer, noesis.RPGEODATA_USHORT, IndexCount, noesis.RPGEO_TRIANGLE_STRIP)

		bs.seek(cPos, NOESEEK_ABS)
	mdl = rapi.rpgConstructModel()
	mdlList.append(mdl)
	return 1

No skin/bones/skeleton. Could be done later...

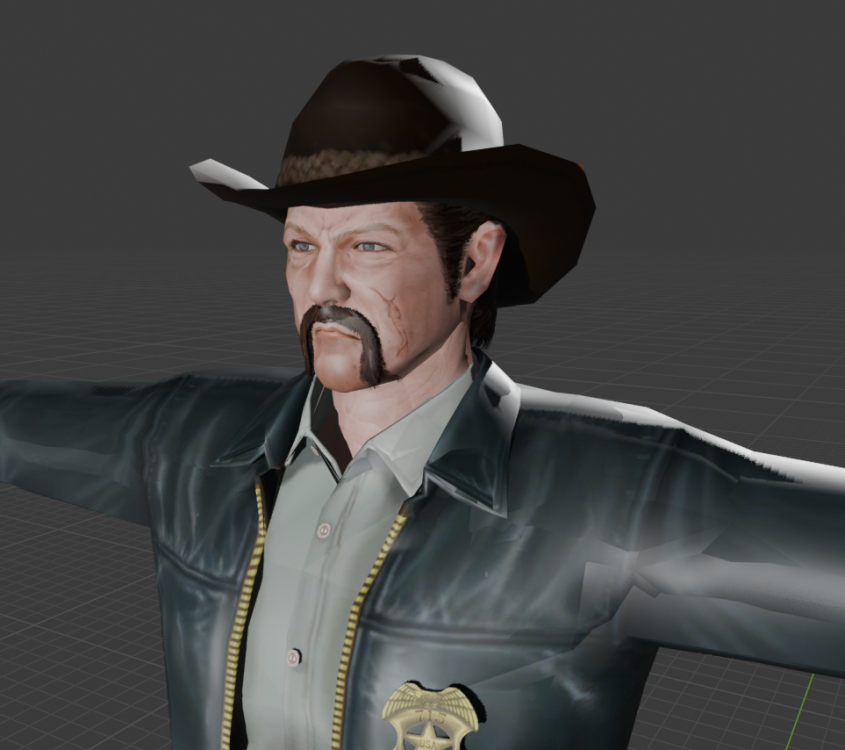

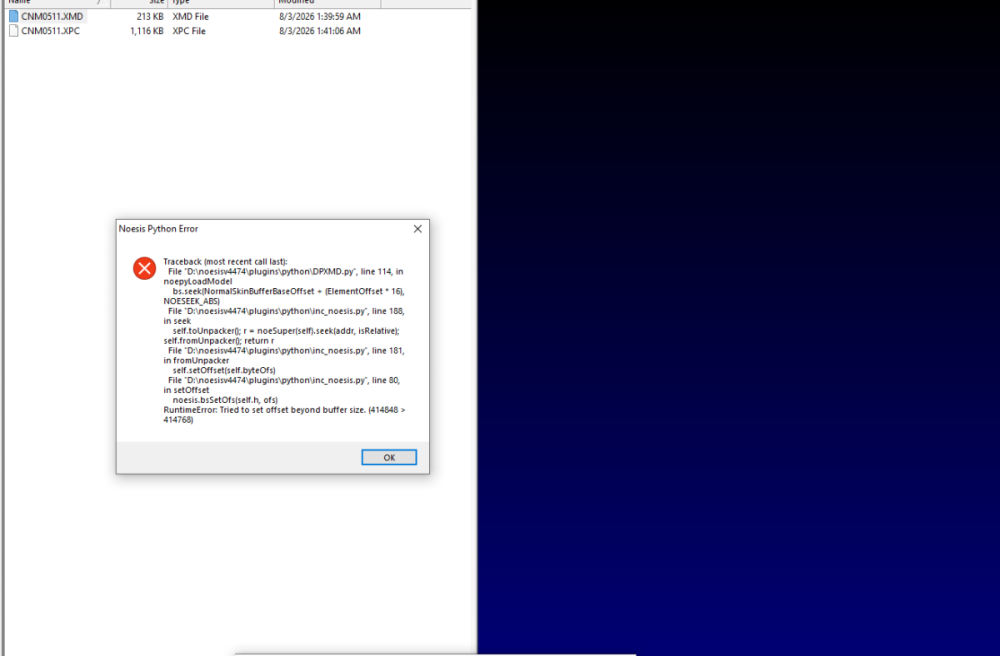

Omg thanks so much!!! seeing these models with out the weird filters is awesome! though other chara characters do give errors other than george sorry to bother i sent the CHARA folder fully from the google drive link if you need it!

Edited August 4Aug 4 by Sirduckdude

1

August 4Aug 4

Supporter

Found the problem. There is variable NormalSkinStride.

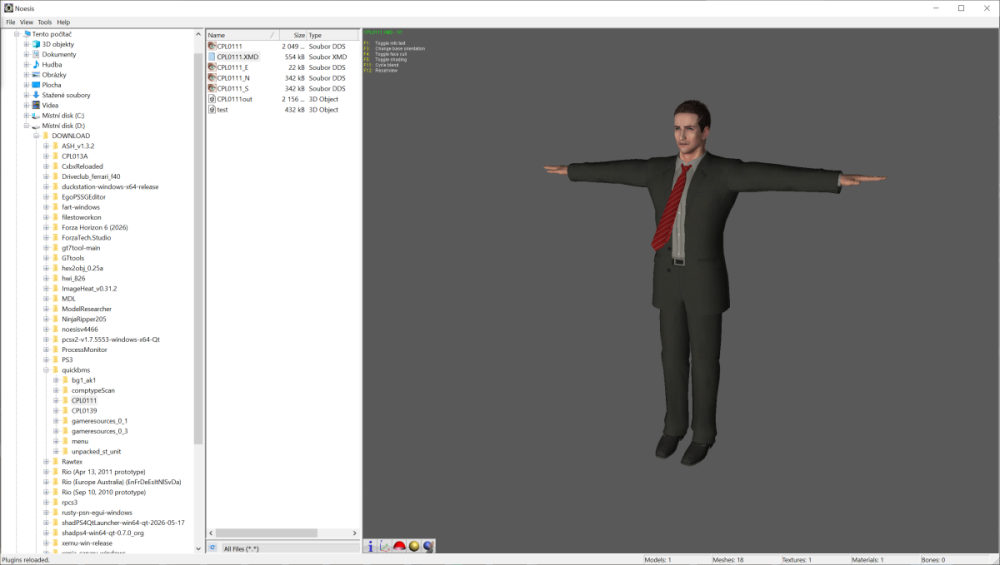

Fixed! You can try now.

Edited August 4Aug 4 by h3x3r

2

August 4Aug 4

Author
Localization

29 minutes ago, h3x3r said:
Found the problem. There is variable NormalSkinStride.
Fixed! You can try now.

It works! Thanks!!!

1

August 4Aug 4

Supporter

If anything went wrong just let me know.

BTW what about levels? Do you need them too? Maybe i can take a look.

Well i noticed there are also uncompressed models. Will update later.

Edited August 4Aug 4 by h3x3r

1

August 4Aug 4

Author
Localization

2 hours ago, h3x3r said:
If anything went wrong just let me know.
BTW what about levels? Do you need them too? Maybe i can take a look.
Well i noticed there are also uncompressed models. Will update later.

nah its fine since the maps are all in parts hopes the rigs are finable though!
I can try to send the Progammer_PC folder fully though if you wanna take a full look at it

got the entire folder of the extracts
https://drive.google.com/file/d/12seH5uJbhEhGp7gebx3zMAeQxJtVlDFu/view?usp=drive_link

Edited August 4Aug 4 by Sirduckdude

August 4Aug 4

Author
Localization

35 minutes ago, Sirduckdude said:
nah its fine since the maps are all in parts hopes the rigs are finable though!
I can try to send the Progammer_PC folder fully though if you wanna take a full look at it (its loading!)

also odd thing is the characters that did give errors merge all model lods EDIT ah wait i'm dumb I gotta import as fbx

Edited August 5Aug 5 by Sirduckdude

August 5Aug 5

Supporter

You can export it as *.obj. Should load fine without merging.

I am trying to get rid of LODs but still unsuccesfully...

Edited August 5Aug 5 by h3x3r

August 5Aug 5

Author
Localization

2 hours ago, h3x3r said:
I am trying to get rid of LODs but still unsuccesfully...

Ah alright but yeah the lods are pretty annoying lol they barely got names saying what they are!

Edited August 5Aug 5 by Sirduckdude

7 hours ago7 hr

Hey there! I've also been looking for a way to get the DP models extracted. I remember there was a Noesis plugin i think in the Zentax forum, but that's long gone. Seeing one now has lit back my excitement to get models from this game!

On 8/5/2026 at 7:25 AM, h3x3r said:
You can export it as *.obj. Should load fine without merging.
I am trying to get rid of LODs but still unsuccesfully...

I've just been wondering, and no pressure at all as i'm only asking out of curiosity;

Would it be possible to get the skeleton and weights at some point?

You're probably busy with life stuff, so, i don't want to give the wrong impression or anything. It's just i have been looking for a plugin everywhere for half a year and seeing this got me really excited.

5 hours ago5 hr

Author
Localization

2 hours ago, HenrysArts said:
Hey there! I've also been looking for a way to get the DP models extracted. I remember there was a Noesis plugin i think in the Zentax forum, but that's long gone. Seeing one now has lit back my excitement to get models from this game!
I've just been wondering, and no pressure at all as i'm only asking out of curiosity;
Would it be possible to get the skeleton and weights at some point?
You're probably busy with life stuff, so, i don't want to give the wrong impression or anything. It's just i have been looking for a plugin everywhere for half a year and seeing this got me really excited.

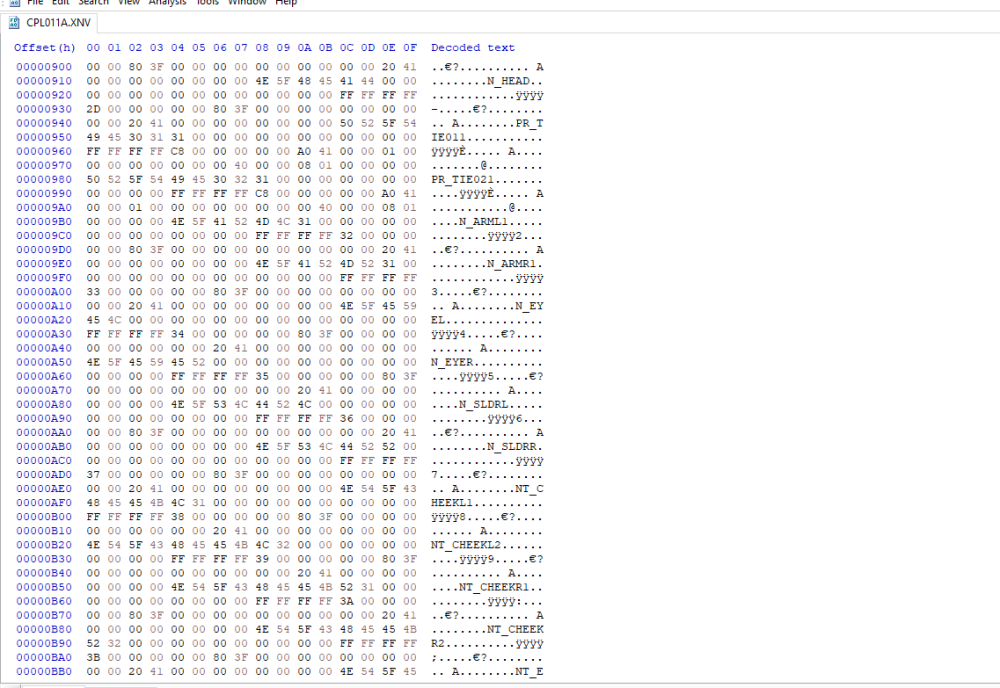

The stuff I had figured out is that the XNV might be where the bone data is stored

2 minutes ago2 min

Supporter

Hmmm strange bcs i see bones in xmd. But the result is not what it should be. So maybe you are right and skeleton is in xnv.

But from what i can see there is no matrix coordinates in xnv. But it calls xmd file.

Deadly Premonition PC .XMD

Featured Replies

Solved by h3x3r

Create an account or sign in to comment

Account

Navigation

Search

Configure browser push notifications

Chrome (Android)

Chrome (Desktop)

Safari (iOS 16.4+)

Safari (macOS)

Edge (Android)

Edge (Desktop)

Firefox (Android)

Firefox (Desktop)
