One Piece: Grand Adventure (PS2)

00000002-00000002-ICON00_LUF_ANGRY.zip

I've been working on this game for a while making a Japanese dub mod and I've figured out most of the game except textures and models. I need help with the texture file format of this game to finish my mod I've tried a lot with this but I just couldn't figure it out. I have collected info about it though so this could help if anyone could help me with this I'd appreciate it a lot.

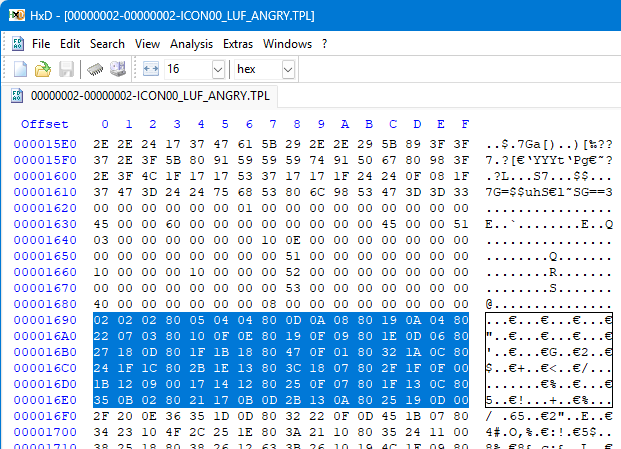

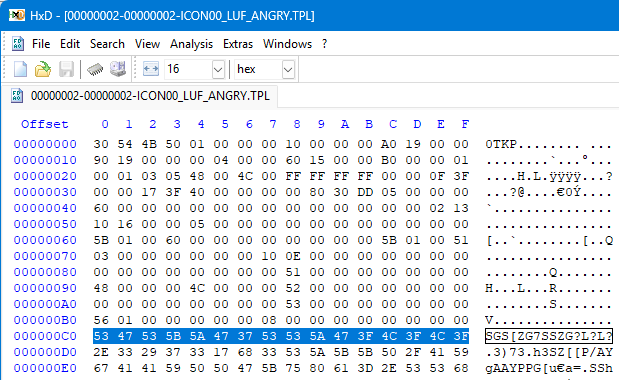

Some information about TPL PS2 format.

this has 2 sections:

- first section: Header data

- Red: magic number 0TKP

- Green: Count of images

- Pink: list offsets section:

- first int is offset to image header

- second is size

- second section: Image Header; a big rectangle blue

- red: ints related to size of datas, not sure lues, maybe related to graphics draw flags or some what.

pink: i mark two values, maybe realtioned to graphics draw flags or some what.

- lime: have two values short type, Width and height respectively.

- green: brutely i see Float values, may be related to scale size.

- yellow: PS2 Gif Tex0 data struct, this has native information about texture, width, height, psmformat and more.

- black: i mark two values, not sure if it is, but i supose it's offsets, to Pixeldata and to PaletteData respectively, also this relative to current image header.
