hi guys, someone knows how to extract textures from a3t format? in playstation 2 is called amt, but in playstation 3 is a3t, try to extract their textures with a .py script that made a user called nexus the modder credits to him for his program, but only extracts the textures of the characters only that, with another type of a3t file that is not character does not extract it, here the .py and sample files

A3T Tools.rar

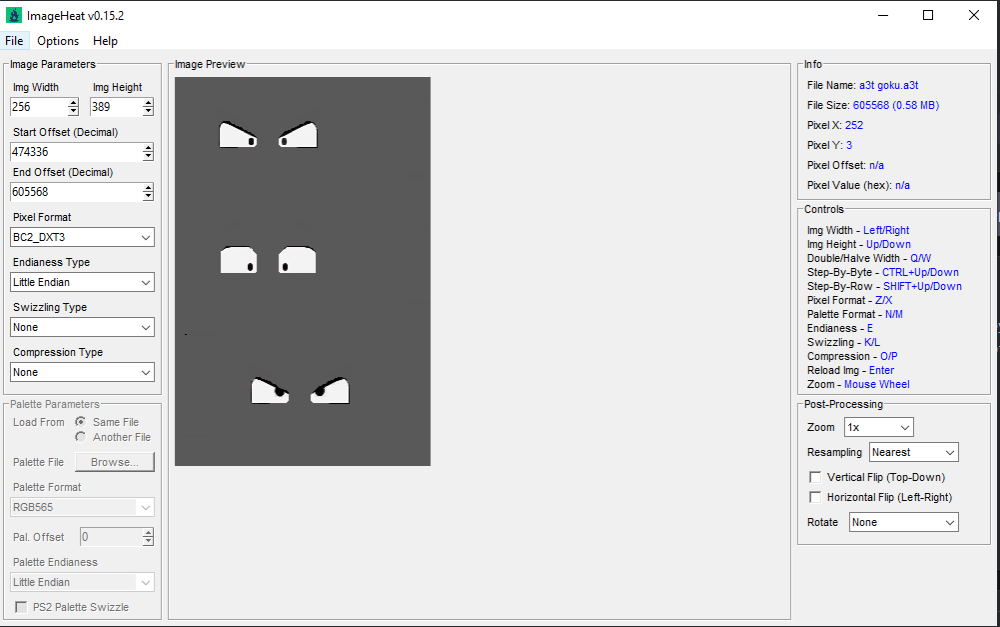

Some of them are DXT3:

5 hours ago, ikskoks said:

Some of them are DXT3:

yes I was just checking recently, in the #a3t script it only supports dtx3 and that is used in the file characters, the other #a3t files apparently use another type of dtx, dtx3 is not used in some #amt files.

5 hours ago, ikskoks said:

Some of them are DXT3:

I wonder if the script can be improved, I tried but I couldn't do it.

from inc_noesis import *
import noesis
import rapi
import os

def registerNoesisTypes():
   handle = noesis.register("Dragon Ball Budokai 3 HD Collection(PS3) Textures", ".a3t")
   noesis.setHandlerTypeCheck(handle, noepyCheckType)
   noesis.setHandlerLoadRGBA(handle, noepyLoadRGBA)
   noesis.logPopup()
   return 1

def noepyCheckType(data):
   bs = NoeBitStream(data)
   if len(data) < 20:
      return 0
   return 1

def noepyLoadRGBA(data, texList):
    bs = NoeBitStream(data,NOE_BIGENDIAN)
    BaseName = rapi.getExtensionlessName(rapi.getLocalFileName(rapi.getInputName()))
    Underline = "_"
    bs.readBytes(16)
    ImageCount = bs.readUInt()
    ImageTableOffset = bs.readUInt()
    bs.seek(ImageTableOffset, NOESEEK_ABS)

    for i in range(ImageCount):
        ImageInfoOffset = bs.readUInt()
        cPos = bs.tell()
        if ImageInfoOffset != 0:
            bs.seek(ImageInfoOffset, NOESEEK_ABS)
            ImageIndex = bs.readUInt()
            ImgIndex = str(ImageIndex)
            bs.read(16)
            ImageOffset = bs.readUInt()
            bs.seek(ImageOffset, NOESEEK_ABS)
            bs.read(4)
            ImageDataSize = bs.readUInt()
            bs.read(16)
            PixelFormat = bs.readUByte()
            print(PixelFormat)
            bs.read(7)
            ImageWidth = bs.readUShort()
            ImageHeight = bs.readUShort()
            bs.read(92)
            data = bs.readBytes(ImageDataSize)

            if PixelFormat == 135:
                texFmt = noesis.NOESISTEX_DXT3
            elif PixelFormat == 133:
                data = rapi.imageFromMortonOrder(data, ImageWidth, ImageHeight, 4)
                #data = rapi.imageDecodeRaw(data, ImageWidth, ImageHeight, "r8g8b8a8")
                texFmt = noesis.NOESISTEX_RGBA32

            texList.append(NoeTexture(BaseName + Underline + ImgIndex, ImageWidth, ImageHeight, data, texFmt))
        bs.seek(cPos, NOESEEK_ABS)
    return 1



Edited April 8, 20251 yr by h3x3r

58 minutes ago, h3x3r said:

from inc_noesis import *
import noesis
import rapi
import os

def registerNoesisTypes():
   handle = noesis.register("Dragon Ball Budokai 3 HD Collection(PS3) Textures", ".a3t")
   noesis.setHandlerTypeCheck(handle, noepyCheckType)
   noesis.setHandlerLoadRGBA(handle, noepyLoadRGBA)
   noesis.logPopup()
   return 1

def noepyCheckType(data):
   bs = NoeBitStream(data)
   if len(data) < 20:
      return 0
   return 1

def noepyLoadRGBA(data, texList):
    bs = NoeBitStream(data,NOE_BIGENDIAN)
    BaseName = rapi.getExtensionlessName(rapi.getLocalFileName(rapi.getInputName()))
    Underline = "_"
    bs.readBytes(16)
    ImageCount = bs.readUInt()
    ImageTableOffset = bs.readUInt()
    bs.seek(ImageTableOffset, NOESEEK_ABS)

    for i in range(ImageCount):
        ImageInfoOffset = bs.readUInt()
        cPos = bs.tell()

        bs.seek(ImageInfoOffset, NOESEEK_ABS)
        ImageIndex = bs.readUInt()
        ImgIndex = str(ImageIndex)
        bs.read(3)
        PixelFormat = bs.readUByte()
        ImageWidth = bs.readUShort()
        ImageHeight = bs.readUShort()
        bs.read(8)
        ImageOffset = bs.readUInt()
        bs.seek(ImageOffset, NOESEEK_ABS)
        bs.read(128)
        ImageDataSize = ImageWidth * ImageHeight
        data = bs.readBytes(ImageDataSize)
        texFmt = noesis.NOESISTEX_DXT3
        texList.append(NoeTexture(BaseName + Underline + ImgIndex, ImageWidth, ImageHeight, data, texFmt))
        bs.seek(cPos, NOESEEK_ABS)
    return 1



it's a very good script! but I still don't understand why you can't open other types of a3t, for example noesis won't let me view this a3t

The good thing, is that I took the time to research the a3t file, I'll explain what's here:

RED: Nº Textures in the file
Yellow: Texture index offset
Black: texture 1(includes bpp, dimensions etc in this area)
Green: DDS Header

this file contains only one texture







mCSgny1.rar

There is morton involved. Also width/height from table doesn't always match width/height from dds header. So script must be rewriten.

It's hard to make a struct just from one sample. Post more samples.

Edited April 7, 20251 yr by h3x3r

here you have more samples, I think each a3t has its own tempering .dds(header) is what I'm seeing in each a3t



A3T Files Samples.rar



Edited April 7, 20251 yr by NocturnalRhys

Updated script. Now it should work.

thanks mate! so far I have tried 5 files and it works too well, I'll keep you posted, maybe based on this script, I can make a reimporter and an improved extractor

On 4/8/2025 at 2:49 AM, h3x3r said:

Updated script. Now it should work.

i have tried to make a .py script to extract the textures without depending on noesis but i couldn't when you have some free time or you want to do it could you make a script?

Sorry to tell you that but i am not good enough in that. You are on your own. Maybe someone else can help.

Anyway you must deal with morton algo.

22 hours ago, NocturnalRhys said:

have tried to make a .py script to extract the textures without depending on noesis but i couldn't

You can do that easily with ReverseBox dependency https://github.com/bartlomiejduda/ReverseBox

Morton swizzle is supported.
