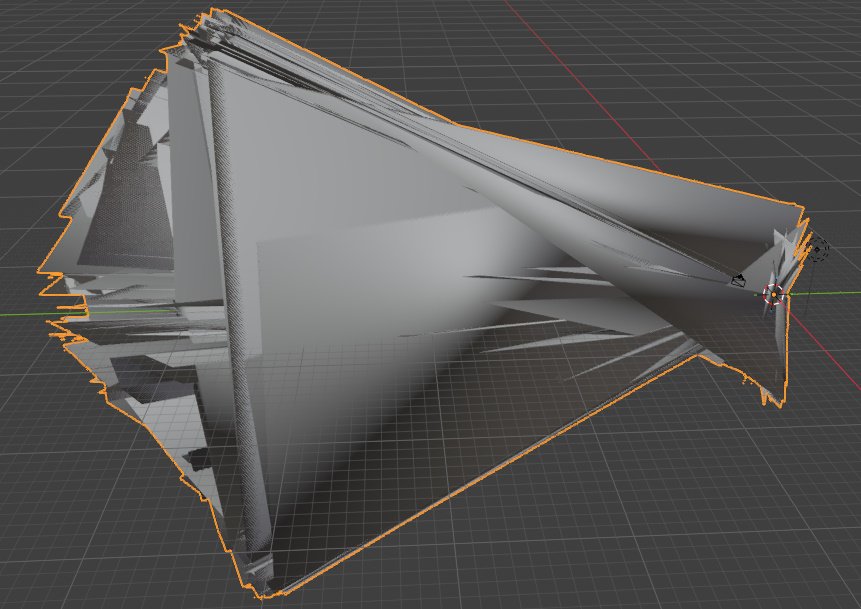

I tried hex2obj but I'm getting corrupt character models. Any help in fixing Wolfenstein (2009) character models?

Samples:

https://drive.google.com/file/d/1E2r34aUppCNKFgR1QHwVPwBU2SbO1Iwk/view?usp=sharing

Edited April 7, 20242 yr by mrmaller1905

There's several face indices blocks (starting with 0000 0100 0200 each). You'll need to choose the suiting one.

head_abm_agt01.md5r:



On 4/7/2024 at 10:23 AM, shak-otay said:

There's several face indices blocks (starting with 0000 0100 0200 each). You'll need to choose the suiting one.

head_abm_agt01.md5r:

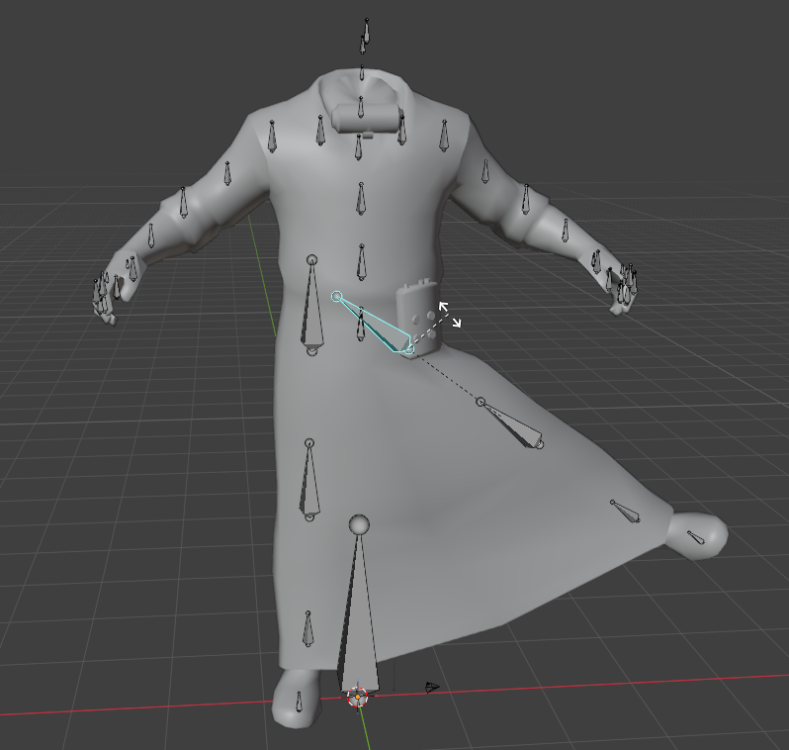

Is there any Blender plugin to import .md5r files? The skeleton data have ASCII while the 3D model data is binary from .md5r.

Edited July 10Jul 10 by mrmaller1905

GitHub

GitHub - bquintero/MD5R2OBJ: An incomplete exercise is de...

An incomplete exercise is decoding some Wolfenstein 2009 geometry files (MD5R and PROCB). - bquintero/MD5R2OBJ

You need to compile it in vs. But it export only meshes without bones/skin

14 hours ago, h3x3r said:

GitHub

GitHub - bquintero/MD5R2OBJ: An incomplete exercise is de...

An incomplete exercise is decoding some Wolfenstein 2009 geometry files (MD5R and PROCB). - bquintero/MD5R2OBJ

You need to compile it in vs. But it export only meshes without bones/skin

I tried the old program MD5R2OBJ but it doesn't work for character models. I'm looking for fixed alternatives to MD5R2OBJ with support for character models.

Sorry i didn't know that.

ChatGPT

Check out this chat

ChatGPT helps you get answers, find inspiration, and be more productive.

#ifndef WOLFENSTEIN_2009_MD5R_POD_H
#define WOLFENSTEIN_2009_MD5R_POD_H

/*
    Semantic POD model for Wolfenstein (2009) MD5RVersion 1.

    IMPORTANT: MD5R is a hybrid ASCII/binary stream. These structures are a
    safe in-memory representation; they are not a direct memory overlay of the
    complete file. Only MD5RSilhouetteEdge is directly overlay-compatible with
    its little-endian binary payload on a little-endian host.
*/

#include <stdint.h>
#include <stddef.h>

#ifdef __cplusplus
extern "C" {
#endif

typedef struct MD5RFloat2 { float x, y; } MD5RFloat2;
typedef struct MD5RFloat3 { float x, y, z; } MD5RFloat3;
typedef struct MD5RFloat4 { float x, y, z, w; } MD5RFloat4;

typedef struct MD5RBounds {
    MD5RFloat3 minimum;
    MD5RFloat3 maximum;
} MD5RBounds;

typedef enum MD5RVertexSemantic {
    MD5R_SEM_POSITION,
    MD5R_SEM_NORMAL,
    MD5R_SEM_TANGENT,
    MD5R_SEM_BINORMAL,
    MD5R_SEM_DIFFUSE_COLOR,
    MD5R_SEM_TEXCOORD,
    MD5R_SEM_BLEND_INDEX,
    MD5R_SEM_BLEND_INDEX_SMALL,
    MD5R_SEM_BLEND_WEIGHT
} MD5RVertexSemantic;

typedef enum MD5RStorageType {
    MD5R_STORAGE_IMPLICIT,
    MD5R_STORAGE_FLOAT2,
    MD5R_STORAGE_FLOAT3,
    MD5R_STORAGE_FLOAT4,
    MD5R_STORAGE_DEC_10_10_10N,
    MD5R_STORAGE_DEC_11_11_10N
} MD5RStorageType;

typedef struct MD5RVertexElement {
    MD5RVertexSemantic semantic;
    MD5RStorageType storage;
    int32_t auxiliary;       /* TexCoord channel or total BlendWeight influences; -1 if absent. */
    uint32_t byteOffset;
    uint32_t byteSize;
} MD5RVertexElement;

typedef struct MD5RVertexDeclaration {
    uint32_t elementCount;
    const MD5RVertexElement *elements;
    uint32_t stride;
} MD5RVertexDeclaration;

typedef struct MD5RJoint {
    const char *name;
    int32_t parentIndex;     /* -1 for root. */
    MD5RFloat3 position;     /* Observed bind/model-space position. */
    MD5RFloat3 orientationXYZ;
    /* Omitted W is conventionally reconstructed as:
       w = -sqrt(max(0, 1 - x*x - y*y - z*z)). */
} MD5RJoint;

typedef struct MD5RVertexBuffer {
    MD5RVertexDeclaration runtimeFormat; /* VertexFormat */
    MD5RVertexDeclaration diskFormat;    /* LoadVertexFormat if present, otherwise runtimeFormat */
    uint8_t systemMemory;
    uint8_t videoMemory;
    uint16_t reserved;
    uint32_t vertexCount;
    uint32_t payloadByteCount;
    const uint8_t *payload;              /* Empty for runtime-generated VBs. */
} MD5RVertexBuffer;

typedef struct MD5RIndexBuffer {
    uint8_t systemMemory;
    uint8_t videoMemory;
    uint16_t bitDepth;                   /* 16 in every supplied sample. */
    uint32_t indexCount;
    uint32_t payloadByteCount;
    const uint8_t *payload;
} MD5RIndexBuffer;

#pragma pack(push, 1)
typedef struct MD5RSilhouetteEdge {
    int32_t triangleA;
    int32_t triangleB;
    int32_t vertexA;
    int32_t vertexB;
} MD5RSilhouetteEdge;
#pragma pack(pop)

typedef struct MD5RIndexedTriList {
    int32_t minVertex;
    int32_t numVertices;
    int32_t startIndex;      /* Index-element offset, not a byte offset. */
    int32_t primitiveCount;  /* Triangle count; consumes primitiveCount * 3 indices. */
} MD5RIndexedTriList;

typedef struct MD5RRange {
    int32_t first;
    int32_t count;
} MD5RRange;

typedef struct MD5RBufferPair {
    int32_t vertexBufferIndex;
    int32_t indexBufferIndex; /* ShadowVolumeBuffers uses -1 for no index buffer. */
} MD5RBufferPair;

typedef struct MD5RPrimitiveBatch {
    uint32_t transformCount;
    const int32_t *transformJointIndices;

    uint8_t hasSilTrace;
    uint8_t hasDraw;
    uint8_t hasShadowVerts;
    uint8_t hasSilhouetteEdges;

    MD5RIndexedTriList silTrace;
    MD5RIndexedTriList draw;
    int32_t shadowBaseVertex;
    MD5RRange silhouetteEdges;
} MD5RPrimitiveBatch;

typedef struct MD5RMesh {
    int32_t lodIndex;        /* -1 when LevelOfDetail is absent. */
    const char *material;

    uint8_t hasSilTraceBuffers;
    uint8_t hasDrawBuffers;
    uint8_t hasShadowVolumeBuffers;
    uint8_t hasBounds;

    MD5RBufferPair silTraceBuffers;
    MD5RBufferPair drawBuffers;
    MD5RBufferPair shadowVolumeBuffers;

    uint32_t batchCount;
    const MD5RPrimitiveBatch *batches;
    MD5RBounds bounds;

    uint32_t allocatorCommentBytes; /* Recomputed // N bytes annotation. */
} MD5RMesh;

typedef struct MD5RModel {
    uint32_t version;
    uint32_t allocatorMemSize;      /* MemSize; not file length. */

    uint32_t jointCount;
    const MD5RJoint *joints;

    uint32_t vertexBufferCount;
    const MD5RVertexBuffer *vertexBuffers;

    uint32_t indexBufferCount;
    const MD5RIndexBuffer *indexBuffers;

    uint32_t silhouetteEdgeCount;
    const MD5RSilhouetteEdge *silhouetteEdges;

    uint32_t lodCount;
    const float *lodDistances;

    uint32_t meshCount;
    const MD5RMesh *meshes;

    uint8_t hasBounds;
    uint8_t reserved[3];
    MD5RBounds bounds;
} MD5RModel;

#ifdef __cplusplus
static_assert(sizeof(MD5RSilhouetteEdge) == 16, "MD5R silhouette edge must be 16 bytes");
#else
_Static_assert(sizeof(MD5RSilhouetteEdge) == 16, "MD5R silhouette edge must be 16 bytes");
#endif

#ifdef __cplusplus
}
#endif

#endif /* WOLFENSTEIN_2009_MD5R_POD_H */
