[PC] Moorhuhn Kart Extra .obj files

[MaxBOOST]

i asked this same question on xentax before, but unfortunately i can't find the post anymore.

i remember using hex2obj on it though, but i cannot remember what the post told me to do exactly.

can anyone help ?

Moorhuhn Kart Extra.zip

[MaxBOOST]

alright so i found the old post, but i don't understand what he did. can anybody explain?

the file he opened is amk.obj

Edited April 15, 2024 by MaxBOOST

[shak-otay]

Without said amk.obj noone can tell. edit: found it:

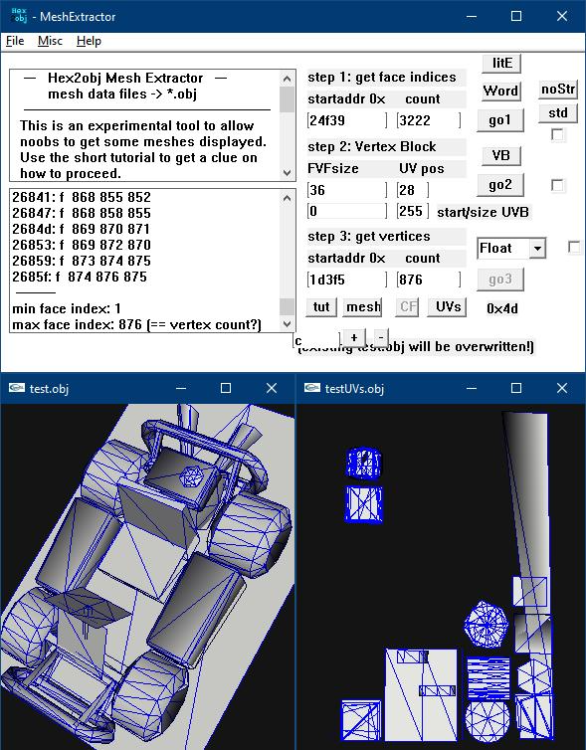

Steps:

- search for 000001000200
- get start address of face indices: 0x24f39
- the DWord before that address is:
  size of FIs' block: 0x192C = 6444 dec.
- count of FIs is 6444/2= 3222

- load amk.obj into hex2obj, enter FIs' address and count
- press go1 button
- scroll down in left lower window to find
- vertex count: 876

- size of vertex block: 876x36= 31536 dec.= 0x7B30

- search for 307B0000, add 8 to found address 1D3ED ->
  1D3F5 is start of vertex block

- enter params into hex2obj, press 'mesh' button, done


Edited April 16, 2024 by shak-otay

[Durik256]

13 hours ago, MaxBOOST said:

but i don't understand

go to the tutorial section

EDIT:

just a crude hack to load all meshes from *obj:: fmt_obj.py

*(Ideally, you would need to change the file extension to avoid format conflicts in Noesis)

Edited April 16, 2024 by Durik256

[MaxBOOST]

wow, that really worked.

I tried it with all the other files, and they ripped just fine.

thanks a ton everyone !
