Darkspore File Parser

[shak-otay]

Haha, you really thought that greedy beast would be satisfied then? - No, it demands more and more:

api-ms-win-core-datetime-l1-1-1.DLL

api-ms-win-core-localization-obsolete-l1-2-0.DLL

api-ms-win-appmodel-runtime-l1-1-2.DLL

[JeanxPereira]

40 minutes ago, shak-otay said:

Haha, you really thought that greedy beast would be satisfied then? - No, it demands more and more:

api-ms-win-core-datetime-l1-1-1.DLL

api-ms-win-core-localization-obsolete-l1-2-0.DLL

api-ms-win-appmodel-runtime-l1-1-2.DLL

damn hahaha

yea I think we found what we were missing:
api-ms-win-appmodel-runtime-l1-1-2.dll

I've been trying to look it up on the internet, but it's a bit tricky


12 hours ago, shak-otay said:

And dalkon is gone for good without a trace?

yes, since 2022 any attempt to contact via discord, email, social media has failed


edit:
I find it in the wine libraries for linux, I don't know if this would work

api-ms-win-appmodel-runtime-l1-1-2.zip

Edited February 7 by JeanxPereira

[shak-otay]

Well, they will work in wine on linux but that's some "VM crossover", so I really wouldn't expect them to work on native windows.

(And we don't want to run Testing under Linux, do we?)

No, the answer might be here Virtual DLL names, I think.

edit: gosh, I fed it with some renamed dlls (maybe a mix of 32 and 64 bit) and got

error bad exe format
status invalid image format

But the first error is like so (entrypoint not found)"

Testing exe has 64 bit, but your fibers and localization dlls are 32 bit. Maybe that's an issue.



Edited February 7 by shak-otay

[JeanxPereira]

45 minutes ago, shak-otay said:

Well, they will work in wine on linux but that's some "VM crossover", so I really wouldn't expect them to work on native windows.

(And we don't want to run Testing under Linux, do we?)

No, the answer is Virtual DLL names, I think.

oh, i think this explains why it was using/searching for "temporary dlls / virtual dlls" from windhalk on x64dbg before I uninstalled it.
before i used Windows 11 with Windwalk, a Windows mod that allows customizations in the system without modifying the files directly, it uses global injection and hooking method etc... none of this matters now

Our intention was to use the parser integrated into the recap project, it would be included with other tools such as extracting .package files and also decompiling .lua files. But due of this damn executable we will leave everything ready with the xml itself (if we can use it xD)

what can we do in this case of virtual DLLs?

Edited February 7 by JeanxPereira

[shak-otay]

I would have to read about virtual dlls but I've lost too much time now (being very busy with my own projects).

See my latest post update - maybe deliver all dlls in their 64 bit version?

If the "entrypoint not found" error vanishes then it was a 32/64 bit issue.

I found appmodel-runtime here. (32 bit version!)

(Renamed it to ...1-2 which is weird, and may cause an error, too.)

edit: I've installed VC_redist.x64.exe (24 MB) and there were no missing dlls any more. But still an "entrypoint not found" error.

Testing still doesn't log anything but you could step through the code for is_player (see pc_el_rogue.noun) to see how it is handled.

I got stuck with memmove and didn't find code which logs to a file (fwrite or so).

Maybe it logs to a buffer in the RAM?

Edited February 10 by shak-otay

[JeanxPereira]

On 2/7/2025 at 3:08 PM, shak-otay said:

is_player (see pc_el_rogue.noun)

great, thanks a lot again! is_player represents a bool on .noun file

Since I didn't make any progress with Testing.exe I tried to improve the new parser I was creating, but I think replicating what this parser does as it does seems to be quite complicated, Dalkon did a good job on it (except for this part where it doesn't work xD)

I think making Testing.exe work seems to be the best option to do, below is what I discovered about the format itself:

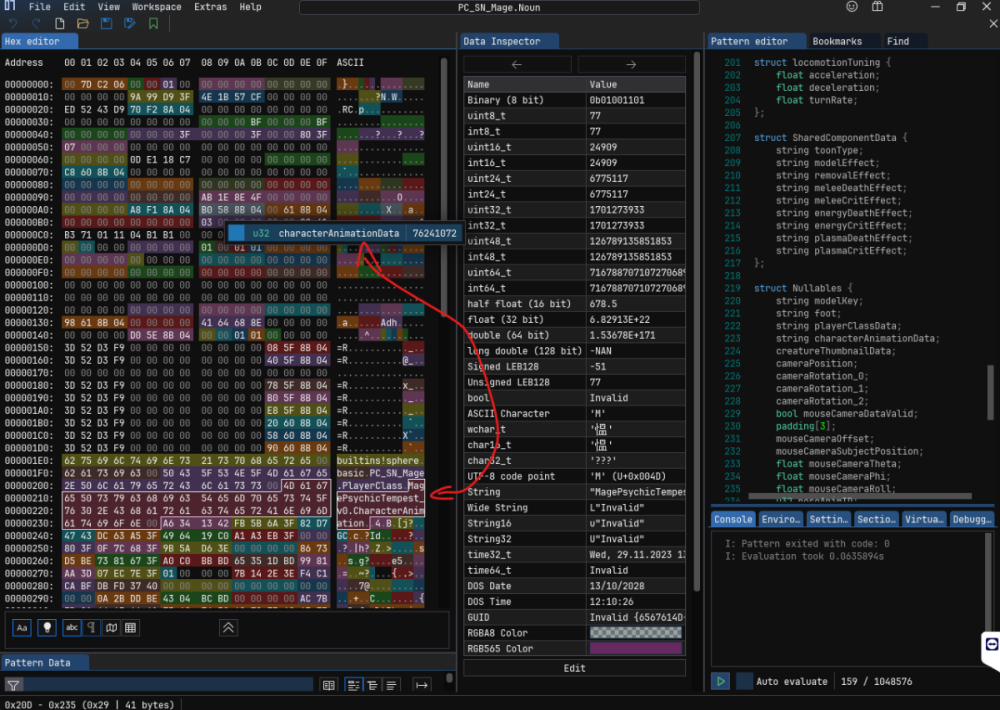

I managed to create a script in ImHex pattern language to correctly read/map Noun files, which allowed me to improve the new parser written python. However, some data still doesn't make sense—specifically, the values found in a .noun file provided by Dalkon:

<affectsNavMesh>false</affectsNavMesh>
<dynamicWall>false</dynamicWall>
<hasLocomotion>false</hasLocomotion>
<locomotionType>0</locomotionType>
<hasNetworkComponent>true</hasNetworkComponent>
<hasCombatantComponent>true</hasCombatantComponent>
<hasCameraComponent>false</hasCameraComponent>
<spawnTeamId>0</spawnTeamId>
<isIslandMarker>false</isIslandMarker>

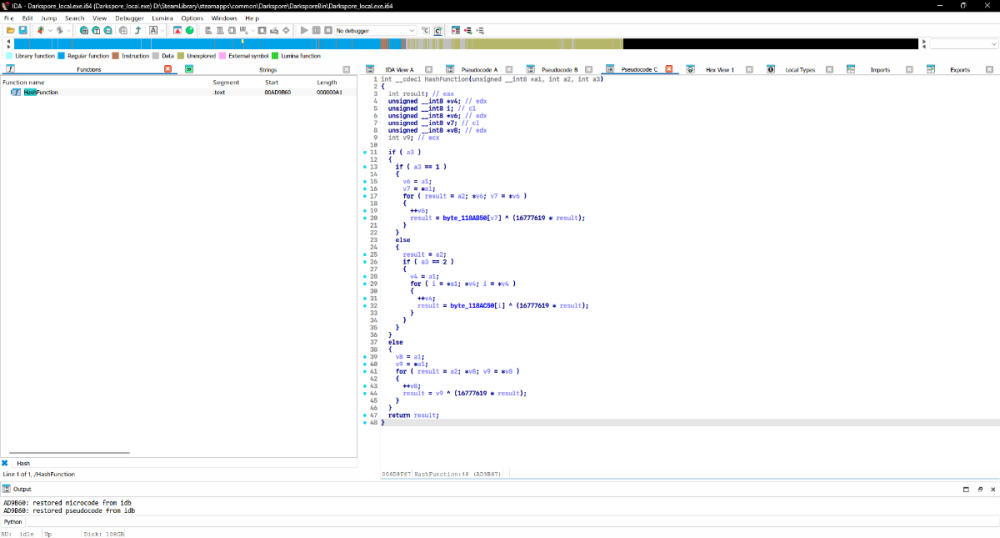

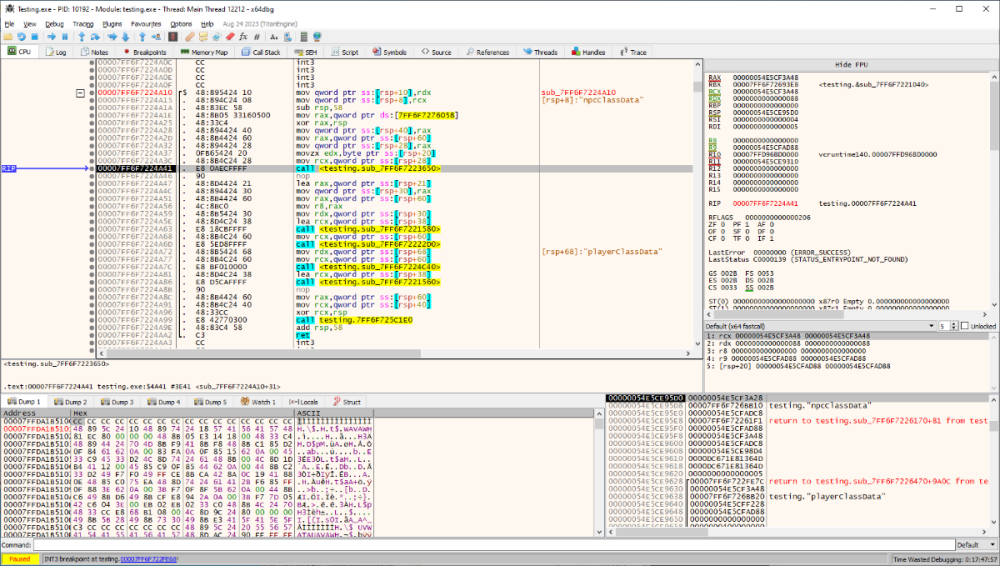

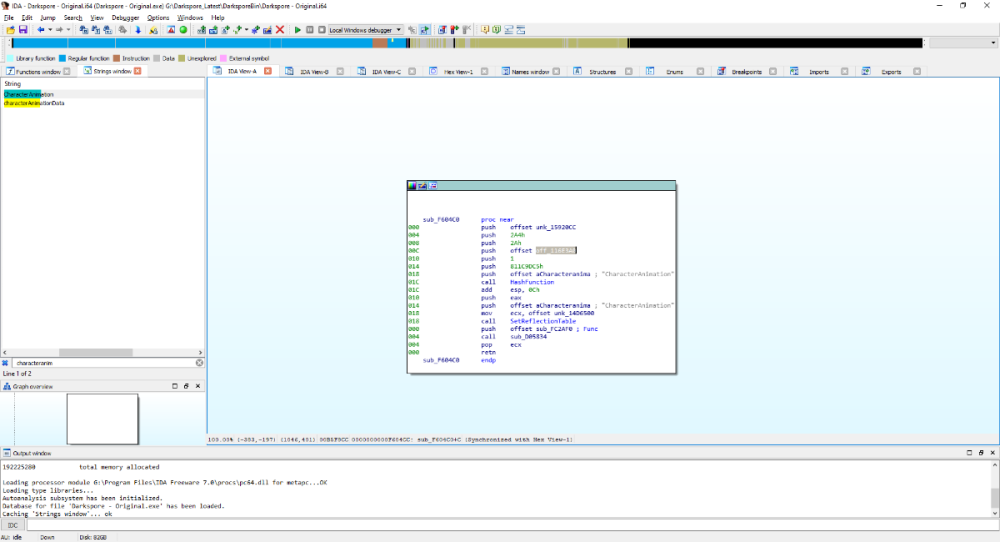

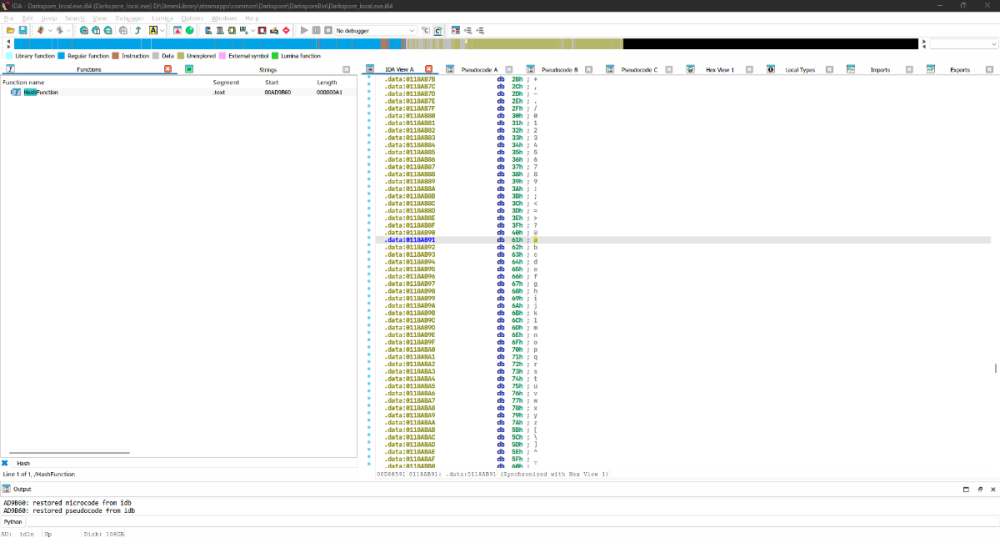

Using the Darkspore executable (and the Dalkon Testing.exe parser) in IDA, I can locate references to these data. However, I still haven't found a consistent pattern that works for all the .noun files I've tested. Additionally, I haven't managed to implement hash reading in the files. On recap_server, it appears that the program calculates strings or values for some hashes in the XML generated by the parser. Judging by the order in which the parser reads the data, these hashes appear to indicate the offset of each key (string). My parser currently sequentially searches for null-terminated strings at a fixed address (0x1E0) and assigns them to data types such as modelKey, playerClassData, creatureThumbnailData, etc.

Furthermore, I still need to interpret other file types with structures different from the Noun files (more so than I initially expected, xD), making the overall process quite complex. Dalkon's work on this parser was very good—it's a pity that his effort was lost due to an unknown error in the executable

Noun.hexpat for ImHex.zip

[JeanxPereira]

On 2/7/2025 at 3:08 PM, shak-otay said:

edit: I've installed VC_redist.x64.exe (24 MB) and there were no missing dlls any more. But still an "entrypoint not found" error.

I will try reinstalling all the VC packages again to see if I can get the same result


During this analysis I did in Testing.exe I managed to decompile that large function I was talking about earlier: sub_140006470

It took a little time but it was decompiled, I don't know if it can be useful in our analysis

sub_140006470.zip

[shak-otay]

7 hours ago, JeanxPereira said:

During this analysis I did in Testing.exe I managed to decompile that large function I was talking about earlier: sub_140006470

It took a little time but it was decompiled, I don't know if it can be useful in our analysis

From my experience top down approaches with such a big function don't help too much.

You can dive into sub functions such as

v1119 = sub_140001A50(v5129);

and hopefully they don't call another dozens of functions, but usually they do.

For me a bottom up approach makes more sense, such as a breakpoint on the memmov function, then use "continue 'til return".

Where memmove is not the best example, admitted. I'll try fwrite (or similar) asap.

"Your" big function is very good to have an overview and helps structuring thoughts, which is important, too.

[JeanxPereira]

On 2/7/2025 at 3:08 PM, shak-otay said:

VC_redist.x64.exe (24 MB)

could you send it to me? I tried reinstalling the packages but it keeps indicating missing DLLs

[shak-otay]

vc_redist64

But I should mention that I have api-ms-win-core-fibers-l1-1-1.dll

and api-ms-win-core-localization-l1-2-1.dll in the system32 folder (they're from the zip you sent, iirc.)

Also there is api-ms-win-core-localization-obsolete-l1-2-0.dll

(where I simply inserted the string -obsolete into the original dll's name).

[JeanxPereira]

On 2/11/2025 at 5:53 AM, shak-otay said:

I'll try fwrite (or similar) asap.

hey! any news?

[shak-otay]

Well, I have some other project I'm very busy with. Did the packages work for you?

I've still that "entrypoint not found" error as I wrote. So some basic functionality might be missing and it

would be important if someone (you 😄) could make it work without that error.
