December 21, 2025Dec 21 Hey Reshax fam! 😊 Need some help with a game asset! 🛠️ I got a 3D model from Motorstorm Apocalypse (Evolution Studios) and I'm trying to figure out the format. Suspecting it's .rpk (sample file attached). Anyone clever wanna take a peek? 😅 Game: Motorstorm Apocalypse Developer: Evolution Studios Format: Suspected .rpk Appreciate any help! 🙏 Supercar42.zip

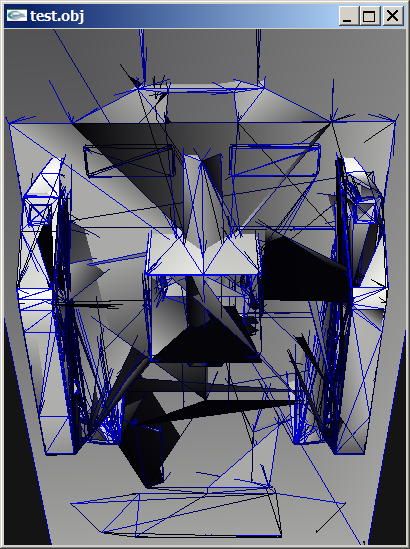

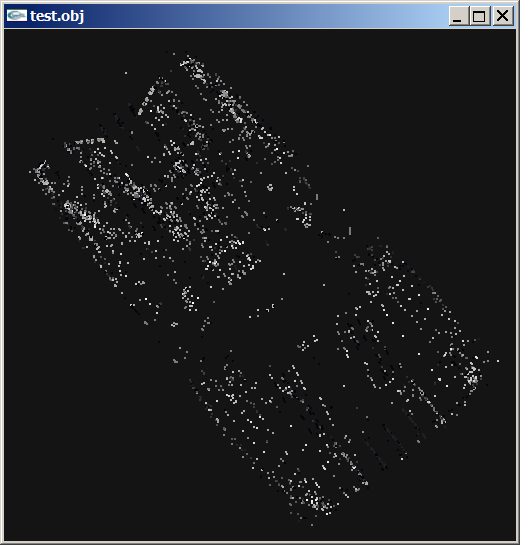

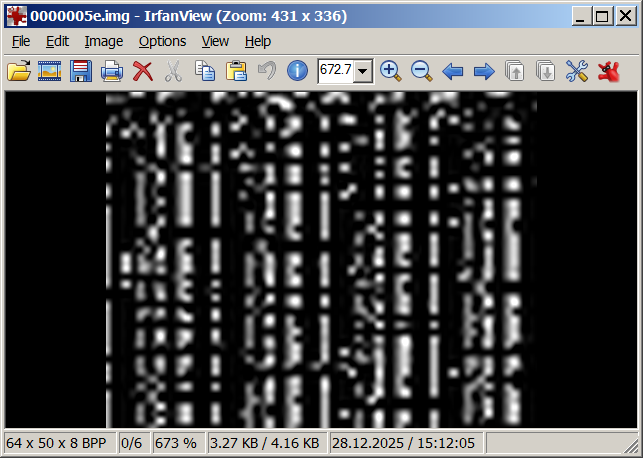

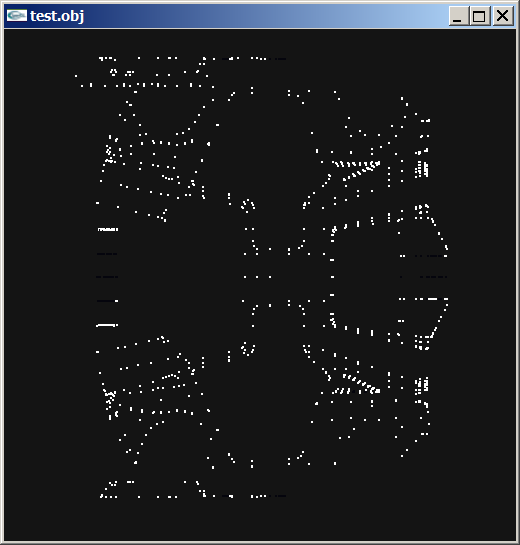

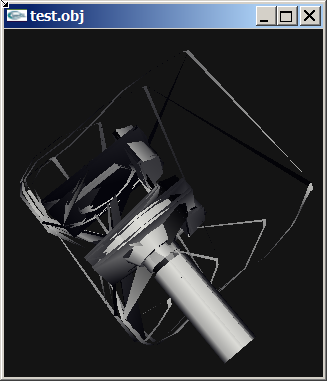

December 29, 2025Dec 29 Supporter Hey, there's a driveclub.bms script from Aluigi which just cuts the rpk into pieces. I'm not clever enough to get better results for supercar42.rpk . (1st picture: img files very small, max 3.3 kB): edit: from the biggest ttf file: edit2: extension names don't to seem to have a meaning - found a .ttf containing face indices last effort: Edited December 29, 2025Dec 29 by shak-otay
January 1Jan 1 Author On 12/29/2025 at 1:00 AM, shak-otay said: Hey, there's a driveclub.bms script from Aluigi which just cuts the rpk into pieces. I'm not clever enough to get better results for supercar42.rpk . (1st picture: img files very small, max 3.3 kB): edit: from the biggest ttf file: edit2: extension names don't to seem to have a meaning - found a .ttf containing face indices last effort: So I would like to know your conclusions. Why did you use the DriveClub script? Are the two games using the same engine? The last picture is definitely something. Crazy UVs from what I am seeing. One last thing, is that Windows 98 I am seeing.
January 1Jan 1 Supporter 18 minutes ago, King Sexus said: Why did you use the DriveClub script? Are the two games using the same engine? I have no idea - I searched for "rpk" and that was the script I found. Quote One last thing, is that Windows 98 I am seeing. No, the test.obj pictures are from hex2obj.
January 1Jan 1 Author 29 minutes ago, shak-otay said: I have no idea - I searched for "rpk" and that was the script I found. No, the test.obj pictures are from hex2obj. rpk on reshax? how does hex2obj work? the uvs are all over the place. have you tried the other rpks in that archive
January 1Jan 1 Supporter 2 hours ago, King Sexus said: rpk on reshax? See Archives/Zenhax. 35 results. (Don't remember which one.) Quote how does hex2obj work? It needs parameters to work. These have to be determined by analyzing the binary hex data of a 3D model. Pressing the 'tut' button gives some explanations. (There's also dozens of posts where I used it on different formats.) Quote the uvs are all over the place. have you tried the other rpks in that archive No. Usually I don't spend more than 15 min with formats which are a little bit weird (except they've have impressive models). Edited January 1Jan 1 by shak-otay
January 2Jan 2 Author 3 hours ago, shak-otay said: See Archives/Zenhax. 35 results. (Don't remember which one.) It needs parameters to work. These have to be determined by analyzing the binary hex data of a 3D model. Pressing the 'tut' button gives some explanations. (There's also dozens of posts where I used it on different formats.) No. Usually I don't spend more than 15 min with formats which are a little bit weird (except they've have impressive models). Okay, what you did is also. Also in conclusion… the hex2obj tool didn’t work?
January 2Jan 2 Supporter 8 hours ago, King Sexus said: Okay, what you did is also. Also in conclusion… the hex2obj tool didn’t work? Wrong, it works as expected (as almost always). My analysis didn't work (to get correct parameters). It's like not having the correct coins for a gumball machine. Then you won't get your chewing gum.
January 2Jan 2 Author 5 hours ago, shak-otay said: Wrong, it works as expected (as almost always). My analysis didn't work (to get correct parameters). It's like not having the correct coins for a gumball machine. Then you won't get your chewing gum. Parameters, how do you think we can get those?
January 2Jan 2 Supporter Here's the latest H2O file for supercar42 (load rpk, then the H2O file), before pressing the 'mesh' button toggle 'noPtC' button to 'Fake': 0xE38E8 1400 Vb1 10 99 0x12EB46 1285 121210 0x0 255 Safe as a text file, scar42_0.H2O, whatever
January 2Jan 2 Author Very very interesting. I will leave you to continue researching this (if you want to) 6 hours ago, shak-otay said: Here's the latest H2O file for supercar42 (load rpk, then the H2O file), before pressing the 'mesh' button toggle 'noPtC' button to 'Fake': 0xE38E8 1400 Vb1 10 99 0x12EB46 1285 121210 0x0 255 Safe as a text file, scar42_0.H2O, whatever
January 3Jan 3 Supporter I'm sorry, I've spent much more than the 15 minutes mentioned above. I gave you the parameters so that you can check it yourself.
January 20Jan 20 Author On 1/3/2026 at 1:06 AM, shak-otay said: I'm sorry, I've spent much more than the 15 minutes mentioned above. I gave you the parameters so that you can check it yourself. Can I use this parameters with moderesearcher?
January 21Jan 21 Supporter Check whether it uses face count (instead of face index count like H2O, which is 3 times face count for standard triangles). Also the padding for vertices is different from FVFsize, the latter is the size of the vertex block while (afair) 'padding' is FVFsize - sizeOfFormat, so padding= FVFsize-12 for floats.

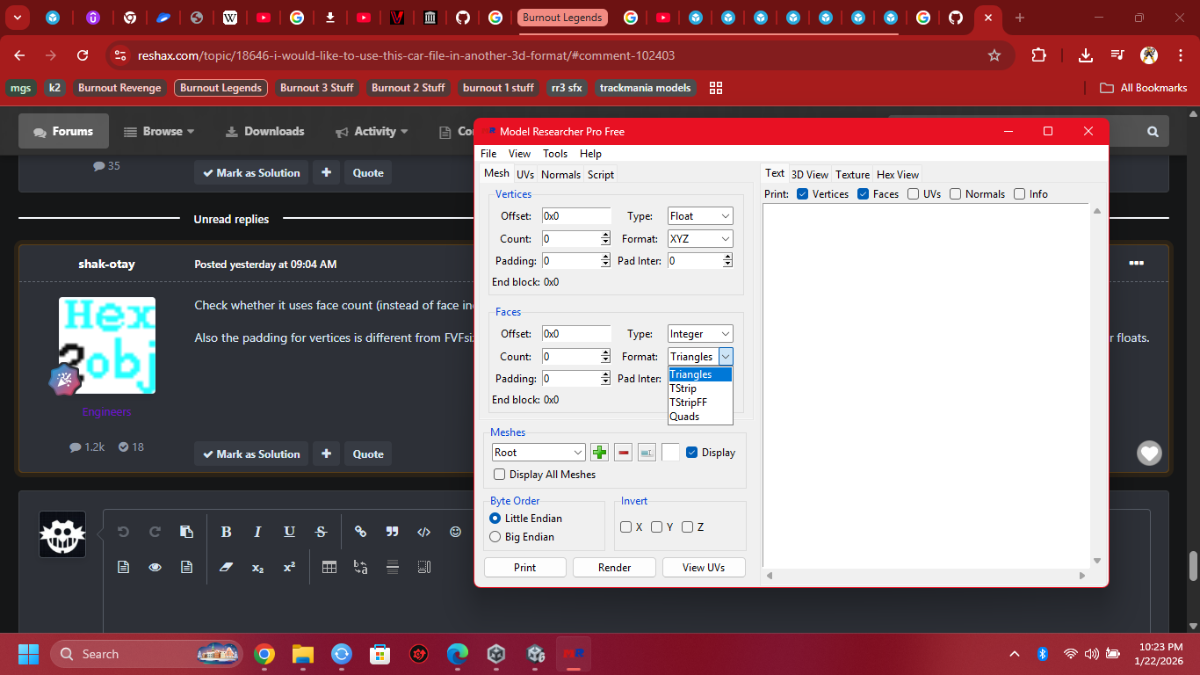

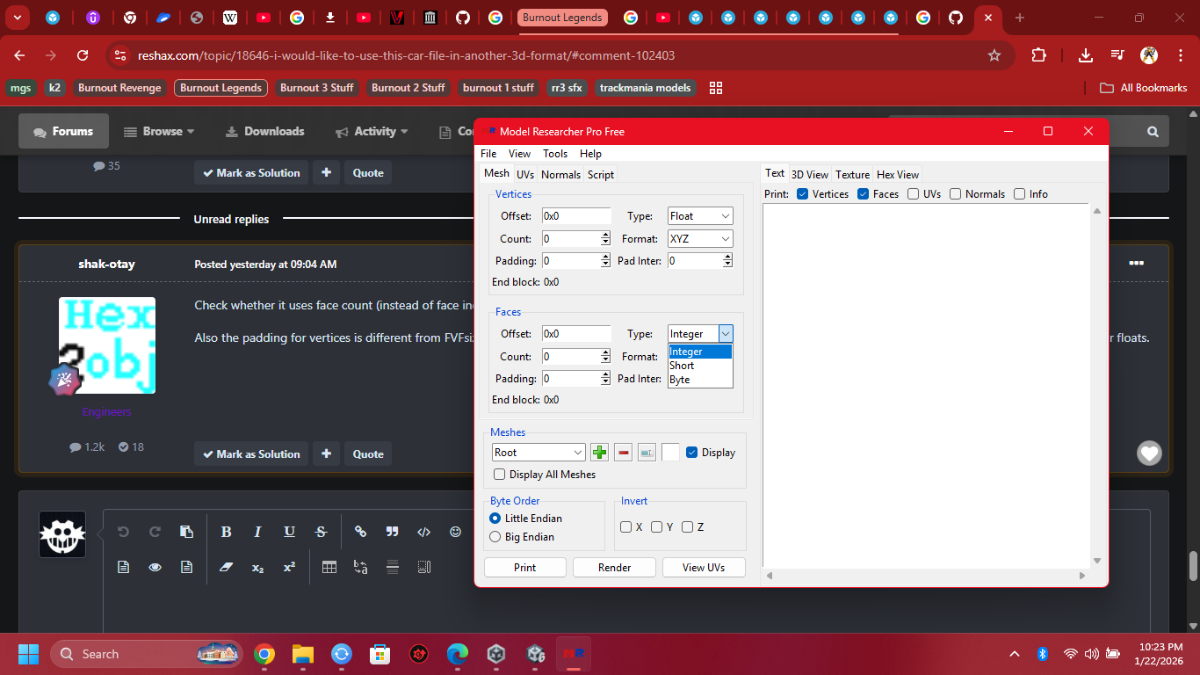

January 22Jan 22 Author On 1/21/2026 at 9:04 AM, shak-otay said: Check whether it uses face count (instead of face index count like H2O, which is 3 times face count for standard triangles). Also the padding for vertices is different from FVFsize, the latter is the size of the vertex block while (afair) 'padding' is FVFsize - sizeOfFormat, so padding= FVFsize-12 for floats. Please check these screenshots out for that thing you mentioned
January 22Jan 22 Author On 1/21/2026 at 9:04 AM, shak-otay said: Check whether it uses face count (instead of face index count like H2O, which is 3 times face count for standard triangles). Also the padding for vertices is different from FVFsize, the latter is the size of the vertex block while (afair) 'padding' is FVFsize - sizeOfFormat, so padding= FVFsize-12 for floats. also aside from that, can you look at these two files. they are model files from the game NASCAR Unleashed for PS3 and 3DSSample.zip
January 22Jan 22 Supporter 45 minutes ago, King Sexus said: also aside from that, can you look at these two files. Sorry, no, I'd prefer to finish the task here from 3 weeks ago (which you seem to have ignored).
January 23Jan 23 Author 16 hours ago, shak-otay said: Sorry, no, I'd prefer to finish the task here from 3 weeks ago (which you seem to have ignored). i am sorry for moving out of point. Can you translate the parameters you gave before into the below format so that i can input in the Modelreseacher. Vertices: Offset Type (float, half-float, etc) Count Format (XYZ, XZY, YXZ, YZX, ZXY, ZYX) Padding Pad Inter Faces: Offset Type (integer, short, byte) Count Format Padding Pad Inter Byte Order: Little Endian Big Endian
January 23Jan 23 Supporter vertices are half-floats and the padding should be 4 (FVFsize-6). Divide faceindex count by 3 to get the face count (roundabout, for tristrips it's a little bit different, usually). But I used automatic face creation with hex2obj, Dunno whether MR has that feature.
January 24Jan 24 Author 11 hours ago, shak-otay said: vertices are half-floats and the padding should be 4 (FVFsize-6). Divide faceindex count by 3 to get the face count (roundabout, for tristrips it's a little bit different, usually). But I used automatic face creation with hex2obj, Dunno whether MR has that feature. Okay lemme try this. Also do you know how to delete topics that I myself created?
January 24Jan 24 Supporter Only moderators can, I think. (I saw users who placed a "can be deleted" in their opener post.)
January 25Jan 25 Author On 1/24/2026 at 8:29 AM, shak-otay said: Only moderators can, I think. (I saw users who placed a "can be deleted" in their opener post.) Alright man, i think at this point you have done welll for me. i willl close this topic. thanks thanks friends you have tried. i will askf or this post to be deleted
January 25Jan 25 Supporter That would delete the work I've done already, too. Very uncool move! Why not wait 'til MRU is ready to process the file in the linked post? MRU= ModelResearcher Ultimate. edit: author of the clone has been banned Edited February 13Feb 13 by shak-otay issue
January 25Jan 25 Author 1 minute ago, shak-otay said: That would delete the work I've done already, too. Very uncool move! Why not wait 'til MRU is ready to process the file in the linked post? MRU= ModelResearcher Ultimate. Oh really, sorry friend how selfish of me, please do give me updates
February 13Feb 13 Author On 1/25/2026 at 4:48 PM, shak-otay said: That would delete the work I've done already, too. Very uncool move! Why not wait 'til MRU is ready to process the file in the linked post? MRU= ModelResearcher Ultimate. any updates?
