January 26Jan 26 I'm digging more and more into figuring out how to extract these meshes from the game Medal of Honor: Frontline (and Rising Sun) for the PS2. I've already been able to get the sfx/music so I have a little experience in using a hex editor. I would really appreciate anyone able to help me make sense of what I am seeing for mesh data, or at least get a fresh set of eyes to explain things better. I've looked through a few of the tutorials and will continue to research but I'd like to get this out there in case someone wants to take a jab at it. I have manually extracted the asset below from the parent archive (which seems to be some sort of BIG file? 0xC0FB magic), and it is quite a bit bigger in size from a previous attempt using a tool that was made for those types of files, but I don't think it's useful for this game. I can see floats and other groupings of things but I just can't make sense of them with the knowledge I have at this point. To me, it looks inconsistent. I also have Model Researcher and Noesis on-hand. Thank you for your time. Vehicle_Jeep_Wheel.zip

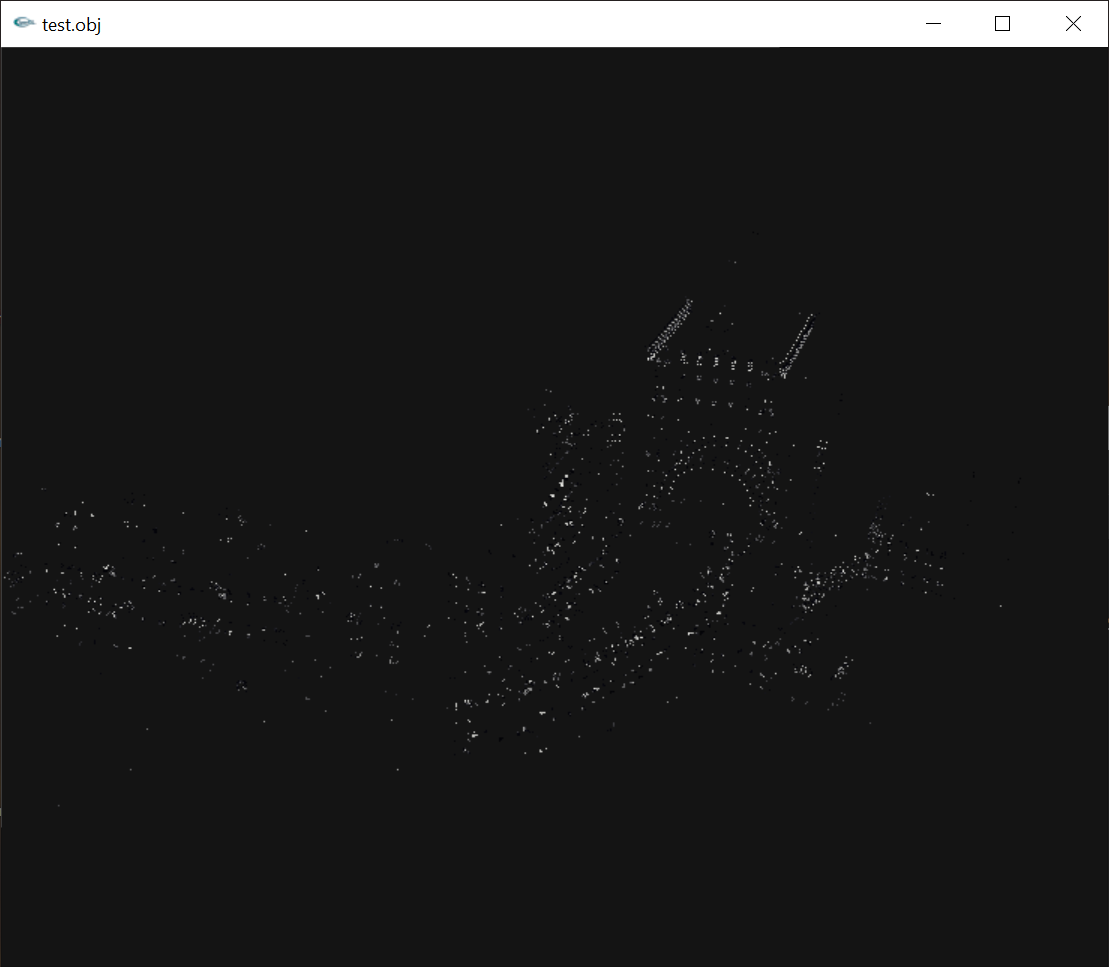

January 26Jan 26 Supporter I'd guess for VIF tags but the resulting point clouds are ugly. Maybe upload a bigger part of the jeep?

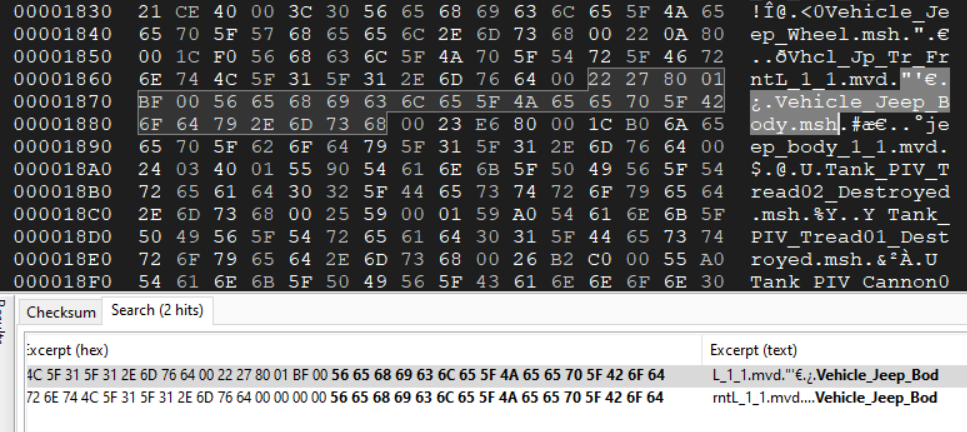

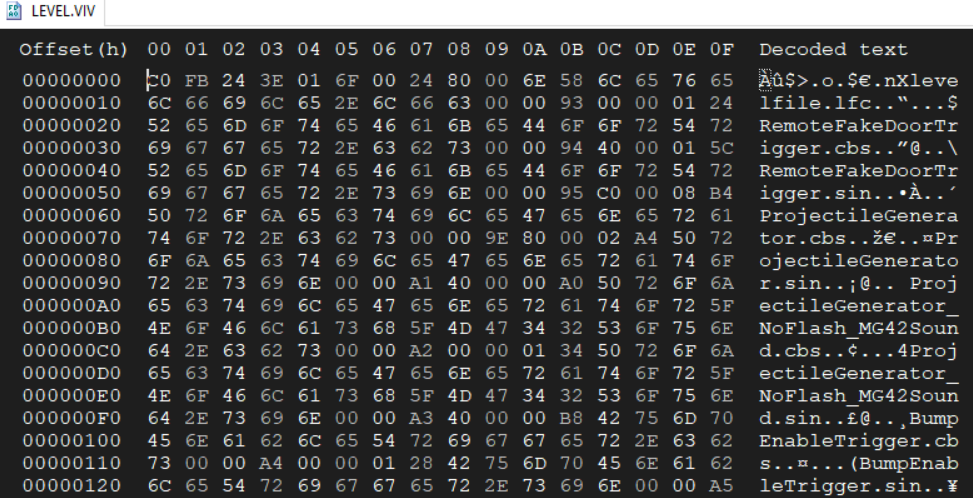

January 26Jan 26 Author 55 minutes ago, shak-otay said: I'd guess for VIF tags but the resulting point clouds are ugly. Maybe upload a bigger part of the jeep? Thanks for taking a look. I've also attached some pics for the header of the archive, and of the offset/size/name of the files produced, if it helps. The second result in the search is just the names. Vehicle_Jeep_Body.zip

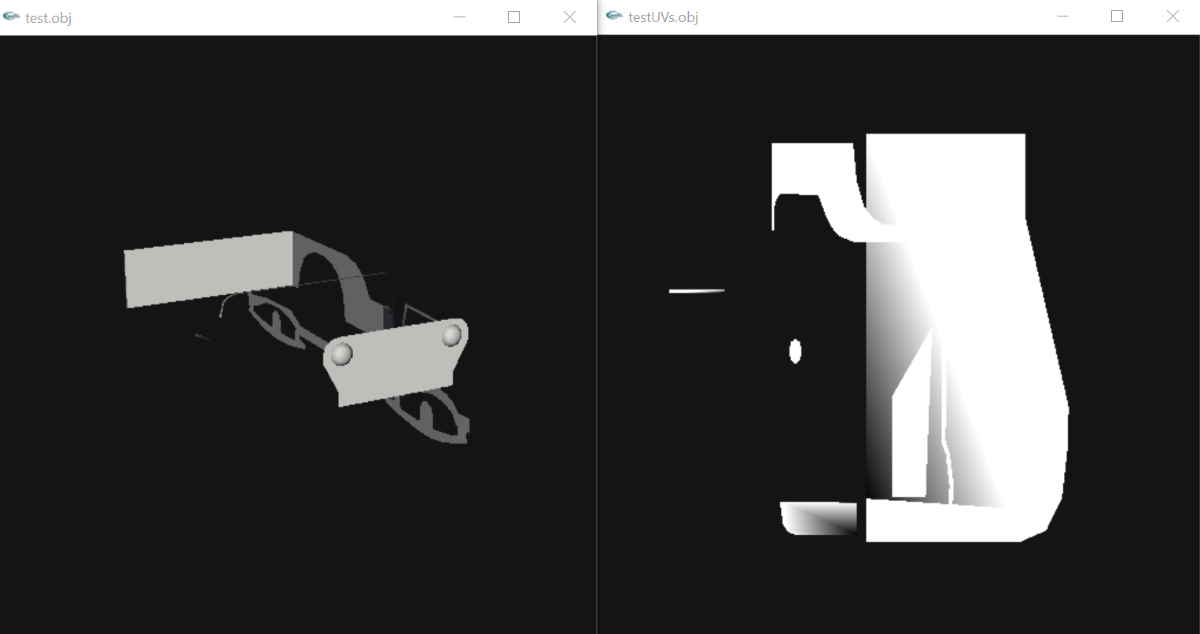

January 26Jan 26 Supporter Thanks! I gathered 7 sub meshes, it looks like something but would require much fiddling for a better result: edit: when interpreted as uv data it looks smarter. (But times where I spent hours with PS2 VIF blocks are over...) Edited January 26Jan 26 by shak-otay
January 26Jan 26 Supporter There is xbox version too. I think it will be way easier... Try this one... It's from xbox Vehicle_Jeep_Body.7z Also bms endian big get BaseFileName basename idstring "BIGF" getDString DUMMY 0x4 get Resources long get TOCSize long for i = 0 < Resources get ResourceOffset long get ResourceSize long get ResourceName string string Name p "%s/%s" BaseFileName ResourceName log Name ResourceOffset ResourceSize next i Edited January 26Jan 26 by h3x3r
January 27Jan 27 Author 14 hours ago, shak-otay said: Thanks! I gathered 7 sub meshes, it looks like something but would require much fiddling for a better result: edit: when interpreted as uv data it looks smarter. (But times where I spent hours with PS2 VIF blocks are over...) 12 hours ago, h3x3r said: There is xbox version too. I think it will be way easier... Thanks 🙂 You guys are awesome. PS2 must be doing a lot of interpretation type stuff then? I'll take a look at the Xbox and Gamecube versions.

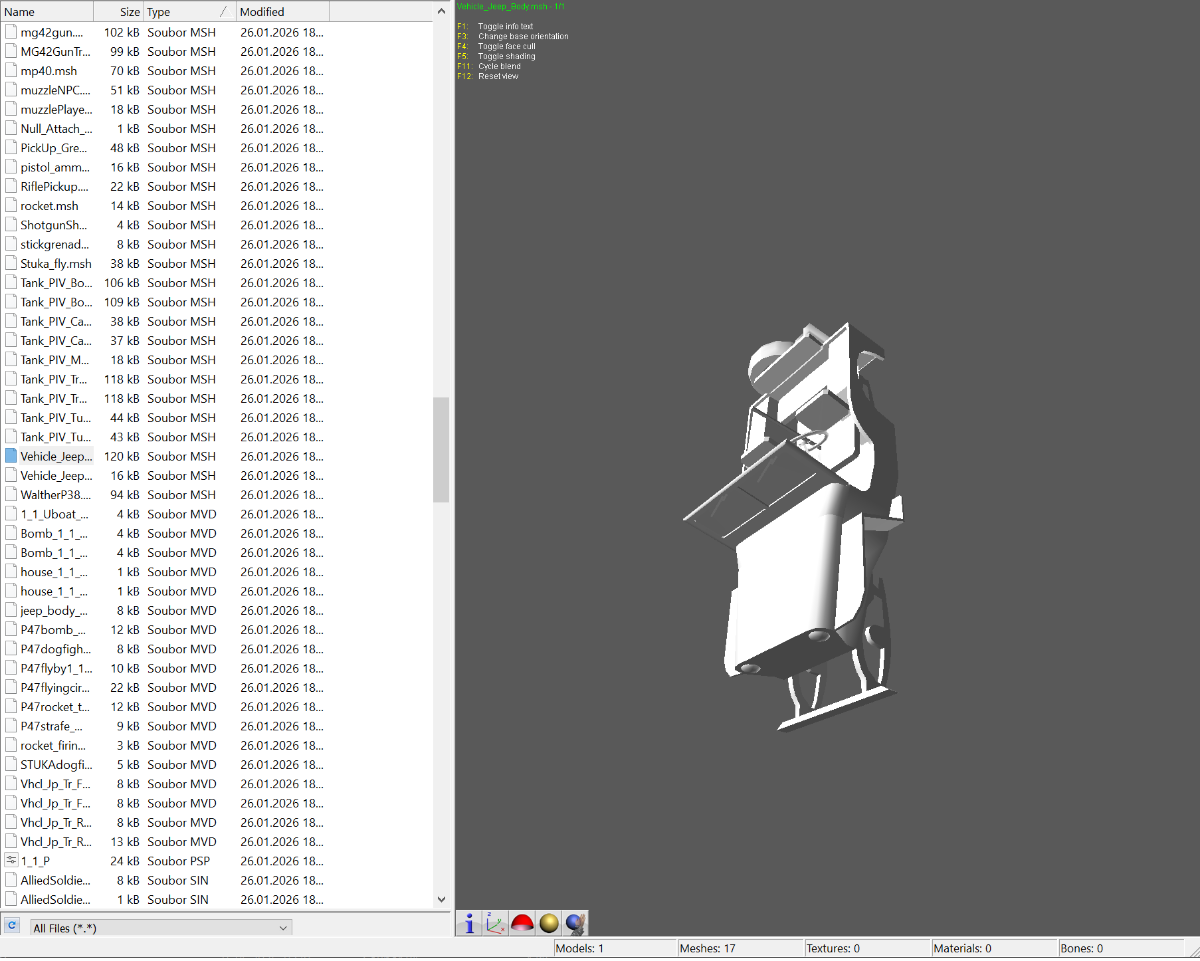

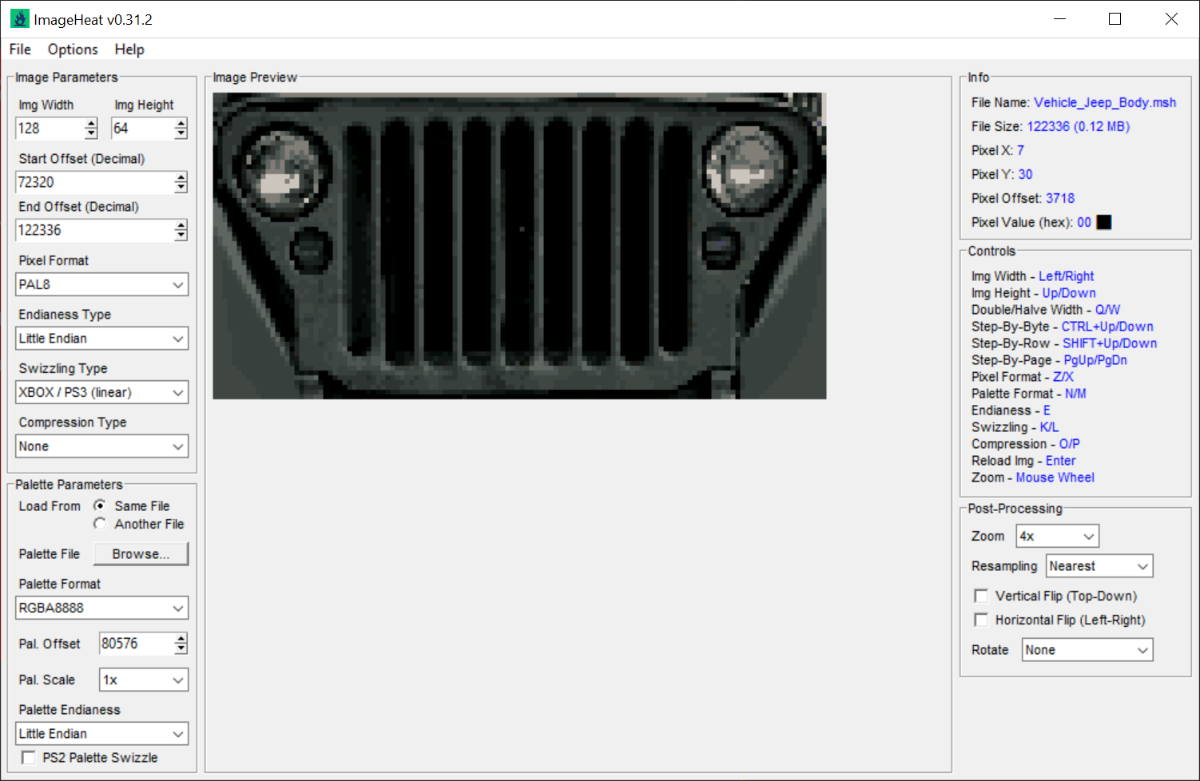

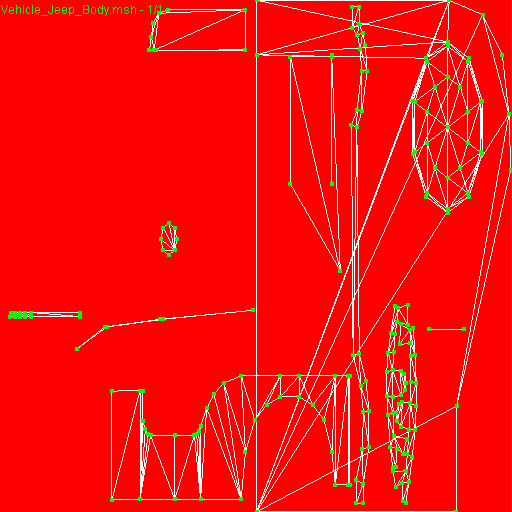

January 27Jan 27 Supporter Also not sure if there are any submeshes. There's uv overlaping Textures are inside too. Edited January 28Jan 28 by h3x3r

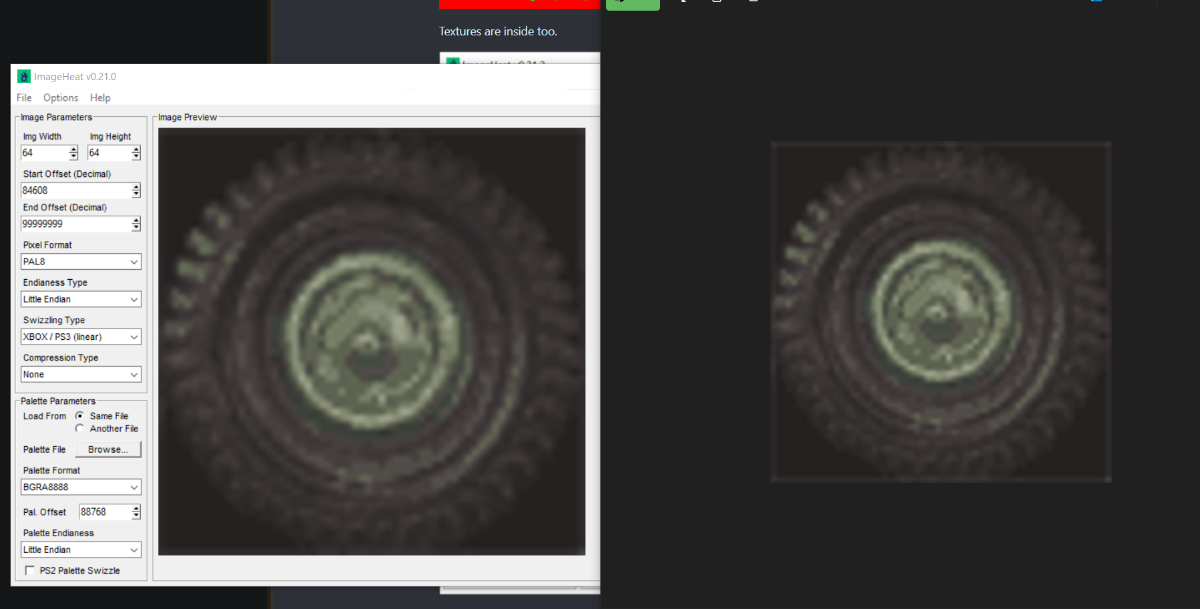

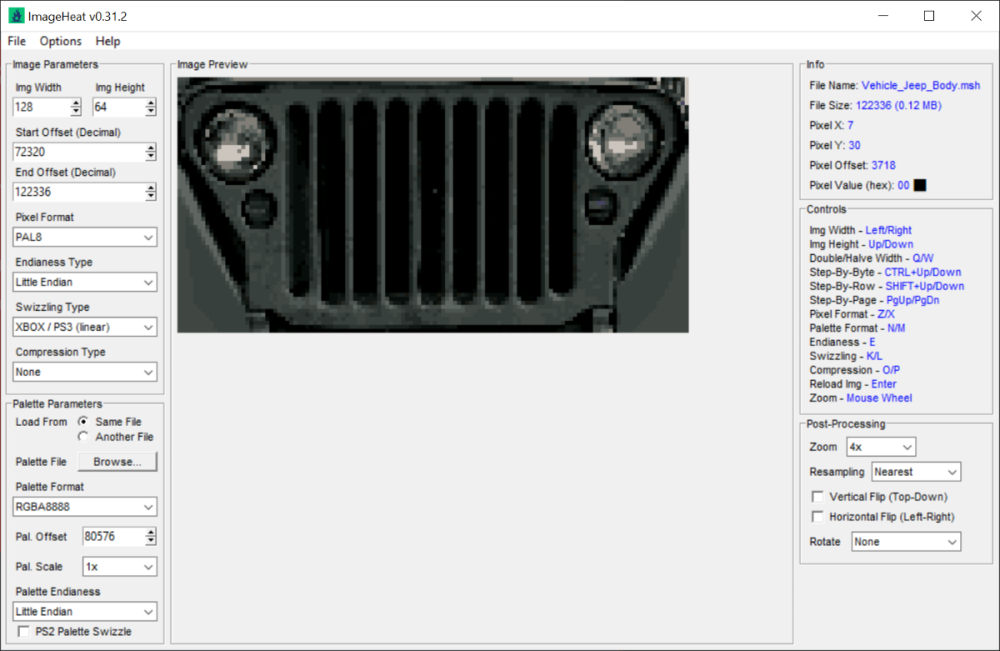

January 28Jan 28 Author On 1/27/2026 at 5:31 AM, h3x3r said: Textures are inside too. Hey nice! I have almost zero experience with textures so this is cool to learn. Here's a side-by-side. Pic on right is dumped from the emulator 🙂
January 28Jan 28 Supporter So the palette format is BGRA8888 instead of RGBA8888. Thanks for confirming. BTW what is your goal? You want whole level or just models? Well this is everything I know so far about *.msh format. But don't know how to assign material to the mesh. Mesh has offset to the material. *.mpk also include meshes + textures. Looks similar to the *.msh struct //------------------------------------------------ //--- 010 Editor v14.0 Binary Template // // File: // Authors: // Version: // Purpose: // Category: // File Mask: // ID Bytes: // History: //------------------------------------------------ LittleEndian();OutputPaneClear(); local uint32 i; uint32 Sign; uint32 ResourceSize; uint32 MaterialTableOffset; uint32 MaterialIndex; uint32 Unknown_2_Offset; uint32 Unknown_2_Index; uint32 MeshTableOffset; uint32 MeshIndex; uint32 Unknown_3_Offset; uint32 Unknown_3_Index; uint32 TransformOffset; uint32 TransformIndex; FSeek(MaterialTableOffset); struct { uint32 Null[5]; uint32 Unknown_0; uint32 Unknown_1; uint32 Unknown_2; uint32 RawDataOffset; uint32 PaletteDataOffset; uint32 Unknown_3; uint32 Unknown_4; uint32 Unknown_5; ubyte Unknown_6; ubyte Unknown_7; ubyte Unknown_8; ubyte Unknown_9; uint32 Unknown_10; uint32 Unknown_11; uint32 Unknown_12; uint32 Unknown_13; uint32 Unknown_14; uint32 Unknown_15; uint32 Unknown_16; uint32 Unknown_17; uint32 Unknown_18; uint32 Unknown_19; uint32 Unknown_20; uint32 TextureWidth; uint32 TextureHeight; uint32 Unknown_21; uint32 HeaderOffset; uint32 Unknown_22; uint32 Unknown_23; uint32 Unknown_24; }MaterialTable[MaterialIndex]<optimize=false>; FSeek(MeshTableOffset); struct { uint32 Unknown_0; uint32 MaterialOffset; uint32 MeshOffset; uint32 Unknown_1; uint32 Null[4]; local uint32 cPos=FTell(); FSeek(MeshOffset); struct { uint32 Null[3]; uint32 VertexBufferOffset; uint32 IndexBufferOffset; uint16 VertexCount; uint16 IndexCount; FSeek(VertexBufferOffset); struct { float VPosX,VPosY,VPosZ; uint32 Unknown_0,Unknown_1; float UVPosX,UVPosY; }VertexBuffer[VertexCount]; FSeek(IndexBufferOffset); uint16 IndexBuffer[IndexCount]; }Mesh; FSeek(cPos); }MeshTable[MeshIndex]<optimize=false>; And here's Noesis script. UV's are flipped after export. Not sure why Noesis does this, when I preview uv in noesis they are correct. So if you want export check the Flip UV's in export options. from inc_noesis import * import noesis import rapi import os def registerNoesisTypes(): handle = noesis.register("Medal of Honor Frontline - Mesh", ".msh") noesis.setHandlerTypeCheck(handle, noepyCheckType) noesis.setHandlerLoadModel(handle, noepyLoadModel) noesis.logPopup() return 1 def noepyCheckType(data): bs = NoeBitStream(data) if len(data) < 20: return 0 return 1 def noepyLoadModel(data, mdlList): bs = NoeBitStream(data) baseName = rapi.getExtensionlessName(rapi.getLocalFileName(rapi.getInputName())) ctx = rapi.rpgCreateContext() Underline = "_" bs.read(24) MeshTableOffset = bs.readUInt() MeshIndex = bs.readUInt() bs.seek(MeshTableOffset, NOESEEK_ABS) for i in range(0, MeshIndex): bs.read(8) MeshOffset = bs.readUInt() bs.read(20) cPos = bs.tell() bs.seek(MeshOffset, NOESEEK_ABS) bs.read(12) VertexBufferOffset = bs.readUInt() IndexBufferOffset = bs.readUInt() VertexCount = bs.readUShort() IndexCount = bs.readUShort() MeshIndex = "{:04d}".format(i) bs.seek(VertexBufferOffset, NOESEEK_ABS) VertexBuffer = bs.readBytes(VertexCount * 28) rapi.rpgBindPositionBufferOfs(VertexBuffer, noesis.RPGEODATA_FLOAT, 28, 0) rapi.rpgBindUV1BufferOfs(VertexBuffer, noesis.RPGEODATA_FLOAT, 28, 20) rapi.rpgSetName(baseName + Underline + MeshIndex) bs.seek(IndexBufferOffset, NOESEEK_ABS) IndexBuffer = bs.readBytes(IndexCount * 2) rapi.rpgCommitTriangles(IndexBuffer, noesis.RPGEODATA_USHORT, IndexCount, noesis.RPGEO_TRIANGLE_STRIP) bs.seek(cPos, NOESEEK_ABS) mdl = rapi.rpgConstructModel() mdlList.append(mdl) return 1 Edited January 28Jan 28 by h3x3r

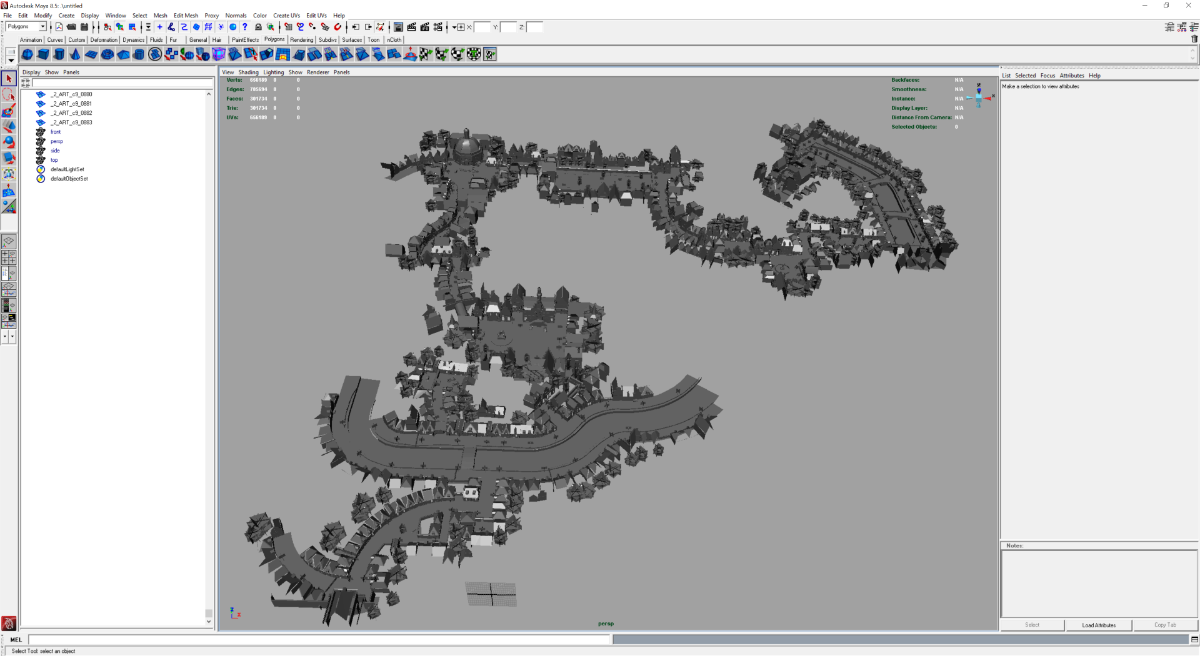

January 29Jan 29 Author 14 hours ago, h3x3r said: BTW what is your goal? You want whole level or just models? Well this is everything I know so far about *.msh format. But don't know how to assign material to the mesh. Mesh has offset to the material. Thank you so much! That's more than I was expecting. Also saves me from figuring out why my script wasn't working right, lol. Ideally, I'd like to get models (props + characters), maps, animations, textures... sfx and music is easy enough. There are a couple reasons: nostalgia of course, I played this game to death on the ps2 and it's what makes me want to do this. Preservation of the game and its assets. And also modding or possibly fan projects in the future. Ah, the Dutch town mission 😉
January 29Jan 29 Supporter Well i figured materials for level meshes. I noticed they are using external texture id but still one thing remains, some of them use internal textures and don't know yet where is texture index for them. Like i know it is in material but don't know which value it could be.

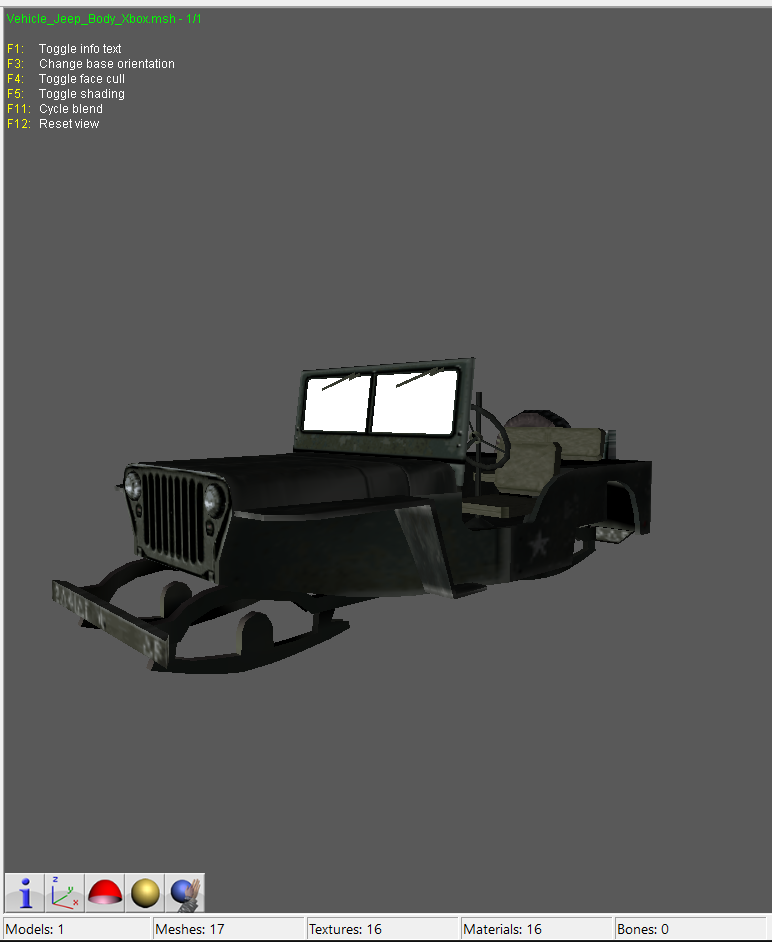

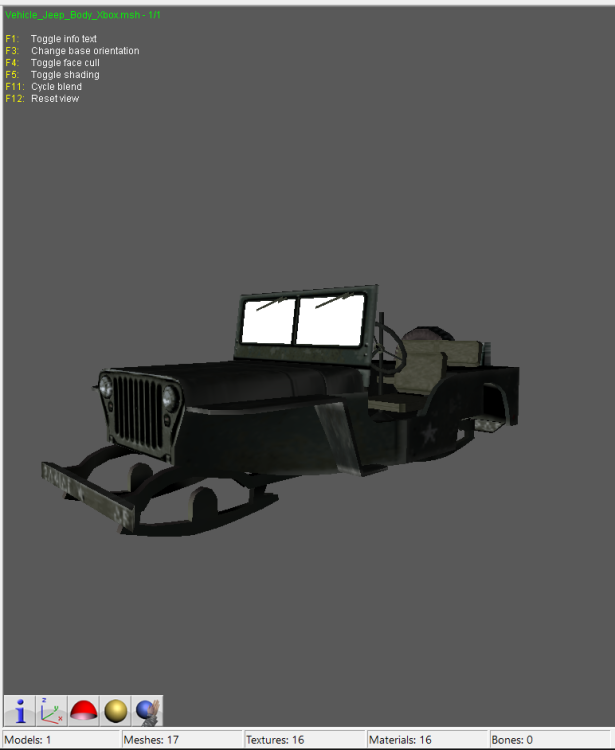

January 29Jan 29 Author 25 minutes ago, h3x3r said: Well i figured materials for level meshes. I noticed they are using external texture id but still one thing remains, some of them use internal textures and don't know yet where is texture index for them. Like i know it is in material but don't know which value it could be. So is everything for the levels in the .cpt? I've taken a peek into the .cdb but not a lot stands out to me at the moment. Was able to get textures onto the vehicle in Noesis, just gotta figure out why the glass texture is still not right.
January 29Jan 29 Supporter Yes, cpt is level. Anyway good work with assigning textures. Can you show me how you did it? Here's Noesis for any kind of *.xsh. There may be some more pixel formats but I didn't came across them yet. from inc_noesis import * import noesis import rapi import os def registerNoesisTypes(): handle = noesis.register("Medal of Honor Frontline - OG XBox Texture", ".xsh") noesis.setHandlerTypeCheck(handle, noepyCheckType) noesis.setHandlerLoadRGBA(handle, noepyLoadRGBA) noesis.logPopup() return 1 def noepyCheckType(data): bs = NoeBitStream(data) if len(data) < 20: return 0 return 1 def noepyLoadRGBA(data, texList): bs = NoeBitStream(data) baseName = rapi.getExtensionlessName(rapi.getLocalFileName(rapi.getInputName())) bs.readBytes(112) PixelFormat = bs.readUByte() bs.read(3) TextureWidth = bs.readUShort() TextureHeight = bs.readUShort() bs.read(4) MortonFlag = bs.readUInt() if PixelFormat == 96: RawDataBufferSize = TextureWidth * TextureHeight //2 RawDataBuffer = bs.read(RawDataBufferSize) data = rapi.imageDecodeDXT(RawDataBuffer, TextureWidth, TextureHeight, noesis.NOESISTEX_DXT1) texFmt = noesis.NOESISTEX_RGBA32 elif PixelFormat == 97: RawDataBufferSize = TextureWidth * TextureHeight RawDataBuffer = bs.read(RawDataBufferSize) data = rapi.imageDecodeDXT(RawDataBuffer, TextureWidth, TextureHeight, noesis.NOESISTEX_DXT3) texFmt = noesis.NOESISTEX_RGBA32 elif PixelFormat == 123: RawDataBufferSize = TextureWidth * TextureHeight RawDataBuffer = bs.read(RawDataBufferSize) bs.seek(data.find(b'\x00\x00\x00\x00\x2A', bs.tell()) + 12) # thanks durik for this function PaletteBufferSize = bs.readUInt() * 4 bs.read(4) PaletteBuffer = bs.read(PaletteBufferSize) data = rapi.imageDecodeRawPal(RawDataBuffer, PaletteBuffer, TextureWidth, TextureHeight, 8, "b8 g8 r8 a8") data = rapi.imageFromMortonOrder(data, TextureWidth, TextureHeight, 4) texFmt = noesis.NOESISTEX_RGBA32 elif PixelFormat == 125: RawDataBufferSize = TextureWidth * TextureHeight * 4 RawDataBuffer = bs.read(RawDataBufferSize) data = rapi.imageDecodeRaw(RawDataBuffer, TextureWidth, TextureHeight, "b8 g8 r8 a8") if MortonFlag != 0: data = rapi.imageFromMortonOrder(data, TextureWidth, TextureHeight, 4) texFmt = noesis.NOESISTEX_RGBA32 texList.append(NoeTexture(rapi.getInputName(), TextureWidth, TextureHeight, data, texFmt)) return 1 Also the external textures are in level file in cpt. May be confusing but these are not meshes but textures. So here's bms to unpack them. endian little get BaseFileName basename get Sign uint32 get ResourceSize uint32 get Unknown_0 uint32 get MaterialSet0_Offset uint32 get MaterialSet0_Index uint32 get MaterialSet1_Offset uint32 get MaterialSet1_Index uint32 get Unknown_5 uint32 get Unknown_6 uint32 get Unknown_7 uint32 get Unknown_8 uint32 get Unknown_9 uint32 get Unknown_10 uint32 get Unknown_11 uint32 get Unknown_12 uint32 get Unknown_13 uint32 goto MaterialSet0_Offset for i = 0 < MaterialSet0_Index getdstring Dummy 0x14 get Unknown_0 uint32 get Unknown_1 uint32 get Unknown_2 uint32 get RawDataOffset uint32 get PaletteDataOffset uint32 get Unknown_3 uint32 get Unknown_4 uint32 get Unknown_5 uint32 get Unknown_6 ubyte get Unknown_7 ubyte get Unknown_8 ubyte get Unknown_9 ubyte get Unknown_10 uint32 get Unknown_11 uint32 get Unknown_12 uint32 get Unknown_13 uint32 get Unknown_14 uint32 get Unknown_15 uint32 get Unknown_16 uint32 get Unknown_17 uint32 get Unknown_18 uint32 get Unknown_19 uint32 get Unknown_20 uint32 get TextureWidth uint32 get TextureHeight uint32 get Unknown_21 uint32 get HeaderOffset uint32 get Unknown_22 uint32 get Unknown_23 uint32 get ExternalTextureId uint32 savepos cPos goto HeaderOffset getdstring Dummy 0x4 get ResourceSize uint32 goto cPos string Name p "%s/MaterialSet0/%04u.xsh" BaseFileName i log Name HeaderOffset ResourceSize next i goto MaterialSet1_Offset for i = 0 < MaterialSet1_Index getdstring Dummy 0x14 get Unknown_0 uint32 get Unknown_1 uint32 get Unknown_2 uint32 get RawDataOffset uint32 get PaletteDataOffset uint32 get Unknown_3 uint32 get Unknown_4 uint32 get Unknown_5 uint32 get Unknown_6 ubyte get Unknown_7 ubyte get Unknown_8 ubyte get Unknown_9 ubyte get Unknown_10 uint32 get Unknown_11 uint32 get Unknown_12 uint32 get Unknown_13 uint32 get Unknown_14 uint32 get Unknown_15 uint32 get Unknown_16 uint32 get Unknown_17 uint32 get Unknown_18 uint32 get Unknown_19 uint32 get Unknown_20 uint32 get TextureWidth uint32 get TextureHeight uint32 get Unknown_21 uint32 get HeaderOffset uint32 get Unknown_22 uint32 get Unknown_23 uint32 get ExternalTextureId uint32 savepos cPos goto HeaderOffset getdstring Dummy 0x4 get ResourceSize uint32 goto cPos string Name p "%s/MaterialSet1/%04u.xsh" BaseFileName i log Name HeaderOffset ResourceSize next i Edited January 29Jan 29 by h3x3r
January 29Jan 29 Author Still figuring out how to handle that last texture with the transparency. The texture before it is empty so it skips it. But I think they are connected somehow. The jeep model only has 16 textures/materials while having 17 meshes. from inc_noesis import * import noesis import rapi import os def registerNoesisTypes(): handle = noesis.register("Medal of Honor Frontline - Mesh", ".msh") noesis.setHandlerTypeCheck(handle, noepyCheckType) noesis.setHandlerLoadModel(handle, noepyLoadModel) noesis.logPopup() return 1 def noepyCheckType(data): bs = NoeBitStream(data) if len(data) < 20: return 0 return 1 def noepyLoadModel(data, mdlList): bs = NoeBitStream(data) baseName = rapi.getExtensionlessName(rapi.getLocalFileName(rapi.getInputName())) ctx = rapi.rpgCreateContext() Underline = "_" matList = [] texList = [] bs.read(8) MatTableOffset = bs.readUInt() MatIndex = bs.readUInt() bs.read(8) MeshTableOffset = bs.readUInt() MeshIndex = bs.readUInt() bs.seek(MeshTableOffset, NOESEEK_ABS) for i in range(0, MeshIndex): bs.read(8) MeshOffset = bs.readUInt() bs.read(20) cPos = bs.tell() bs.seek(MeshOffset, NOESEEK_ABS) bs.read(12) VertexBufferOffset = bs.readUInt() IndexBufferOffset = bs.readUInt() VertexCount = bs.readUShort() IndexCount = bs.readUShort() MeshIndex = "{:04d}".format(i) bs.seek(VertexBufferOffset, NOESEEK_ABS) VertexBuffer = bs.readBytes(VertexCount * 28) rapi.rpgBindPositionBufferOfs(VertexBuffer, noesis.RPGEODATA_FLOAT, 28, 0) rapi.rpgBindUV1BufferOfs(VertexBuffer, noesis.RPGEODATA_FLOAT, 28, 20) rapi.rpgSetName(baseName + Underline + MeshIndex) bs.seek(MatTableOffset, NOESEEK_ABS) bs.read(32) pixelOffset = bs.readUInt() paletteOffset = bs.readUInt() bs.read(60) width = bs.readUInt() height = bs.readUInt() print(width, height, width * height) bs.read(20) MatTableOffset = bs.tell() if width > 0 and height > 0: bs.seek(paletteOffset, NOESEEK_ABS) print("Palette Offset: " + hex(bs.tell())) bs.read(68) paletteSize = bs.readUInt() bs.seek(paletteOffset, NOESEEK_ABS) rawPal = bs.readBytes(paletteSize) bs.seek(pixelOffset, NOESEEK_ABS) pixelData = bs.readBytes(width * height) pixelData = rapi.imageFromMortonOrder(pixelData, width, height, 1) texData = rapi.imageDecodeRawPal(pixelData, rawPal, width, height, 8, "b8g8r8a8") texName = "tex_{}".format(i) texture = NoeTexture(texName, width, height, texData, noesis.NOESISTEX_RGBA32) texList.append(texture) mat = NoeMaterial(texName, texName) matList.append(mat) rapi.rpgSetMaterial(texName) else: print("Skipping empty texture slot at index", i) print("Offset: " + hex(bs.tell())) rapi.rpgSetMaterial("") # set blank material bs.seek(IndexBufferOffset, NOESEEK_ABS) IndexBuffer = bs.readBytes(IndexCount * 2) rapi.rpgCommitTriangles(IndexBuffer, noesis.RPGEODATA_USHORT, IndexCount, noesis.RPGEO_TRIANGLE_STRIP) bs.seek(cPos, NOESEEK_ABS) mdl = rapi.rpgConstructModel() mdl.setModelMaterials(NoeModelMaterials(texList, matList)) mdlList.append(mdl) return 1
January 29Jan 29 Supporter BTW did you figure out what's goin on with comp.viv which has C0 FB signature? Can't see any value representing offset/size. Maybe it's converted. Normaly when signature is BIGF there is uint32 Offset and uint32 Size and string Filename. But this one has only 6 bytes and then string as Filename. EDiT: Well i found something. The data type is uint16 and is multiplied by 256 but for the first file is wrong file strats at 384 bytes and I get 256. Damn when file count change the value too I am lost here.... At least file size is written right after 4 byte sign. Maybe use findloc function solve this crap. Here's 2 samples if anyone want to take a look. I bet DKDave would crack this... viv.7z The cdb = most likely collision database Edited January 29Jan 29 by h3x3r

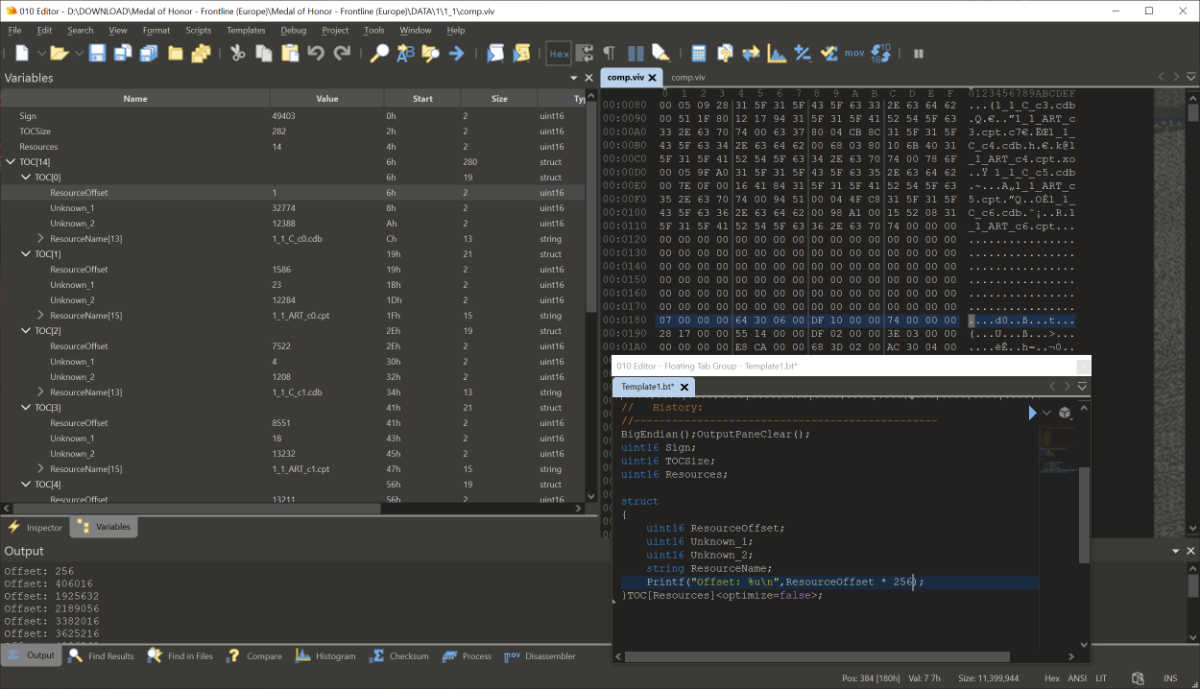

January 29Jan 29 Author 4 hours ago, h3x3r said: BTW did you figure out what's goin on with comp.viv which has C0 FB signature? Can't see any value representing offset/size. Maybe it's converted. Normaly when signature is BIGF there is uint32 Offset and uint32 Size and string Filename. But this one has only 6 bytes and then string as Filename. EDiT: Well i found something. The data type is uint16 and is multiplied by 256 but for the first file is wrong file strats at 384 bytes and I get 256. Hmm, isn't it just absolute offsets from file start? Apologies if I misunderstand. I'll post a pic of what seems to work for me. A while ago when I first saw C0FB, I thought it was some type of compression; now I think it's just a different way Electronic Arts packed some of their game archives. There is a modding program for some of the SSX (snowboarding) games that can open BIG/BIGF/C0FB files (it doesn't seem to unpack these well, however). It is strange that it is 6 bytes + string for each file... So big endian, offset 0x06 = 0x000180, go to offset 0x180 for file start, offset 0x09 = 0x063064 for 405,604 bytes in length. Then some alignment padding before the next file starts at 0x63200, etc. Looking at it now I see that 0x000E is indeed the file count, lol. I have it as "unknown" in my earlier pattern in the pic. Edited January 29Jan 29 by MrGravey Link better quality pic
January 29Jan 29 Supporter Hmm now i see. u24 data type. 010 doesn't know that what a shame and it's paid pro software.... Even quick bms know it... ufff Thanks for clearing this out. Here's BMS for viv with C0 FB sign. endian big get BaseFileName basename getDString Dummy 0x4 get Resources uint16 for i = 0 < Resources get ResourceOffset threebyte get ResourceSize threebyte get ResourceName string string Name p "%s/%s" BaseFileName ResourceName log Name ResourceOffset ResourceSize next i Edited January 29Jan 29 by h3x3r
January 31Jan 31 Author On 1/29/2026 at 2:39 PM, h3x3r said: Here's BMS for viv with C0 FB sign. Thanks, I'll add this to my collection 🙂 Also I've realized that my solution to get the jeep textures in Noesis ONLY works for the jeep model so I have some troubleshooting to do. I think something weird with getting palette data. Also been working on the sequel, MoH: Rising Sun, and have had some success but I'm having trouble finding mesh table/offsets. The game was released just over a year later but the formats are slightly different. I can get the models and sub meshes manually but I'd rather have a script. Mind taking a look? I'll send a couple examples. The data blocks so far seems to be: Header? Face index Vertex buffer UV buffer Unknown Unknown Unknown Header? *Includes file name Then it repeats. I've taken a look at the bottom of the files but I can't seem to make sense of it. I've attached some troublesome files. MoH_RS_testing.zip
February 1Feb 1 Supporter About palette. Seek paletteOffset and seek another 8 bytes back and read uint32 and miltiply it by 4 and you'll get palette size. You can do this i think: bs.seek(paletteOffset - 8, NOESEEK_ABS) paletteSize = bs.readUInt() * 4 go back to paletteOffset and read palette buffer. rawPal = bs.readBytes(paletteSize) Edited February 1Feb 1 by h3x3r
February 1Feb 1 Author 6 hours ago, h3x3r said: About palette. Seek paletteOffset and seek another 8 bytes back and read uint32 and miltiply it by 4 and you'll get palette size. You can do this i think: bs.seek(paletteOffset - 8, NOESEEK_ABS) paletteSize = bs.readUInt() * 4 go back to paletteOffset and read palette buffer. rawPal = bs.readBytes(paletteSize) Ah I see it... fixed! Why is a multiple of 4 used, though? Either way, there are textures that do not use palette data so that's the next thing I'm looking at. I also think it is BGRX instead of BGRA, will do more testing. Edited February 1Feb 1 by MrGravey added info
February 2Feb 2 Supporter I briefly checked all formats you provided but it doesn't make much sense. Can't find damn thing... The serialization of these is really wild. Wiki says it runs on Unreal Engine.
February 3Feb 3 Author 4 hours ago, h3x3r said: I briefly checked all formats you provided but it doesn't make much sense. Can't find damn thing... The serialization of these is really wild. Wiki says it runs on Unreal Engine. I recently found this resource: EA SSH FSH Image (Type 1) - Reverse Engineering Wiki In the process of creating a bms script to sort these files.
April 24Apr 24 I reversed and made a universal viv extractor plus made all audio extractable. Any news on the levels or meshes? https://github.com/StenApp/Medal-of-Honor-Frontline---VIV-Archiv Edited April 24Apr 24 by StenApp
