I wanted to be able to modify the model, or convert it. I tried to get Noesis to read it, or Blender, but it doesn't work. It doesn't looks complex. If anyone can help, I would be grateful.

PL01.zip

The structure of the first 3/4 or so of the file is something like this (in ImHex Pattern Language). More sample files would make analyzing the rest of it easier.

struct Vertex {
    float position[3];
    float normal[3];
    float uv[2];
    float bone_weights[3];
    s16 bone_indices[4];
} [[single_color]];

struct Bone {
    u8 bytes[76];
} [[single_color]];

struct Mesh {
    u32 vertex_count;
    Vertex vertices[vertex_count];
    u32 tri_idx_count;
    u16 tri_strip_indices[tri_idx_count];
    u32 bone_count;
    Bone bones[bone_count];
};

struct File {
    u32 mesh_count;
    Mesh meshes[mesh_count];
};

File file_at_0x00 @ 0x00;



Edited May 18May 18 by jmancoder

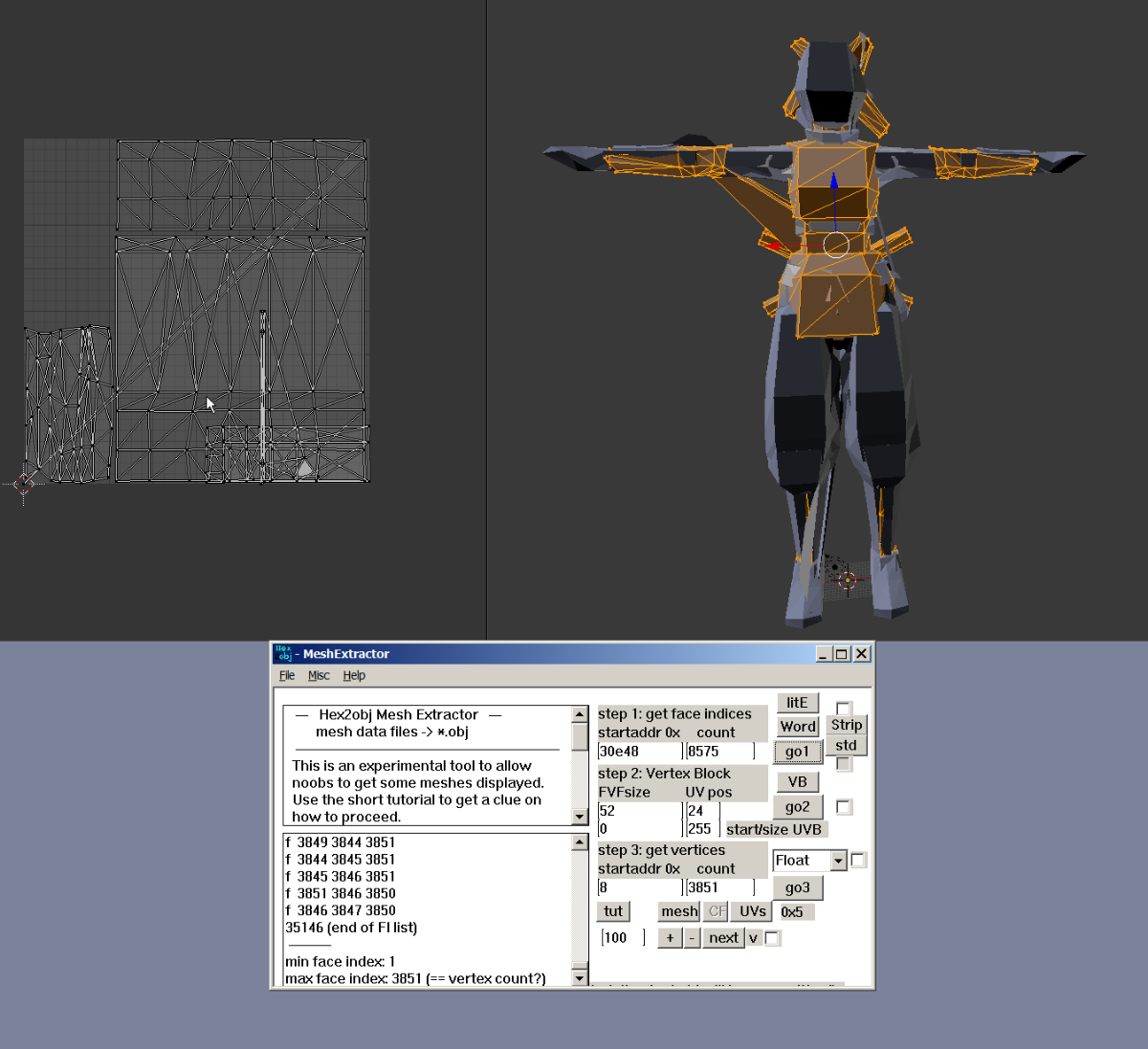

Did a quick check:

1 hour ago, shak-otay said:

Did a quick check:

Here's two more samples to help. Also, the textures from the models are inside them, in DDS format

Samples2.zip

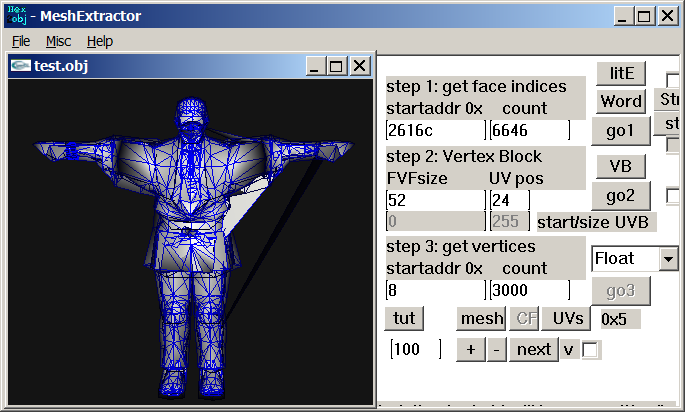

PL02 seems to have 4 sub meshes, so you'll have to wait for a script.

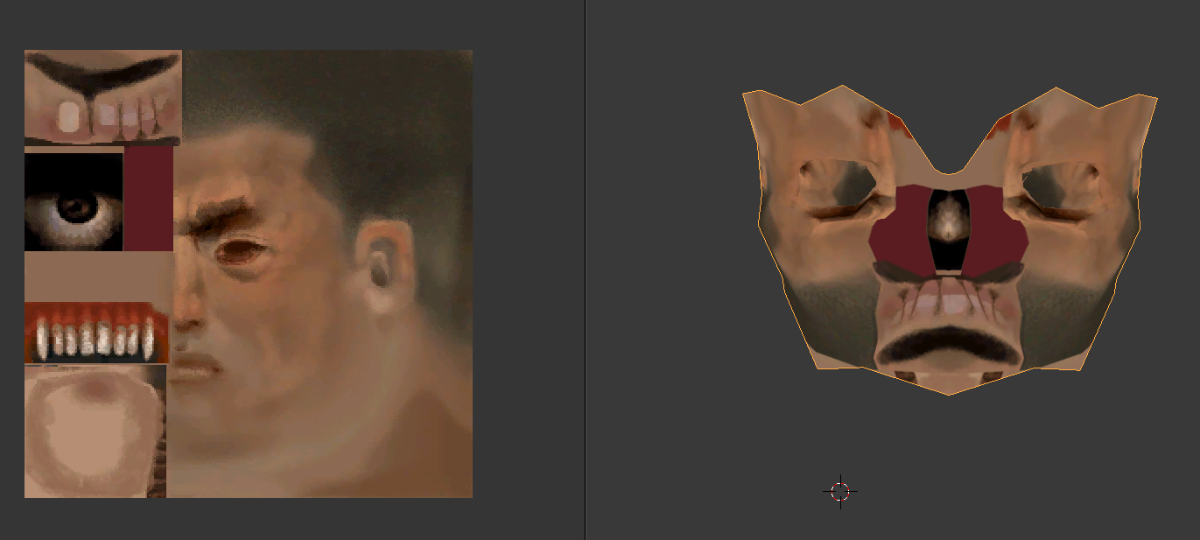

With textures I had no luck:

//------------------------------------------------
//--- 010 Editor v14.0 Binary Template
//
//      File: Tenchu: Return from Darkness
//   Authors:
//   Version:
//   Purpose:
//  Category:
// File Type: *.s4
//  ID Bytes:
//   History:
//------------------------------------------------
LittleEndian();OutputPaneClear();

local uint32 i,j,k,l,ElementBaseOffset,IndexBaseOffset;

uint32 MeshCount;

struct
{
    uint32 TotalElementCount;
    ElementBaseOffset=FTell();
    byte Elements[TotalElementCount * 52];

    uint32 TotalIndexCount;
    IndexBaseOffset=FTell();
    ushort Indices[TotalIndexCount];

    uint32 ShapeCount;

    struct
    {
        uint16 IndexOffset,IndexCount;
        uint32 ElementOffset,ElementCount;
        ubyte Unknown_0,Unknown_1,Unknown_2,Unknown_3;
        ubyte Unknown_4,Unknown_5,Unknown_6,Unknown_7;
        uint16 Unknown_8;
        ubyte Unknown_9;
        string ShapeName;
        FSeek(startof(ShapeName));
        FSkip(16);
        string TextureName;
        FSeek(startof(ShapeName));
        FSkip(53);
    }Shape[ShapeCount]<optimize=false>;
}Mesh[MeshCount]<optimize=false>;


struct
{
    uint32 BoneIndex;

    struct
    {
        string Name0;
        FSeek(startof(Name0));
        FSkip(32);
        string Name1;
        FSeek(startof(Name1));
        FSkip(32);
        ubyte BoneData[208];
    }Bone[BoneIndex]<optimize=false>;
}Skeleton;

struct
{
    uint32 Null;
    uint32 TextureDataSize;
    uint32 TextureIndex;

    struct
    {
        uint32 TextureSize;
        string TextureName;
        FSeek(startof(TextureName));
        FSkip(32);
    }TextureInfo[TextureIndex]<optimize=false>;
    struct
    {
        for (i=0; i < TextureIndex; i++)
        struct
        {
            byte TextureData[TextureInfo[i].TextureSize];
        }Texture;
    }TextureData;
}Textures;

I didn't bother with skeleton, but should be easy.

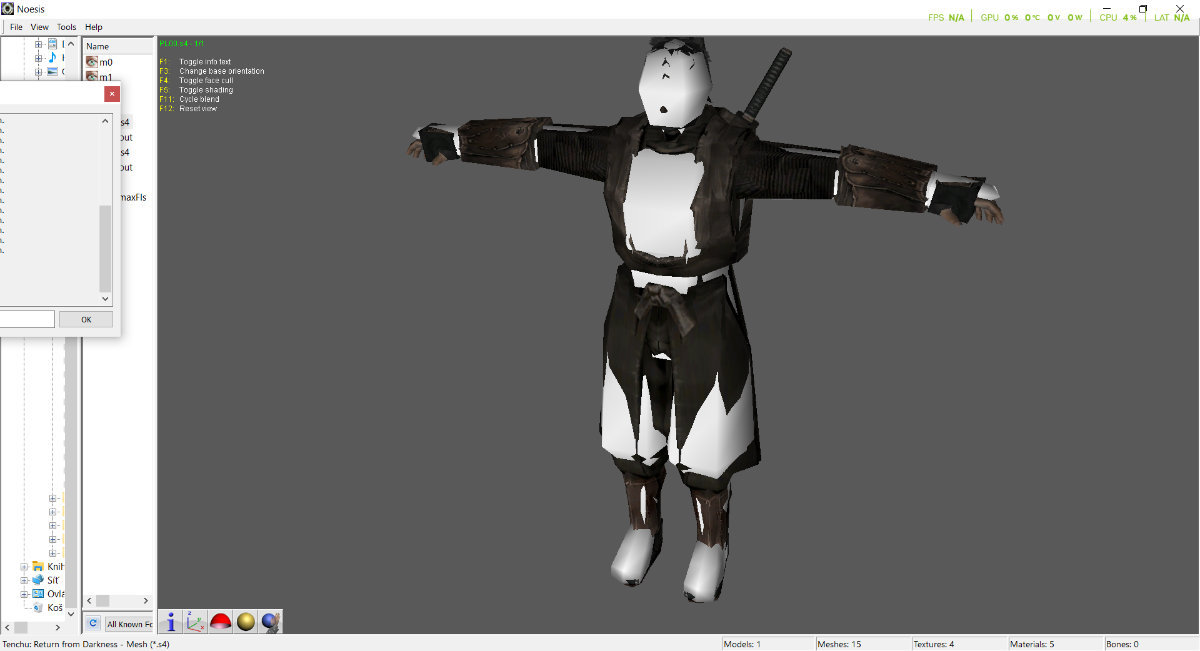

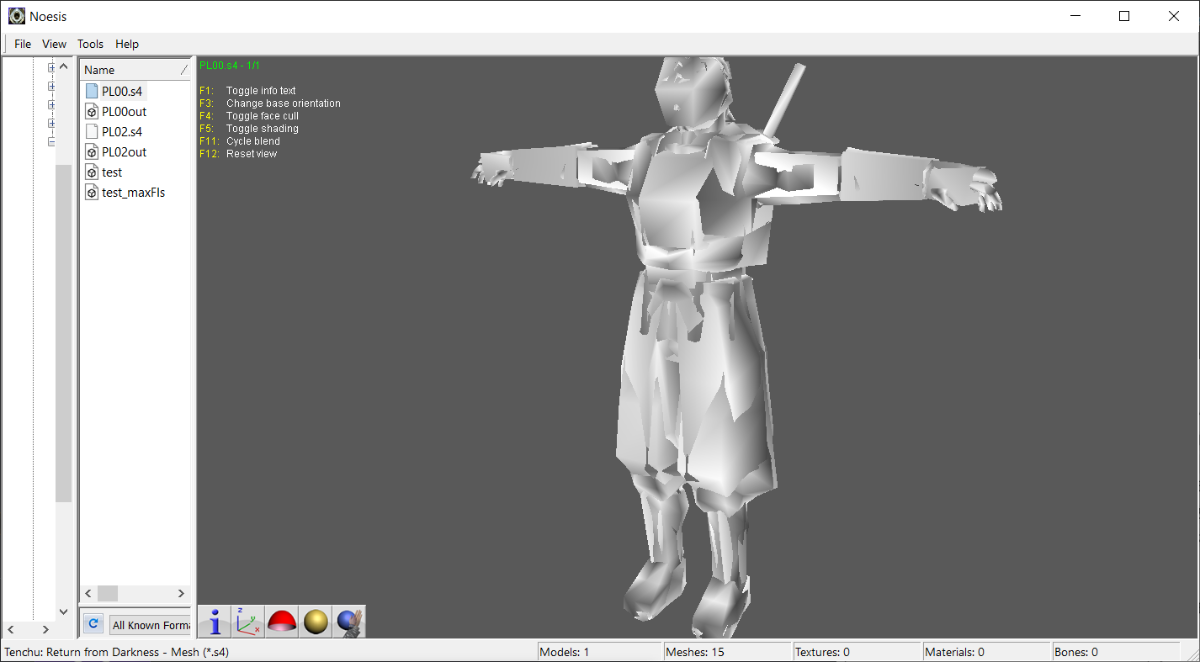

Well first part done. Now assign textures and skeleton

UV's are fine.

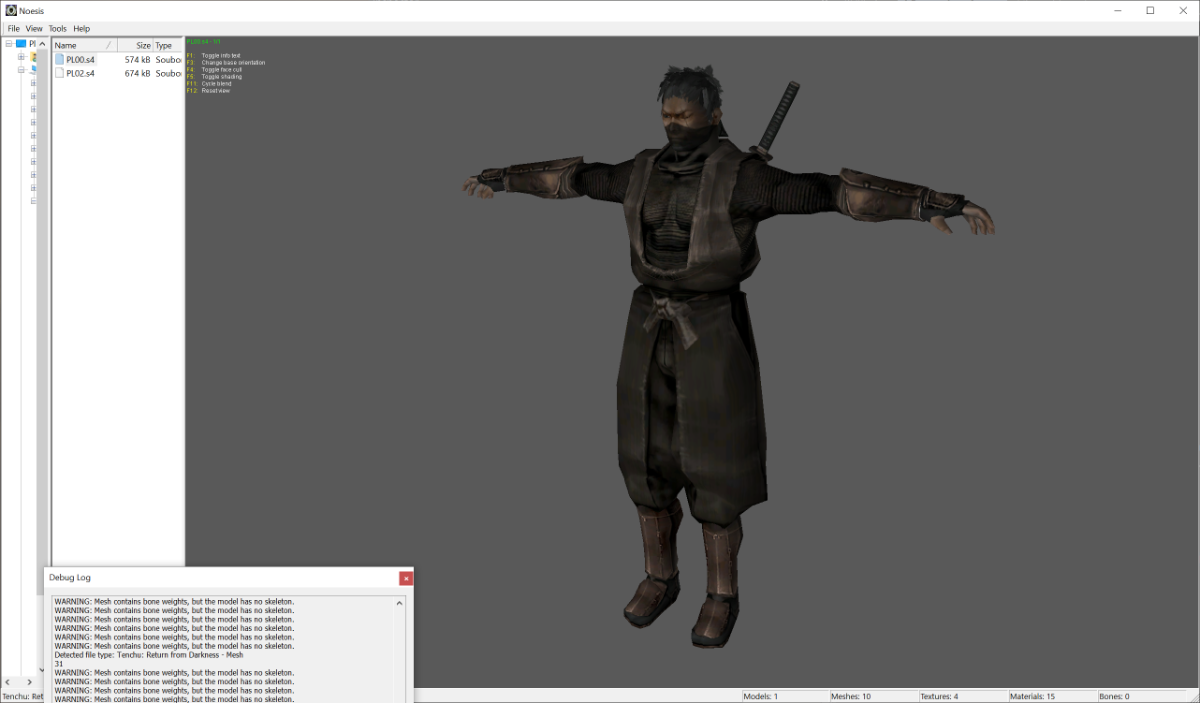

I dissabled LODs and shadow. Now it loads textures from file instead of externaly.

Also i parsed skeleton but there are 2 more Transform 4x4 so not sure which one is right one.

Edited May 23May 23 by h3x3r

Here's Noesis script. But without skeleton. I have no idea how to assign.

from inc_noesis import *
import noesis
import rapi
import os

def registerNoesisTypes():
   handle = noesis.register("Tenchu: Return from Darkness - Mesh", ".s4")
   noesis.setHandlerTypeCheck(handle, noepyCheckType)
   noesis.setHandlerLoadModel(handle, noepyLoadModel)
   noesis.logPopup()
   return 1

def noepyCheckType(data):
   bs = NoeBitStream(data)
   if len(data) < 20:
      return 0
   return 1

def noepyLoadModel(data, mdlList):
	bs = NoeBitStream(data)
	baseName = rapi.getExtensionlessName(rapi.getLocalFileName(rapi.getInputName()))
	ctx = rapi.rpgCreateContext()
	Underline = "_"
	TextureNameList = []
	TextureList = []
	MaterialList = []

	MeshIndex = bs.readUInt()
	MeshBaseOffset = bs.tell()

	# Skiping buffers
	for i in range(0, MeshIndex):
	    TECount = bs.readUInt()
	    bs.read(TECount * 52)
	    TICount = bs.readUInt()
	    bs.read(TICount * 2)
	    SCount = bs.readUInt()
	    bs.read(SCount * 76)

	# Skeleton
	BoneIndex = bs.readUInt()
	#print(BoneIndex)
	for b in range(0, BoneIndex):
	    BNameStrPos = bs.tell()
	    BoneName = bs.readString()
	    bs.seek(BNameStrPos, NOESEEK_ABS)
	    bs.read(32)
	    PBNameStrPos = bs.tell()
	    ParentBoneName = bs.readString()
	    bs.seek(PBNameStrPos, NOESEEK_ABS)
	    bs.read(32)
	    Transform4x4_0 = bs.read(64)
	    Transform4x4_1 = bs.read(64)
	    Transform4x4_2 = bs.read(64)
	    BoneIndex = bs.readInt()
	    ParentIndex = bs.readInt()
	    Unknown_0 = bs.readUInt()
	    Unknown_1 = bs.readUInt()

	# Texture info
	bs.read(4)
	TextureDataSize = bs.readUInt()
	TextureIndex = bs.readUInt()
	for t in range(0, TextureIndex):
		TextureSize = bs.readUInt()
		TexNamePos = bs.tell()
		TextureNameList.append(bs.readString())
		bs.seek(TexNamePos, NOESEEK_ABS)
		bs.read(32)

    # Texture data
	for t in range(0, TextureIndex):
		TextureName = TextureNameList[t]
		bs.read(12)
		TextureWidth = bs.readUInt()
		TexstureHeight = bs.readUInt()
		TextureDataSize = bs.readUInt()
		bs.read(60)
		PixelFormat = bs.readUInt()
		bs.read(40)
		TextureBuffer = bs.read(TextureDataSize)
		if PixelFormat == 894720068:
		    Texture = NoeTexture(TextureName, TextureWidth, TexstureHeight, TextureBuffer, noesis.NOESISTEX_DXT5)
		elif PixelFormat == 827611204:
		    Texture = NoeTexture(TextureName, TextureWidth, TexstureHeight, TextureBuffer, noesis.NOESISTEX_DXT1)

		TextureList.append(Texture)

	bs.seek(MeshBaseOffset, NOESEEK_ABS)
	for m in range(0, MeshIndex):
	    TotalElementCount = bs.readUInt()
	    ElementBaseOffset = bs.tell();
	    ElementBuffer = bs.read(TotalElementCount * 52)

	    TotalIndexCount = bs.readUInt()
	    IndexBaseOffset = bs.tell();
	    bs.read(TotalIndexCount * 2)

	    rapi.rpgBindPositionBufferOfs(ElementBuffer, noesis.RPGEODATA_FLOAT, 52, 0)
	    rapi.rpgBindNormalBufferOfs(ElementBuffer, noesis.RPGEODATA_FLOAT, 52, 12)
	    rapi.rpgBindUV1BufferOfs(ElementBuffer, noesis.RPGEODATA_FLOAT, 52, 24)
	    rapi.rpgBindBoneWeightBufferOfs(ElementBuffer, noesis.RPGEODATA_FLOAT, 52, 32, 3)
	    rapi.rpgBindBoneIndexBufferOfs(ElementBuffer, noesis.RPGEODATA_SHORT, 52, 44, 4)

	    ShapeIndex = bs.readUInt()

	    for s in range(0, ShapeIndex):
	    	IndexOffset = bs.readUShort() * 2
	    	IndexCount = bs.readUShort() + 2
	    	ElementOffset = bs.readUInt()
	    	ElementCount = bs.readUInt()
	    	MaterialIndex = bs.readUByte()
	    	bs.read(2)
	    	HasNoUV = bs.readUByte()
	    	bs.read(4)
	    	IsLOD = bs.readUShort()
	    	bs.read(1)
	    	ShapeNameCurPos = bs.tell()
	    	ShapeName = bs.readString()
	    	bs.seek(ShapeNameCurPos, NOESEEK_ABS)
	    	bs.read(16)
	    	TextureNameCurPos = bs.tell()
	    	TextureName = bs.readString()
	    	bs.seek(TextureNameCurPos, NOESEEK_ABS)
	    	bs.read(37)
	    	cPos = bs.tell()
	    	ShapeId = "{:04d}".format(s)

	    	Material = NoeMaterial(TextureName, TextureName)
	    	MaterialList.append(Material)
	    	rapi.rpgSetMaterial(TextureName)
	    	rapi.rpgSetName(baseName + Underline + ShapeName + Underline + ShapeId)
	    	bs.seek(IndexBaseOffset + IndexOffset, NOESEEK_ABS)
	    	IndexBuffer = bs.read(IndexCount * 2)
	    	if IsLOD != 3 and HasNoUV != 1:
	    	    rapi.rpgCommitTriangles(IndexBuffer, noesis.RPGEODATA_USHORT, IndexCount, noesis.RPGEO_TRIANGLE_STRIP)
	    	bs.seek(cPos, NOESEEK_ABS)
	mdl = rapi.rpgConstructModel()
	mdl.setModelMaterials(NoeModelMaterials(TextureList, MaterialList))
	mdlList.append(mdl)
	return 1



Edited May 23May 23 by h3x3r

Well, the hierarchy (taken from the script, with some corrections) is too confusing to me.

-1 "root" 1
0 "EX-00 "2
1 "00-jnt" 3
2 "01-jnt" 4
3 "04-jnt" 5
4 "05-jnt" 6
5 "06-jnt" 7
6 "07-jnt" 8
7 "EX-03 "9
8 "EX-04 "-1
9 "08-jnt" 11
10 "09-jnt" 12
11 "10-jnt" 13
12 "11-jnt" 14
13 "EX-05 "15
14 "EX-06 "-1
15 "02-jnt" 17
16 "03-jnt" -1
17 "12-jnt" 19
18 "13-jnt" 20
19 "14-jnt" 21
20 "15-jnt" 22
21 "16-jnt" 23
22 "EX-01 "-1
23 "17-jnt" -1
24 "18-jnt" 26
25 "19-jnt" 27
26 "20-jnt" 28
27 "21-jnt" 29
28 "EX-02 "-1
29 "22-jnt" -1

Rearranging doesn't do better (where it's unclear whether to take the boneID from the script, first column or the joint number, 4 form 04-jnt, for example)

-1 "root" 1
1 "00-jnt" 3
2 "01-jnt" 4
15 "02-jnt" 17
16 "03-jnt" -1
3 "04-jnt" 5
4 "05-jnt" 6
5 "06-jnt" 7
6 "07-jnt" 8
9 "08-jnt" 11
10 "09-jnt" 12
11 "10-jnt" 13
12 "11-jnt" 14
17 "12-jnt" 19
18 "13-jnt" 20
19 "14-jnt" 21
20 "15-jnt" 22
21 "16-jnt" 23
23 "17-jnt" -1
24 "18-jnt" 26
25 "19-jnt" 27
26 "20-jnt" 28
27 "21-jnt" 29
29 "22-jnt" -1
0 "EX-00 "2
22 "EX-01 "-1
28 "EX-02 "-1
7 "EX-03 "9
8 "EX-04 "-1
13 "EX-05 "15
14 "EX-06 "-1
