[Tutorial] Undisputed Model and Texture Extraction

[goatmeatrice]

1. Open the .assetbundle file in UABEA

2. Decompress to memory

3. Export All

4. Open up AssetStudio and load the folder where you exported the assets from UABEA

5. Once loaded, go to asset list

6. Body meshes are listed as "Body" and textures are listed as "FirstName_LastName_BaseMap"

7. Click on the asset to preview it

8. Right click and press export and the body meshes will be exported as .OBJ files and the textures will be exported as .PNGs

Note: if you run into an error regarding version specification, specify it as 6000.0.24f1

UABEA

AssetStudio (updated)

[Mishuk598]

not working here for me. 😞 Doing what you told. But after "export all" from UABEA to folder only getting 35mb files. No models and textures. Also AssteStudio cant load the these exported files.

[shak-otay]

On 5/14/2024 at 9:50 PM, Mishuk598 said:

Also AssteStudio cant load the these exported files.

What does that mean? What does "Scene Hierarchy" tab in AssetStudioGUI show?

I don't owe the game but in my experience the tools work (for other games).

[goatmeatrice]

On 5/14/2024 at 3:50 PM, Mishuk598 said:

not working here for me. 😞 Doing what you told. But after "export all" from UABEA to folder only getting 35mb files. No models and textures. Also AssteStudio cant load the these exported files.

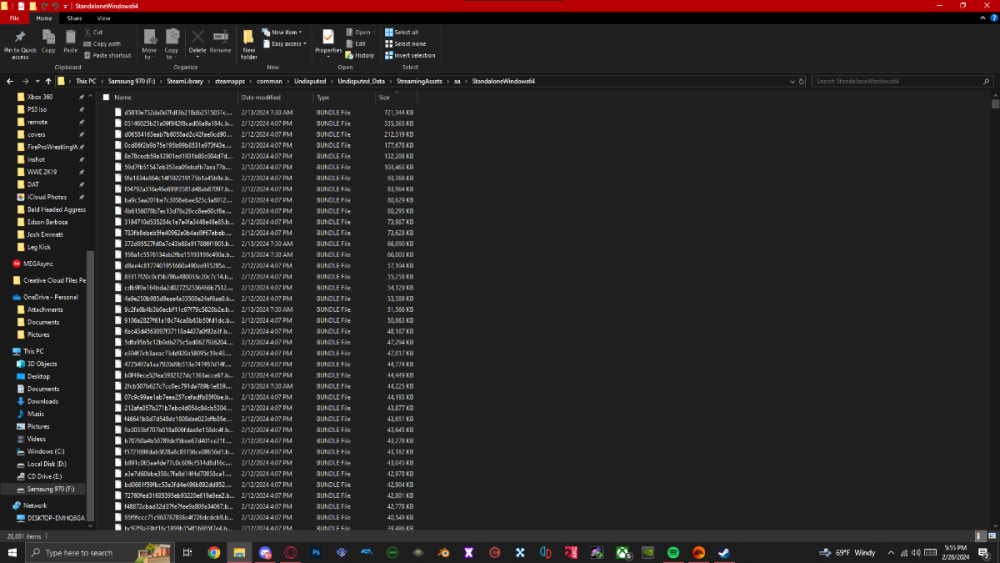

Hi, this tutorial had been written for the demo version of the game in which the data.unity3d file held all the assets. The full version's data.unity3d file is very small and doesn't contain much if at all. The assets are contained in many .bundle files as you can see in the attachment I've provided. Treat each .bundle file as its own data.unity3d file and follow the tutorial the same. And those exported files you provided can't be dragged into AssetStudio, you have to load the folder that contains them as I mentioned in step 4. Then you can view and export the assets through AssetStudio.

[goatmeatrice]

14 hours ago, ikskoks said:

But he is right. THIS IS the tutorial and it's in the tutorials section. It's not a place for asking for assets.
People want to LEARN in topics like this.

Go to "Service Market" section of this forum if you want to pay someone to do a job for you
https://reshax.com/forum/17-service-market/



If it's ok for that guy to speak to me like that on here, then I don't think I'll be using the site anymore.

[ikskoks]

What do you mean? It's not ok. He got a warning.

[michalss]

Im sorry but its too much i banned him not any regret. People with no respect to others,  rude will be panished without any warning for good!

[michalss]

10 hours ago, goatmeatrice said:

If it's ok for that guy to speak to me like that on here, then I don't think I'll be using the site anymore.

ikskoks gave you the credit for being right.

[goatmeatrice]

On 1/9/2025 at 7:57 AM, ikskoks said:

What do you mean? It's not ok. He got a warning.



17 hours ago, michalss said:

ikskoks gave you the credit for being right.

I was referring to the names he was calling me, and I see that he has since been banned so that's cleared up.
