Alone in The Dark 5 (XBOX360, big/fat)

leop2p · November 7

Hi!

Please help me to extract music & sounds from that game from XBOX360 version. I think, the music is stored inside alone_compressed_a.big/fat and alone_compressed_b.big/fat. Could anyone create a BMS-script to do the job?

https://mega.nz/file/C1sn0L5I#R_ri1JwjtFLZ4J8qDwuTy358D46zGxCzW10pS_yv4ao

Thank you!!!

BloodRaynare · November 7

There's a BMS script I found from sethioz.com forum to extract those files (was created for files from TDU2 in mind but should work for your samples too since the header is same):

IDString "XMBF"
Open FDDE big 1
Endian big
GetDString DUMMY 12
Get OFFS long
GoTo OFFS
Get DUMMY long
Get NUMHASHES long
Get HASHOFFSET long
Math HASHOFFSET += OFFS
Get NUMFILEREC long
Get FILERECOFFSET long
Math FILERECOFFSET += OFFS
If NUMHASHES != NUMFILEREC
  CleanExit
EndIf
For I = 0 < NUMHASHES
  GoTo HASHOFFSET
  Get HASH1 long
  Get HASH2 long
  Set EXT string ".bin"
  SavePos HASHOFFSET
  GoTo FILERECOFFSET
  Get FILESIZE long
  Get DUMMY long # compression?
  Get FILEOFFSET long
  SavePos FILERECOFFSET
  Math MEMSIZE = FILESIZE
  Math MEMSIZE x 4
  Log MEMORY_FILE FILEOFFSET MEMSIZE 1
  If MEMSIZE != FILESIZE
    Math MEMSIZE -= 4
    GetVarChr TMP MEMORY_FILE MEMSIZE long
    Math TMP ^= 0xD7A8E2D4
    PutVarChr MEMORY_FILE MEMSIZE TMP long
  EndIf

  GetVarChr HEADER MEMORY_FILE 0 long
  Math HEADER ^= 0xD7A8E2D4
  If HEADER == 0x584D4246
    Set EXT string ".xmb"
  ElseIf HEADER == 0x49474532
    Set EXT string ".ige"
  Else
    GetVarChr HEADER MEMORY_FILE 8 long
    Math HEADER ^= 0xD7A8E2D4
    If HEADER == 0x4B4E4142
      Set EXT string ".bnk"
    ElseIf HEADER == 0x57415645
      Set EXT string ".wav"
    Else
      GetVarChr HEADER MEMORY_FILE 12 long
      Math HEADER ^= 0xD7A8E2D4
      If HEADER == 0x2E324442
        Set EXT string ".2db"
      ElseIf HEADER == 0x584D4246
        Set EXT string ".xmb2"
      EndIf
    EndIf
  EndIf

  String NAME p= "%08X%08X%s" HASH1 HASH2 EXT
  FileXOR "\xD7\xA8\xE2\xD4"
  Log NAME 0 FILESIZE MEMORY_FILE
  FileXOR ""
Next I

Point the script to fat file to use it
However by the looks of it no real filenames but instead a hash of it was used.

h3x3r · November 7

It's not same, there is compression.

leop2p · November 7

Unfortunately, with this script 0 files found.

h3x3r · November 7

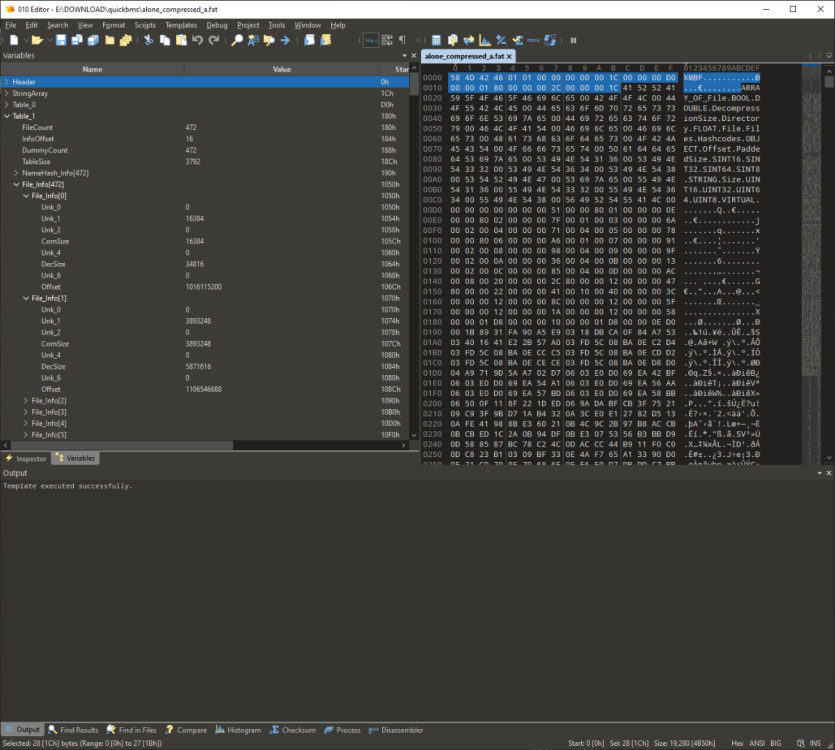

Here's struct of FAT.

//------------------------------------------------
//--- 010 Editor v14.0 Binary Template
//
//      File:
//   Authors:
//   Version:
//   Purpose: Alone in The Dark 5 Xbox360
//  Category:
// File Mask: *.FAT
//  ID Bytes:
//   History:
//------------------------------------------------
BigEndian();OutputPaneClear();
local string FileName=GetFileName(),FilePath=FileNameGetPath(FileName,true),BaseName=FileNameGetBase(FileName,false);

typedef struct HEADER {
    char Sign[4];
    byte Flags[4];
    uint32 StrArrayOffset,Table_0_Offset,Table_1_Offset,Table_0_Count,Unk_4;
};

typedef struct STRARRAY {
    struct StrArray {
        string StrName;
    }StringArray[23]<optimize=false>;
};

typedef struct TABLE_0 {
    struct TAB_0 {
        uint32 Value;
    }Tab_0[Header.Table_0_Count]<optimize=false>;
};

typedef struct TABLE_1 {
    uint32 FileCount,InfoOffset,DummyCount,TableSize;
    struct NAMEHASH_INFO {
        uint64 NameHash;
    }NameHash_Info[FileCount]<optimize=false>;

    struct FILE_INFO {
        uint32 Unk_0,Unk_1,Unk_2,ComSize,Unk_4,DecSize,Unk_6,Offset;
    }File_Info[FileCount]<optimize=false>;
};

HEADER Header;
FSeek(Header.StrArrayOffset);
STRARRAY StringArray;
FSeek(Header.Table_0_Offset);
TABLE_0 Table_0;
FSeek(Header.Table_1_Offset);
TABLE_1 Table_1;

leop2p · November 8

What me to do with that? Can you help me?

leop2p · Monday at 12:25 PM

Unfortunately, I don't have a knowledge to make BMS script from this. Maybe anybody could help me.

h3x3r · Monday at 12:59 PM

Compression should be lzo. But everytime i tried dempress it it creates only 4096 bytes output.

Also here's struct of compressed file.

//------------------------------------------------
//--- 010 Editor v14.0 Binary Template
//
//      File:
//   Authors:
//   Version:
//   Purpose: Alone in The Dark 5 Xbox360
//  Category:
// File Mask:
//  ID Bytes:
//   History:
//------------------------------------------------
BigEndian();OutputPaneClear();
local string FileName=GetFileName(),FilePath=FileNameGetPath(FileName,true),BaseName=FileNameGetBase(FileName,false);
local uint32 i;

typedef struct HEADER {
    uint32 Unk_0,Unk_1,Unk_2,Unk_3,ChunkSize,ChunkInfoOffset,cDataOffset,Unk_7,Unk_8,dSize,Unk_10,cSize,Unk_13,Unk_14,Unk_15,Unk_16;
};

typedef struct CHUNK_INFO {
    for (i=0; i < Header.ChunkInfoOffset/4; i++)
    {
        uint32 ChunkSize;
    }
};

typedef struct CHUNK_DATA {

    for (i=0; i < Header.ChunkInfoOffset/4; i++)
    if (ChunkInfo.ChunkSize[i] != 0)
    struct Chunk {
        byte Data[ChunkInfo.ChunkSize[i]];
    }chunk;
};

HEADER Header;
FSeek(Header.ChunkInfoOffset);
CHUNK_INFO ChunkInfo;
FSeek(Header.cDataOffset);
CHUNK_DATA ChunkData;

EDiT:

Attached sample if anyone want take a look

_com.7z

Edited Monday at 06:47 PM by h3x3r

infval · Tuesday at 01:46 AM

From Multimedia GameRipping by mauzerX (https://www.forum.ctpax-x.org/?showtopic=282, Ripkit.chm > Useful Things > QuickBMS > Scripts > Specific Game Extractors > All Platforms > Alone In The Dark 2008):

Alone In The Dark 2008

(scripts by qwerty)

----------------------------
Unpacks *.BIG + *.FAT archives and extract data from *.BNK. Scripts for PC and Xbox 360 version.

Code for PC version for *.BIG + *.FAT:

IDString "XMBF"
Open FDDE big 1
Endian little
GetDString DUMMY 12
Get OFFS long
GoTo OFFS
Get NUMHASHES long
Get HASHOFFSET long
Math HASHOFFSET += OFFS
Get NUMFILEREC long
Get FILERECOFFSET long
Math FILERECOFFSET += OFFS
If NUMHASHES != NUMFILEREC
  CleanExit
EndIf
For I = 0 < NUMHASHES
  GoTo HASHOFFSET
  Get HASH2 long
  Get HASH1 long
  String NAME p= "%08X%08X.bnk" HASH1 HASH2
  SavePos HASHOFFSET
  GoTo FILERECOFFSET
  Get FILESIZE longlong
  Get DUMMY longlong # compressed size?
  Get DUMMY longlong # uncompressed size?
  Get FILEOFFSET longlong
  SavePos FILERECOFFSET
  #Log NAME FILEOFFSET FILESIZE 1
  CallFunction UnpackFile
Next I

########################
StartFunction UnpackFile
  Endian big
  ComType lzo
  Log MEMORY_FILE FILEOFFSET FILESIZE 1
  GoTo 0x10 MEMORY_FILE
  Get CHUNKSZ long MEMORY_FILE
  Get FATOFFSET long MEMORY_FILE
  Get ZDATAOFFSET long MEMORY_FILE
  Get DUMMY long MEMORY_FILE
  Get DATASIZE longlong MEMORY_FILE
  Get ZDATASIZE longlong MEMORY_FILE
  Get BUFFSIZE long MEMORY_FILE
  Math BUFF = ZDATAOFFSET
  Math BUFF += BUFFSIZE
  Math NUMCHUNKS = ZDATAOFFSET
  Math NUMCHUNKS -= FATOFFSET
  Math NUMCHUNKS /= 4
  Log MEMORY_FILE2 0 0
  PutVarChr MEMORY_FILE2 DATASIZE 0
  Log MEMORY_FILE2 0 0
  Append
  GoTo FATOFFSET MEMORY_FILE
  For J = 0 < NUMCHUNKS
    Get ZCHUNKSZ long MEMORY_FILE
    Math ZDATAOFFSET += ZCHUNKSZ
    If ZDATAOFFSET > BUFF
      Math ZDATAOFFSET -= ZCHUNKSZ
      Math ZDATAOFFSET x= 0x800
      Math BUFF = ZDATAOFFSET
      Math BUFF += BUFFSIZE
    Else
      Math ZDATAOFFSET -= ZCHUNKSZ
    EndIf
    If ZCHUNKSZ == 0
      Break
    ElseIf ZCHUNKSZ < CHUNKSZ
      CLog MEMORY_FILE2 ZDATAOFFSET ZCHUNKSZ CHUNKSZ MEMORY_FILE
    Else
      Log MEMORY_FILE2 ZDATAOFFSET ZCHUNKSZ MEMORY_FILE
    EndIf
    Math ZCHUNKSZ x= 0x10
    Math ZDATAOFFSET += ZCHUNKSZ
  Next J
  Append
  Log NAME 0 DATASIZE MEMORY_FILE2
  Endian little
EndFunction
########################

Code for XBOX-360 version for *.BIG + *.FAT:

IDString "XMBF"
Open FDDE big 1
Endian big
GetDString DUMMY 12
Get OFFS long
GoTo OFFS
Get NUMHASHES long
Get HASHOFFSET long
Math HASHOFFSET += OFFS
Get NUMFILEREC long
Get FILERECOFFSET long
Math FILERECOFFSET += OFFS
If NUMHASHES != NUMFILEREC
  CleanExit
EndIf
For I = 0 < NUMHASHES
  GoTo HASHOFFSET
  Get HASH2 long
  Get HASH1 long
  String NAME p= "%08X%08X.bnk" HASH2 HASH1
  SavePos HASHOFFSET
  GoTo FILERECOFFSET
  Get FILESIZE longlong
  Get DUMMY longlong # compressed size?
  Get DUMMY longlong # uncompressed size?
  Get FILEOFFSET longlong
  SavePos FILERECOFFSET
  #Log NAME FILEOFFSET FILESIZE 1
  CallFunction UnpackFile
Next I

########################
StartFunction UnpackFile
  #Endian big
  ComType lzo
  Log MEMORY_FILE FILEOFFSET FILESIZE 1
  GoTo 0x10 MEMORY_FILE
  Get CHUNKSZ long MEMORY_FILE
  Get FATOFFSET long MEMORY_FILE
  Get ZDATAOFFSET long MEMORY_FILE
  Get DUMMY long MEMORY_FILE
  Get DATASIZE longlong MEMORY_FILE
  Get ZDATASIZE longlong MEMORY_FILE
  Get BUFFSIZE long MEMORY_FILE
  Math BUFF = ZDATAOFFSET
  Math BUFF += BUFFSIZE
  Math NUMCHUNKS = ZDATAOFFSET
  Math NUMCHUNKS -= FATOFFSET
  Math NUMCHUNKS /= 4
  Log MEMORY_FILE2 0 0
  PutVarChr MEMORY_FILE2 DATASIZE 0
  Log MEMORY_FILE2 0 0
  Append
  GoTo FATOFFSET MEMORY_FILE
  For J = 0 < NUMCHUNKS
    Get ZCHUNKSZ long MEMORY_FILE
    Math ZDATAOFFSET += ZCHUNKSZ
    If ZDATAOFFSET > BUFF
      Math ZDATAOFFSET -= ZCHUNKSZ
      Math ZDATAOFFSET x= 0x800
      Math BUFF = ZDATAOFFSET
      Math BUFF += BUFFSIZE
    Else
      Math ZDATAOFFSET -= ZCHUNKSZ
    EndIf
    If ZCHUNKSZ == 0
      Break
    ElseIf ZCHUNKSZ < CHUNKSZ
      CLog MEMORY_FILE2 ZDATAOFFSET ZCHUNKSZ CHUNKSZ MEMORY_FILE
    Else
      Log MEMORY_FILE2 ZDATAOFFSET ZCHUNKSZ MEMORY_FILE
    EndIf
    Math ZCHUNKSZ x= 0x10
    Math ZDATAOFFSET += ZCHUNKSZ
  Next J
  Append
  Log NAME 0 DATASIZE MEMORY_FILE2
  #Endian little
EndFunction
########################

Code for XBOX-360 and PC version for *.BNK:

Set FULLNAME string ""
Set NAME string ""
Log MEMORY_FILE 0 0
GetDString DUMMY 8
GetDString ID 4
If ID == "KNAB"
  Endian little
ElseIf ID == "BANK"
  Endian big
Else
  CleanExit
EndIf
GoTo 0x28
Get NUMFILES long
Get DUMMY long
Get FATOFFSET long
Math FATOFFSET += 8
Get DUMMY long
Get NAMESOFFSET long
Math NAMESOFFSET += 8
Get FILESORDER long
Math FILESORDER += 8
PutVarChr MEMORY_FILE 0 FILESORDER long
GoTo NAMESOFFSET
If NUMFILES != 0
  CallFunction Parser
EndIf

StartFunction Parser
  Get NAMESZ byte
  If NAMESZ > 0x7F
    String FULLNAME += NAME
    String FULLNAME += \
    Get FOLDERS byte
 If FOLDERS > 0x7F
   Get TMP byte
   Math TMP < 7
   Math FOLDERS & 0x0000007F
   Math FOLDERS | TMP
 EndIf
    Math NAMESZ ^= 0xFF
    Math NAMESZ += 1
    GetDString NAME NAMESZ
    For I = 0 < FOLDERS
      CallFunction Parser
    Next I
  Else
    GetDString BASENAME NAMESZ
    String FULLNAME += BASENAME
    String FULLNAME += NAME
 SavePos NAMESOFFSET
 GetVarChr FILESORDER MEMORY_FILE 0 long
 GoTo FILESORDER
 If NUMFILES > 0x100
   Get FILENUMBER word
 Else
   Get FILENUMBER byte
 EndIf
 SavePos FILESORDER
 PutVarChr MEMORY_FILE 0 FILESORDER long
 Math FILENUMBER *= 0x14
 Math FATOFFSET += FILENUMBER
 GoTo FATOFFSET
 Get OFFSET long
 Get SIZE long
 GetDString DUMMY 12
    Log FULLNAME OFFSET SIZE
 GoTo NAMESOFFSET
  EndIf
EndFunction Parser

Edited Tuesday at 01:52 AM by infval
