Dynasty Warriors : Origins .g1m

[Kanbara]

This game is sick!!



I use this quickbms script to extract the .fdata files, the same structure as Fate/Samurai Remnant.

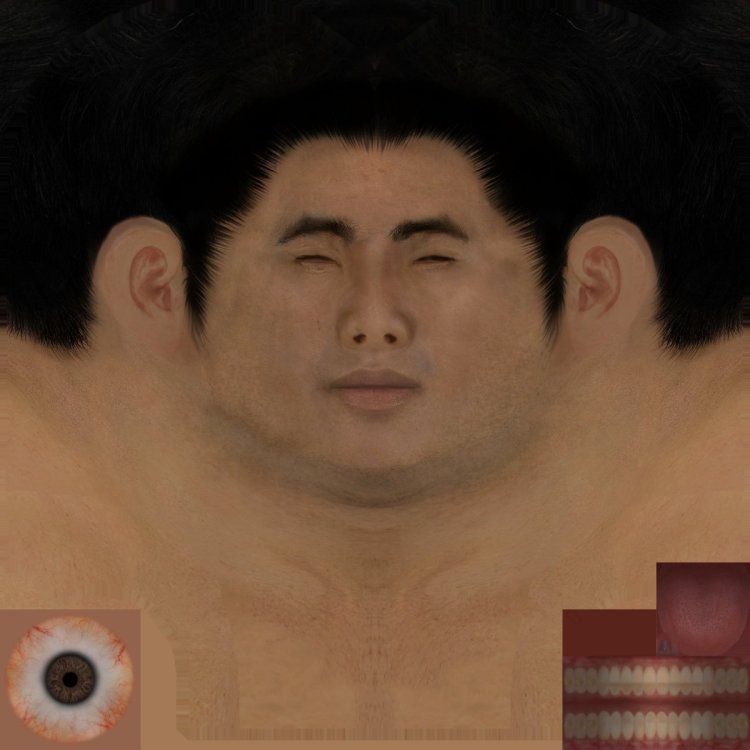

Then I use the latest Noesis with an addon made by Joschuka to load the meshes (.g1m) and textures (.g1t).

Textures work fine, but the .g1m models seems have changed somehow, making Joschuka's Project-G1M crash when loading characters models. (Sadly, this addon will not be updated any more, maybe)

The files structure is kinda messy, kinda like Samurai Warriors 5. By using yretenai's Cethleann tool can make things a little easier.



Wish someone can take a look at the .g1m file.

g1m.7z

Edited November 23, 2024 by Kanbara

[ysj734]

Can you tell me specifically how to extract fdata files? I'm not very familiar with QuickBMS scripts

[shak-otay]

@Kanbara: your  Cethleann link links to Joschuka.

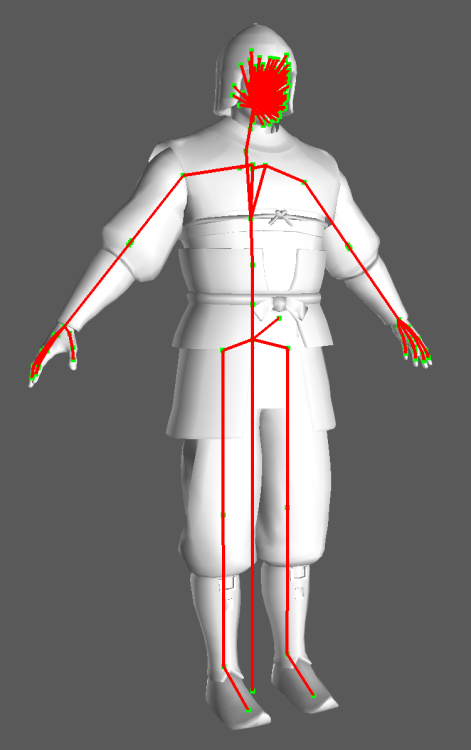

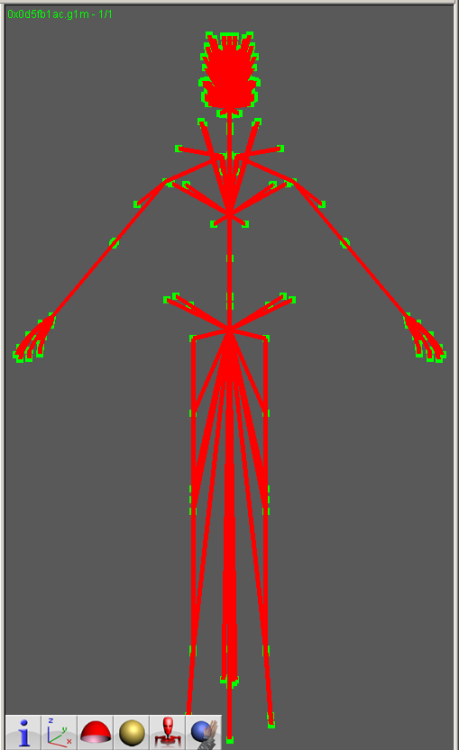

Using Joschuka's dll I get skeletons at least:





InitLocal
Get console cmd
CreateContext
Prepare buffers
Get offsets to relevant sections
chunk 0, 18
chunk 1, 1cc
G1MS
chunk 2, b58
G1MM
chunk 3, 11e8
G1MG
Split between int/ext skels
Get ptrs to skels
Merge or not
Start skel merging
Add physics bones
Parse all NUN chunks
NUNV
NUNS
SOFT
Build merged skel
Ext skels
NUNO chunks
NUNV chunks
NUNS chunks
Skel names
Anims
Get geometry
Get matrices
Process geometry data

The bayo.log in the Noesis folder might get some extension for "Get geometry".

Edited November 23, 2024 by shak-otay

[Kanbara]

On 11/23/2024 at 8:43 PM, shak-otay said:

@Kanbara: your  Cethleann link links to Joschuka.

Using Joschuka's dll I get skeletons at least:

Oops, my bad. Thanks for pointing me out!

And thanks for your effort!! Fortunately, Joschuka has updated the addon, so everything works fine now! Thank you my kami!

On 11/23/2024 at 9:54 AM, ysj734 said:

Can you tell me specifically how to extract fdata files? I'm not very familiar with QuickBMS scripts

You can use this tool made by DeathChaos25 instead

fdata_dump

Edited January 22 by Kanbara

[kishikan]

I tried to find the correct .kidsobjdb file, but kidsobjdbconv and doa6PythonTools didn't work. Guys, do you know how to find it?
I tried to use Cethleann to get the relationship between KTID and G1T.

Edited November 23, 2024 by kishikan

[Kanbara]

4 hours ago, kishikan said:

I tried to find the correct .kidsobjdb file, but kidsobjdbconv and doa6PythonTools didn't work. Guys, do you know how to find it?
I tried to use Cethleann to get the relationship between KTID and G1T.

You need to find a file named CharacterEditor.kidssingletondb and use Nyotengu.KTID.exe with CMD to merge split g1t.

reference code line

Nyotengu.KTID "G:\Steam\steamapps\common\DWORIGINS Demo\File\ASSET\FDataPackage\Dev\fdata_out\kidsobjdb\CharacterEditor.kidssingletondb" "G:\Steam\steamapps\common\DWORIGINS Demo\File\ASSET\FDataPackage\Dev\fdata_out\g1t" F:\Models\DWO\ssx(2024.11.13)\ktid\64C1956D.ktid



[kishikan]

10 hours ago, Kanbara said:

You need to find a file named CharacterEditor.kidssingletondb and use Nyotengu.KTID.exe with CMD to merge split g1t.

reference code line

Nyotengu.KTID "G:\Steam\steamapps\common\DWORIGINS Demo\File\ASSET\FDataPackage\Dev\fdata_out\kidsobjdb\CharacterEditor.kidssingletondb" "G:\Steam\steamapps\common\DWORIGINS Demo\File\ASSET\FDataPackage\Dev\fdata_out\g1t" F:\Models\DWO\ssx(2024.11.13)\ktid\64C1956D.ktid





Thank you! You helped me a lot! I mistakenly thought that the filename was a hash string like in Wo-Long.

Edited November 24, 2024 by kishikan

[zhanghongming]

Could you please share Joschuka’s dll  with me?

[zhanghongming]

Thank you for your help, it's been very useful to me.

[Kanbara]

Game released.

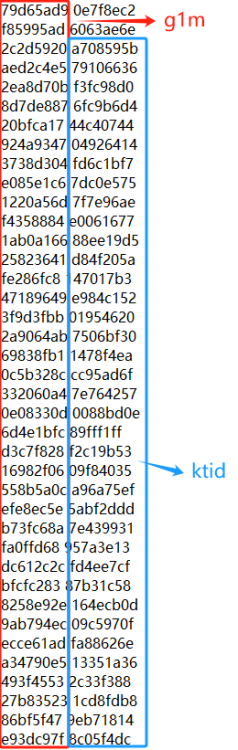

Anyone knows the how to make a list to find the association between .g1m and .ktid, which can make finding the textures easier,lol..

I mean, like this.

I tried DeathChaos25's KTID_Splitter, BUT this can only match single .g1t and cannot find the corresponding .g1m mesh.

Edited January 15 by Kanbara

[DazzyAllen]

Am I missing something on where the update for the plugin is? The github for project g1m seems to not have been updated since 2023, I'm confused where it can be found. I have an idea on matching the g1m to ktid but I want to double check if it still works as I remember, just need to get the g1ms working first.

Edited January 16 by DazzyAllen

[Kanbara]

On 1/16/2025 at 5:09 PM, DazzyAllen said:

Am I missing something on where the update for the plugin is? The github for project g1m seems to not have been updated since 2023, I'm confused where it can be found. I have an idea on matching the g1m to ktid but I want to double check if it still works as I remember, just need to get the g1ms working first.

Joschuka has updated the plugin 3 days ago
