July 14, 2025Jul 14 I need some help. In general, I need help extracting audio from the Spider-Man: Shattered Dimensions game(Streams.dat file). I'm trying to figure out how to do this, maybe someone can suggest some tools or programs that will help extract game audio clips and sounds from this file. Edited July 27, 2025Jul 27 by Kelain Marked the platform for the game
July 15, 2025Jul 15 Localization Check this forum for help https://web.archive.org/web/20230000000000fw_/https://www.zenhax.com/viewtopic.php?t=8423
July 19, 2025Jul 19 Author On 7/14/2025 at 7:21 PM, ikskoks said: Please upload sample file. Take https://drive.google.com/file/d/1qkmBi5kgnXMMO_-KTiTdexZLKUsOyBKF/view?usp=sharing
July 19, 2025Jul 19 Author On 7/16/2025 at 1:57 AM, Hazza12555 said: Check this forum for help https://web.archive.org/web/20230000000000fw_/https://www.zenhax.com/viewtopic.php?t=8423 I found something similar, but it won't work because as the author says, "The script is for who wants to work on the format and how to read the raw data, NOT for extraction." But maybe this script can somehow be changed to suit the task that I need and make it extract? https://web.archive.org/web/20230429100701fw_/https://zenhax.com/viewtopic.php?f=9&t=3335
July 20, 2025Jul 20 Author On 7/14/2025 at 7:21 PM, ikskoks said: Please upload sample file. Is there any news?
July 23, 2025Jul 23 Supporter Is that file Streams.dat complete? Coz I see some offsets exceeding total file size. Anyway I was able to play some of raw data in Audacity.
July 23, 2025Jul 23 Author 45 minutes ago, h3x3r said: Is that file Streams.dat complete? Coz I see some offsets exceeding total file size. Anyway I was able to play some of raw data in Audacity. This is one of the files in which audio fragments are stored, there are three of them in total. I threw one off for an example.
July 23, 2025Jul 23 Author 55 minutes ago, h3x3r said: Is that file Streams.dat complete? Coz I see some offsets exceeding total file size. Anyway I was able to play some of raw data in Audacity. Will it be possible to create a script for BMS so that it can manually extract audio materials from these files, or only manually if?
July 23, 2025Jul 23 Supporter Well, send all streams i will look at it. I believe that rest of streams are raw data. First streams include TOC + raw data.
July 23, 2025Jul 23 Author 1 hour ago, h3x3r said: Well, send all streams i will look at it. I believe that rest of streams are raw data. First streams include TOC + raw data. take https://drive.google.com/file/d/1uXz_Fib2D4UeBflOhCFILyiQizIP7sKi/view?usp=sharing
July 25, 2025Jul 25 Supporter All right. So here's some info. Most of streams are with unknown compression and I don't know which. This template prints some info. Check Output tab. Firts of all. Create bat file and put this text to it and save. copy /b Streams.dat + Streams1.dat + Streams2.dat + Streams3.dat Streams_all.dat Then put the bat file next to the streams and run. It will create one Streams_all.dat Then you can use 010 Editor Template on on it. //------------------------------------------------ //--- 010 Editor v14.0 Binary Template // // File: // Authors: // Version: // Purpose: // Category: // File Mask: // ID Bytes: // History: //------------------------------------------------ LittleEndian();OutputPaneClear(); local uint32 i,j,TotalFileSize=FileSize(); uint32 Sign; uint32 UnkTableIndex; uint32 LangResourceIndex; uint32 LangIndex; uint32 Unknown_0; uint32 Unknown_1; uint32 Unknown_2; uint32 Unknown_3; uint32 Unknown_4; uint32 Unknown_5; uint32 Unknown_6; struct { uint32 Unknown_0; uint32 Unknown_1; uint32 Unknown_2; uint32 Unknown_3; uint32 Unknown_4; }UnkTable[UnkTableIndex]; for (i=0; i < LangIndex; i++) struct { for (j=0; j < LangResourceIndex; j++) struct { uint32 ResourceName; uint32 ResourceSize; uint32 ResourceOffset; uint32 Unknown_0; uint32 Unknown_1; uint32 Unknown_2; uint32 Unknown_3; uint32 FFFFFFFF; uint32 Unknown_4; float Duration; //Seconds uint32 ResourceInfoSize; uint32 Unknown_5; uint32 Unknown_6; uint32 PaddSize; uint32 Unknown_7; //Not sure but decompressed size maybe? uint16 Unknown_8; uint16 Channels; uint32 Frequency; uint32 Interleave; //Not sure enum <uint16> { Type_0002_Uncompressed_PCM = 2, Type_0004_Uncompressed_PCM = 4, Type_0012_Uncompressed_PCM = 12, Type_2230_UnknownCompression = 2230, Type_8192_UnknownCompression = 8192, Type_8917_UnknownCompression = 8917, }ResourceType; local string TypeEnum=EnumToString(ResourceType); uint16 BitDepth; uint16 Unknown_9; uint16 Unknown_10; uint32 Unknown_11; uint32 Unknown_12; uint32 Unknown_13; uint32 Unknown_14; uint32 Unknown_15; uint32 Unknown_16; uint32 Unknown_17; uint32 Unknown_18; uint32 Unknown_19; uint32 Unknown_20; local uint32 StreamOffset=ResourceInfoSize + PaddSize; local uint32 StreamSize=ResourceSize - ResourceInfoSize - PaddSize; if (ResourceOffset != 4294967295) Printf(" Lang Index: %u\n Resource Num: %04u\n Resource Name: 0x%08x\n Frequency: %u\n Channels: %u\n Interleave: %u\n Duration: %f sec\n Bit Depth: %u-bit\n Resource Type: %s\nResource Offset: %u\n Resource Size: %u\n Stream Offset: %u\n Stream Size: %u\n\n", i,j,ResourceName,Frequency,Channels,Interleave,Duration,BitDepth,TypeEnum,ResourceOffset,ResourceSize,StreamOffset,StreamSize); }ResourceInfo; Printf("\n\n"); }Lang;
July 25, 2025Jul 25 Author 7 hours ago, h3x3r said: All right. So here's some info. Most of streams are with unknown compression and I don't know which. This template prints some info. Check Output tab. Firts of all. Create bat file and put this text to it and save. copy /b Streams.dat + Streams1.dat + Streams2.dat + Streams3.dat Streams_all.dat Then put the bat file next to the streams and run. It will create one Streams_all.dat Then you can use 010 Editor Template on on it. //------------------------------------------------ //--- 010 Editor v14.0 Binary Template // // File: // Authors: // Version: // Purpose: // Category: // File Mask: // ID Bytes: // History: //------------------------------------------------ LittleEndian();OutputPaneClear(); local uint32 i,j,TotalFileSize=FileSize(); uint32 Sign; uint32 UnkTableIndex; uint32 LangResourceIndex; uint32 LangIndex; uint32 Unknown_0; uint32 Unknown_1; uint32 Unknown_2; uint32 Unknown_3; uint32 Unknown_4; uint32 Unknown_5; uint32 Unknown_6; struct { uint32 Unknown_0; uint32 Unknown_1; uint32 Unknown_2; uint32 Unknown_3; uint32 Unknown_4; }UnkTable[UnkTableIndex]; for (i=0; i < LangIndex; i++) struct { for (j=0; j < LangResourceIndex; j++) struct { uint32 ResourceName; uint32 ResourceSize; uint32 ResourceOffset; uint32 Unknown_0; uint32 Unknown_1; uint32 Unknown_2; uint32 Unknown_3; uint32 FFFFFFFF; uint32 Unknown_4; float Duration; //Seconds uint32 ResourceInfoSize; uint32 Unknown_5; uint32 Unknown_6; uint32 PaddSize; uint32 Unknown_7; //Not sure but decompressed size maybe? uint16 Unknown_8; uint16 Channels; uint32 Frequency; uint32 Interleave; //Not sure enum <uint16> { Type_0002_Uncompressed_PCM = 2, Type_0004_Uncompressed_PCM = 4, Type_0012_Uncompressed_PCM = 12, Type_2230_UnknownCompression = 2230, Type_8192_UnknownCompression = 8192, Type_8917_UnknownCompression = 8917, }ResourceType; local string TypeEnum=EnumToString(ResourceType); uint16 BitDepth; uint16 Unknown_9; uint16 Unknown_10; uint32 Unknown_11; uint32 Unknown_12; uint32 Unknown_13; uint32 Unknown_14; uint32 Unknown_15; uint32 Unknown_16; uint32 Unknown_17; uint32 Unknown_18; uint32 Unknown_19; uint32 Unknown_20; local uint32 StreamOffset=ResourceInfoSize + PaddSize; local uint32 StreamSize=ResourceSize - ResourceInfoSize - PaddSize; if (ResourceOffset != 4294967295) Printf(" Lang Index: %u\n Resource Num: %04u\n Resource Name: 0x%08x\n Frequency: %u\n Channels: %u\n Interleave: %u\n Duration: %f sec\n Bit Depth: %u-bit\n Resource Type: %s\nResource Offset: %u\n Resource Size: %u\n Stream Offset: %u\n Stream Size: %u\n\n", i,j,ResourceName,Frequency,Channels,Interleave,Duration,BitDepth,TypeEnum,ResourceOffset,ResourceSize,StreamOffset,StreamSize); }ResourceInfo; Printf("\n\n"); }Lang; Thanks, it's working. I tried to extract one audio file, but it has a format.bin how can I play and listen?
July 25, 2025Jul 25 Supporter Here's BMS to unpack Streams_all.dat get BaseFileName basename get Sign uint32 get UnkTableIndex uint32 get LangResourceIndex uint32 get LangIndex uint32 get Unknown_0 uint32 get Unknown_1 uint32 get Unknown_2 uint32 get Unknown_3 uint32 get Unknown_4 uint32 get Unknown_5 uint32 get Unknown_6 uint32 for i = 0 < LangIndex get Unknown_0 uint32 get Unknown_1 uint32 get Unknown_2 uint32 get Unknown_3 uint32 get Unknown_4 uint32 next i for i = 0 < LangIndex for j = 0 < LangResourceIndex get ResourceName uint32 get ResourceSize uint32 get ResourceOffset uint32 get Unknown_0 uint32 get Unknown_1 uint32 get Unknown_2 uint32 get Unknown_3 uint32 get FFFFFFFF uint32 get Unknown_4 uint32 get Duration float get ResourceInfoSize uint32 get Unknown_5 uint32 get Unknown_6 uint32 get PaddSize uint32 get Unknown_7 uint32 get Unknown_8 ushort get Channels ushort get Frequency uint32 get Interleave uint32 get ResourceType ushort get BitDepth ushort get Unknown_9 ushort get Unknown_10 ushort get Unknown_11 uint32 get Unknown_12 uint32 get Unknown_13 uint32 get Unknown_14 uint32 get Unknown_15 uint32 get Unknown_16 uint32 get Unknown_17 uint32 get Unknown_18 uint32 get Unknown_19 uint32 get Unknown_20 uint32 string Name p "%s/Lang_%u/0x%08x.stream" BaseFileName i ResourceName if ResourceOffset != 4294967295 log Name ResourceOffset ResourceSize endif next j next i If it's not compressed you can use Audacity. File > Import Raw > and set the specification printed out by 010 editor Edited July 25, 2025Jul 25 by h3x3r

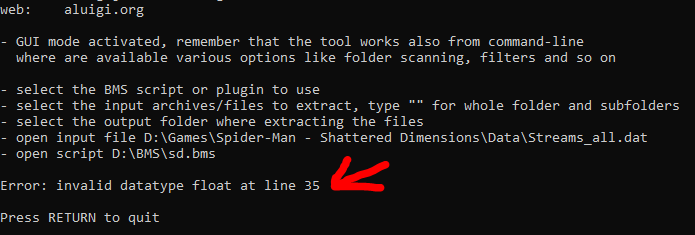

July 25, 2025Jul 25 Author 7 minutes ago, h3x3r said: Here's BMS to unpack Streams_all.dat get BaseFileName basename get Sign uint32 get UnkTableIndex uint32 get LangResourceIndex uint32 get LangIndex uint32 get Unknown_0 uint32 get Unknown_1 uint32 get Unknown_2 uint32 get Unknown_3 uint32 get Unknown_4 uint32 get Unknown_5 uint32 get Unknown_6 uint32 for i = 0 < LangIndex get Unknown_0 uint32 get Unknown_1 uint32 get Unknown_2 uint32 get Unknown_3 uint32 get Unknown_4 uint32 next i for i = 0 < LangIndex for j = 0 < LangResourceIndex get ResourceName uint32 get ResourceSize uint32 get ResourceOffset uint32 get Unknown_0 uint32 get Unknown_1 uint32 get Unknown_2 uint32 get Unknown_3 uint32 get FFFFFFFF uint32 get Unknown_4 uint32 get Duration float get ResourceInfoSize uint32 get Unknown_5 uint32 get Unknown_6 uint32 get PaddSize uint32 get Unknown_7 uint32 get Unknown_8 ushort get Channels ushort get Frequency uint32 get Interleave uint32 get ResourceType ushort get BitDepth ushort get Unknown_9 ushort get Unknown_10 ushort get Unknown_11 uint32 get Unknown_12 uint32 get Unknown_13 uint32 get Unknown_14 uint32 get Unknown_15 uint32 get Unknown_16 uint32 get Unknown_17 uint32 get Unknown_18 uint32 get Unknown_19 uint32 get Unknown_20 uint32 string Name p "%s/Lang_%u/0x%08x.stream" BaseFileName i ResourceName if ResourceOffset != 4294967295 log Name ResourceOffset ResourceSize endif next j next i If it's not compressed you can use Audacity. File > Import Raw > and set the specification printed out by 010 editor
July 25, 2025Jul 25 Supporter Hmm. It works on my side. Try to download latest qbms. Edited July 25, 2025Jul 25 by h3x3r

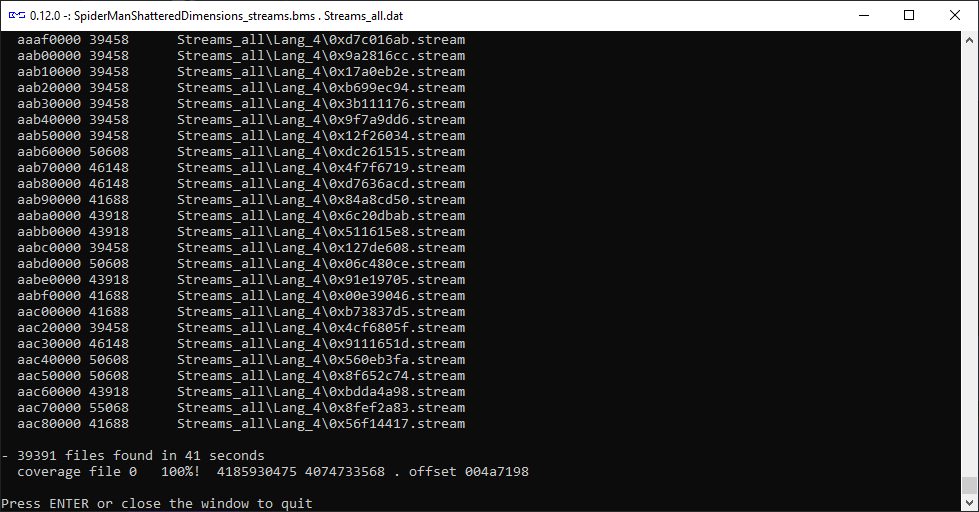

July 25, 2025Jul 25 Author 57 minutes ago, h3x3r said: Hmm. It works on my side. Try to download latest qbms. Yes, it works!
July 25, 2025Jul 25 Localization 1 hour ago, Kelain said: Yes, it works! Now comes the pain of sorting through them all.
July 25, 2025Jul 25 Supporter You can edit the script to output them in folders by ResourceType. string Name p "%s/Lang_%u/0x%08x.stream" BaseFileName i ResourceName to string Name p "%s/Lang_%u/%04u/0x%08x.stream" BaseFileName i ResourceType ResourceName Edited July 25, 2025Jul 25 by h3x3r
July 25, 2025Jul 25 Author 9 hours ago, h3x3r said: Here's BMS to unpack Streams_all.dat get BaseFileName basename get Sign uint32 get UnkTableIndex uint32 get LangResourceIndex uint32 get LangIndex uint32 get Unknown_0 uint32 get Unknown_1 uint32 get Unknown_2 uint32 get Unknown_3 uint32 get Unknown_4 uint32 get Unknown_5 uint32 get Unknown_6 uint32 for i = 0 < LangIndex get Unknown_0 uint32 get Unknown_1 uint32 get Unknown_2 uint32 get Unknown_3 uint32 get Unknown_4 uint32 next i for i = 0 < LangIndex for j = 0 < LangResourceIndex get ResourceName uint32 get ResourceSize uint32 get ResourceOffset uint32 get Unknown_0 uint32 get Unknown_1 uint32 get Unknown_2 uint32 get Unknown_3 uint32 get FFFFFFFF uint32 get Unknown_4 uint32 get Duration float get ResourceInfoSize uint32 get Unknown_5 uint32 get Unknown_6 uint32 get PaddSize uint32 get Unknown_7 uint32 get Unknown_8 ushort get Channels ushort get Frequency uint32 get Interleave uint32 get ResourceType ushort get BitDepth ushort get Unknown_9 ushort get Unknown_10 ushort get Unknown_11 uint32 get Unknown_12 uint32 get Unknown_13 uint32 get Unknown_14 uint32 get Unknown_15 uint32 get Unknown_16 uint32 get Unknown_17 uint32 get Unknown_18 uint32 get Unknown_19 uint32 get Unknown_20 uint32 string Name p "%s/Lang_%u/0x%08x.stream" BaseFileName i ResourceName if ResourceOffset != 4294967295 log Name ResourceOffset ResourceSize endif next j next i If it's not compressed you can use Audacity. File > Import Raw > and set the specification printed out by 010 editor I entered everything that was written there, for example, I want to play some sound from [Lang_0], I enter the data into audacity and I just don't have the track displayed.
July 25, 2025Jul 25 Supporter You must set Stream Offset. The uncompressed_PCM have always zero offset.
July 25, 2025Jul 25 Author 6 minutes ago, h3x3r said: You must set Stream Offset. The uncompressed_PCM have always zero offset. What if there is noise playing in some of the audio?
July 25, 2025Jul 25 Author 17 minutes ago, Kelain said: What if there is noise playing in some of the audio? I don't fully understand how to work with this yet.
