DKDave Posted October 20 Posted October 20 5 minutes ago, Gcr27 said: Hi its possible open OB files does have program this file It's always possible, but without any file samples it's difficult to say for sure.
Gcr27 Posted October 22 Author Posted October 22 This method is very difficult. I can't extract the lobster sled. I don't like working with hexadecimal programs. Is there another way? I don't want to bother anyone, I just want you to help me with a step-by-step guide.

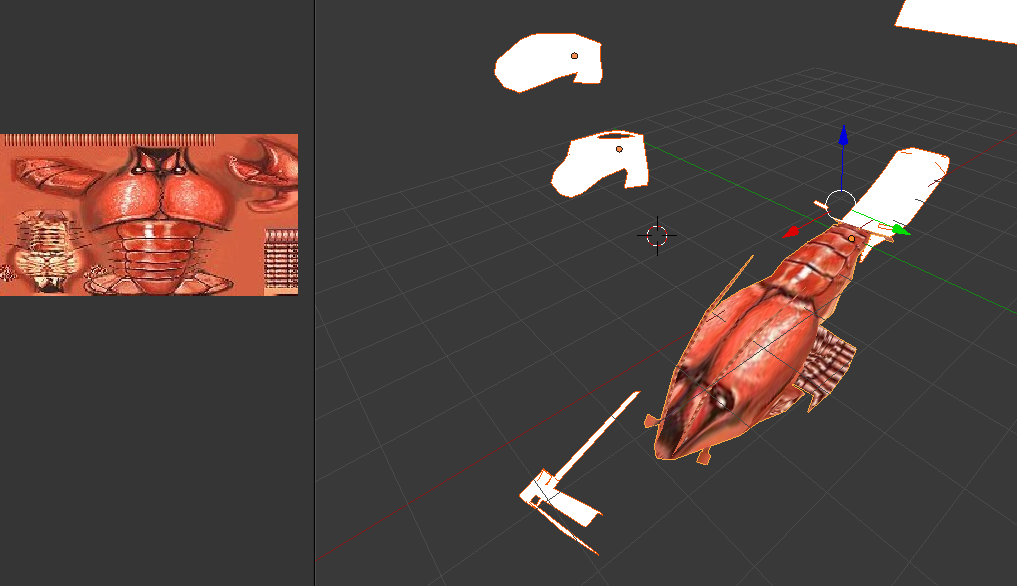

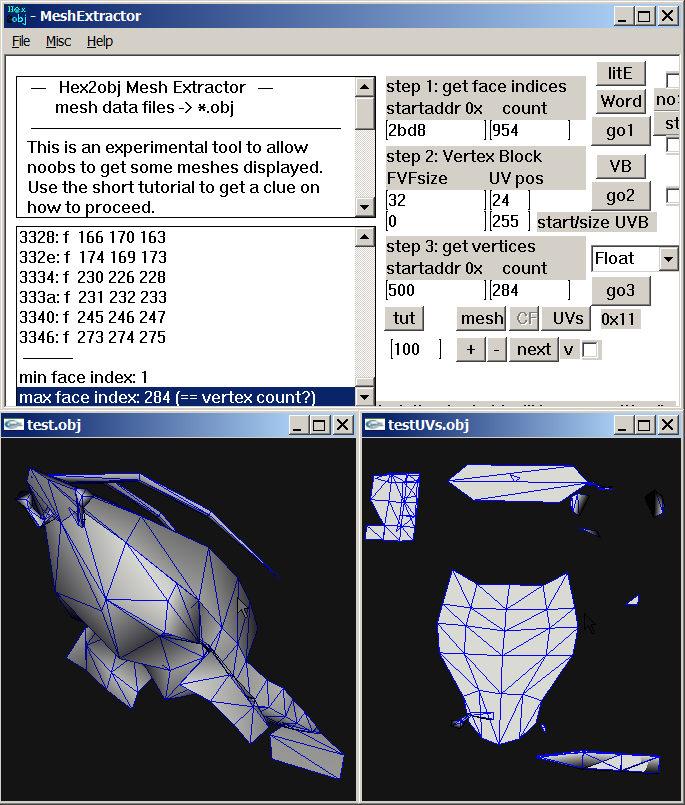

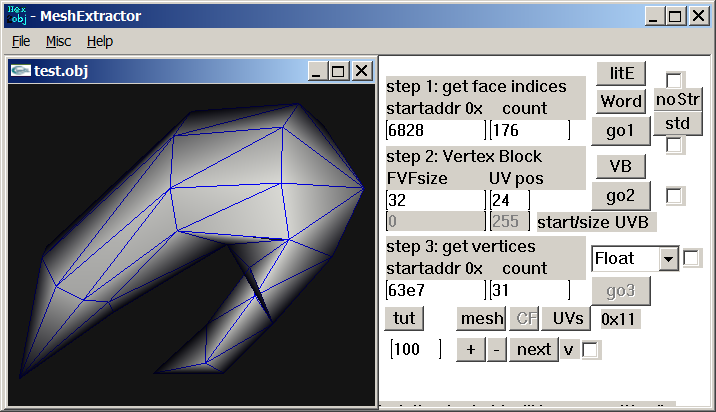

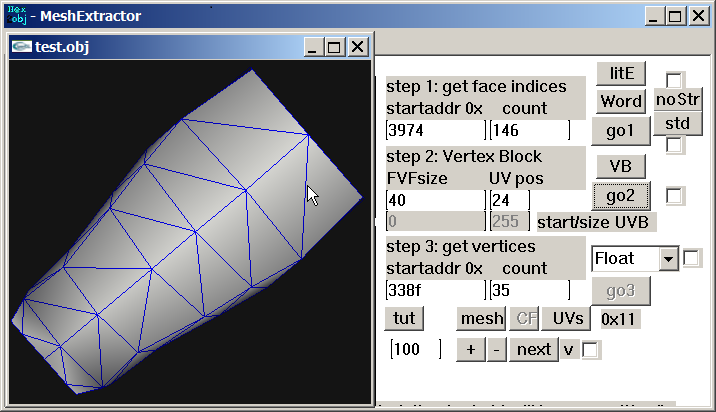

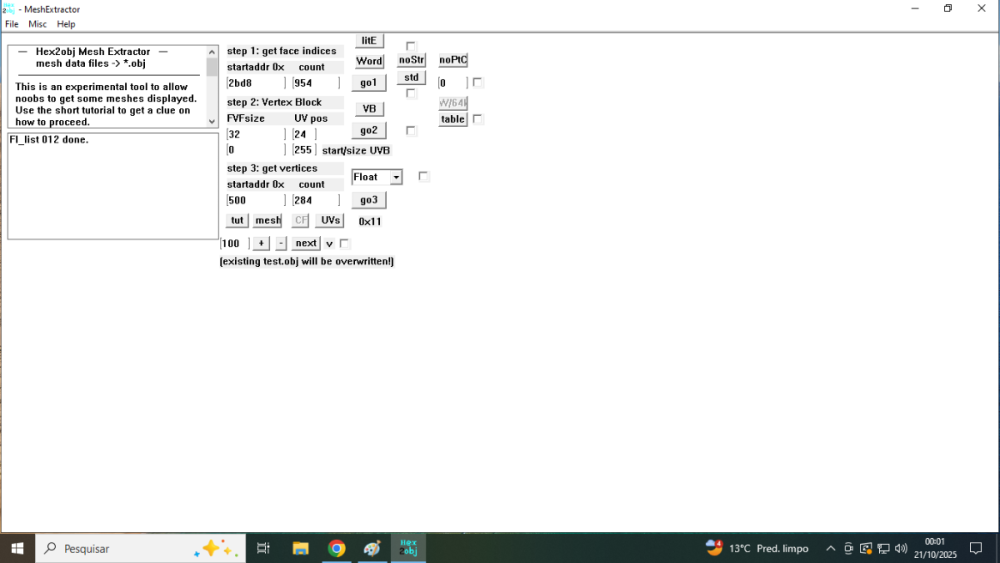

Engineers shak-otay Posted October 23 Engineers Posted October 23 (edited) 1 hour ago, Gcr27 said: This method is very difficult. I can't extract the lobster sled. What? Press the 'mesh' button and the lobster should be displayed. Choose 'File\SaveAs mesh' and the obj file will be created (first sub mesh only, see attachment). Quote I don't like working with hexadecimal programs. Too bad. This is what I can provide. Quote Is there another way? You can wait for someone who creates a script for you. Quote I don't want to bother anyone, I just want you to help me with a step-by-step guide. A guide for what? If you want to know how to get the parameters for any Wanadoo .ob file, that requires some basic knowledge in hex analysing of binary 3D data. edit: next sub mesh: claw (position wrong, needs some offset or matrix applied): Wanadoo SC lobstersled_0.zip Edited October 23 by shak-otay typo
Gcr27 Posted November 18 Author Posted November 18 shak-otay, can you help me figure out which .ob format program can open? I need a script for quickbms or noesis.
Engineers shak-otay Posted November 18 Engineers Posted November 18 I'll see what I can do. May take some time. As you can see from my previous post some sub meshes (claw for example) might need a special treatment so it's more complicated than for other formats I've handled so far.
DKDave Posted November 18 Posted November 18 49 minutes ago, Gcr27 said: shak-otay, can you help me figure out which .ob format program can open? I need a script for quickbms or noesis. As mentioned, you've opened another topic for the same thing and attached the same files, so I'll delete your other post as a duplicate.
Engineers shak-otay Posted November 19 Engineers Posted November 19 @Gcr27: getting the correct start addresses of the FI blocks was harder than expected. I'd need 3 or 4 .ob samples to check the tool.
Engineers shak-otay Posted November 19 Engineers Posted November 19 Do you have more samples? (others than the two you've uploaded already)
Engineers shak-otay Posted November 19 Engineers Posted November 19 (edited) Thanks for the samples! Is there any sample that is not a lobster or a racing boat? (And maybe of bigger file size?) Edited November 20 by shak-otay racing boat

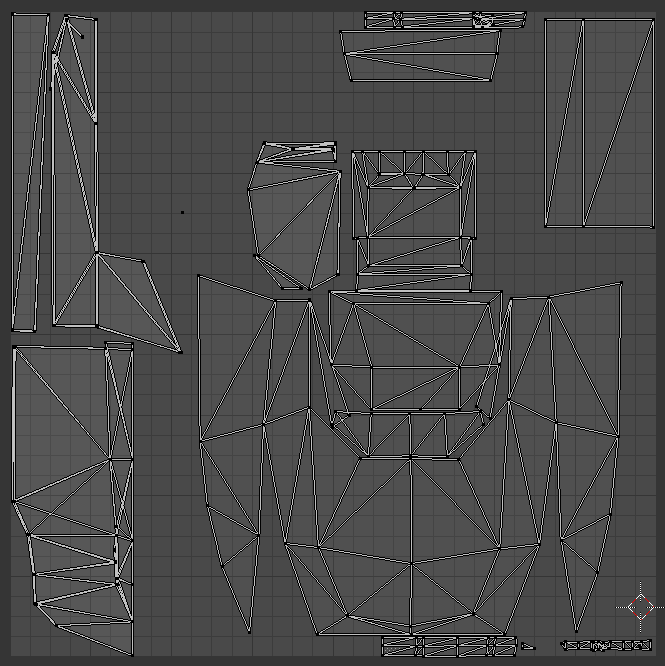

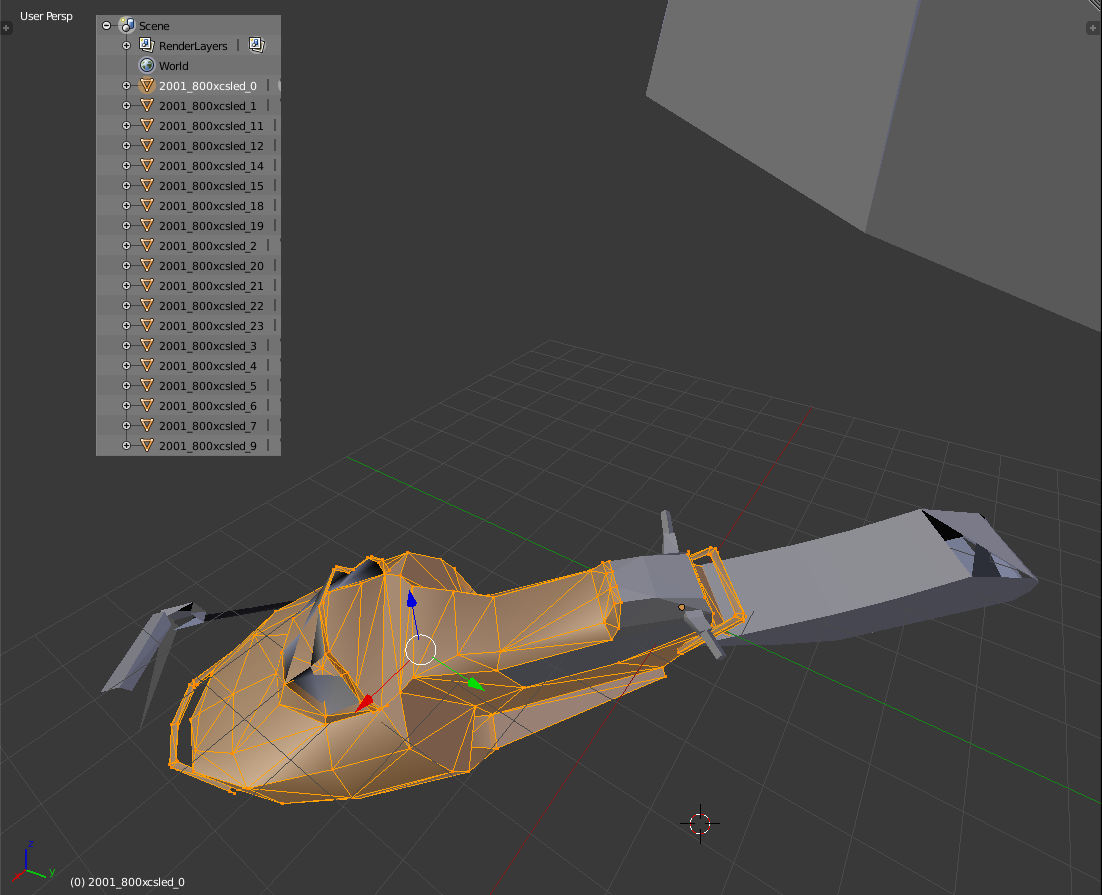

Engineers shak-otay Posted November 20 Engineers Posted November 20 (edited) This is 2001-sled ("racing boat"): edit: handle bars are at the wrong position, I guess Zipped H2O files for it (sub meshes and/or faces may be missing, though). 2001_800xcsled.ob_0to23.zip Edited November 20 by shak-otay
Engineers shak-otay Posted November 21 Engineers Posted November 21 (edited) Creation of H2O files from .ob: Wannado_ob.zip - use it on your own risk - 2 or three H2O files contain wrong FI start addresses and counts - position of some sub meshes may be wrong (see handle bars in my pre-previous post) Edited November 21 by shak-otay
