Football Kingdom - Trial Edition, models files nudp .nud


Recommended Posts

Posted

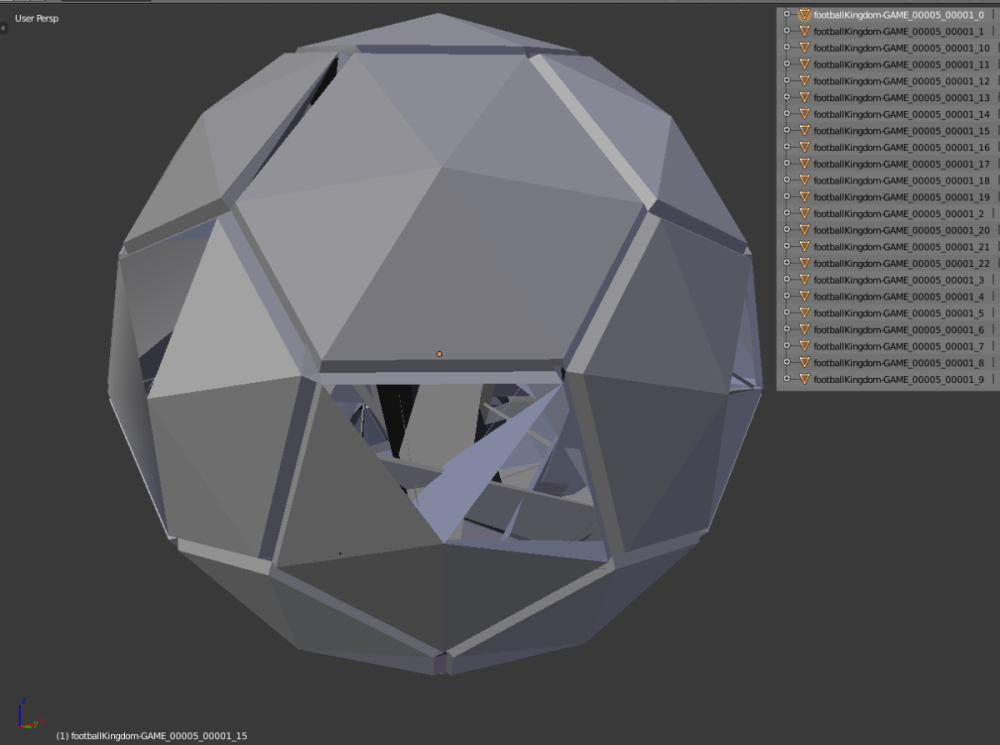

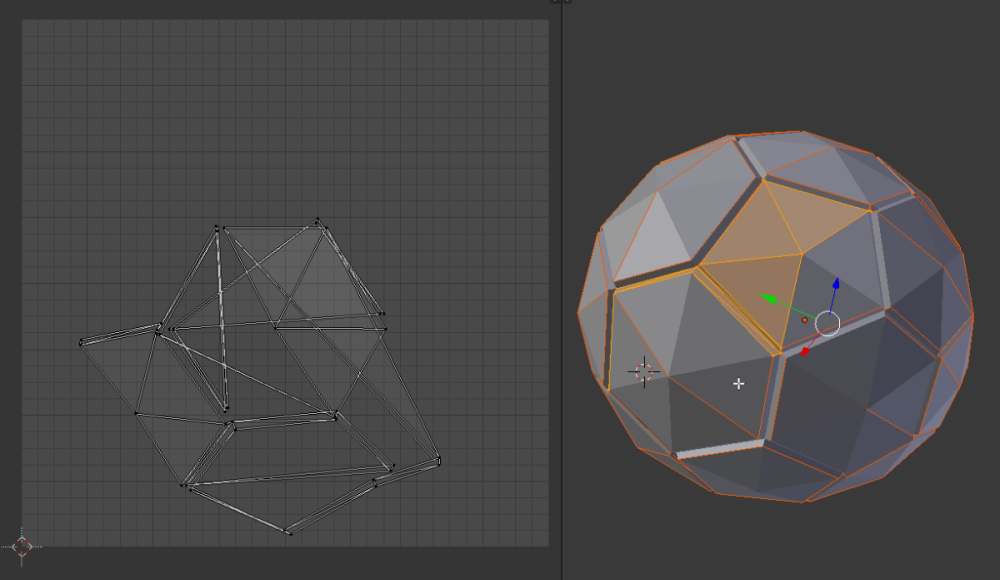

Hi guys im looking for some help to understand the files from the game mentioned on the title, the file that im attaching is a ball model the only thing i was able to tell was this

4 bytes magic(NUDP);
uint size;

//unknown data until offset 0x114

uint id1?; //some id that indicates if its vertex data? in some models is 0x01000103 or0 x01000105
uint unknown;
uint vertexCount;

16 unknown bytes

vertex data, 32 bytes per vertex (still unsure but most of those values looks like floats)
uint or float unknown2;
uint id2?; // depends on the model, in this case 0x010003030
uint fixed1; //always 0x20
uint fixed2; // always 0xffffff7f

triangle data?



any help would be appreciated!

GAME_00005_00001.zip
