(PS2) GvG: Rengou VS ZAFT II PLUS .pzz format

[Eraea]

Hi! I would like some help regarding .pzz format from the game Gundam vs Gundam Rengou VS ZAFT II PLUS
I know the models and game is old but they are retro and still look good.

Thanks

AFS_DATA.7z

[BloodRaynare]

Here's BMS script to extracting your files:

## Kidou Senshi Gundam Seed Destiny: Rengou vs. Z.A.F.T. II Plus (PS2) - PZZ extraction script by BloodRaynare
## For use with QuickBMS

math ENTRY_OFFSET = 0x800

comtype pzz

get FILES long
for i = 0 < FILES
	get ENTRY long
	math ENTRY_SIZE = ENTRY
	math ENTRY_SIZE & 0xffffff
	math ENTRY_SIZE * 0x800
	math ENTRY_FLAG = ENTRY
	math ENTRY_FLAG >> 24
	string NAME p "%03d.bin" i
	if ENTRY_FLAG == 0x40
		savepos TMP
		goto ENTRY_OFFSET
		get SIZE long
		get ZSIZE long
		savepos OFFSET
		clog NAME OFFSET ZSIZE SIZE
		goto TMP
	else
		log NAME ENTRY_OFFSET ENTRY_SIZE
	endif
	math ENTRY_OFFSET + ENTRY_SIZE
next i

The model file are 000.bin while 001.bin contains a TM2 texture file.
However, that's only as far as I could help.

[Eraea]

38 minutes ago, BloodRaynare said:

Here's BMS script to extracting your files:

## Kidou Senshi Gundam Seed Destiny: Rengou vs. Z.A.F.T. II Plus (PS2) - PZZ extraction script by BloodRaynare
## For use with QuickBMS

math ENTRY_OFFSET = 0x800

comtype pzz

get FILES long
for i = 0 < FILES
	get ENTRY long
	math ENTRY_SIZE = ENTRY
	math ENTRY_SIZE & 0xffffff
	math ENTRY_SIZE * 0x800
	math ENTRY_FLAG = ENTRY
	math ENTRY_FLAG >> 24
	string NAME p "%03d.bin" i
	if ENTRY_FLAG == 0x40
		savepos TMP
		goto ENTRY_OFFSET
		get SIZE long
		get ZSIZE long
		savepos OFFSET
		clog NAME OFFSET ZSIZE SIZE
		goto TMP
	else
		log NAME ENTRY_OFFSET ENTRY_SIZE
	endif
	math ENTRY_OFFSET + ENTRY_SIZE
next i

The model file are 000.bin while 001.bin contains a TM2 texture file.
However, that's only as far as I could help.

Thank you so much!

That's a big help already and I can take it from there

[piken]

Quote

while 001.bin contains a TM2 texture file.

😎

Quote

That's a big help already and I can take it from there

Eraea: I'm curious what tool(s) you'll use for the rest? For PS2 data, I've found Console Texture Explorer useful, but in this case for pl00-001.bin's texture (8bpp 512x512 pix@900h), I can't seem to get it to display the palette (r5g5b5x1 x 256 @0x40900 with 8x2 swizzle), despite providing the correct base offset as I did in my tiny test app.

Edited March 10, 2024 by piken

[BloodRaynare]

1 hour ago, piken said:

😎

Eraea: I'm curious what tool(s) you'll use for the rest? For PS2 data, I've found Console Texture Explorer useful, but in this case for pl00-001.bin's texture (8bpp 512x512 pix@900h), I can't seem to get it to display the palette (r5g5b5x1 x 256 @0x40900 with 8x2 swizzle), despite providing the correct base offset as I did in my tiny test app.

I think the problem is Console Texture Explorer doesn't support 2-bytes (16-bit) CLUT, only 4-bytes (32-bit) are supported.

[Shoutani_S]

On 3/10/2024 at 1:26 PM, BloodRaynare said:

Here's BMS script to extracting your files:

## Kidou Senshi Gundam Seed Destiny: Rengou vs. Z.A.F.T. II Plus (PS2) - PZZ extraction script by BloodRaynare
## For use with QuickBMS

math ENTRY_OFFSET = 0x800

comtype pzz

get FILES long
for i = 0 < FILES
	get ENTRY long
	math ENTRY_SIZE = ENTRY
	math ENTRY_SIZE & 0xffffff
	math ENTRY_SIZE * 0x800
	math ENTRY_FLAG = ENTRY
	math ENTRY_FLAG >> 24
	string NAME p "%03d.bin" i
	if ENTRY_FLAG == 0x40
		savepos TMP
		goto ENTRY_OFFSET
		get SIZE long
		get ZSIZE long
		savepos OFFSET
		clog NAME OFFSET ZSIZE SIZE
		goto TMP
	else
		log NAME ENTRY_OFFSET ENTRY_SIZE
	endif
	math ENTRY_OFFSET + ENTRY_SIZE
next i

The model file are 000.bin while 001.bin contains a TM2 texture file.
However, that's only as far as I could help.

Thanks for making a very nice script.
I was able to use it with gundam vs gundam and gundam next.
Is there any way to compress tm2 files into pzz format?

[BloodRaynare]

4 hours ago, Shoutani_S said:

Thanks for making a very nice script.
I was able to use it with gundam vs gundam and gundam next.
Is there any way to compress tm2 files into pzz format?

QuickBMS doesn't have compressor algorithm for pzz but you can use this: https://github.com/infval/pzzcompressor_jojo

[Shoutani_S]

7 hours ago, BloodRaynare said:

QuickBMS doesn't have compressor algorithm for pzz but you can use this: https://github.com/infval/pzzcompressor_jojo

Awesome! I was able to compress it! Thank you very much!

[Eraea]

Hi guys, it's been a while

I've finally been able to write an initial code to parse the 000.bin files, Also the extension probably is .PMF as I checked other games from the same series (Mainly Gundam Vs Zeta Gundam for the PS2) and the .PMF files were exactly the same type as the extracted 000.bin.

Anyways here's a Blender 3.3-3.6 or 4.1+ addon to load them.
in regards to TIM2 I was able to extract them via the Noesis TexFinder tool but I am currently looking into the tim2 extension and possibly modify it to support the game's tim2 structure.

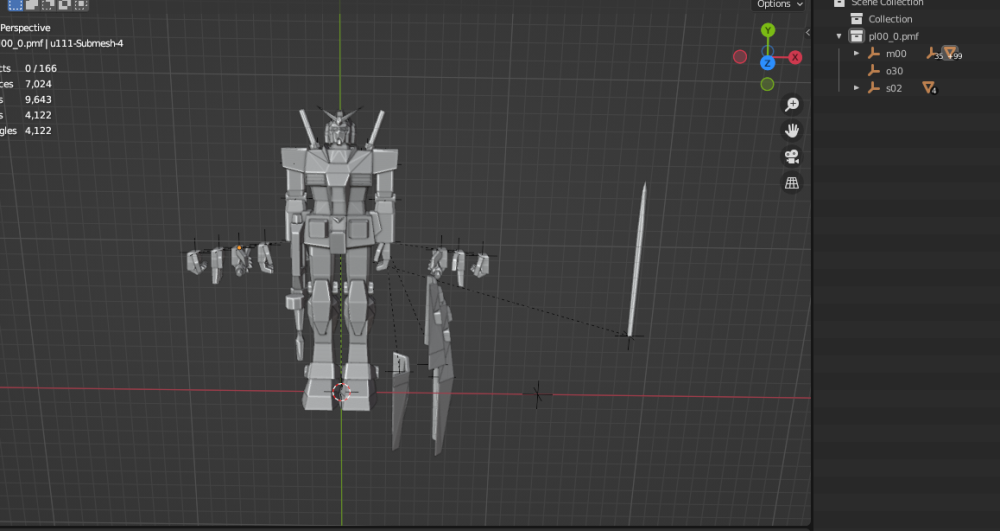

from Alliance Vs Zaft 2

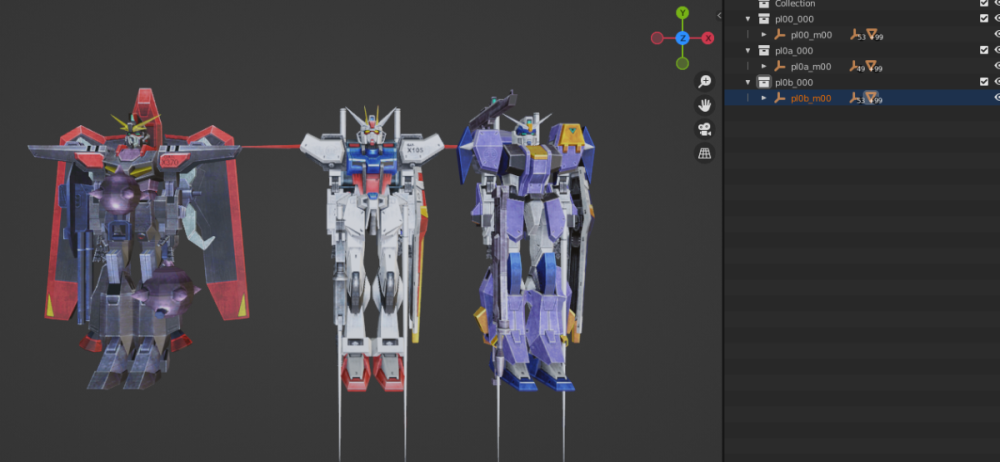

From Gundam Vs Zeta Gundam


PZZImporter.zip
