bohhu Posted October 28, 2025 Posted October 28, 2025 On 2/11/2025 at 9:39 AM, h3x3r said: Hi, Can somebody please figure out vertex normals. They should be byte. But not sure. They are in 3848536924.VertexBuffer. It's the last thing i need to finish my 010 Editor template exporter. Here is info: 612424467.VertexBuffer Vertices Offset > 0x1C, Stride > 12, Vertex count > 7412 Data Type > Float 3848536924.VertexBuffer Normals, UV, etc Offset > 0x1C, Stride > 20, Vertex count > 7412 2139299717.IndexBuffer Indices Offset > 0xF5DC4, Index Count > 4320, Data type > uint16 Thanks in advance. f40_normals.7z 390.93 kB · 11 downloads EDiT: Tried this one but it doesn't yield nothing good byte bx = Var0, by = Var1, bz = Var2; double length = Math.Sqrt((bx * bx) + (by * by) + (bz * bz)); double dx = bx / length, dy = by / length, dz = bz / length; EDiT: I got some clues but not sure how they are converted. There is some unknown after x,y,z. maybe it's somehow involved in conversion. I can see some patern in it. 001 vn -78 -75 30 unknown 48 > vn 0.850738 -0.162228 -0.499926 002 vn -88 -95 46 unknown 47 > vn 0.830714 -0.115664 -0.544552 003 vn -88 21 -81 unknown 46 > vn 0.830885 -0.172438 -0.529052 004 vn -88 53 -50 unknown 47 > vn 0.830573 -0.225279 -0.509311 005 vn -78 37 -97 unknown 47 > vn 0.850253 -0.107755 -0.515227 006 vn -3 -47 -81 unknown 61 > vn 0.996954 -0.023489 -0.074376 007 vn -3 -63 -49 unknown 61 > vn 0.997029 -0.031295 -0.070382 008 vn -78 77 -66 unknown 48 > vn 0.850758 -0.213692 -0.480152 009 vn -3 41 0 unknown 2 > vn 0.997836 0.019600 0.062759 010 vn -3 -31 -97 unknown 61 > vn 0.996948 -0.016643 -0.076276 011 vn -3 -15 -97 unknown 61 > vn 0.997050 -0.007840 -0.076350 012 vn -78 -111 95 unknown 47 > vn 0.850449 -0.054870 -0.523188 013 vn -88 -115 95 unknown 46 > vn 0.830468 -0.056695 -0.554173 014 vn -3 -79 -17 unknown 61 > vn 0.997009 -0.039206 -0.066607 015 vn -78 -23 125 unknown 49 > vn 0.850203 -0.262448 -0.456372 016 vn -88 -55 -83 unknown 48 > vn 0.830695 -0.278314 -0.482170 017 vn -3 57 -16 unknown 1 > vn 0.997786 0.027350 0.060626 018 vn -3 69 -48 unknown 1 > vn 0.997821 0.033377 0.056907 019 vn -3 29 32 unknown 2 > vn 0.997684 0.013718 0.066627 020 vn -31 -43 48 unknown 10 > vn 0.941970 0.103787 0.319252 did you get the normals? what formula did you use to get the final coordinates?
bohhu Posted October 29, 2025 Posted October 29, 2025 in the end, I did it, thanks to everyone who posted on this topic. 1
NOTKAY Posted February 17 Posted February 17 On 6/24/2025 at 10:26 PM, micro777 said: Rip PS4 Driveclub can u explain the steps
Engineers shak-otay Posted February 17 Engineers Posted February 17 (edited) 2 hours ago, NOTKAY said: can u explain the steps Guess, no one will do it for you. It's all in the thread. See addresses which h3x3r provided. Don't forget the .MESH files. H2O parameters General app (not Driveclub specific) Edited February 17 by shak-otay

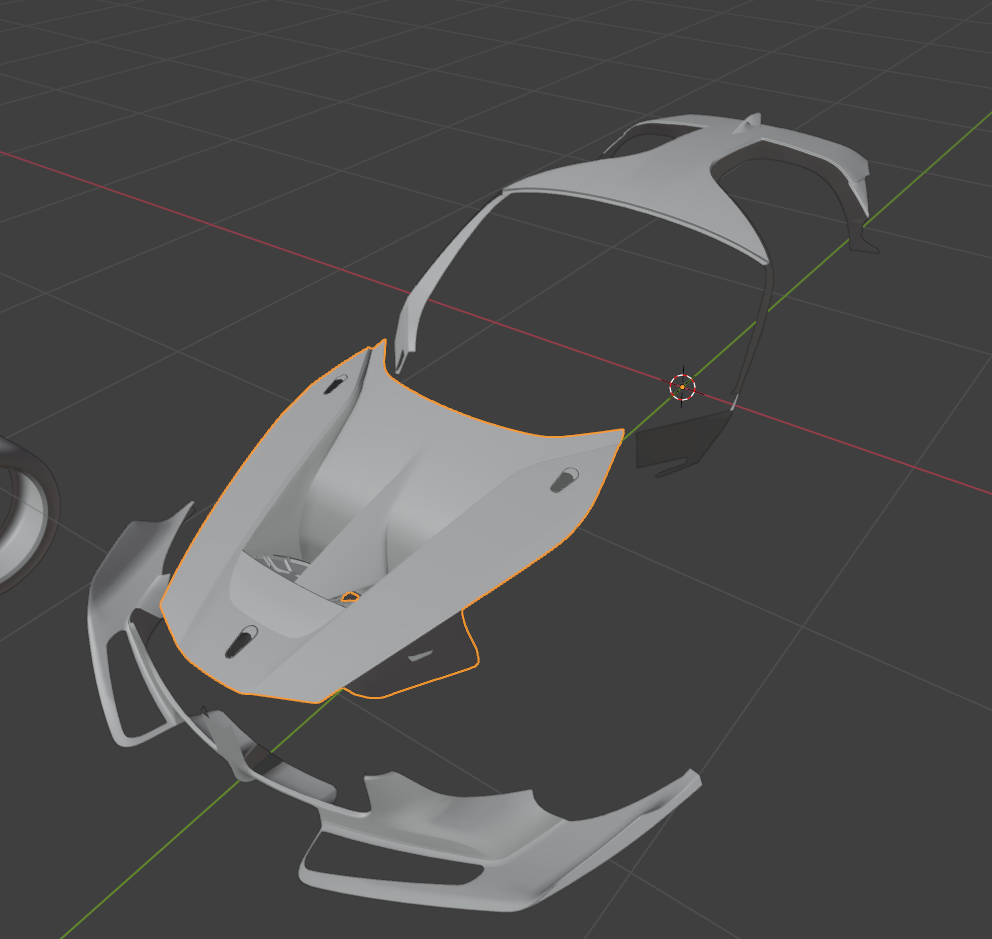

Engineers h3x3r Posted February 22 Engineers Posted February 22 I was just lucky. Following my 010 editor template. Can't believe it i converted it to the python...🙃 Sure there's left transfer parts, i leave it as last piece of puzzle. There's also parenting, somethin new to me to be honest. But i got it in my template. Now understand the parenting function.

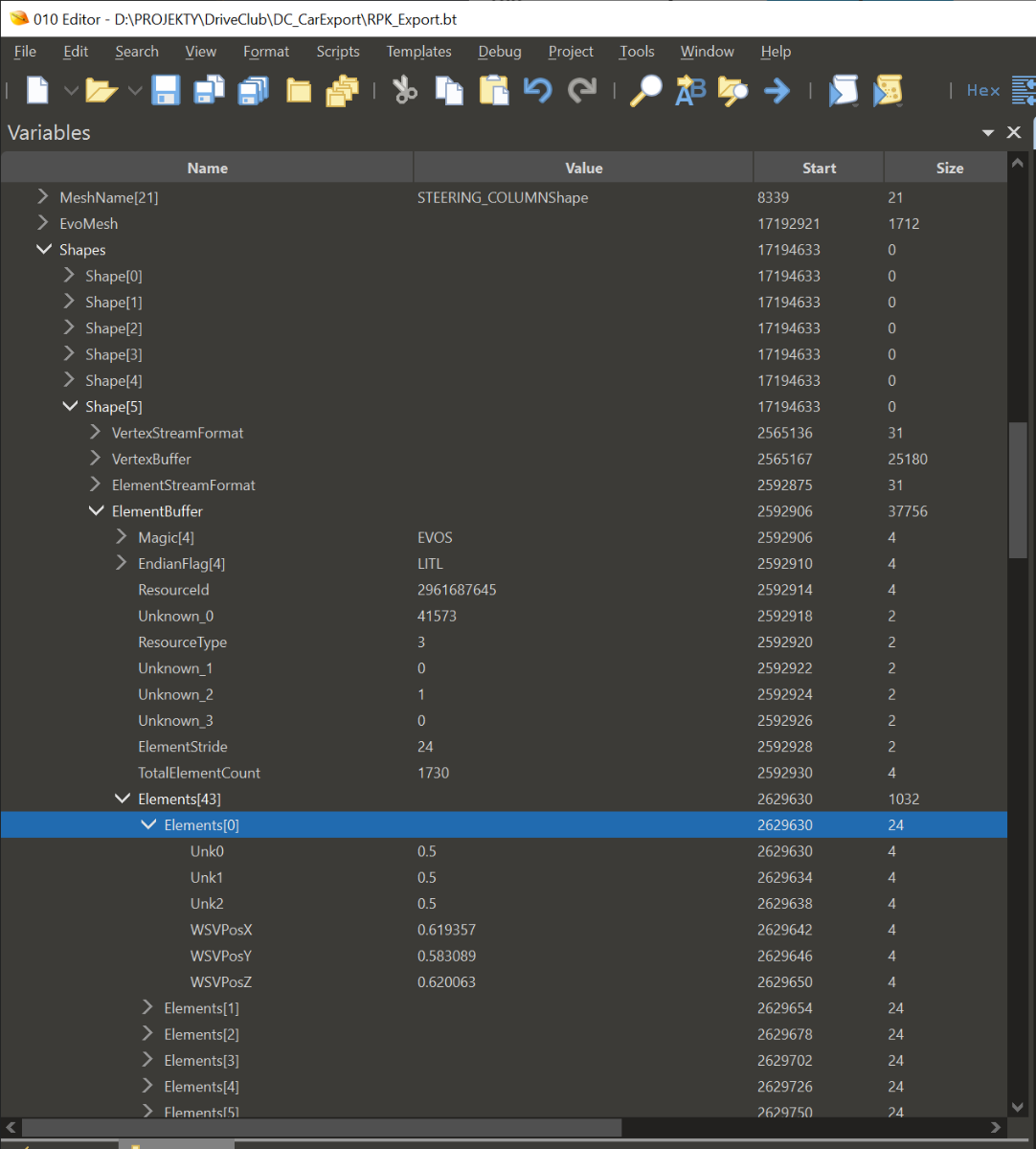

Engineers h3x3r Posted February 23 Engineers Posted February 23 (edited) Hi, well i stuck at gathering element buffers. Whatever i am doing... i am doing it wrong. Here is code for parsing elements. Now i need to collect only specific buffers. Let's say dcUnitVectorSize and put it into single buffer and feed rapi.rpgBindUV1Buffer() with it. dcElementTypeList = [] dcElementSizeList = [] dcUnknown_0List = [] bs.seek(dcElementStreamFormatResourceId64Offset, NOESEEK_ABS) bs.read(12) dcElementStreamIndex = bs.readUByte() for n in range(0, dcElementStreamIndex): dcElementTypeList.append(bs.readUByte()) dcElementSizeList.append(bs.readUByte()) dcUnknown_0List.append(bs.readUByte()) dcUnknown_1 = bs.readUByte() dcUnknown_2 = bs.readUByte() # dcElementBuffer bs.seek(dcElementResourceOffset, NOESEEK_ABS) bs.read(22) dcElementStride = bs.readUShort() dcTotalElementIndex = bs.readUInt() dcElementBufferBaseOffset = bs.tell() for o in range(0, dcTotalElementIndex): for p in range(0, dcElementStreamIndex): dcElementType = dcElementTypeList[p] dcElementSize = dcElementSizeList[p] dcUnknown_0 = dcUnknown_0List[p] if dcElementType == 2 and dcElementSize == 15: dcNormalsSize = bs.read(3) dcNormalsVarSize = bs.read(1) elif dcElementType == 5 and dcElementSize == 8: dcUnitVectorSize = bs.read(8) elif dcElementType == 5 and dcElementSize == 9 and dcUnknown_0 == 1: dcUnknown03fSize = bs.read(12) elif dcElementType == 5 and dcElementSize == 9: dcUnknown13fSize = bs.read(12) elif dcElementType == 5 and dcElementSize == 15: dcUnknown4bSize = bs.read(4) elif dcElementType == 6 and dcElementSize == 19: dcColorsSize = bs.read(4) if dcElementType == 5 and dcElementSize == 8: rapi.rpgBindUV1Buffer(feed buffer, noesis.RPGEODATA_FLOAT, 8) I would say i tried everything but wrong... Basically i don't know how to deal with 2 loops. Thank you for anything. Anyway this works for vertices, but not sure why not for elements dcVerticesSize = bytes() for k in range(0, dcTotalVertexIndex): for l in range(0, dcVertexStreamIndex): dcVertexType = dcVertexTypeList[l] dcVertexSize = dcVertexSizeList[l] if dcVertexType == 1 and dcVertexSize == 9: dcVerticesSize += bs.read(12) #dcVertexBuffer.extend(dcVerticesSize) elif dcVertexType == 2 and dcVertexSize == 15: dcNormalsSize = bs.read(3) dcNormalsVarSize = bs.read(1) #dcVertexNormalsBuffer.extend(dcNormalsSize) elif dcVertexType == 5 and dcVertexSize == 8: dcUnitVectorSize = bs.read(8) #dcVertexUVBuffer.extend(dcUnitVectorSize) elif dcVertexType == 5 and dcVertexSize == 9: dcUnknown3fBufferSize = bs.read(12) #dcVertexUnknown3fBuffer.extend(dcUnknown3fBufferSize) elif dcVertexType == 5 and dcVertexSize == 15: dcUnknown4bBufferSize = bs.read(4) #dcVertexUnknown4bBuffer.extend(dcUnknown4bBufferSize) elif dcVertexType == 6 and dcVertexSize == 19: dcColorsSize = bs.read(4) #dcVertexColorsBuffer.extend(dcColorsSize) rapi.rpgBindPositionBuffer(bytes(dcVerticesSize), noesis.RPGEODATA_FLOAT, 12) Edited February 23 by h3x3r
Engineers shak-otay Posted February 23 Engineers Posted February 23 Hi, I'd suggest to print out index p and an element, say dcElementTypeList[p] for example. This way you might see more.

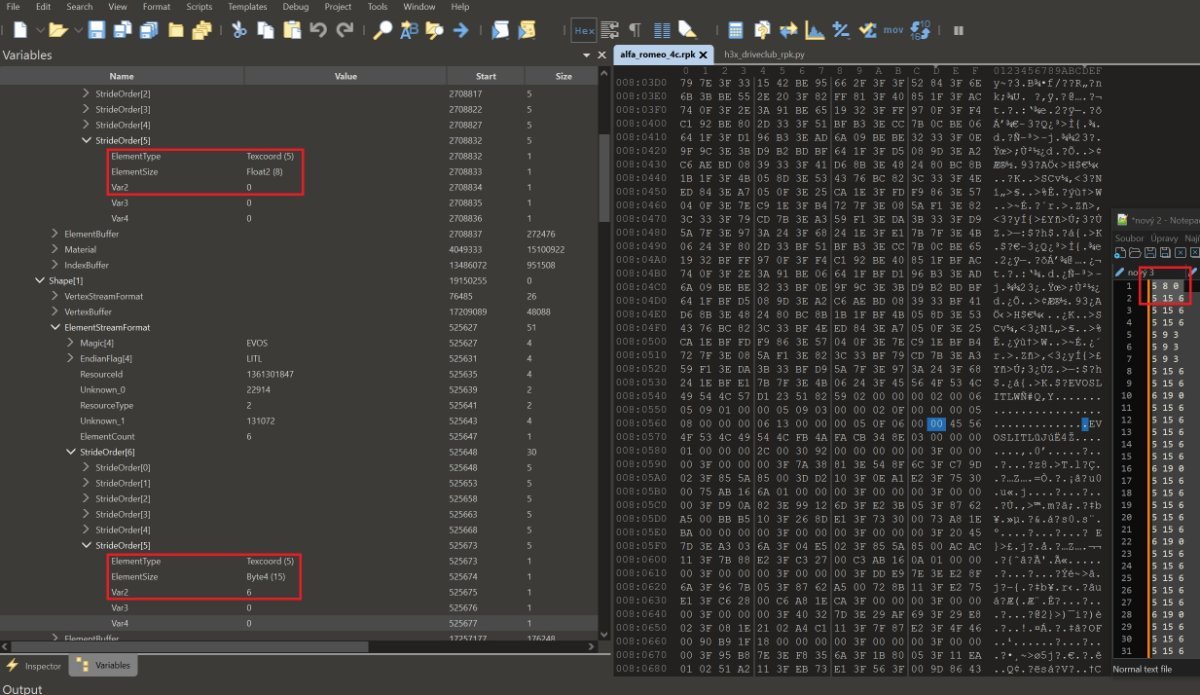

Engineers h3x3r Posted February 23 Engineers Posted February 23 (edited) So you think there is another element i don't have described? Not sure why my 010 template works with UV but this one not. So i check it but nothing unusual. All printed variables are described. But... there are minimum 5 8 0 variables which are UVs, same for normals, none. And in my template i have them. It prints only last entry. Like rest doesn't count? wtf I think there will be something trivial in loop... Well if i print element value like that, i am retreiving them. for o in range(0, 1): for p in range(0, dcElementStreamIndex): dcElementType = dcElementTypeList[p] dcElementSize = dcElementSizeList[p] dcElementUnknown_0 = dcElementUnknown0List[p] print(o,p,dcElementType,dcElementSize,dcElementUnknown_0) Lets summarize it: VertexStreamFormat offset ✓ VertexStreamFormat parse ✓ VertexBuffer offset ✓ ElementStreamFormat offset ✓ ElementStreamFormat parse ✓ ElementBuffer offset ✓ element buffer use same vertex count as vertex buffer but still when i feed the buffer it gives me error about UV1 buffer would have been read out of bounds by provided indices. So i don't think that faces fails. Edited February 23 by h3x3r
Engineers shak-otay Posted February 23 Engineers Posted February 23 1 hour ago, h3x3r said: but still when i feed the buffer it gives me error about UV1 buffer would have been read out of bounds by provided indices. Yeah, this "out of bounds" error in Noesis. SizeOfBuffer divided by sizeOfElements gives the elements' count. And that must match the maximum face index count. Sounds simple but sometimes it's a little bit hard to solve it...
Engineers h3x3r Posted February 23 Engineers Posted February 23 (edited) Hmm there is also vertex/element offset starting from base offset + VertexCount + 1 * stride. I am reading whole buffer. Looks like with this i also must reset face index to 0 and i noticed something about it. there are 2 values one is lower and second higher, could this be min index, max index. And this: max index - min index gives you vertex count Edited February 23 by h3x3r

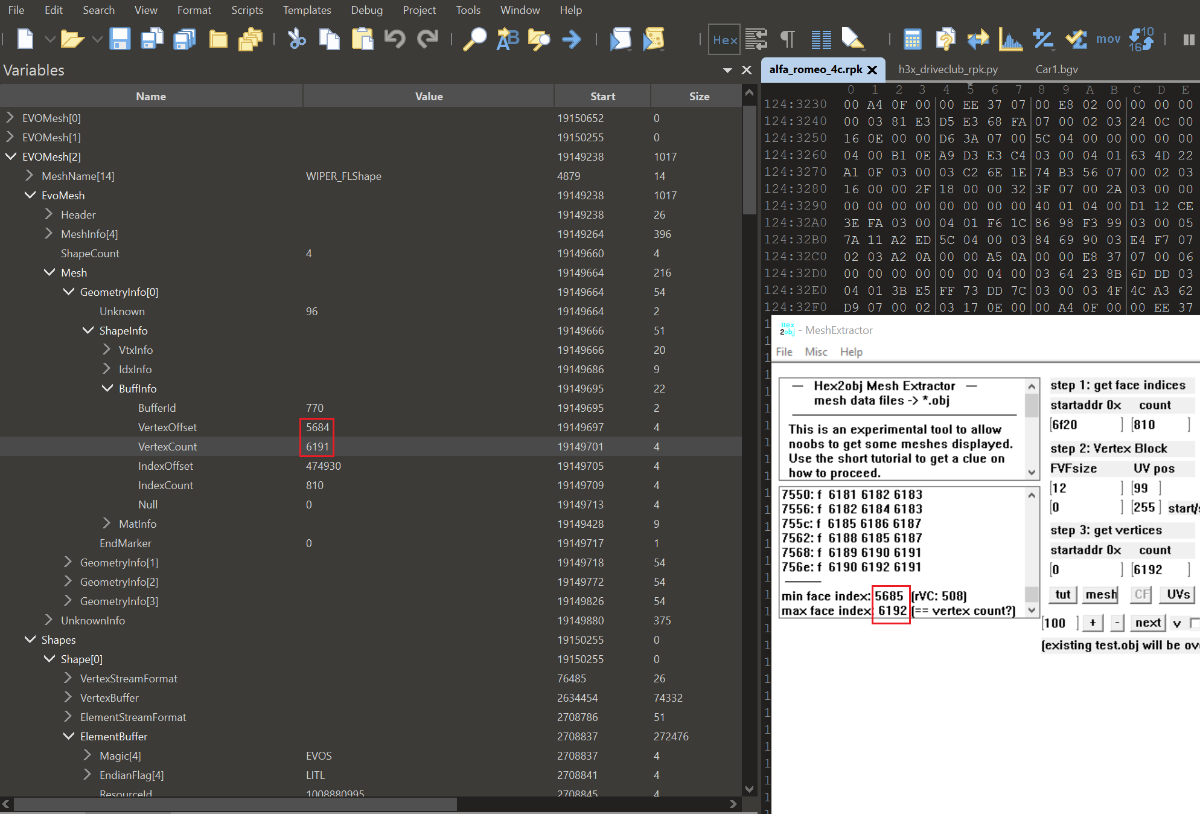

Engineers shak-otay Posted February 23 Engineers Posted February 23 (edited) 6 hours ago, h3x3r said: And this: max index - min index gives you vertex count (typo?) you don't read it as a difference. Max face index is identical with vertex count when min index is zero.That's why hex2obj says rVC=508 for 6192 - 5685. Last time when min face index was not zero for me was the game 'Ride' 10 years ago. I was cleverer these times. Edited February 24 by shak-otay
Engineers h3x3r Posted February 23 Engineers Posted February 23 (edited) Maybe i found solution for my template. I was reading whole vertex bufer bcs faces were not reseted. I have let's say 405 vertex count but face indices starts with 8652. So that VertexOffset value is min face index. So now i need just Subtract every face indice with that min index and it should be ok. Yes, it worked. Now i can export it with 010 without using 40 GB+ RAM when exporting... So what i need now is convert indices and return them back to binary buffer. EDiT: Figured out how to reset indices and push them to buffer. So now I hope, that uv will work. Nah same sh!t Edited February 24 by h3x3r 1
Engineers shak-otay Posted February 24 Engineers Posted February 24 Great. Absolute versa relative indexing: Now I remember why I had to introduce rVC for the game 'Ride'.

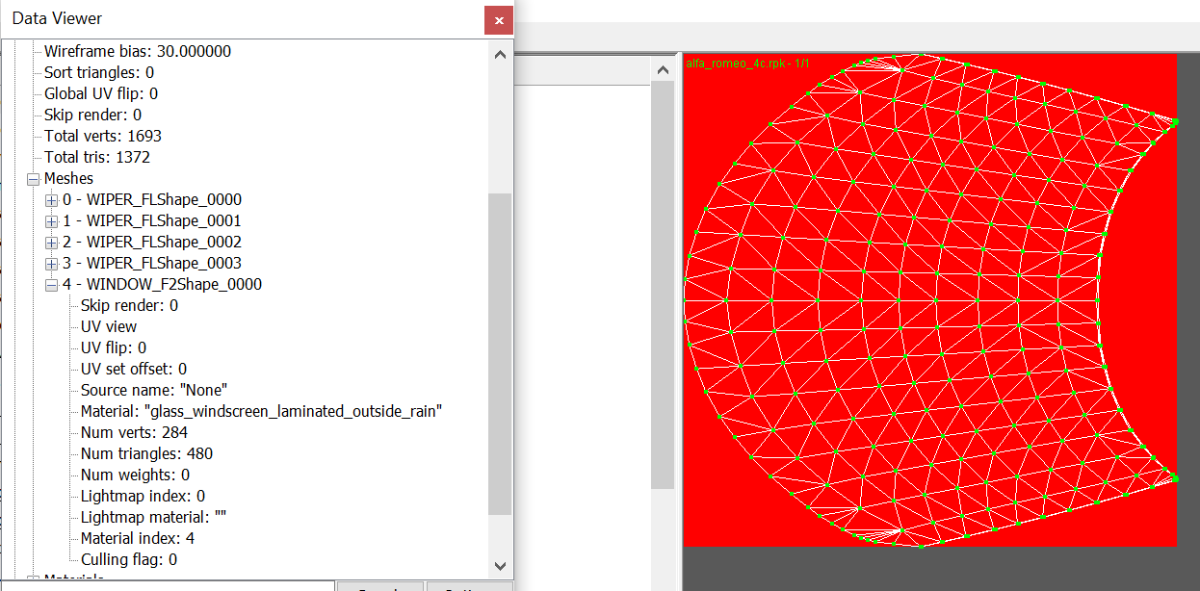

Engineers h3x3r Posted February 24 Engineers Posted February 24 (edited) Well i noticed something off with reading elements. I printed the small one and it gives me just half of buffer. EDiT: Correction, they are there but somehow converted to string instead of hex b'\xd1[\x00?:[\x00?\x8d)\x80>\xfa\x08\x00?\xd1[\x00?\xdf\xdf\x80>ca\x80>\xe5(\x80>' Should be \d1\5b\00\3f\3a\5b\00\3f\8d\29\80\3e\fa\08\00\3f\d1\5b\00\3f\df\df\80\3e\63\61\80\3e\e5\28\80\3e But maybe thats the print function format Nah it does same for vertices and they work, so it's normal. Hmmm looks like culprit STEERING_COLUMNShape bytearray(b'') It's empty and i bet my ass that this one mf causing it. And it's not only one. So maybe exception problem. Yep, no uv's Confirmed, my exception fails. I tried to load like 5 meshes which has uv and they load with uv's. Well now i have half of meshes with uv. But rest is not displayed... Maybe i break something with exception Edited February 24 by h3x3r

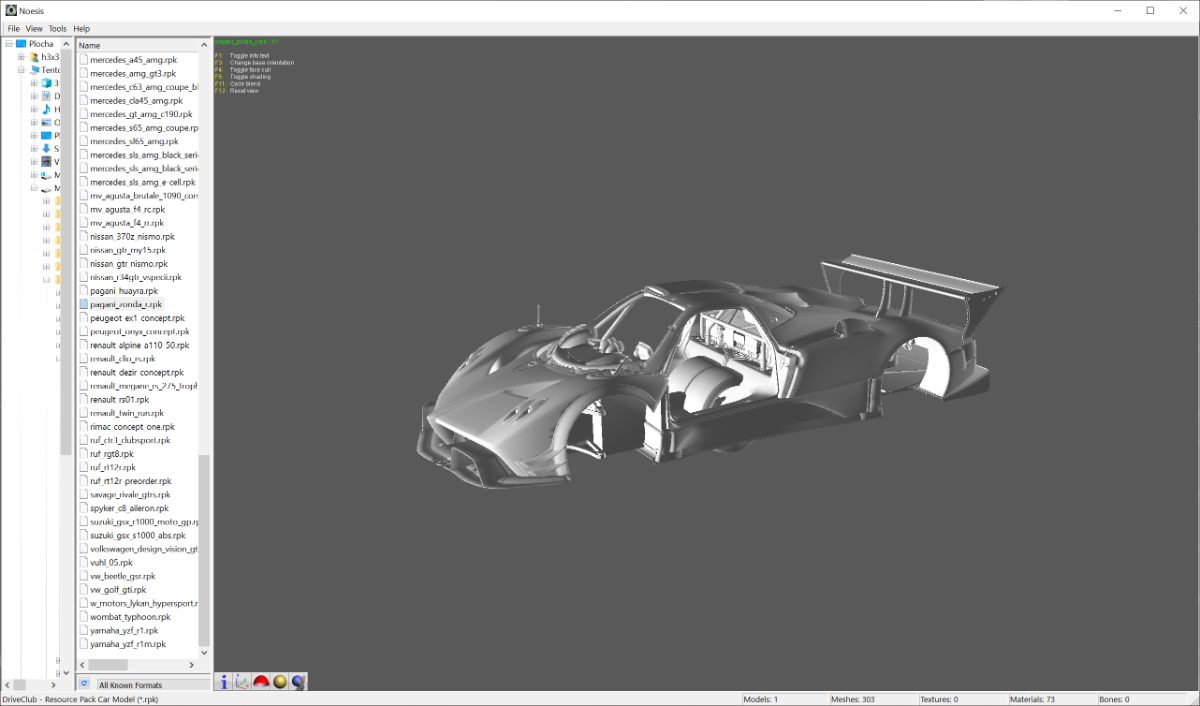

Engineers h3x3r Posted February 25 Engineers Posted February 25 Getting closer. Now i have 250 out of 259 displayed.
Engineers shak-otay Posted February 25 Engineers Posted February 25 On 2/24/2026 at 1:55 PM, h3x3r said: Maybe i break something with exception Sounds strange. Usually try/except helps finding problems.
Engineers h3x3r Posted February 25 Engineers Posted February 25 (edited) I don't know how to load meshes without uv. I have all with em. There are 3 UV Sets. But can't get right exception combo. dcElementUVSet0Size = len(dcElementUVSet0) dcElementUVSet1Size = len(dcElementUVSet1) dcElementUVSet2Size = len(dcElementUVSet2) if dcElementUVSet0Size != 0 and dcElementUVSet1Size == 0: rapi.rpgBindUV1Buffer(bytes(dcElementUVSet0), noesis.RPGEODATA_FLOAT, 8) elif dcElementUVSet0Size == 0 and dcElementUVSet1Size != 0: rapi.rpgBindUV1Buffer(bytes(dcElementUVSet1), noesis.RPGEODATA_FLOAT, 8) elif dcElementUVSet0Size != 0 and dcElementUVSet1Size != 0: rapi.rpgBindUV1Buffer(bytes(dcElementUVSet1), noesis.RPGEODATA_FLOAT, 8) elif dcElementUVSet0Size == 0 and dcElementUVSet1Size == 0 and dcElementUVSet2Size != 0: rapi.rpgBindUV1Buffer(bytes(dcElementUVSet2), noesis.RPGEODATA_FLOAT, 8) else: break Not sure why that break breaks pasrsing rest of mesh. And here whole code for imagination. dcElementUVSet0 = bytearray() dcElementUVSet1 = bytearray() dcElementUVSet2 = bytearray() for k in range(0, dcElementCount): for l in range(0, dcElementStreamIndex): dcElementType = dcElementTypeList[l] dcElementSize = dcElementSizeList[l] dcElementUnknown_0 = dcElementUnknown0List[l] if dcElementType == 2 and dcElementSize == 15: dcNormalsSize = bs.read(3) dcNormalsVarSize = bs.read(1) elif dcElementType == 5 and dcElementSize == 8 and dcElementUnknown_0 == 0: dcUnitVectorSize = bs.read(8) dcElementUVSet0.extend(dcUnitVectorSize) elif dcElementType == 5 and dcElementSize == 8 and dcElementUnknown_0 == 3: dcUnitVectorSize = bs.read(8) dcElementUVSet2.extend(dcUnitVectorSize) elif dcElementType == 5 and dcElementSize == 8 and dcElementUnknown_0 == 4: dcUnitVectorSize = bs.read(8) dcElementUVSet1.extend(dcUnitVectorSize) elif dcElementType == 5 and dcElementSize == 9: dcUnknown03fSize = bs.read(12) elif dcElementType == 5 and dcElementSize == 15: dcUnknown4bSize = bs.read(4) elif dcElementType == 6 and dcElementSize == 19: dcColorsSize = bs.read(4) dcElementEndOffset = bs.tell() dcElementUVSet0Size = len(dcElementUVSet0) dcElementUVSet1Size = len(dcElementUVSet1) dcElementUVSet2Size = len(dcElementUVSet2) if dcElementUVSet0Size != 0 and dcElementUVSet1Size == 0: rapi.rpgBindUV1Buffer(bytes(dcElementUVSet0), noesis.RPGEODATA_FLOAT, 8) elif dcElementUVSet0Size == 0 and dcElementUVSet1Size != 0: rapi.rpgBindUV1Buffer(bytes(dcElementUVSet1), noesis.RPGEODATA_FLOAT, 8) elif dcElementUVSet0Size != 0 and dcElementUVSet1Size != 0: rapi.rpgBindUV1Buffer(bytes(dcElementUVSet1), noesis.RPGEODATA_FLOAT, 8) elif dcElementUVSet0Size == 0 and dcElementUVSet1Size == 0 and dcElementUVSet2Size != 0: rapi.rpgBindUV1Buffer(bytes(dcElementUVSet2), noesis.RPGEODATA_FLOAT, 8) else: break # Seek for dcMaterial dcMaterialResourceId64Offset = data.find(dcNull and dcMaterialResourceId64, dcTableOffset, dcTableSize) bs.seek(dcMaterialResourceId64Offset, NOESEEK_ABS) bs.read(12) dcMaterialResourceOffset = bs.readUInt() I did exception for: elif dcElementUVSet0Size == 0 and dcElementUVSet1Size == 0 and dcElementUVSet2Size == 0: bs.seek(dcElementEndOffset, NOESEEK_ABS) continue But it returns : tried to set offset beyond buffer size. Also this is 010 code and it works just fine. if (exists(UV0PosX) & !exists(UV1PosX)) { Printf("vt %f %f\n",UV0PosX,-UV0PosY + 1); } else if (!exists(UV0PosX) & exists(UV1PosX)) { Printf("vt %f %f\n",UV1PosX,-UV1PosY + 1); } else if (exists(UV0PosX) & exists(UV1PosX)) { Printf("vt %f %f\n",UV1PosX,-UV1PosY + 1); } Edited February 25 by h3x3r
Engineers h3x3r Posted February 26 Engineers Posted February 26 Good news, i figured it out, but as usual a can't select uv set.😂
AyKay Posted May 21 Posted May 21 Hey guys, is there a way to replicate this method but for the .bnk and .crk audio files so I can use them in Automation cars? ChatGPT told me your method only gets .dat .bin and .rpk, but the audio files are still stcuk encrypted in the bin files? any ideas?
AyKay Posted May 21 Posted May 21 Hey guys, is there a way to replicate this method but for the .bnk and .crk audio files so I can use them in Automation cars? ChatGPT told me your method only gets .dat .bin and .rpk, but the audio files are still stcuk encrypted in the bin files? any ideas?
