orion42m Posted February 26 Share Posted February 26 7 minutes ago, Unordinal said: I haven't actively done any reversing for Helldivers 2 but I've done some for Vermintide 2 which uses the same base engine. Here's a hash dictionary of the known extensions for that game. I can see that at least the first file type you have there matches the `.bones` file type. Hide contents ac2b738a374cf583 actor 931e336d7646cc26 animation dcfb9e18fff13984 animation_curves 44957ef5a3a368e4 animation_set 3eed05ba83af5090 apb 7ffdb779b04e4ed1 baked_lighting aa5965f03029fa18 bik e301e8af94e3b5a3 blend_set 18dead01056b72e9 bones b7893adf7567506a chroma f7b361bde8b4dd03 common fe9754bd19814a47 common_package 0001a6d201e87086 compiled_shader 82645835e6b73232 config 69108ded1e3e634b crypto 8fd0d44d20650b68 data 64298613551f58d4 dds ed74b77c6d447d84 disabled 9831ca893b0d087d entity 92d3ee038eeb610d flow 6a00deed7d3b235a flow_editor 9efe0a916aae7880 font d526a27da14f1dc5 ini fa4a8e091a91201e ivf a62f9297dc969e85 keys 2a690fd348fe9ac5 level a14e8dfa2cd117e2 lua eac0b497876adedf material 48ff313713a997a1 mesh 3fcdd69156a46417 mod b277b11fe4a61d37 mouse_cursor 169de9566953d264 navdata 3b1fa9e8f6bac374 network_config ad9c6d9ed1e5e77a package a8193123526fad64 particles 5f7203c8f280dab8 physics 22bd082459e868d8 physics_data bf21403a3ab0bbb1 physics_properties 46cab355bd8d4d37 prototype 27862fe24795319c render_config d37e11a77baafc01 resource 9d0a795bfe818d19 scene cce8d5b5f5ae333f shader e5ee32a477239a93 shader_library 9e5c3cc74575aeb5 shader_library_group fe73c7dcff8a7ca5 shading_environment 250e0a11ac8e26f8 shading_environment_mapping a27b4d04a9ba6f9e slug e9fc9ea7042e5ec0 slug_album 90641b51c98b7aac sound d8b27864a97ffdd7 sound_environment f97af9983c05b950 spu_job a486d4045106165c state_machine bb0279e548747a0a statemachine_editor 0d972bab10b40fd3 strings ad2d3fa30d9ab394 surface_properties cd4238c6a0c69e32 texture 91f98cecac930de8 timestamp 94616b1760e1c463 timpani 99736be1fff739a4 timpani_bank 00a3e6c59a2b9c6c timpani_master 19c792357c99f49b tome e0a48d0be9a7453f unit 8c074c8f95e7841b user_settings f7505933166d6755 vector_field 6ad9817aa72d9533 volume 786f65c00a816b19 wav 535a7bd3e650d799 wwise_bank af32095c82f2b070 wwise_dep d50a8b7e1c82b110 wwise_metadata 504b55235d21440e wwise_stream 76015845a6003765 xml 712d6e3dd1024c9c ugg a99510c6e86dd3c2 upb 2bbcabe5074ade9e input 52014e20a7fdccef xp 7b82d55316f98c9b vista de8c9d00247f8fc6 w7 0605775c0481181b w8 293bb3b1982c6d5a main b6b3099f78886ff9 win32 d596cd750e4e279f zD Thank you! I will just have to figure out how to get that hash dictonary into 010, Link to comment Share on other sites More sharing options...
Engineer h3x3r Posted February 26 Engineer Share Posted February 26 5 minutes ago, Helldiver said: What is "IdString Lookup"? Tool included in stingray editor. @Unordinal thanks for that info. Definitely worth. Link to comment Share on other sites More sharing options...
Helldiver Posted February 26 Share Posted February 26 1 minute ago, h3x3r said: Tool included in stingray editor. @Unordinal thanks for that info. Definitely worth. Oh, is that public? Link to comment Share on other sites More sharing options...

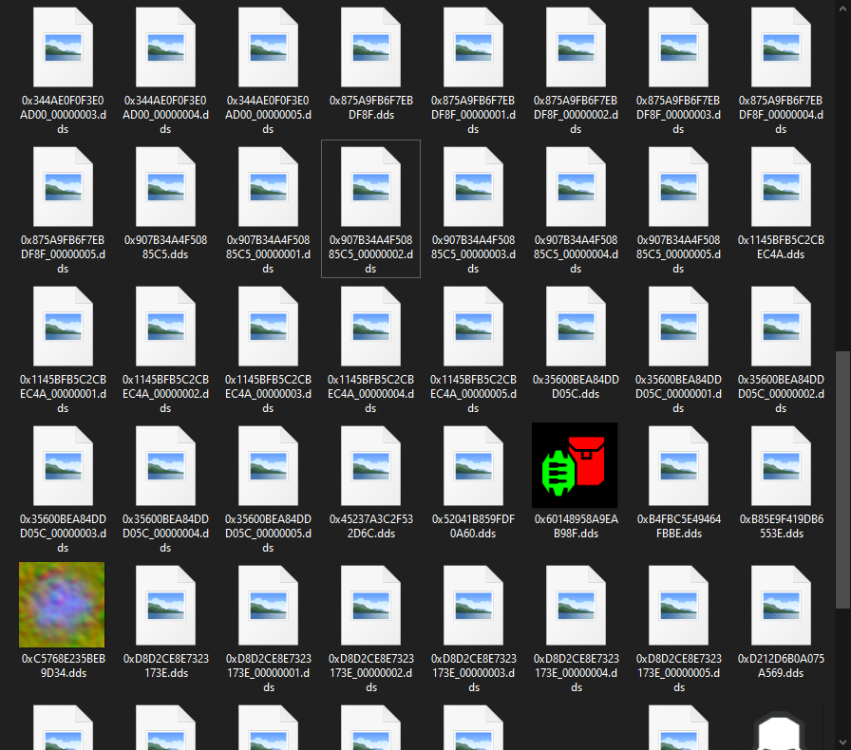

Myrkur Posted February 26 Share Posted February 26 anyone else getting some rather "cursed" imports of the meshes? Can't tell if these are some weird Lods or not and a bunch of the textures are mostly invalid DDS textures. Link to comment Share on other sites More sharing options...
Myrkur Posted February 26 Share Posted February 26 5 hours ago, h3x3r said: Anyone familiar with IDA code. Here is that hash function. Reveal hidden contents { .maxstack 8 ldarg.0 call instance void [mscorlib]System.Object::.ctor() ldarg.0 newobj instance void class [mscorlib]System.Collections.Generic.Dictionary`2<unsigned int64, string>::.ctor() stfld class [mscorlib]System.Collections.Generic.Dictionary`2<unsigned int64, string> Stingray.Console.ReverseIdLookup::_map ldarg.0 ldfld class [mscorlib]System.Collections.Generic.Dictionary`2<unsigned int64, string> Stingray.Console.ReverseIdLookup::_map ldc.i4.0 conv.i8 ldstr asc_1429A // "" callvirt instance void class [mscorlib]System.Collections.Generic.Dictionary`2<unsigned int64, string>::set_Item(var<u1>, !!T0) ldarg.0 ldarg.1 call instance void Stingray.Console.ReverseIdLookup::ReadFile(string path) ret } .method public hidebysig instance string Lookup(unsigned int64 id) { .maxstack 8 ldarg.0 ldfld class [mscorlib]System.Collections.Generic.Dictionary`2<unsigned int64, string> Stingray.Console.ReverseIdLookup::_map ldarg.1 callvirt instance var<u1> class [mscorlib]System.Collections.Generic.Dictionary`2<unsigned int64, string>::get_Item(void) ret } .method public hidebysig instance string LookupOrHex(unsigned int64 id) // CODE XREF: Stingray.Console.LoadingProfiler__DrawScope+57↑p // Stingray.Console.LoadingProfiler__DrawUnfinishedScope+3A↑p ... { .maxstack 8 ldarg.0 ldfld class [mscorlib]System.Collections.Generic.Dictionary`2<unsigned int64, string> Stingray.Console.ReverseIdLookup::_map ldarg.1 callvirt instance bool class [mscorlib]System.Collections.Generic.Dictionary`2<unsigned int64, string>::ContainsKey(var<u1>) brfalse.s loc_A5BB ldarg.0 ldfld class [mscorlib]System.Collections.Generic.Dictionary`2<unsigned int64, string> Stingray.Console.ReverseIdLookup::_map ldarg.1 callvirt instance var<u1> class [mscorlib]System.Collections.Generic.Dictionary`2<unsigned int64, string>::get_Item(void) ret loc_A5BB: // CODE XREF: Stingray.Console.ReverseIdLookup__LookupOrHex+C↑j ldarga.s 1 ldstr aX // "X" call instance string [mscorlib]System.UInt64::ToString(string) ret } .method private hidebysig instance void ReadFile(string path) // CODE XREF: Stingray.Console.ReverseIdLookup__.ctor+25↑p { .maxstack 5 .locals init (unsigned int8[] V0, int32 V1, int32 V2, string V3, unsigned int8[] V4) ldarg.1 call bool [mscorlib]System.IO.File::Exists(string) brtrue.s loc_A5D9 ret loc_A5D9: // CODE XREF: Stingray.Console.ReverseIdLookup__ReadFile+6↑j ldarg.1 ldc.i4.3 call unsigned int8[] [common]Stingray.FileUtils::ReadAllBytes(string, valuetype [mscorlib]System.IO.FileShare) stloc.0 ldc.i4.0 stloc.1 ldc.i4.0 stloc.2 br.s loc_A626 loc_A5E7: // CODE XREF: Stingray.Console.ReverseIdLookup__ReadFile+5A↓j ldloc.0 ldloc.2 ldelem.u1 brtrue.s loc_A622 call class [mscorlib]System.Text.Encoding [mscorlib]System.Text.Encoding::get_UTF8() ldloc.0 ldloc.1 ldloc.2 ldloc.1 sub callvirt instance string [mscorlib]System.Text.Encoding::GetString(unsigned int8[], int32, int32) stloc.3 call class [mscorlib]System.Text.Encoding [mscorlib]System.Text.Encoding::get_UTF8() ldloc.3 callvirt instance unsigned int8[] [mscorlib]System.Text.Encoding::GetBytes(string) stloc.s 4 ldarg.0 ldfld class [mscorlib]System.Collections.Generic.Dictionary`2<unsigned int64, string> Stingray.Console.ReverseIdLookup::_map ldarg.0 ldloc.s 4 ldc.i4.0 call instance unsigned int64 Stingray.Console.ReverseIdLookup::MurmurHash64(unsigned int8[] data, unsigned int32 seed) ldloc.3 callvirt instance void class [mscorlib]System.Collections.Generic.Dictionary`2<unsigned int64, string>::set_Item(var<u1>, !!T0) ldloc.2 ldc.i4.1 add stloc.1 loc_A622: // CODE XREF: Stingray.Console.ReverseIdLookup__ReadFile+1A↑j ldloc.2 ldc.i4.1 add stloc.2 loc_A626: // CODE XREF: Stingray.Console.ReverseIdLookup__ReadFile+15↑j ldloc.2 ldloc.0 ldlen conv.i4 blt.s loc_A5E7 ret } .method private hidebysig instance unsigned int64 MurmurHash64(unsigned int8[] data, unsigned int32 seed) // CODE XREF: Stingray.Console.ReverseIdLookup__ReadFile+43↑p { .maxstack 4 .locals init (int32 V0, unsigned int64 V1, int32 V2, int32 V3, unsigned int8& pinned V4, unsigned int64* V5, unsigned int64 V6, unsigned int8& pinned V7) ldarg.1 ldlen conv.i4 stloc.0 ldarg.2 conv.u8 ldloc.0 conv.i8 ldc.i8 0xC6A4A7935BD1E995 mul xor stloc.1 ldloc.0 ldc.i4.8 rem stloc.2 ldloc.0 ldc.i4.8 div stloc.3 ldloc.3 ldc.i4.0 ble.s loc_A6AD ldarg.1 ldc.i4.0 ldelema [mscorlib]System.Byte stloc.s 4 ldloc.s 4 conv.i stloc.s 5 br.s loc_A6A6 loc_A660: // CODE XREF: Stingray.Console.ReverseIdLookup__MurmurHash64+77↓j ldloc.s 5 ldind.i8 stloc.s 6 ldloc.s 6 ldc.i8 0xC6A4A7935BD1E995 mul stloc.s 6 ldloc.s 6 ldloc.s 6 ldc.i4.s 0x2F shr.un xor stloc.s 6 ldloc.s 6 ldc.i8 0xC6A4A7935BD1E995 mul stloc.s 6 ldloc.1 ldloc.s 6 xor stloc.1 ldloc.1 ldc.i8 0xC6A4A7935BD1E995 mul stloc.1 ldloc.3 ldc.i4.1 sub stloc.3 ldloc.s 5 ldc.i4.8 add stloc.s 5 loc_A6A6: // CODE XREF: Stingray.Console.ReverseIdLookup__MurmurHash64+2E↑j ldloc.3 brtrue.s loc_A660 ldc.i4.0 conv.u stloc.s 4 loc_A6AD: // CODE XREF: Stingray.Console.ReverseIdLookup__MurmurHash64+1E↑j ldloc.2 ldc.i4.0 ble loc_A74C ldarg.1 ldc.i4.8 ldloc.0 ldc.i4.8 div mul ldelema [mscorlib]System.Byte stloc.s 7 ldloc.2 ldc.i4.1 sub switch loc_A734, loc_A728, loc_A71B, loc_A70E, loc_A701, loc_A6F4, loc_A6E7 br.s loc_A748 loc_A6E7: // CODE XREF: Stingray.Console.ReverseIdLookup__MurmurHash64+94↑j ldloc.1 ldloc.s 7 conv.i ldc.i4.6 add ldind.u1 conv.u8 ldc.i4.s 0x30 shl xor stloc.1 loc_A6F4: // CODE XREF: Stingray.Console.ReverseIdLookup__MurmurHash64+94↑j ldloc.1 ldloc.s 7 conv.i ldc.i4.5 add ldind.u1 conv.u8 ldc.i4.s 0x28 shl xor stloc.1 loc_A701: // CODE XREF: Stingray.Console.ReverseIdLookup__MurmurHash64+94↑j ldloc.1 ldloc.s 7 conv.i ldc.i4.4 add ldind.u1 conv.u8 ldc.i4.s 0x20 shl xor stloc.1 loc_A70E: // CODE XREF: Stingray.Console.ReverseIdLookup__MurmurHash64+94↑j ldloc.1 ldloc.s 7 conv.i ldc.i4.3 add ldind.u1 conv.u8 ldc.i4.s 0x18 shl xor stloc.1 loc_A71B: // CODE XREF: Stingray.Console.ReverseIdLookup__MurmurHash64+94↑j ldloc.1 ldloc.s 7 conv.i ldc.i4.2 add ldind.u1 conv.u8 ldc.i4.s 0x10 shl xor stloc.1 loc_A728: // CODE XREF: Stingray.Console.ReverseIdLookup__MurmurHash64+94↑j ldloc.1 ldloc.s 7 conv.i ldc.i4.1 add ldind.u1 conv.u8 ldc.i4.8 shl xor stloc.1 loc_A734: // CODE XREF: Stingray.Console.ReverseIdLookup__MurmurHash64+94↑j ldloc.1 ldloc.s 7 conv.i ldind.u1 conv.u8 xor stloc.1 ldloc.1 ldc.i8 0xC6A4A7935BD1E995 mul stloc.1 loc_A748: // CODE XREF: Stingray.Console.ReverseIdLookup__MurmurHash64+B5↑j ldc.i4.0 conv.u stloc.s 7 loc_A74C: // CODE XREF: Stingray.Console.ReverseIdLookup__MurmurHash64+7F↑j ldloc.1 ldloc.1 ldc.i4.s 0x2F shr.un xor stloc.1 ldloc.1 ldc.i8 0xC6A4A7935BD1E995 mul stloc.1 ldloc.1 ldloc.1 ldc.i4.s 0x2F shr.un xor stloc.1 ldloc.1 ret } } } Why are you loading this in IDA? this looks suspiciously like .Net IL Code especially from that `mscorlib` refrence Link to comment Share on other sites More sharing options...
Xaymar Posted February 27 Share Posted February 27 12 hours ago, orion42m said: How would I go about running .bt files with 010 Editor? In the menu bar you can select Templates -> Run Template, then select the matching .bt file for the file you want to inspect. 11 hours ago, Unordinal said: Here's a hash dictionary of the known extensions for that game. I can see that at least the first file type you have there matches the `.bones` file type. Thanks, with this I was able to discover more about the files themselves, and got my exporter to export everything. 8 hours ago, Myrkur said: anyone else getting some rather "cursed" imports of the meshes? Those are LoDs. It's unclear if/how we can tell which is a LoD for what so far. I've modified Hellextractor quite a bit, and it now dumps all the files from the /data directory directly, instead of needing to go through QuickBMS. No more random 8 bytes at the start of random files, which was super annoying to deal with. It exported the entire content of the game, 17.0 GiB, in just under 50 seconds - much faster than QuickBMS had any chance to be. Right now it just dumps the contents of meta, stream and gpu in a sequence, so more handling is necessary to work fully. But with this I've been able to somewhat piece together that each of the file types has some sort of special header at the start, which seems to tell us something about the file itself. For example, this is what i figured out about the TrueType Font content header: // Always the same as the files own name hash. uint64_t my_own_name_hash; // If no alternative font file: // 00 00 00 00 00 00 80 3F // If alternative font file: // 87 88 08 C0 8B 88 88 3F uint32_t __unk; uint32_t __unk; uint32_t __unk; uint32_t __unk; uint64_t different_font_name_hash; do { uint32_t count; uint32_t type; ##type## entries[count]; } while (count != 0) // Shortest header found, file is basically empty. C6 3C 13 E2 58 3D 1B 65 00 00 00 00 00 00 80 3F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 28 00 00 00 // The average header. C0 E7 1D 12 3C 53 27 53 87 88 08 C0 8B 88 88 3F 3F 00 00 00 00 00 00 00 CC E8 77 49 D4 BD 15 22 01 00 00 00 28 00 00 00 00 40 5B 44 00 80 BA C3 00 40 9C 44 40 00 00 00 00 00 00 00 00 00 00 00 // The longest header encountered so far. DD 17 83 34 E5 2C 8E 81 87 88 08 C0 8B 88 88 3F 3F 00 00 00 00 00 00 00 69 FB CF 7A 07 EB 33 C0 05 00 00 00 28 00 00 00 00 40 5B 44 00 80 BA C3 00 40 9C 44 80 00 00 00 00 40 5F 44 00 00 FE C2 00 00 FF 44 D0 F2 00 00 00 C0 71 44 00 00 7D C3 00 80 98 44 E0 3C 2C 00 00 80 6D 44 00 00 75 C3 00 60 95 44 70 20 93 00 00 00 5C 44 00 00 F0 C2 00 00 FA 44 50 76 CA 00 00 00 00 00 00 00 00 00 I do not yet understand what all of this means, but it's successfully allowed me to extract the .ttf content from the engine-specific .ttf containers. Different file types have different headers, for example: .bik: 16 byte header that seemingly always is 0xE9 0x03 0x00[14]. .animation: 16 byte header, of which the last 4 bytes are the length of the file. Rest is unknown so far. .bones: Some common bytes, but no noticable header information. .config: 8 common bytes. Nothing else noticable. .entity: No header, straight up contains content only. .font: No noticable information. .level: Probably is just the file itself, since all of them start with "IM" .material: Same as above, seems to be straight up content. .mouse_cursor: Same as above. .network_config: Same as above. .package: 16 byte header, but probably just content. Bytes 8 to 12 is the number of elements contained. .particles: Same as .material. .physics: Some common bytes between files. No noticable structure though. Likely just content. .shader_library: Straight up content. .shader_library_group: Just content. .shading_environment: Same. .shading_environment_mapping: Same. .state_machine: Same. .strings: No noticable header. Seems to contain a variable length unicode format, likely UTF-16. Might be compressed beyond a certain size. .texture: Has a 192 byte header. It is unclear why the content for this file is in both .stream and .gpu_resources at once. Unlike .font, header size is constant. "Corrupted" DDS files are BC7_UNORM R16G16B16A16_FLOAT textures, something that is hardly ever used and requires a reasonably recent version of the DDS importer - something many tools and engines do not have. .unit: Unclear so far. The engine may actually consider this to be separate files as the offsets in the meta section are relative to the start of the stream/gpu section, not relative to the entire thing. .wwise_bank, .wwise_stream, .wwside_dep: Content only. The hash list @Unordinal provided was really helpful. I'll now switch to reimplementing the MurmurHash64 that Stingray uses. 1 Link to comment Share on other sites More sharing options...
Helldiver Posted February 27 Share Posted February 27 42 minutes ago, Xaymar said: .texture: Has a 192 byte header. It is unclear why the content for this file is in both .stream and .gpu_resources at once. Unlike .font, header size is constant. "Corrupted" DDS files are BC7_UNORM R16G16B16A16_FLOAT textures, something that is hardly ever used and requires a reasonably recent version of the DDS importer - something many tools and engines do not have. My guess would be the stream is the main texture data, and gpu_resources is mipmaps texture data. Link to comment Share on other sites More sharing options...
Xaymar Posted February 27 Share Posted February 27 (edited) 7 hours ago, Helldiver said: My guess would be the stream is the main texture data, and gpu_resources is mipmaps texture data. I wish, that'd make it much easier. Unfortunately with DDS inspection tools, you'll be able to see that when you remove the 0xC0 long header and only export Meta+Stream, you'll only end up with 2/3rds of the file being used. That shrinks to 1/3rds of the file with you export Meta+Stream+GPU as one section. And neither section appears to repeat the other, which is making figuring out what it actually does rather difficult. Edit: Comparing with some raw input files that were sent to me, any file containing pure text is "compiled" down to a more optimal distribution format. A lot of data appears to be lost. Edit 2: Hashes for file types are without the ".", so '.wwise_stream' is hashed as 'wwise_stream'. It's an unseeded murmurhash64a, super easy to implement. Runs in microseconds, so I could theoretically brute force matches for each hash. Edit 3: Spent an ungodly amount of CPU power on this: Depth: 1 Depth: 2 00DE8C9D00247F8FC6 = w7 000605775C0481181B = w8 0052014E20A7FDCCEF = xp 00D596CD750E4E279F = zD Depth: 3 003EED05BA83AF5090 = apb 00AA5965F03029FA18 = bik 00D526A27DA14F1DC5 = ini 00FA4A8E091A91201E = ivf 00A14E8DFA2CD117E2 = lua 003FCDD69156A46417 = mod 00712D6E3DD1024C9C = ugg 00A99510C6E86DD3C2 = upb 00786F65C00A816B19 = wav 0076015845A6003765 = xml Depth: 4 008FD0D44D20650B68 = data 0092D3EE038EEB610D = flow 009EFE0A916AAE7880 = font 00A62F9297DC969E85 = keys 00293BB3B1982C6D5A = main 0048FF313713A997A1 = mesh 00A27B4D04A9BA6F9E = slug 0019C792357C99F49B = tome 00E0A48D0BE9A7453F = unit Depth: 5 00AC2B738A374CF583 = actor 0018DEAD01056B72E9 = bones 00D7014A50477953E0 = cloth 002BBCABE5074ADE9E = input 002A690FD348FE9AC5 = level 009D0A795BFE818D19 = scene 0090641B51C98B7AAC = sound 007B82D55316F98C9B = vista 00B6B3099F78886FF9 = win32 I could let this run for unreasonable amounts of time (time spent is O(depth^depth^validchars)), but it's pretty much confirmed that the hash function i made is identical. Edited February 27 by Xaymar Link to comment Share on other sites More sharing options...
orion42m Posted February 27 Share Posted February 27 (edited) 2 hours ago, Xaymar said: I wish, that'd make it much easier. Unfortunately with DDS inspection tools, you'll be able to see that when you remove the 0xC0 long header and only export Meta+Stream, you'll only end up with 2/3rds of the file being used. That shrinks to 1/3rds of the file with you export Meta+Stream+GPU as one section. And neither section appears to repeat the other, which is making figuring out what it actually does rather difficult. Edit: Comparing with some raw input files that were sent to me, any file containing pure text is "compiled" down to a more optimal distribution format. A lot of data appears to be lost. Edit 2: Hashes for file types are without the ".", so '.wwise_stream' is hashed as 'wwise_stream'. It's an unseeded murmurhash64a, super easy to implement. Runs in microseconds, so I could theoretically brute force matches for each hash. Edit 3: Spent an ungodly amount of CPU power on this: Depth: 1 Depth: 2 00DE8C9D00247F8FC6 = w7 000605775C0481181B = w8 0052014E20A7FDCCEF = xp 00D596CD750E4E279F = zD Depth: 3 003EED05BA83AF5090 = apb 00AA5965F03029FA18 = bik 00D526A27DA14F1DC5 = ini 00FA4A8E091A91201E = ivf 00A14E8DFA2CD117E2 = lua 003FCDD69156A46417 = mod 00712D6E3DD1024C9C = ugg 00A99510C6E86DD3C2 = upb 00786F65C00A816B19 = wav 0076015845A6003765 = xml Depth: 4 008FD0D44D20650B68 = data 0092D3EE038EEB610D = flow 009EFE0A916AAE7880 = font 00A62F9297DC969E85 = keys 00293BB3B1982C6D5A = main 0048FF313713A997A1 = mesh 00A27B4D04A9BA6F9E = slug 0019C792357C99F49B = tome 00E0A48D0BE9A7453F = unit Depth: 5 00AC2B738A374CF583 = actor 0018DEAD01056B72E9 = bones 00D7014A50477953E0 = cloth 002BBCABE5074ADE9E = input 002A690FD348FE9AC5 = level 009D0A795BFE818D19 = scene 0090641B51C98B7AAC = sound 007B82D55316F98C9B = vista 00B6B3099F78886FF9 = win32 I could let this run for unreasonable amounts of time (time spent is O(depth^depth^validchars)), but it's pretty much confirmed that the hash function i made is identical. I am sorry to be a bother, but how would I use the hashes, or is it something that would only be used in the extractor Sorry, just found out that I can’t utilize this and would really only be useful for making the extractor Edited February 27 by orion42m Link to comment Share on other sites More sharing options...
Xaymar Posted February 27 Share Posted February 27 (edited) Out of 1.7 GiB of strings detected, only ~100 KiB ended up being Stingray related, and only some actually match. But this means that we will be able to restore the file structure once I get around to implementing that part. 48 minutes ago, orion42m said: I am sorry to be a bother, but how would I use the hashes, or is it something that would only be used in the extractor Sorry, just found out that I can’t utilize this and would really only be useful for making the extractor Yes, the hashes themselves are not exactly useful without a tool to convert them back into data, which can be done by modifying the QuickBMS script if you feel like it. Though at this point, it might be much easier to just wait until Hellextractor does it for you 🙂 Edited February 27 by Xaymar 1 Link to comment Share on other sites More sharing options...
Unordinal Posted February 27 Share Posted February 27 11 hours ago, Xaymar said: In the menu bar you can select Templates -> Run Template, then select the matching .bt file for the file you want to inspect. Thanks, with this I was able to discover more about the files themselves, and got my exporter to export everything. Those are LoDs. It's unclear if/how we can tell which is a LoD for what so far. I've modified Hellextractor quite a bit, and it now dumps all the files from the /data directory directly, instead of needing to go through QuickBMS. No more random 8 bytes at the start of random files, which was super annoying to deal with. It exported the entire content of the game, 17.0 GiB, in just under 50 seconds - much faster than QuickBMS had any chance to be. Right now it just dumps the contents of meta, stream and gpu in a sequence, so more handling is necessary to work fully. But with this I've been able to somewhat piece together that each of the file types has some sort of special header at the start, which seems to tell us something about the file itself. For example, this is what i figured out about the TrueType Font content header: // Always the same as the files own name hash. uint64_t my_own_name_hash; // If no alternative font file: // 00 00 00 00 00 00 80 3F // If alternative font file: // 87 88 08 C0 8B 88 88 3F uint32_t __unk; uint32_t __unk; uint32_t __unk; uint32_t __unk; uint64_t different_font_name_hash; do { uint32_t count; uint32_t type; ##type## entries[count]; } while (count != 0) // Shortest header found, file is basically empty. C6 3C 13 E2 58 3D 1B 65 00 00 00 00 00 00 80 3F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 28 00 00 00 // The average header. C0 E7 1D 12 3C 53 27 53 87 88 08 C0 8B 88 88 3F 3F 00 00 00 00 00 00 00 CC E8 77 49 D4 BD 15 22 01 00 00 00 28 00 00 00 00 40 5B 44 00 80 BA C3 00 40 9C 44 40 00 00 00 00 00 00 00 00 00 00 00 // The longest header encountered so far. DD 17 83 34 E5 2C 8E 81 87 88 08 C0 8B 88 88 3F 3F 00 00 00 00 00 00 00 69 FB CF 7A 07 EB 33 C0 05 00 00 00 28 00 00 00 00 40 5B 44 00 80 BA C3 00 40 9C 44 80 00 00 00 00 40 5F 44 00 00 FE C2 00 00 FF 44 D0 F2 00 00 00 C0 71 44 00 00 7D C3 00 80 98 44 E0 3C 2C 00 00 80 6D 44 00 00 75 C3 00 60 95 44 70 20 93 00 00 00 5C 44 00 00 F0 C2 00 00 FA 44 50 76 CA 00 00 00 00 00 00 00 00 00 I do not yet understand what all of this means, but it's successfully allowed me to extract the .ttf content from the engine-specific .ttf containers. Different file types have different headers, for example: .bik: 16 byte header that seemingly always is 0xE9 0x03 0x00[14]. .animation: 16 byte header, of which the last 4 bytes are the length of the file. Rest is unknown so far. .bones: Some common bytes, but no noticable header information. .config: 8 common bytes. Nothing else noticable. .entity: No header, straight up contains content only. .font: No noticable information. .level: Probably is just the file itself, since all of them start with "IM" .material: Same as above, seems to be straight up content. .mouse_cursor: Same as above. .network_config: Same as above. .package: 16 byte header, but probably just content. Bytes 8 to 12 is the number of elements contained. .particles: Same as .material. .physics: Some common bytes between files. No noticable structure though. Likely just content. .shader_library: Straight up content. .shader_library_group: Just content. .shading_environment: Same. .shading_environment_mapping: Same. .state_machine: Same. .strings: No noticable header. Seems to contain a variable length unicode format, likely UTF-16. Might be compressed beyond a certain size. .texture: Has a 192 byte header. It is unclear why the content for this file is in both .stream and .gpu_resources at once. Unlike .font, header size is constant. "Corrupted" DDS files are BC7_UNORM R16G16B16A16_FLOAT textures, something that is hardly ever used and requires a reasonably recent version of the DDS importer - something many tools and engines do not have. .unit: Unclear so far. The engine may actually consider this to be separate files as the offsets in the meta section are relative to the start of the stream/gpu section, not relative to the entire thing. .wwise_bank, .wwise_stream, .wwside_dep: Content only. The hash list @Unordinal provided was really helpful. I'll now switch to reimplementing the MurmurHash64 that Stingray uses. Glad it helped! I have a VT2 repo, done in C# - code's a bit of a mess and the differences between the two games might mean most of it is useless for Helldivers but I'll leave it here just in case it's of some use: https://github.com/Unordinal/VT2Lib/ I used it to extract some models with rigs from VT2, but VT2 doesn't have the `.gpu_resources` files and the format's probably diverged quite a bit, since `.unit` files held the meshes/scene data/bones/etc for that game. Link to comment Share on other sites More sharing options...
orion42m Posted February 27 Share Posted February 27 2 hours ago, Xaymar said: Out of 1.7 GiB of strings detected, only ~100 KiB ended up being Stingray related, and only some actually match. But this means that we will be able to restore the file structure once I get around to implementing that part. Yes, the hashes themselves are not exactly useful without a tool to convert them back into data, which can be done by modifying the QuickBMS script if you feel like it. Though at this point, it might be much easier to just wait until Hellextractor does it for you 🙂 Thank you, That is probably the case, however I still will try to take the effort and time to absorb what information I can so I might be able to be helpful in future endeavors. Link to comment Share on other sites More sharing options...

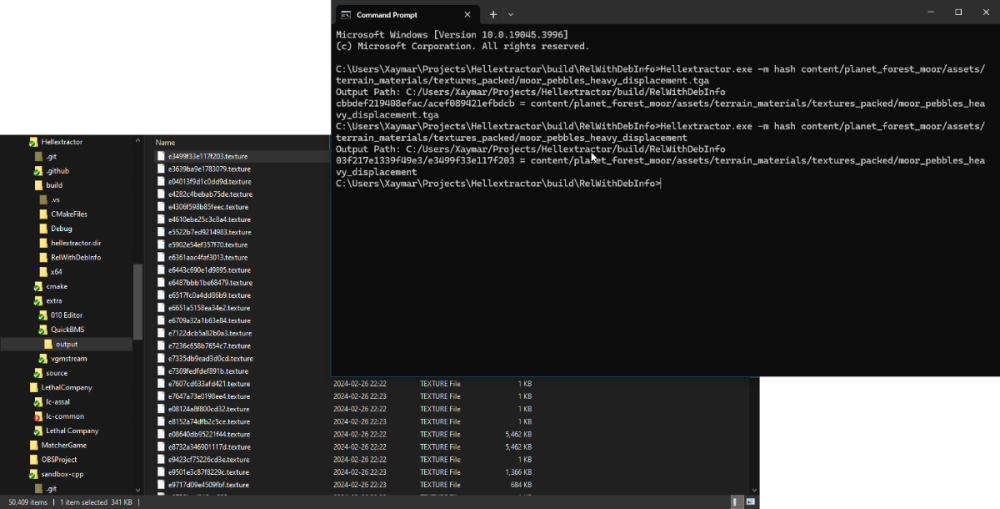

Xaymar Posted February 27 Share Posted February 27 (edited) Great news, everyone! Hellextractor is now at a reasonably advanced point, and can be used for more what it's originally intended for. Lots of thanks to everyone here, as well as the contributors on other platforms. Does not yet handle file conversion, but with the new modular code, more functionality is not far away anymore. Usage: hellextractor <mode> ... It'll print the help if you provide an invalid mode, or provide -h as the first argument to a mode Features Generate hashes for arbitrary text using the "hash" mode. Extract files from container files using the "extract" mode. Filter input files using the new "-i" option. Filter ouput files using the new "-f" option. Provide a Type Hash Translation file using the new "-t" option. Provide a Name Hash Translation file using the new "-n" option. Provide a generic String Hash Translation file using the new "-s" option. Make the whole thing only print text, and not do anything with the "-d" option. (Dry run!) Hash Translation files now allow converting hashes back into normal text, sample files are provided here. Also thanks to ThePotato97 on Github for automating the build process. If you want a more up to date version, log in on github, click the actions tab, and find the most recent build, and click the asset to download. Download: on Github Edited February 28 by Xaymar Downloads moved to Github so I don't have to edit this so often. No account needed anymore! 2 Link to comment Share on other sites More sharing options...
GameBreaker Posted February 27 Share Posted February 27 47 minutes ago, Xaymar said: Great news, everyone! Hellextractor is now at a reasonably advanced point, and can be used for more what it's originally intended for. Lots of thanks to everyone here, as well as the contributors on other platforms. Does not yet handle file conversion, but with the new modular code, more functionality is not far away anymore. Usage: hellextractor <mode> ... It'll print the help if you provide an invalid mode, or provide -h as the first argument to a mode Features Generate hashes for arbitrary text using the "hash" mode. Extract files from container files using the "extract" mode. Filter input files using the new "-i" option. Filter ouput files using the new "-f" option. Provide a Type Hash Translation file using the new "-t" option. Provide a Name Hash Translation file using the new "-n" option. Provide a generic String Hash Translation file using the new "-s" option. Make the whole thing only print text, and not do anything with the "-d" option. (Dry run!) Hash Translation files now allow converting hashes back into normal text, sample files are provided here. Also thanks to ThePotato97 on Github for automating the build process. If you want a more up to date version, log in on github, click the actions tab, and find the most recent build, and click the asset to download. Example: Extract all files and use translation files to convert back to normal names: Hellextractor.exe extract -o output -t types.txt -n files.txt -s strings.txt "D:\Games\Steam\steamapps\common\Helldivers 2\data" hellextractor.zip 84.75 kB · 2 downloads Do remember that the dds images can be array images, if your converting those to png, you will need to convert the other array images into pngs after splitting them apart from the original dds file. Link to comment Share on other sites More sharing options...
FunnyML Posted February 27 Share Posted February 27 1 hour ago, Xaymar said: Great news, everyone! Hellextractor is now at a reasonably advanced point, and can be used for more what it's originally intended for. I grabbed your tool you attached to your latest post, placed the most recent files/strings/types.txts from your github next to it and used the command Hellextractor.exe extract -o output -t types.txt -n files.txt -s strings.txt "[path_to_data_folder]" to extract and rename the tracks. 51600 got exported (17GB), but none of those files got renamed. In addition, the files don't look proper - their headers don't appear at the start. Here is a screenshot of two files: Does anybody have the same problem? Link to comment Share on other sites More sharing options...
Engineer h3x3r Posted February 27 Engineer Share Posted February 27 Because we don't have all filenames yet. There is only like 1500K restored filenames. Also tool dumps files with additional data included in main file. Link to comment Share on other sites More sharing options...
Helldiver Posted February 27 Share Posted February 27 8 hours ago, Xaymar said: I wish, that'd make it much easier. Unfortunately with DDS inspection tools, you'll be able to see that when you remove the 0xC0 long header and only export Meta+Stream, you'll only end up with 2/3rds of the file being used. That shrinks to 1/3rds of the file with you export Meta+Stream+GPU as one section. And neither section appears to repeat the other, which is making figuring out what it actually does rather difficult. Edit: Comparing with some raw input files that were sent to me, any file containing pure text is "compiled" down to a more optimal distribution format. A lot of data appears to be lost. Edit 2: Hashes for file types are without the ".", so '.wwise_stream' is hashed as 'wwise_stream'. It's an unseeded murmurhash64a, super easy to implement. Runs in microseconds, so I could theoretically brute force matches for each hash. Edit 3: Spent an ungodly amount of CPU power on this: Depth: 1 Depth: 2 00DE8C9D00247F8FC6 = w7 000605775C0481181B = w8 0052014E20A7FDCCEF = xp 00D596CD750E4E279F = zD Depth: 3 003EED05BA83AF5090 = apb 00AA5965F03029FA18 = bik 00D526A27DA14F1DC5 = ini 00FA4A8E091A91201E = ivf 00A14E8DFA2CD117E2 = lua 003FCDD69156A46417 = mod 00712D6E3DD1024C9C = ugg 00A99510C6E86DD3C2 = upb 00786F65C00A816B19 = wav 0076015845A6003765 = xml Depth: 4 008FD0D44D20650B68 = data 0092D3EE038EEB610D = flow 009EFE0A916AAE7880 = font 00A62F9297DC969E85 = keys 00293BB3B1982C6D5A = main 0048FF313713A997A1 = mesh 00A27B4D04A9BA6F9E = slug 0019C792357C99F49B = tome 00E0A48D0BE9A7453F = unit Depth: 5 00AC2B738A374CF583 = actor 0018DEAD01056B72E9 = bones 00D7014A50477953E0 = cloth 002BBCABE5074ADE9E = input 002A690FD348FE9AC5 = level 009D0A795BFE818D19 = scene 0090641B51C98B7AAC = sound 007B82D55316F98C9B = vista 00B6B3099F78886FF9 = win32 I could let this run for unreasonable amounts of time (time spent is O(depth^depth^validchars)), but it's pretty much confirmed that the hash function i made is identical. Some of these I have not seen in the game files, such as 00DE8C9D00247F8FC6. What file do you see it in? Link to comment Share on other sites More sharing options...
GameBreaker Posted February 27 Share Posted February 27 1 hour ago, Xaymar said: Great news, everyone! Hellextractor is now at a reasonably advanced point, and can be used for more what it's originally intended for. Lots of thanks to everyone here, as well as the contributors on other platforms. Does not yet handle file conversion, but with the new modular code, more functionality is not far away anymore. Usage: hellextractor <mode> ... It'll print the help if you provide an invalid mode, or provide -h as the first argument to a mode Features Generate hashes for arbitrary text using the "hash" mode. Extract files from container files using the "extract" mode. Filter input files using the new "-i" option. Filter ouput files using the new "-f" option. Provide a Type Hash Translation file using the new "-t" option. Provide a Name Hash Translation file using the new "-n" option. Provide a generic String Hash Translation file using the new "-s" option. Make the whole thing only print text, and not do anything with the "-d" option. (Dry run!) Hash Translation files now allow converting hashes back into normal text, sample files are provided here. Also thanks to ThePotato97 on Github for automating the build process. If you want a more up to date version, log in on github, click the actions tab, and find the most recent build, and click the asset to download. Example: Extract all files and use translation files to convert back to normal names: Hellextractor.exe extract -o output -t types.txt -n files.txt -s strings.txt "D:\Games\Steam\steamapps\common\Helldivers 2\data" hellextractor.zip 84.75 kB · 16 downloads Why are texture files labeled as .texture and not .dds, as they are all dds textures, nothing more. Link to comment Share on other sites More sharing options...
Xaymar Posted February 27 Share Posted February 27 (edited) 27 minutes ago, FunnyML said: Does anybody have the same problem? We have a miniscule fraction of the file names, but we have most of the type names, so this is normal. The game does not use file names at all, it only uses hashes - so we have to reverse the hashes back into names. 12 minutes ago, Helldiver said: Some of these I have not seen in the game files, such as 00DE8C9D00247F8FC6. What file do you see it in? The 00 is an error at the start, I typod a 16 into 18. These are also just the types mentioned all over the thread. 6 minutes ago, GameBreaker said: Why are texture files labeled as .texture and not .dds, as they are all dds textures, nothing more. Metadata. There's more to them, that's why. It extracts data as-is, without conversion for now. Edit: Also because the actual file type is ".texture", the hash is a 100% match. It's not just a .dds file, which has a completely different hash Edited February 27 by Xaymar Link to comment Share on other sites More sharing options...
Helldiver Posted February 27 Share Posted February 27 (edited) 21 minutes ago, Xaymar said: The 00 is an error at the start, I typod a 16 into 18. These are also just the types mentioned all over the thread. What I meant was, I scan all package file for all file hash and type hashes. I only see 45 type hashes: 05106b81dcd58a13 0d972bab10b40fd3 strings 18dead01056b72e9 bones 1d59bd6687db6b33 250e0a11ac8e26f8 shading_environment_mapping 27862fe24795319c render_config 2a0a70acfe476e1d 2a690fd348fe9ac5 level 3b1fa9e8f6bac374 network_config 504b55235d21440e wwise_stream 535a7bd3e650d799 wwise_bank 57a13425279979d7 5f7203c8f280dab8 physics 5fdd5fe391076f9f 6592b918e67f082c 7910103158fc1de9 82645835e6b73232 config 9199bb50b6896f02 92d3ee038eeb610d flow 931e336d7646cc26 9831ca893b0d087d entity 9e5c3cc74575aeb5 shader_library_group 9efe0a916aae7880 font a14e8dfa2cd117e2 lua a486d4045106165c state_machine a8193123526fad64 particles aa5965f03029fa18 bik ab2f78e885f513c6 prefab ad9c6d9ed1e5e77a package af32095c82f2b070 wwise_dep b277b11fe4a61d37 mouse_cursor b8fd4d2cede20ed7 c4f0f4be7fb0c8d6 cd4238c6a0c69e32 texture d50a8b7e1c82b110 wwise_metadata d7014a50477953e0 cloth e0a48d0be9a7453f unit e3f2851035957af5 e5ee32a477239a93 e985c5f61c169997 speedtree eac0b497876adedf material f7505933166d6755 vector_field f7a09f8bb35a1d49 fcaaf813b4d3cc1e fe73c7dcff8a7ca5 shading_environment Edit: I see my mistake now. I see https://github.com/Xaymar/Hellextractor/blob/ac0076676060df95a855696ea6e558ceb4ff4bb9/source/hd2_data.hpp#L51 shows you kept VT2 types that do not exist in Helldivers 2. Edited February 27 by Helldiver Link to comment Share on other sites More sharing options...
Xaymar Posted February 27 Share Posted February 27 (edited) 25 minutes ago, Helldiver said: What I meant was, I scan all package file for all file hash and type hashes. I only see 45 type hashes: 25 minutes ago, Helldiver said: Edit: I see my mistake now. I see https://github.com/Xaymar/Hellextractor/blob/ac0076676060df95a855696ea6e558ceb4ff4bb9/source/hd2_data.hpp#L51 shows you kept VT2 types that do not exist in Helldivers 2. The enumeration there isn't used in actual decisions anymore, only translation tables are used. You're free to pick whichever types.txt you want. I don't really see a reason to restrict the types.txt to only things actually found in Helldivers 2. Edit: Additionally I already mentioned that in my first reply. Edited February 27 by Xaymar Link to comment Share on other sites More sharing options...
Helldiver Posted February 27 Share Posted February 27 Just now, Xaymar said: The enumeration there isn't used in actual decisions anymore, only translation tables are used. You're free to pick whichever types.txt you want. I don't really see a reason to restrict the types.txt to only things actually found in Helldivers 2. Just confusion on my part, I thought since you kept them that they were in Helldivers 2 somewhere and that my code was not working properly. Link to comment Share on other sites More sharing options...
Xaymar Posted February 28 Share Posted February 28 (edited) For those that love re-exporting content, the tool now supports renaming files! Statistics: Exported: 0 Renamed: 9 Deleted: 0 Skipped: 715 Filtered: 50885 Whenever it detects that a newer name is available for a file, and the existing file matches the expected size, it'll rename instead. If the target file already exists, it'll delete the old file too, so no duplicate files in your export. It also now fixes my Big Endian / Little Endian mixup Edit: For what it's worth, the current files.txt could be used to mount a massive dictionary attack on the hashes. It'll cut down on time required significantly, but not really by much. Just split all the strings by / and _, then merge arbitrarily until you find a match. For numbers, increment up to a reasonable amount (single digit is likely to end at 9, double at probably 99). If you know the type of the name hash, you can also do more specific trickery, like using keywords related to that type (_albedo _normal _nms _displacement) Edited February 28 by Xaymar Link to comment Share on other sites More sharing options...
Engineer h3x3r Posted February 28 Engineer Share Posted February 28 Possible suffixes for textures. Spoiler __tex_NAR __tex_albedo __tex_albedo_blend __tex_albedo_blend_tex __tex_albedo_color __tex_albedo_flag __tex_albedo_iridescence __tex_albedo_tex __tex_albedo_wear __tex_albedoopacity_01 __tex_anterior_chamber_heightmap __tex_anterior_chamber_normal __tex_ao_heightmap __tex_ao_map __tex_atlas_tex __tex_atmospheric_scattering_color __tex_atmospheric_scattering_transmittance __tex_background_alpha __tex_background_texture __tex_badge_flipbook __tex_baker_material_atlas __tex_base_color __tex_base_color_metal_map __tex_base_color_scrolled __tex_base_data __tex_base_map __tex_base_mask __tex_base_normal_ao __tex_base_normal_ao_dirt __tex_base_normal_ao_subsurface __tex_basemap_highlands __tex_basemap_lowlands __tex_bca_tex __tex_beam_tex_01 __tex_bgtexture __tex_biome_a_66e90b33 __tex_biome_b_66e90b33 __tex_blocker_mask_target __tex_blood_lut __tex_blood_overlay_normal_grayscale __tex_blood_scalar_field __tex_blood_splatter_tiler __tex_blood_tiler __tex_bluenoise_texture __tex_brdf_lut __tex_brush_texture __tex_bubble_tex __tex_bubble_tex_02 __tex_bug_splatter_tiler __tex_cape_gradient __tex_cape_lut __tex_cape_scalar_fields __tex_cape_tear __tex_cctv_feed __tex_clearcoat_norm_xy_intensity_roughness_map __tex_clearcoat_roughness_ao_spec __tex_cliffs_target __tex_cloaking_noise __tex_closest_reflection_map __tex_cloth_detail_normal __tex_cloud_mask __tex_color_lut __tex_color_map __tex_color_roughness __tex_color_specular_b __tex_color_tint_lookup __tex_color_tint_mask_map __tex_color_variation_mask __tex_color_variation_mra __tex_color_variation_normal __tex_combined_fog_volumes_color_density __tex_combined_fog_volumes_parameters __tex_composite_array __tex_concrete_sampler __tex_continents_LUT __tex_continents_texture_map __tex_corporate_color_roughness_lut __tex_cosmic_dust_lut __tex_covering_albedo __tex_covering_normal __tex_crater_texture __tex_cubemap __tex_current_exposure __tex_customization_camo_tiler_array __tex_customization_material_detail_tiler_array __tex_damage_tiler_data __tex_damage_tiler_derivatives __tex_data_map_fad03be1 __tex_data_tex __tex_data_tex_02 __tex_data_texture __tex_decal_sheet __tex_deformable_terrain_mask __tex_depth_color_lookup __tex_depth_stencil_buffer __tex_detail_mask_ __tex_detail_normal_1 __tex_detail_tex __tex_diffuse_map __tex_dir_map_fad03be1 __tex_dirt_map __tex_displacement_map __tex_displacement_tex __tex_dist_tex __tex_distortion_map __tex_distortion_tex __tex_distress __tex_distress_texture __tex_earth_continents __tex_emissive __tex_emissive_color __tex_emissive_f_stop_10_intensity_map __tex_emissive_map __tex_emissive_mask __tex_emissive_nebula_lut __tex_emissive_pack __tex_emissive_planet __tex_emissive_texture __tex_emissivemask __tex_erode_map __tex_erode_tex __tex_erode_texture __tex_eye_lut __tex_far_fog __tex_far_fog_div4_clouds __tex_far_fog_div4_clouds_history __tex_far_fog_div4_history __tex_far_shadows __tex_far_shadows_volume __tex_fill_texture __tex_flare_noise __tex_flash_mask __tex_flash_mask_02 __tex_flatten_texture __tex_flattening_lookup __tex_flicker_tex __tex_flow_map_fad03be1 __tex_fog_volume_particle_texture __tex_footstep_tiler __tex_galaxy_dust __tex_galaxy_shape __tex_galaxy_stars __tex_gas_giant_lookup __tex_gbuffer0 __tex_gbuffer1 __tex_gbuffer1_copy __tex_gbuffer2 __tex_gbuffer3 __tex_gbuffer_emissive __tex_generated_global_shader_input __tex_generated_heightmap __tex_generated_heightmap_f __tex_generated_heightmap_offset __tex_generated_heightmap_properties __tex_generated_heightmap_properties_height __tex_generated_heightmap_slope __tex_generated_heightmap_source __tex_generated_heightmap_tmp_div4 __tex_generated_heightmap_unorm_div2 __tex_generated_materials __tex_generated_minimap __tex_generated_minimap_slot __tex_generated_per_zone_shader_input __tex_generated_route_distance __tex_generated_terrain_albedo __tex_generated_water_replace_lookup __tex_glass_data __tex_glint_sample __tex_glint_sample_0dfb75cf __tex_glint_sample_61c13523 __tex_global_diffuse_map __tex_global_lens_dirt_map __tex_global_radiance_map __tex_global_specular_map __tex_gradient __tex_gradient_map __tex_gradient_texture __tex_graph_integral_texture __tex_grid_texture_map __tex_ground_albedo __tex_ground_nar __tex_grunge_mask __tex_hdr0 __tex_hdr0_div4_fullres __tex_hdr1 __tex_hdr2 __tex_hdr_ssr __tex_height_noise __tex_height_sample_247fa7cb __tex_heightmap_highlands __tex_heightmap_lowlands __tex_high_altitude_clouds_color __tex_high_altitude_clouds_color_probe __tex_hmap __tex_hologram_cylinder_texture_map __tex_hologram_pattern __tex_id_masks_array __tex_ies_lookup __tex_input_image __tex_input_texture __tex_input_texture0 __tex_input_texture1 __tex_input_texture2 __tex_input_texture3 __tex_input_texture4 __tex_input_texture5 __tex_input_texture6 __tex_input_texture7 __tex_input_texture8 __tex_iris_tiler __tex_lens_cutout_texture __tex_lens_emissive_texture __tex_lens_occlusion_texture __tex_light_bleed_map __tex_light_probe_space_specular __tex_linear_depth __tex_linear_depth_mip6 __tex_local_lights_shadow_atlas __tex_lut_emissive __tex_mask __tex_mask_atlas_tex __tex_mask_tex __tex_masktexture __tex_material_lut __tex_material_map __tex_material_tiler __tex_metallic_map __tex_minimap_base_color __tex_minimap_blocker_target0 __tex_minimap_blocker_target1 __tex_minimap_heightmap __tex_minimap_lut __tex_minimap_metallic_subsurface_roughness_specular __tex_minimap_normal_wetness __tex_minimap_routes __tex_minimap_subsurface_color __tex_moon_lut __tex_motion_vectors __tex_mra __tex_mrae __tex_msdf_texture __tex_mud_normals_grayscale __tex_nac __tex_nar_tex __tex_nar_texture __tex_nms_tex __tex_noise_01 __tex_noise_01_texture __tex_noise_02 __tex_noise_02_tex __tex_noise_3d __tex_noise_array __tex_noise_map_01 __tex_noise_map_02 __tex_noise_normal __tex_noise_pack __tex_noise_pack_01 __tex_noise_pack_02 __tex_noise_tex __tex_noise_tex_01 __tex_noise_tex_02 __tex_noise_texture __tex_normal __tex_normal_ao_roughness __tex_normal_map __tex_normal_map_01 __tex_normal_map_02 __tex_normal_map_with_alpha __tex_normal_opacity __tex_normal_specular_ao __tex_normal_xy_ao_rough_map __tex_normal_xy_roughness_opacity __tex_normals __tex_nrm_01 __tex_nrm_02 __tex_offset_01 __tex_offset_02 __tex_offset_noise __tex_offset_texture __tex_opacity_clip_map __tex_opacity_map __tex_outside_map_vista_heightmap __tex_outside_map_vista_heightmap_frequency_map __tex_overlay_texture __tex_overlay_texture_map __tex_palette_lut __tex_parallax_map __tex_pattern_lut __tex_pattern_masks_array __tex_planet_noise __tex_playercard_texture __tex_prev_linear_depth_mip6 __tex_primary_color_variation_normal_mr __tex_primary_material_albedo __tex_primary_material_mask __tex_pupil_heightmap __tex_pupil_normal __tex_reflection_map __tex_reticle_texture __tex_ripples_tiler __tex_road_data_strip __tex_road_direction_target __tex_roughness_map __tex_scatter_albedo_opacity __tex_scatter_albedo_opacity_array __tex_scatter_comparision_density __tex_scatter_density __tex_scatter_density_map __tex_scatter_lookup __tex_scatter_normal_array __tex_scatter_rsh_array __tex_scatter_subsurface_array __tex_scenario_overlay_texture __tex_sclar_field_opacity __tex_scorch_marks __tex_screen_effect_data_texture __tex_screen_video_texture_b __tex_screen_video_texture_r __tex_screen_video_texture_y __tex_scroll_noise __tex_sdf __tex_secondary_map __tex_secondary_material_mask __tex_shadow_minimap_heightmap __tex_shadow_opacity __tex_ship_hub_specular_array __tex_ship_hub_specular_lerp_from_array __tex_ship_hub_specular_lerp_to_array __tex_ship_video_texture_b __tex_ship_video_texture_r __tex_ship_video_texture_y __tex_skydome_map __tex_slot_0 __tex_smoke_pack __tex_snow_glints_tiler __tex_snow_mask_texture __tex_snow_mask_texture_01 __tex_snow_pnrb_array __tex_space_probe_backdrop __tex_space_star_lut __tex_space_star_lut_tmp __tex_spec_iri_intensity_iri_thickness_map __tex_specular_brdf_lut __tex_ssao_buffer __tex_sss_lut __tex_subsurface_opacity __tex_sun_flare_image __tex_sun_flare_visibility_lookup __tex_sun_flare_visibility_lookup_sum __tex_sun_shadow_map __tex_survey_qr_code __tex_sweep_tex __tex_sweep_texture __tex_tear_map __tex_tear_normals_grayscale __tex_terrain_blending_data __tex_terrain_displacement_map __tex_terrain_height_mask __tex_terrain_trample __tex_terrain_transparent __tex_tex __tex_tex0 __tex_tex1 __tex_tex2 __tex_tex3 __tex_tex4 __tex_tex_01 __tex_tex_02 __tex_tex_mask __tex_tex_normals __tex_texture_data __tex_texture_grayscale_map __tex_texture_map __tex_texture_map_01 __tex_texture_map_02 __tex_texture_map_0b1b5dad __tex_texture_map_166acea5 __tex_texture_map_2252c011 __tex_texture_map_2a3f3fe6 __tex_texture_map_2cfaf55e __tex_texture_map_319d3bb5 __tex_texture_map_365947bd __tex_texture_map_39265ef9 __tex_texture_map_58f9c7e1 __tex_texture_map_5bd36001 __tex_texture_map_64344fd2 __tex_texture_map_6535d7ee __tex_texture_map_657f1762 __tex_texture_map_6a0d408c __tex_texture_map_7936f626 __tex_texture_map_c8d18519 __tex_texture_map_d367c534 __tex_texture_map_db014a68 __tex_texture_map_e814f87a __tex_texture_map_e835d457 __tex_texture_map_f11a51e5 __tex_texture_map_f5d1f42a __tex_texture_pack __tex_texture_rgba_map __tex_thumbnail_image_to_copy __tex_tiler_array __tex_trim_decal __tex_trim_sheet_height_c982efd3 __tex_triplanar_detail_albedo __tex_triplanar_detail_data __tex_ui_3d_shadows __tex_ui_diffuse_cubemap __tex_ui_specular_cubemap __tex_ui_texture __tex_ui_video_texture_b __tex_ui_video_texture_r __tex_ui_video_texture_y __tex_uv_noise_tex __tex_vegetation_bending __tex_veins_data __tex_vertex_normal_map __tex_vista_cloud_atlas __tex_vista_cloud_subsurface_atlas __tex_vista_detail_albedo __tex_vista_detail_nar __tex_volumetric_cloud_current_weather_map __tex_volumetric_cloud_detail_noise_combined __tex_volumetric_cloud_noise_combined __tex_volumetric_cloud_weather_map0 __tex_volumetric_cloud_weather_map1 __tex_volumetric_clouds_color __tex_volumetric_clouds_color_probe __tex_volumetric_clouds_depth __tex_volumetric_clouds_depth_probe __tex_volumetric_clouds_prev __tex_volumetric_clouds_shadows_final __tex_volumetric_clouds_weather_current __tex_volumetric_current_high_altitude_clouds __tex_volumetric_current_high_altitude_weather_map __tex_volumetric_fog_3d_image __tex_volumetric_fog_3d_image_history __tex_volumetric_high_altitude_clouds0 __tex_volumetric_high_altitude_clouds1 __tex_volumetric_high_altitude_weather_map0 __tex_volumetric_high_altitude_weather_map1 __tex_water_caustics __tex_water_height __tex_water_patch __tex_water_rt __tex_water_target __tex_wear __tex_wear_mask __tex_wear_mra __tex_weathering_albedo __tex_weathering_data_mask __tex_weathering_dirt __tex_weathering_nar __tex_weathering_special __tex_wind_noise __tex_wind_vector_field __tex_world_overlay_texture __tex_worldmask __tex_wound_data __tex_wound_derivative __tex_wound_lut_to_add __tex_wound_normal __tex_wounds_256 __tex_wounds_512 Link to comment Share on other sites More sharing options...
nblock Posted February 28 Share Posted February 28 might be useful if yall dont already have some of it, maybe for some parts of hashes or something idk, but heres a part of helldivers 2's settings.ini, along with some other strings i pulled hd2-strings1.zip Link to comment Share on other sites More sharing options...
