Hi all. I'm trying to build a skeleton. what is available: the bone has only the index of the parent and the length of the bone. rotations are in animation (euler angles). I take the first frame from the animation. There is a program called biturn that builds the skeleton correctly (in the screenshots). how to do this correctly? my best result and plugin attached. thank you in advance)🥹

files.zip

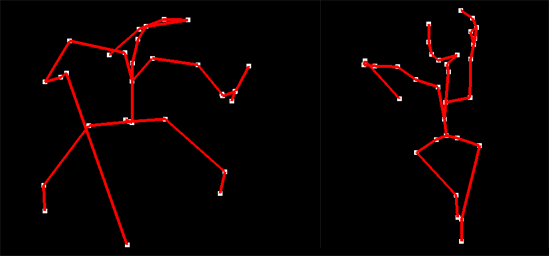

Seems you're having a 90 degrees problem with the lower 6 bones:

1 hour ago, shak-otay said:

Seems you're having a 90 degrees problem with the lower 6 bones:

how did you get this result? I've tried so many different options that I'm already confused. xD

What do you mean by "result"? It's the output from your Noesis script which I just rotated around in the viewport using the mouse cursor.

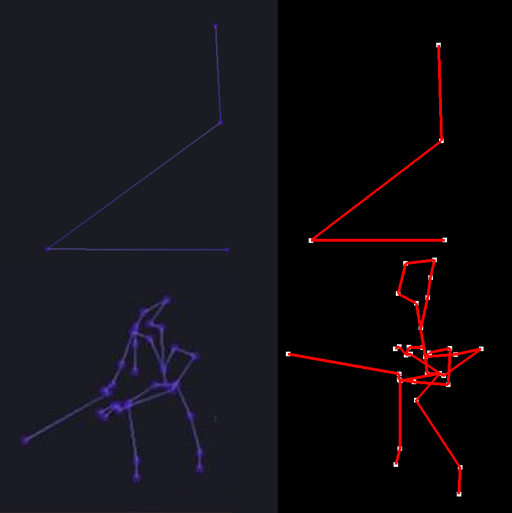

ha, it seemed to me that he was in the right pose). here's another example with fewer bones





skel2.zip

Edited March 18, 20242 yr by Pavel992

Which are the values of biturn?

I'll answer here. it works for the small one, but the humanoid is still having a hard time 🙂



fmt_test.zip

44 minutes ago, shak-otay said:

Which are the values of biturn?

(as far as I understand, in this case the length of the bone is its position).  because logically, you need to rotate the bone and then add the position of the parent, but this doesn’t work(

Edited March 18, 20242 yr by Pavel992

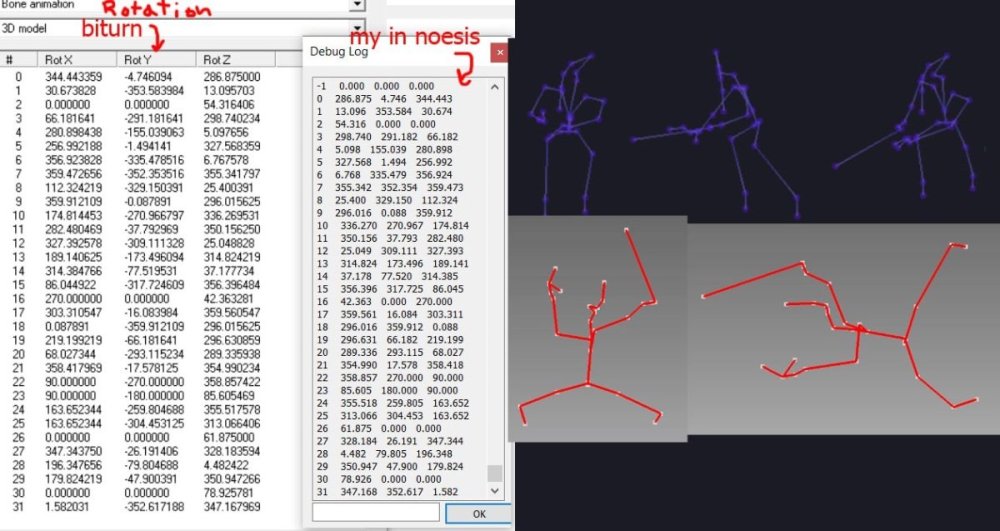

@Durik256: as always you're on the right track. Your script gives the same result as biturn (X, Z swapped, though).

(Ah, wait, and the minus is "missing" from Y.)

0 286.875 4.746 344.443
1 13.096 353.584 30.674
2 54.316 0.000 0.000
3 298.740 291.182 66.182
...
28 4.482 79.805 196.348
29 350.947 47.900 179.824
30 78.926 0.000 0.000
31 347.168 352.617 1.582

Edited March 19, 20242 yr by shak-otay

@shak-otay: in my example above, I completely repeated the biturn values, creating the bone as position [0,0,lenght] and rotation [Z,-Y,X] and it worked for the small skeleton, but not for the humanoid 🙂

I'm too already confused. I just started going through the options, some give results similar to the original. xD

rot = NoeAngles([X, Z, Y]).toMat43().inverse()
pos = NoeVec3([0,0,lenght])

fmt_test.zip

other:

I'm still trying to do it T_T
