Morph data and mesh data, how can I handle this?


Recommended Posts

I am researching model files in a game. There are two types of files (base model and specific model), where base model has all vertex, face, UV data and specific model has only vertices

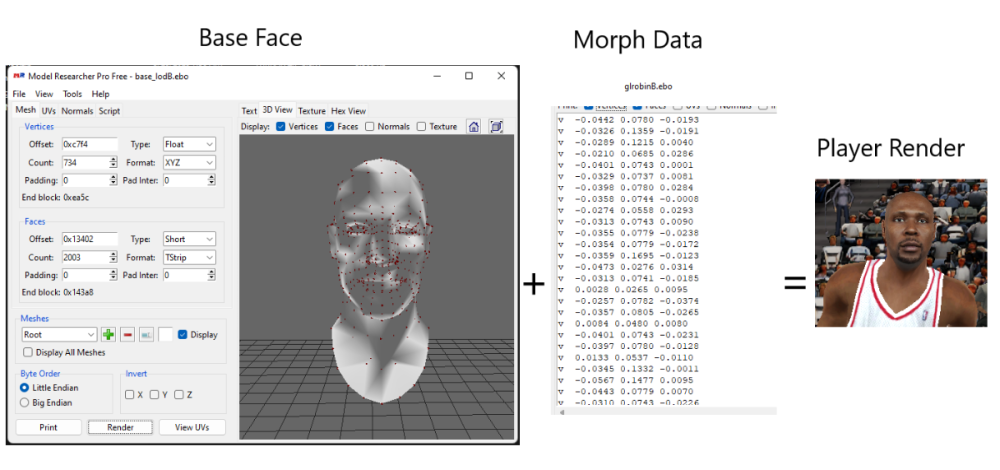

To create the specific shape, game uses a formula for vertices as vertex of base + vertex of specific model I made a compilation of process at the attached image.

Now, the issue I am facing is, the base face has 734 vertices (there are duplicates, not merged) but morph data has 573 vertices (no duplicates). It is easier to create a script that makes this reverse conversion so I can edit vertices in Blender. How can I handle this? Hopefully I could explain myself.


Link to comment
Share on other sites

  • Engineer
Posted (edited)

Hello
From my experience, morph data are stored as sparse additive vertices.

Like you described, base buffer has all vertex data, while morph targets mostly store additive positions and sometimes normals (well you can store anything, the sky is a limit, but those two attributes are prominent)

In addition, morph data tends to be stored as sparse attributes. That means each morph target uses it's own unique vertex set, that is indexed onto base buffer via it's own index table.

Example pseudo code:

for (int v = 0; v < numVertices; v++) {
  outVertPos[v] = baseVertPosition[v] + morphVertPosition[morphSparseIndices[v]];
}

If you want even info, here is great resource: https://github.com/KhronosGroup/glTF/blob/main/specification/2.0/Specification.adoc#sparse-accessors

Edited by Maxwell
