The Tool to extract pak form PS2 SNK JAP Game Metal Slug 3D?

[erickkingofarmy14]

love it or hate it Metal Slug 3D PS2 (2006). I just need to extract pak file so I knew there are 3d models of enemies and vehicles in the 2006 game but I couldn't extract it

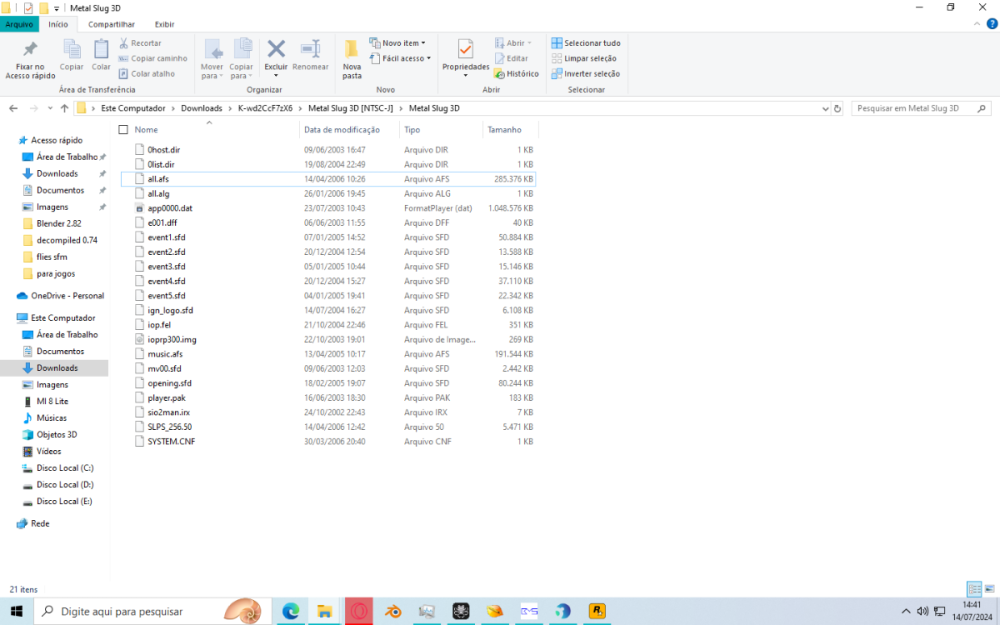

I used BMS quickbms https://aluigi.altervista.org/bms/metal_slug_3d.bms it only works only DATA file and the folder in the iso metal slug 3d ps2 doesn't have it! help please !

[roocker666]

Model files are inside "all.afs" so open that with AFS Explorer or a similar tool. You will see a lot of .pak files, playable characters are pl01.pak, pl02.pak, pl03.pak etc. so export some of those and then use that quickbms script to extract the content of each .pak, extracted files don't have names. You need to rename them to .dff, .TXD and .anm so open each file on Hex editor to check the format. This game was made with Renderware

[erickkingofarmy14]

Am I confused? Are you talking about another script or even one that I will use?

[erickkingofarmy14]

On 7/16/2024 at 4:49 PM, roocker666 said:

Model files are inside "all.afs" so open that with AFS Explorer or a similar tool. You will see a lot of .pak files, playable characters are pl01.pak, pl02.pak, pl03.pak etc. so export some of those and then use that quickbms script to extract the content of each .pak, extracted files don't have names. You need to rename them to .dff, .TXD and .anm so open each file on Hex editor to check the format. This game was made with Renderware

Am I confused? Are you talking about another script or even one that I will use?

[roocker666]

3 hours ago, erickkingofarmy14 said:

Am I confused? Are you talking about another script or even one that I will use?

Use the script that you posted:  https://aluigi.altervista.org/bms/metal_slug_3d.bms on .pak files

[erickkingofarmy14]

1 hour ago, roocker666 said:

Use the script that you posted:  https://aluigi.altervista.org/bms/metal_slug_3d.bms on .pak files

which files are mesh?

[roocker666]

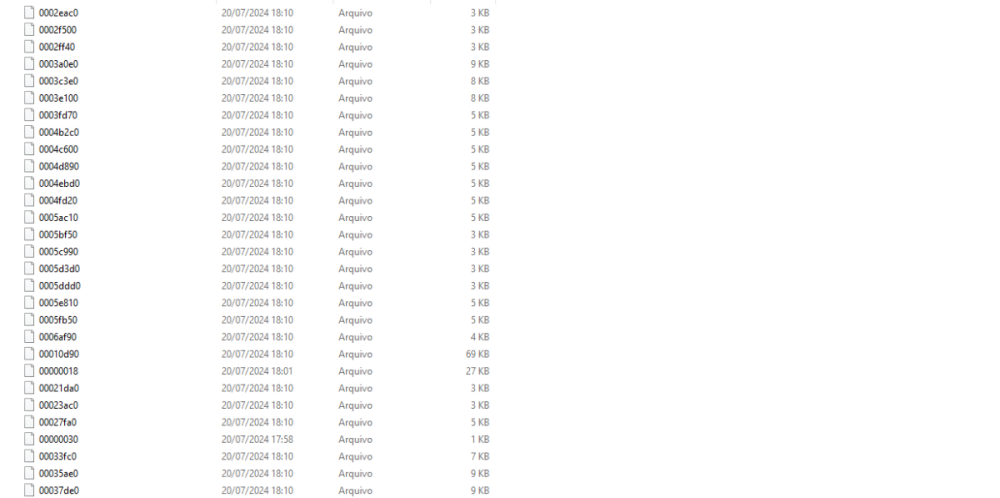

Sort files by size, usually files with bigger size are meshes or textures. Open those on Hex editor, meshes start with bytes 10 00 00 00 and textures with bytes 16 00 00 00 00, then edit the name of the file: if it is mesh rename to xxxx.dff, if it is texture file rename to xxxx.TXD

Like this:

[erickkingofarmy14]

On 7/21/2024 at 12:13 AM, roocker666 said:

Sort files by size, usually files with bigger size are meshes or textures. Open those on Hex editor, meshes start with bytes 10 00 00 00 and textures with bytes 16 00 00 00 00, then edit the name of the file: if it is mesh rename to xxxx.dff, if it is texture file rename to xxxx.TXD

Like this:

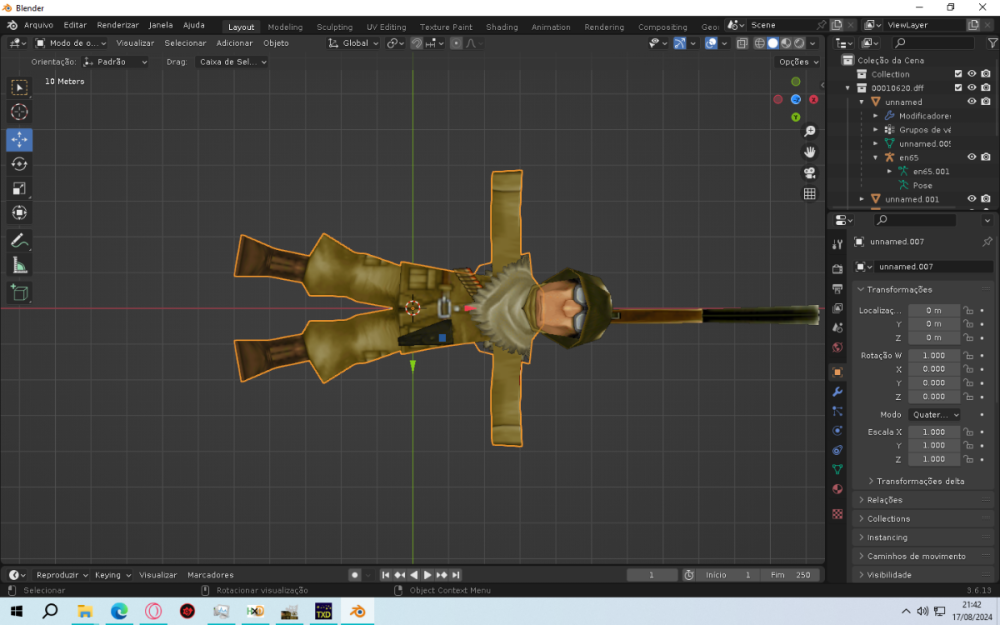

I found texture like this but mesh show this

Edited August 18, 2024 by erickkingofarmy14
add one image and texts

[erickkingofarmy14]

On 7/16/2024 at 4:49 PM, roocker666 said:

Model files are inside "all.afs" so open that with AFS Explorer or a similar tool. You will see a lot of .pak files, playable characters are pl01.pak, pl02.pak, pl03.pak etc. so export some of those and then use that quickbms script to extract the content of each .pak, extracted files don't have names. You need to rename them to .dff, .TXD and .anm so open each file on Hex editor to check the format. This game was made with Renderware

Thanks but what about the models in the cutscene? example the texture of allen o'neil

https://www.textures-resource.com/playstation_2/metalslug3d/texture/16843/

[roocker666]

I don't know man, I guess you need to examine all files one by one..
